LUMEL

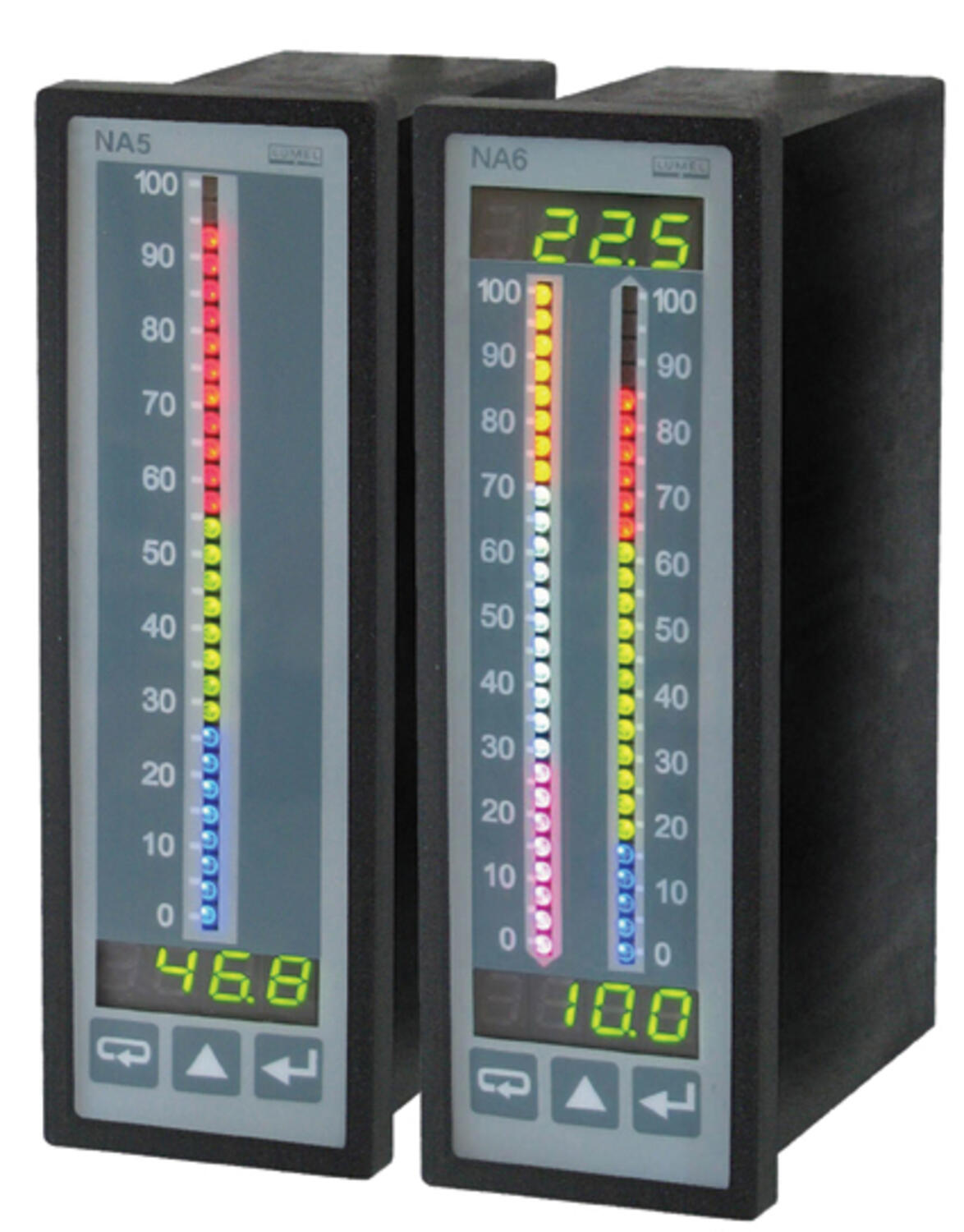

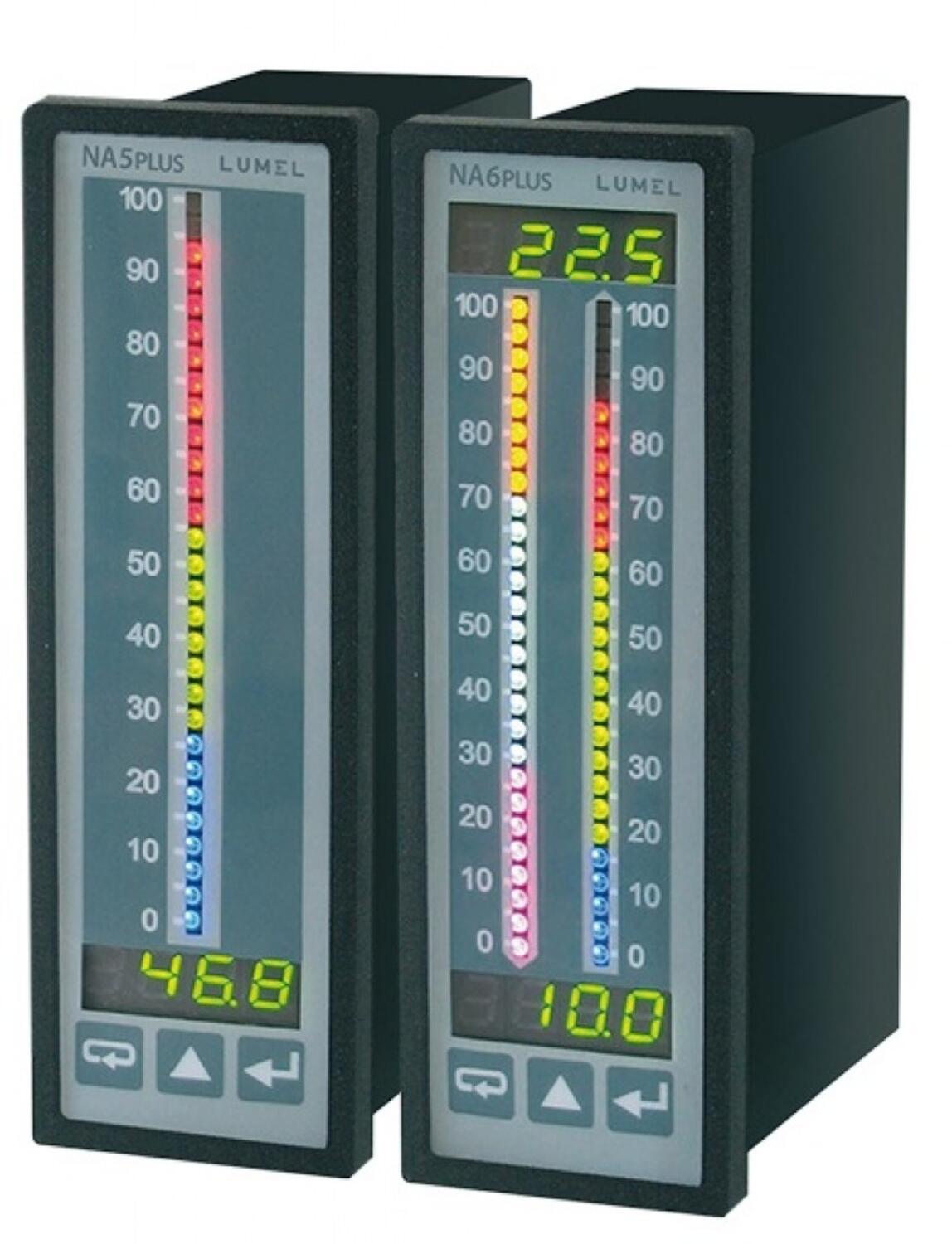

NA5PLUS, NA6PLUS

Universal input digital panel meter with multicolour bargraphs.

Meters with bargraph are devices ensuring both a high measurement accuracy and very well visualization of the measuring process courses.  Very well visualization of the process is possible through using in meters 3 and 7-coloured bargraph built with diodes made in the gallium nitride technology. They can find application in various industrial fields, e.g.food industry, pumping stations and savage-treatment plants, chemical industry, weather stations, brewing industry and many other fields where they are destined for visualisation of the measured value and evaluation of the monitored manufacturing process change trend. They can also find application in automation systems where programmable controllers are applied.

Read more
  • Universal input (programmable)
  • Wide voltage, AC/DC control
  • Digital and digital bargraph multicolour display

Selected variant

Available in several variants

Selected variant

Technical data

Approvals EN61010-1
Bargraph colour 3 Colour (R,G, R+G)
Display colour Green
IP class IP50
Mounting Panel mount
Supply voltage 95-253VAC/DC
Weight 0.4 kg

Product description

Meters with bargraph are devices ensuring both a high measurement accuracy and very well visualization of the measuring process courses.  Very well visualization of the process is possible through using in meters 3 and 7-coloured bargraph built with diodes made in the gallium nitride technology. They can find application in various industrial fields, e.g.food industry, pumping stations and savage-treatment plants, chemical industry, weather stations, brewing industry and many other fields where they are destined for visualisation of the measured value and evaluation of the monitored manufacturing process change trend. They can also find application in automation systems where programmable controllers are applied.

Ordering information

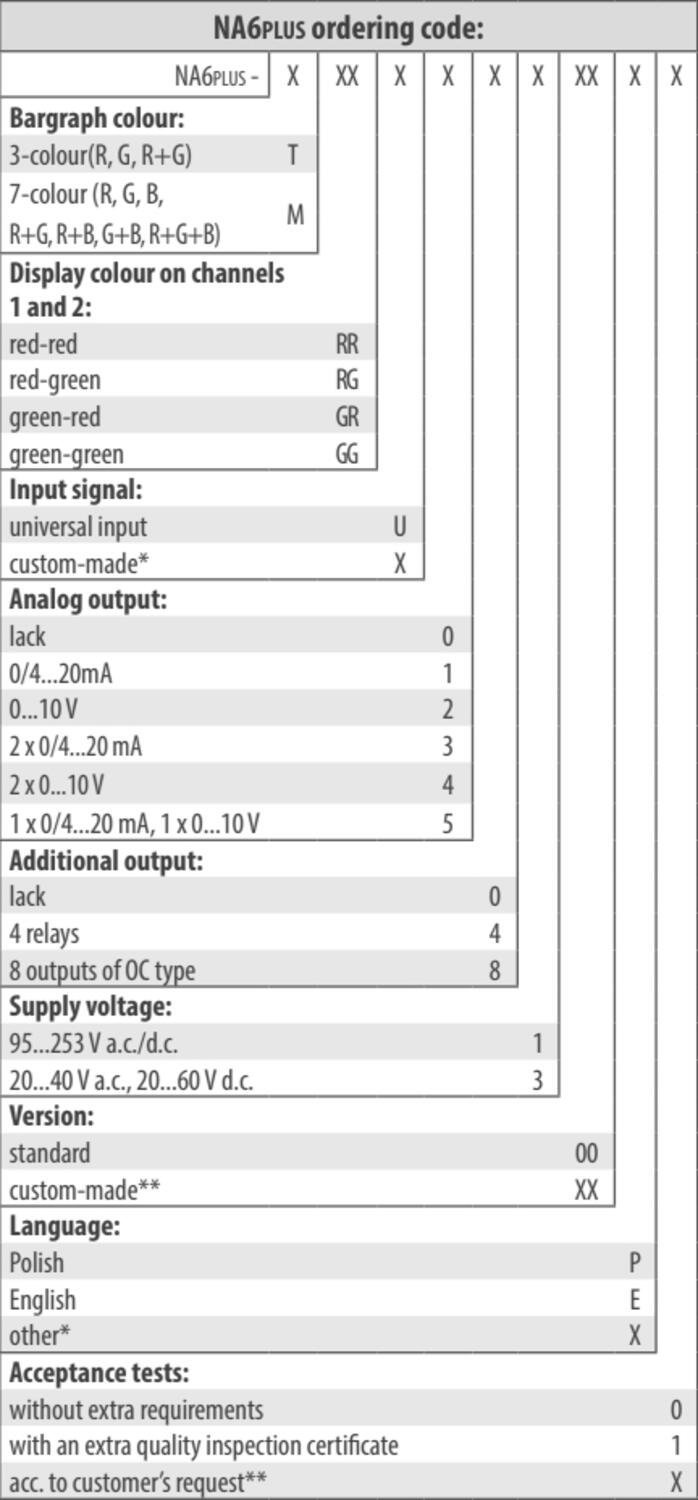

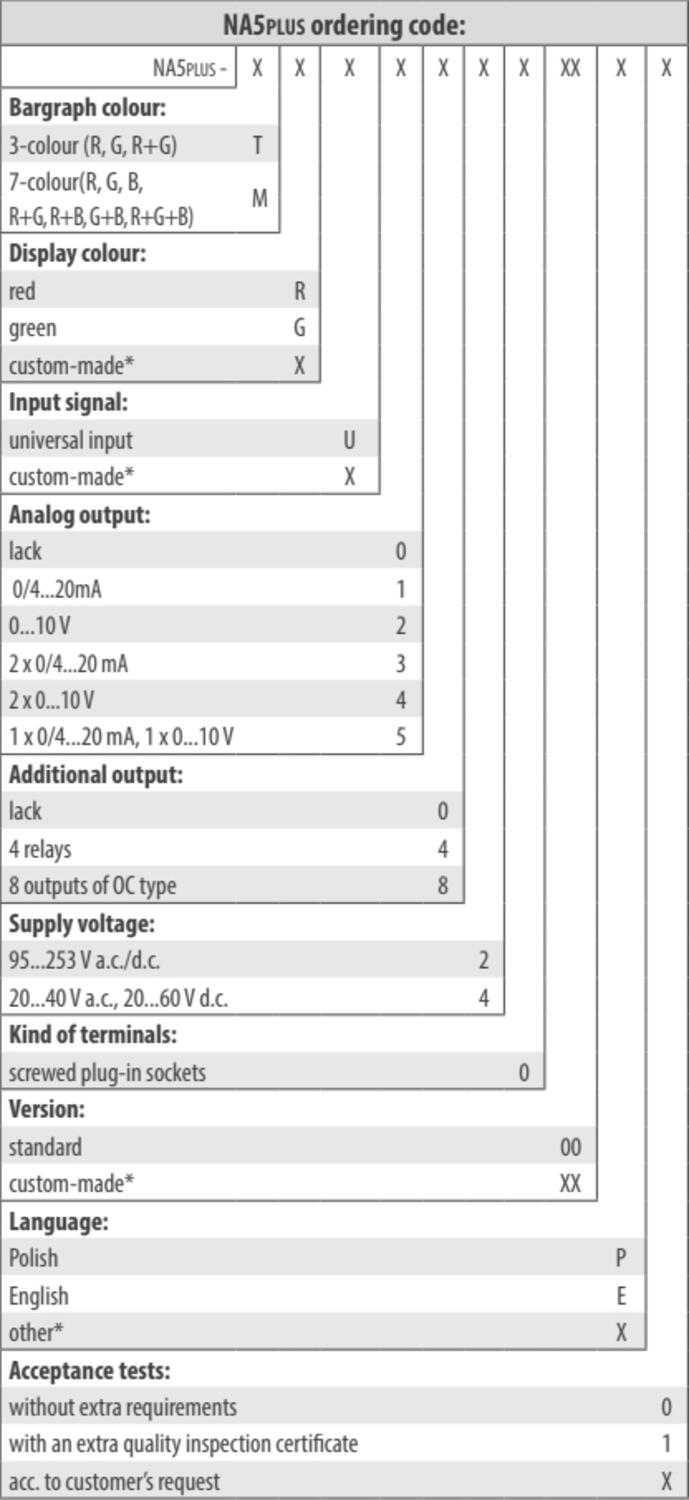

Please refer to the image below for ordering information.



2018-08-02 10_46_59-General_catalog_2018_EN.pdf.png2018-08-02 10_47_27-General_catalog_2018_EN.pdf.png

Accessories

Related

Parts Bargraph colour Display colour Price
3 Colour (R,G, R+G)
Green
3 Colour (R,G, R+G)
Red
7 Colour (R, G, B, R+G, R+B, G+B, R+G+B)
Green
7 Colour (R, G, B, R+G, R+B, G+B, R+G+B)
Red
3 Colour (R,G, R+G)
Green / green
3 Colour (R,G, R+G)
Green / red
7 Colour (R, G, B, R+G, R+B, G+B, R+G+B)
Green / green
7 Colour (R, G, B, R+G, R+B, G+B, R+G+B)
Green / red

Selected variant

Select a variant in the list
