LUMEL

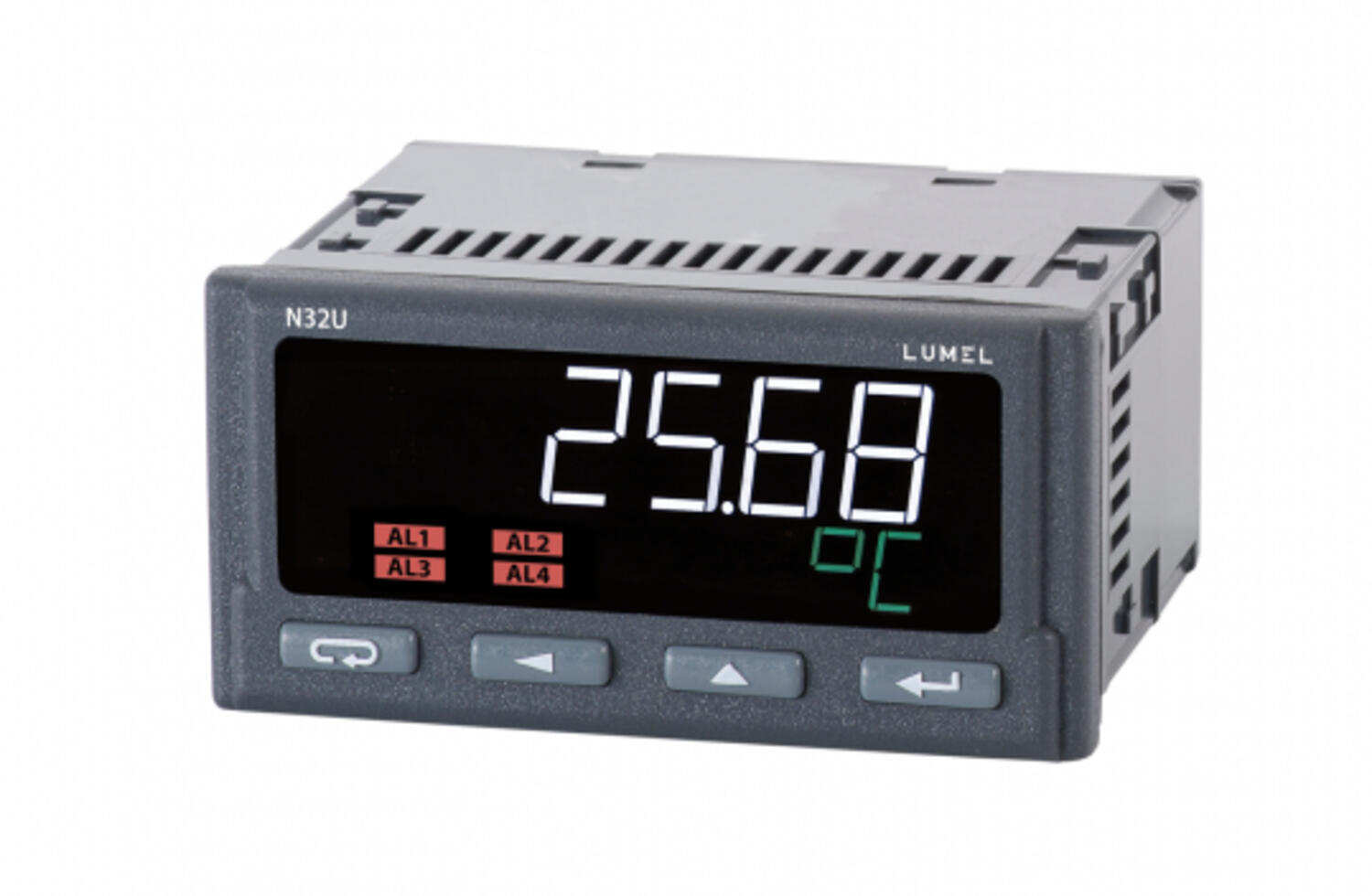

N32U
The new N32U distinguishes modern and easy to read LCD display, a universal measuring input, and an RS-485 digital output as standard on all products.
The universal input can be used for measuring temperature, standard signals and resistance. Two-line LCD display means it comes with built in backlighting and high contrast. There is a possibility of displaying the measured value and time simultaneously or an uncalculated quantity or unit (programme unit of measured quantity). With up to 4 alarm outputs with signalling on led diodes, working in seven different diodes.
Another option is a conversion of any measured value into an analog signal 0/4...20 mA or 0...10V.
Programming can be done via keyboard or through RS-485 interface by means of the free eCon software.
- Programmable digital meter of temperature, resistance and standard signals
- Universal Measuring input
- Two-line LCD display
- RS-485 digital output as standard
Selected variant
Technical data
| Display | Yes |
|---|---|
| IP class | IP65 |
| Mounting | Panel mount |
| Number of rows | 2 |
| Outputs | 1 Relay, RS-485 |
| Supply voltage | 85-253 V a.c - 90-300 V d.c. |
| Weight | 0.36 kg |
Product description
The new N32U distinguishes modern and easy to read LCD display, a universal measuring input, and an RS-485 digital output as standard on all products.
The universal input can be used for measuring temperature, standard signals and resistance. Two-line LCD display means it comes with built in backlighting and high contrast. There is a possibility of displaying the measured value and time simultaneously or an uncalculated quantity or unit (programme unit of measured quantity). With up to 4 alarm outputs with signalling on led diodes, working in seven different diodes.
Another option is a conversion of any measured value into an analog signal 0/4...20 mA or 0...10V.
Programming can be done via keyboard or through RS-485 interface by means of the free eCon software.
