Additional functions | Conversion of any measured value into current or voltage analog signal. Storage of minimal and maximal values for all measured quantites. 21-point rescaling for the measured value (does not apply to N30P and N27P). Password protection. Programmable current and voltage transformer ratio (applies to N27P and N30P). |
---|---|
Digital interface | RS-485 Modbus Slave - Option |
Display | Yes |
Input type | temperature, resistance and standard signals |
IP class | IP65 |
Mounting | Panel mount |
Number of digits | 5 |
Number of rows | 1 Â |
---|---|
Outputs | 2 relays (NO) |
Supply voltage | 85-253V ac/dc |
Temperature operational max | 55 °C |
Weight | 0.2 kg |

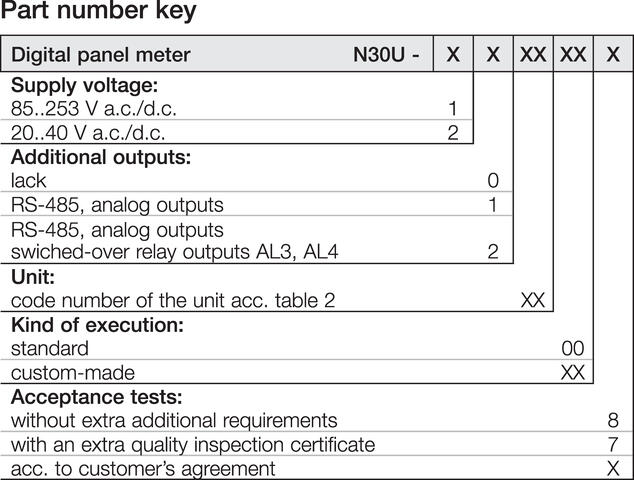

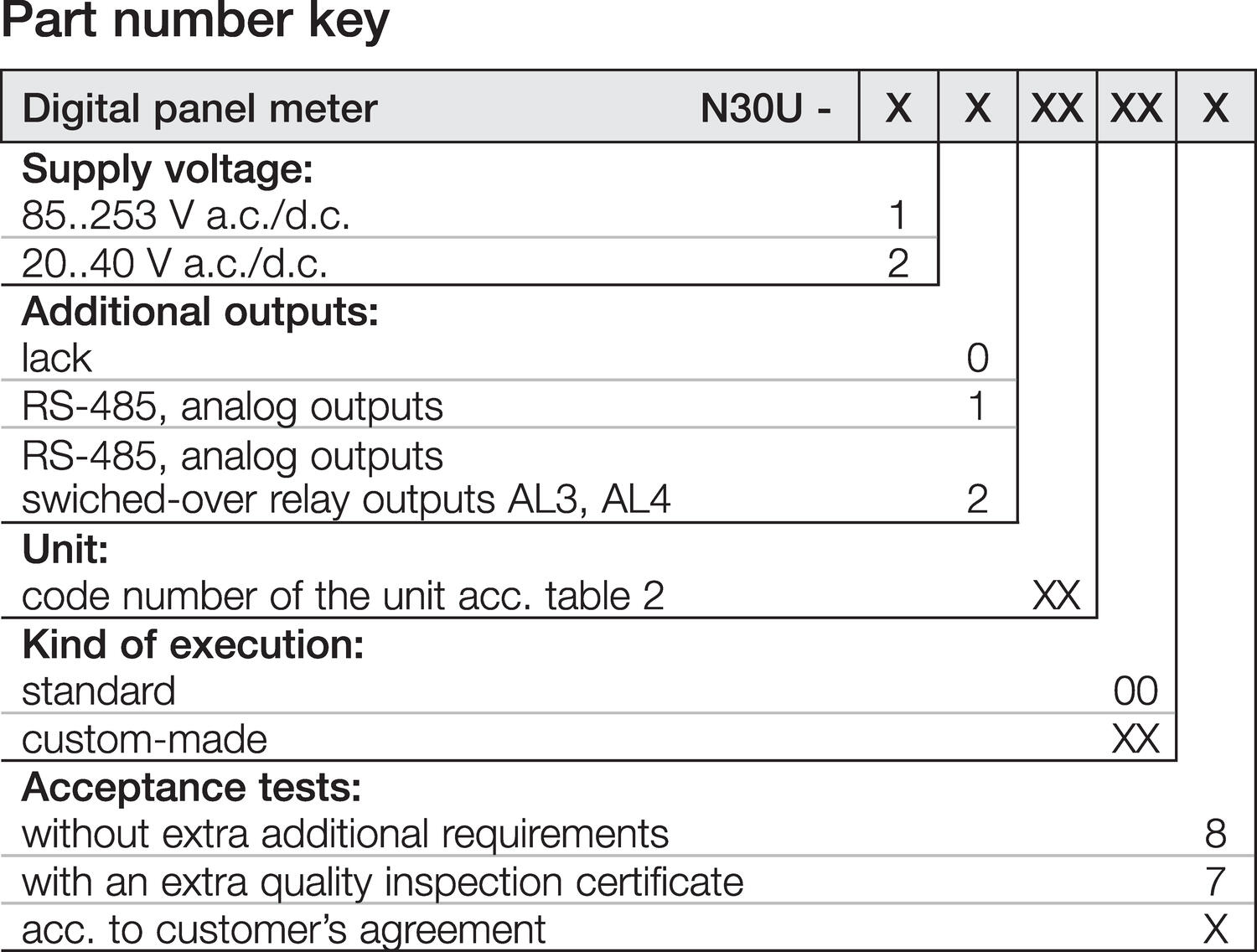

Please refer to the image below for ordering information.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Dimensions | Outputs | Supply voltage | Price | ||
---|---|---|---|---|---|---|
![]()
Panel Meter, 2x OC Outputs, 85-253V ac
Art:
N30U10XX
Copied
|
|
2 relays (NO)
|
85-253V ac/dc
|
| ||
![]()
Panel Meter, 2 x OC Outputs, RS-485, 1A Ouput 85-253V ac
Art:
N30U11XX
Copied
|
96 x 48 x 93 mm
|
analog, RS485, 2 relays
|
85-253V ac/dc
|
| ||
![]()
Panel Meter, 4 x OC Outputs, RS-485, 1A Ouput, 85-253V ac
Art:
N30U12XX
Copied
|
96 x 48 x 93 mm
|
analog,RS485, 4 relays
|
85-253V ac/dc
|
| ||
![]()
Panel Meter, 2x OC Outputs, 20-60V dc
Art:
N30U20XX
Copied
|
96 x 48 x 93 mm
|
2 relays (NO)
|
20-40V ac/dc
|
| ||
![]()
Panel Meter, 2 x OC Outputs, RS-485, 1A Ouput 20-60V dc
Art:
N30U21XX
Copied
|
96 x 48 x 93 mm
|
analog, RS485, 2 relays
|
20-40V ac/dc
|
| ||
![]()
Panel Meter, 4 x OC Outputs, RS-485, 1A Ouput, " 20-60V dc
Art:
N30U22XX
Copied
|
96 x 48 x 93 mm
|
analog,RS485, 4 relays
|
20-40V ac/dc
|
|
Select a variant in the list
