High voltage DC digital panel meter for measurement of d.c. current and d.c. voltage up to 5 A and 600 V.
DC current and voltage upto 600V
Wide voltage, AC/DC control
5 Digit, 3 colour programmable display
Product description
Inputs
Input kind
Measuring range
Class
+/- 500 V d.c.
-600..600 V d.c.
0.1
+/- 100 V d.c.
-200..200 V d.c.
0.1
+/- 5 A d.c.
-6..6 A d.c.
0.1
+/- 1 A d.c.
-2..2 A d.c.
0.1
Current time
00.00..23,59
0.5 seconds/h
Outputs
Output kind
Properties
Remarks
Relay output
• 2 x relays, voltageless NO contacts load-carrying capacity 250 V a.c./ 0,5 A a.c. • 2 x relays, voltageless CO contacts load-carrying capacity 250 V a.c./ 0,5 A a.c.
2 x CO swithed contacts optional
Analog output
• current programmable 0/4..20mA, load resistance ≤ 500 Ω • voltage programmable 0..10V load resistance ≥ 500 Ω • Error of output: 0,2% of the set range
optional Additional error from temperature change : 50% of the class / 10K
OC output
• OC type, passive npn, 30V d.c./30mA
optional
Auxiliary supply
• 24 V d.c./ 30mA
optional
Digital interface
Interface type
Transmission protocol
Modes
Baud rates
Remarks
RS-485
MODBUS RTU
8N2, 8E1, 8O1, 8N1
4.8, 9.6, 19.2, 38.4 kbit/s
optional
External features
Readout field
5 digit LED display , indication range -19999..99999 digit, height: 14 mm
Thank you for requesting a quote. We will e-mail you as soon as possible.
Something went wrong. No offer request has been sent.
Successfully added batches to cart!
Failed to add to cart. Please contact customer support for help.
Number of variants matching filter 6/6 |

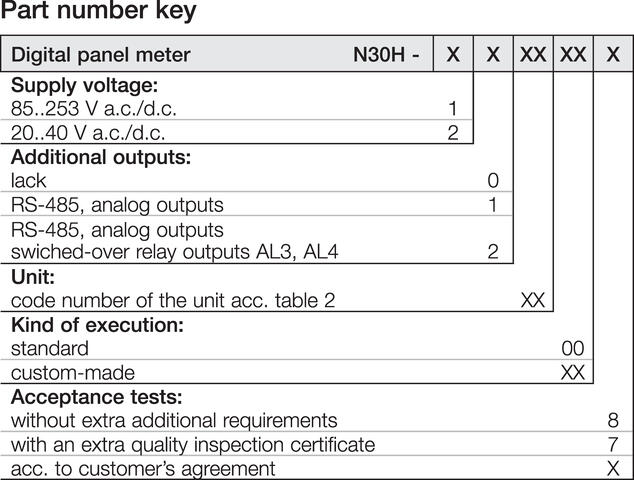

Part numbers
Parts
Price
Outputs
Supply voltage
N30H10XX
Panel Meter, 2x OC Outputs, 85-253V ac
2 relays (NO)
85-253V ac/dc
N30H11XX
Panel Meter, 2 x OC Outputs, RS-485, 1A Ouput 85-253V ac
analog, RS485, 2 relays
85-253V ac/dc
N30H12XX
Panel Meter, 4 x OC Outputs, RS-485, 1A Ouput, 85-253V ac
analog,RS485, 4 relays
85-253V ac/dc
N30H20XX
Panel Meter, 2x OC Outputs, 20-60V dc
2 relays (NO)
20-40V ac/dc
N30H21XX
Panel Meter, 2 x OC Outputs, RS-485, 1A Ouput 20-60V dc
analog, RS485, 2 relays
20-40V ac/dc
N30H22XX
Panel Meter, 4 x OC Outputs, RS-485, 1A Ouput, 20-60V dc
analog,RS485, 4 relays
20-40V ac/dc
Part
N30H10XX
Panel Meter, 2x OC Outputs, 85-253V ac
Technical data
Additional functions
Conversion of any measured value into current or voltage analog signal. Storage of minimal and maximal values for all measured quantites. 21-point rescaling for the measured value (does not apply to N30P and N27P). Password protection. Programmable current and voltage transformer ratio (applies to N27P and N30P).
