CROUZET CONTROL

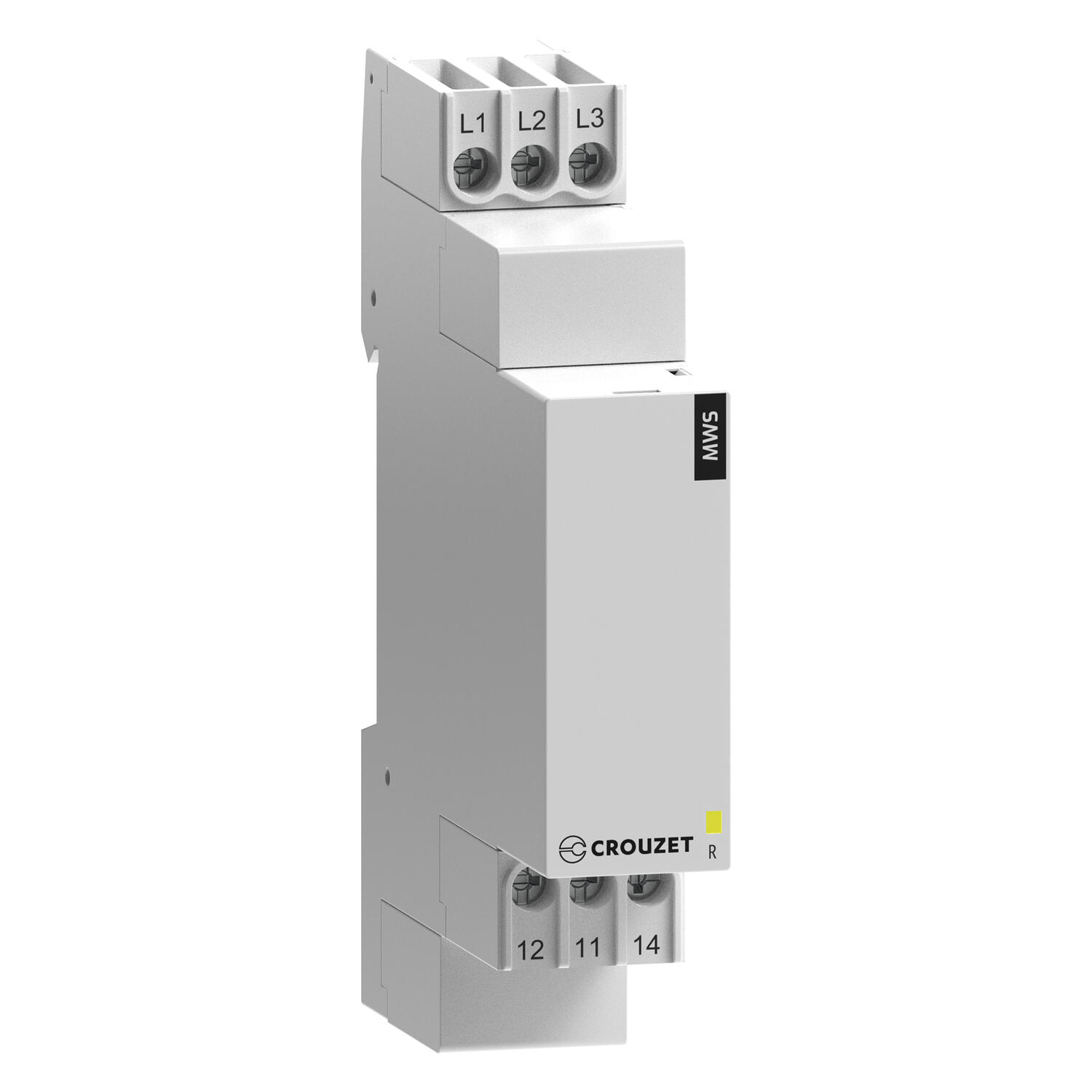

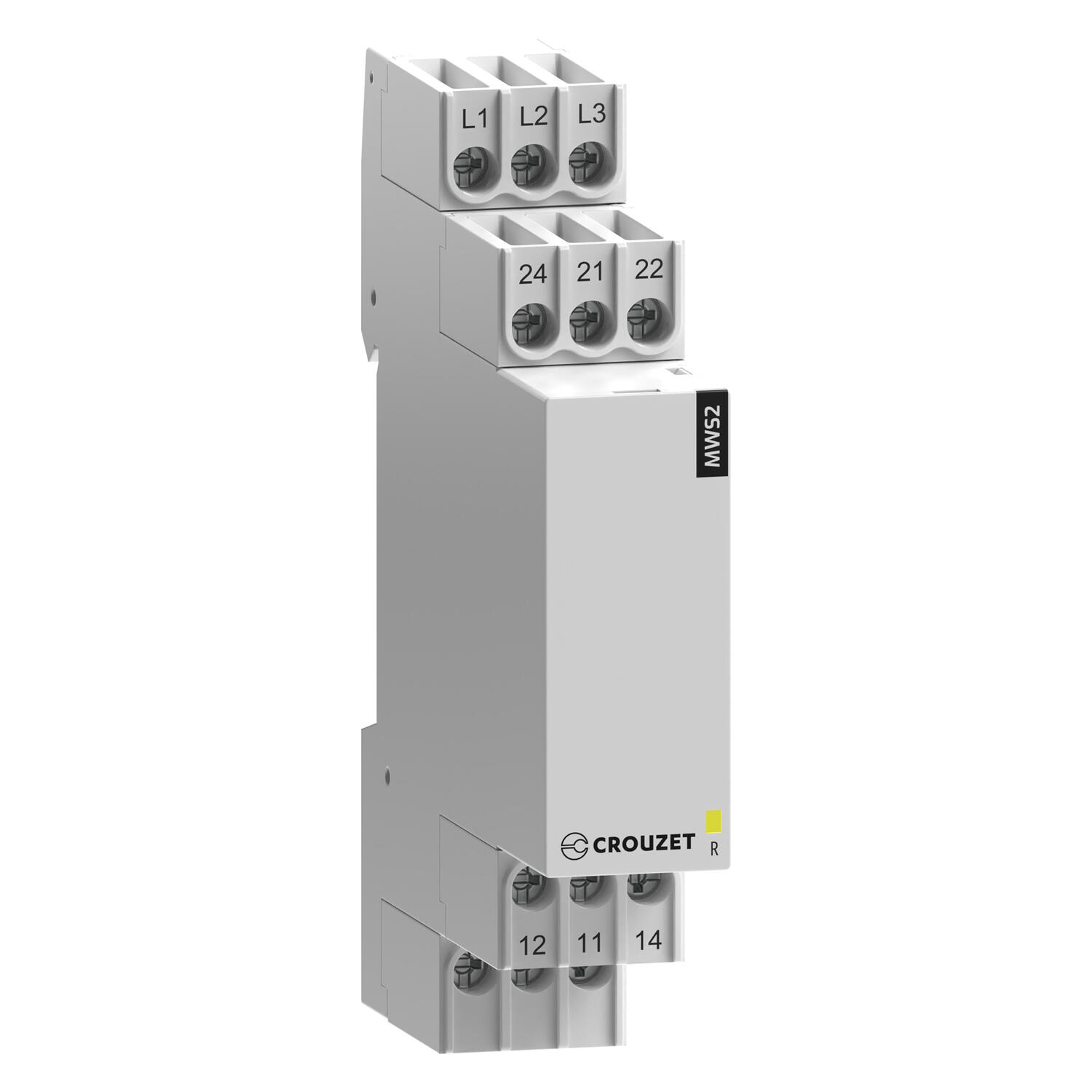

3 phase, phase control MWS, MWS2

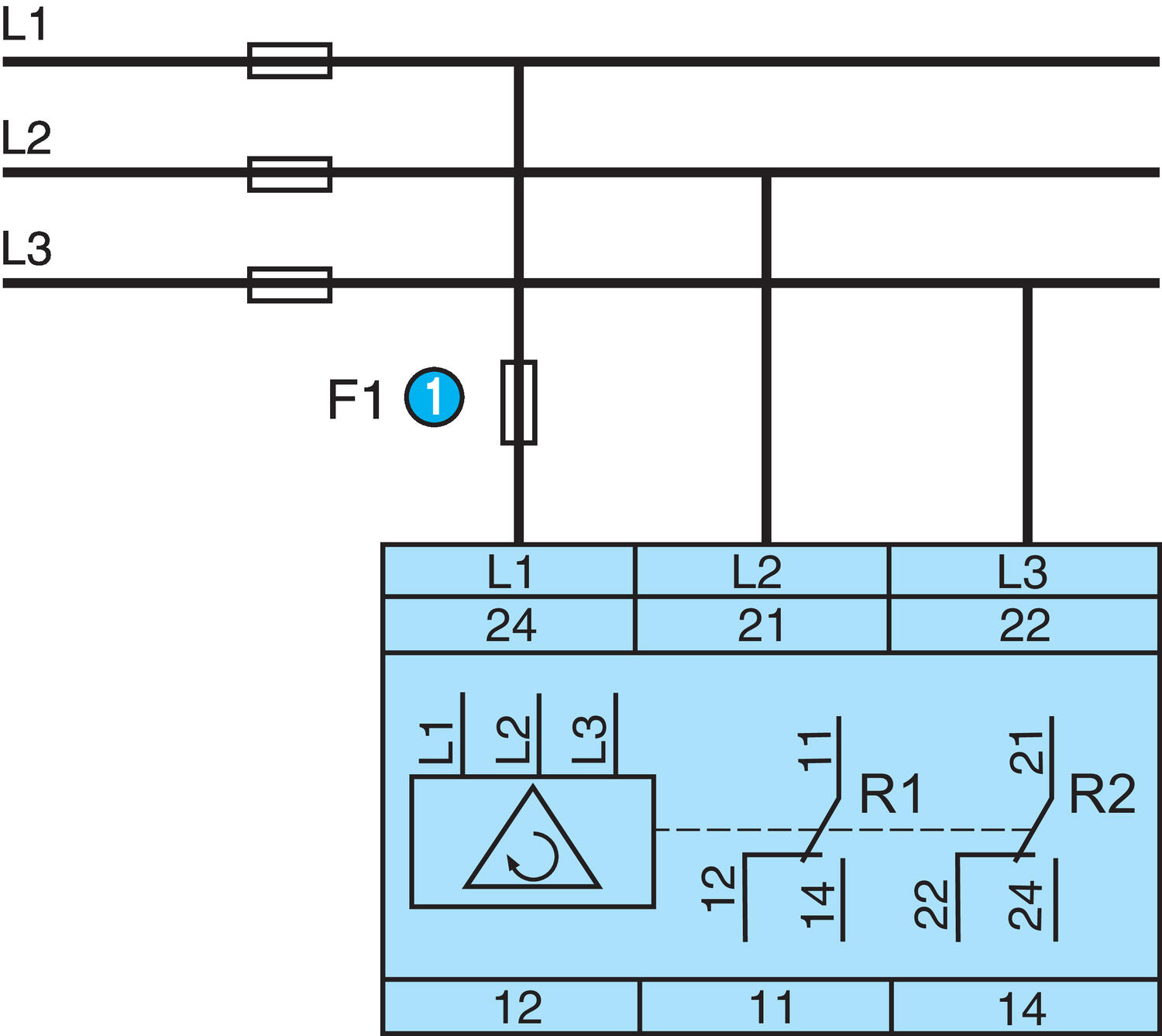

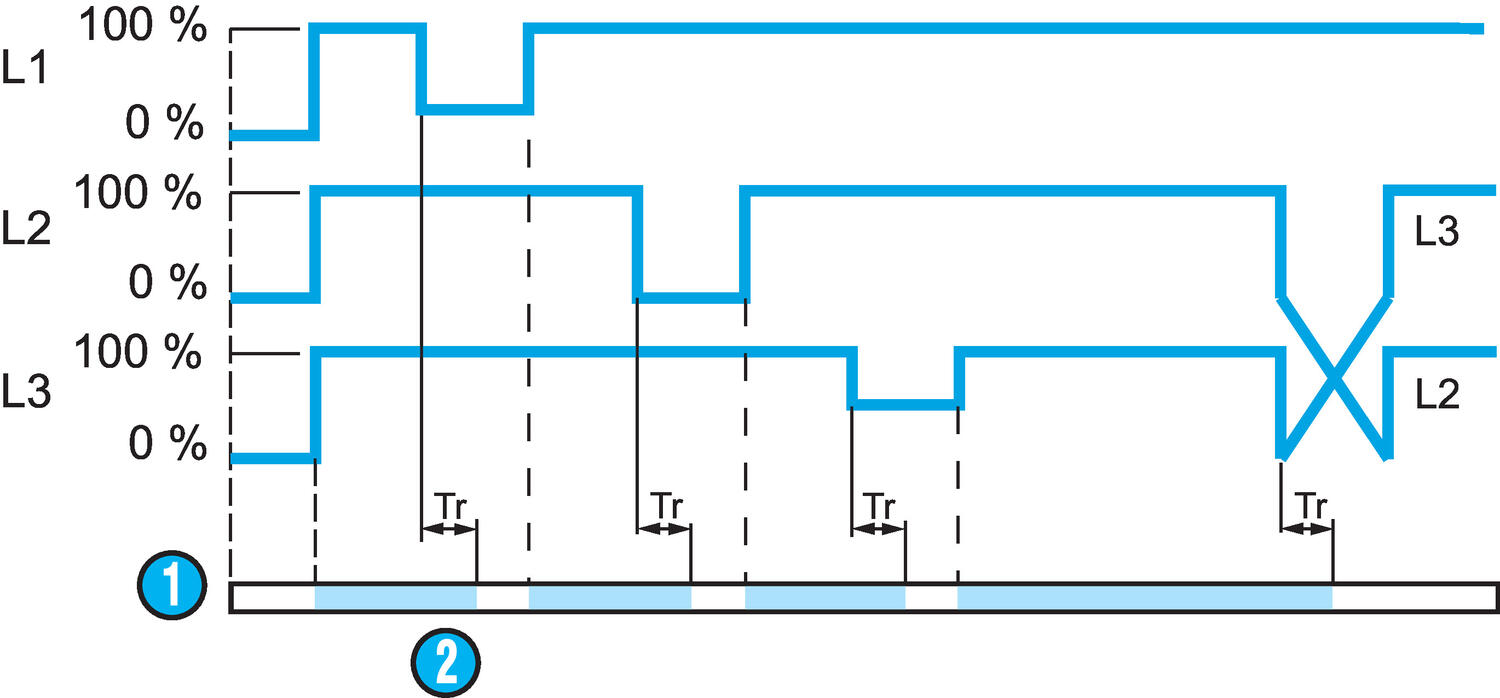

Control relay for 3-phase network that monitors the phase sequence for phases L1, L2 and L3 and checks whether one or more phases are lacking. As long as the phase sequence and voltages are correct (>183 V AC), the output relay(s) is closed and the yellow LED (LED indication) is on. If a phase sequence or phase interruption fault occurs, the relay drops out and the LED turns off. Does not measure returned voltage.
- Triggers alarm upon incorrect phase sequence/phase interruption
- Wide range input voltage from 3x208-480 V ac
- 17.5 mm cabinet with DIN rail
- LED indication
- Does not measure returned voltage
Selected variant
Technical data
| Approvals | CSA, GL, RoHS, UL |
|---|---|
| Breaking capacity | 5A AC/DC |
| Function | Phase Sequence, Phase Failure |
| IP class connection | IP20 |
| IP class housing | IP30 |
| Mounting | 35 mm DIN-Rail |
| Output | 2x Relay |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
|---|---|
| Supply voltage | 3 x 208-440V AC |
| Temperature operational max | 50 °C |
| Temperature operational min | -20 °C |
| Time delay startup | 0.5 s |
| Time delay when exceeding the limit value | 0.1 s |
| Weight | 80 g |
Downloads
Product description
Control relay for 3-phase network that monitors the phase sequence for phases L1, L2 and L3 and checks whether one or more phases are lacking. As long as the phase sequence and voltages are correct (>183 V AC), the output relay(s) is closed and the yellow LED (LED indication) is on. If a phase sequence or phase interruption fault occurs, the relay drops out and the LED turns off. Does not measure returned voltage.
