CROUZET AUTOMATION
Make it Simple, Choose Millenium!
The Crouzet Millenium PLC is a compact, networked and communicative logic controller designed for advanced industrial automation applications. Its configurable architecture enables flexible deployment with support for up to 12 expansion modules and a maximum of 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs for scalable control systems. The PLC includes enhanced connectivity features such as embedded Ethernet, Modbus TCP client/server, and an onboard webserver for remote monitoring, diagnostics, datalogging and system updates.
With datalogging via SD card, high-speed inputs up to 5 kHz, and PWM capable transistor outputs on certain models, it is suitable for motion control, counting applications, and varied automation demands. The Millenium PLC offers wide operating temperature performance of -20 °C to +55 °C, CE/UL certifications, and compliance with industrial EMC standards for reliable installation in demanding environments.

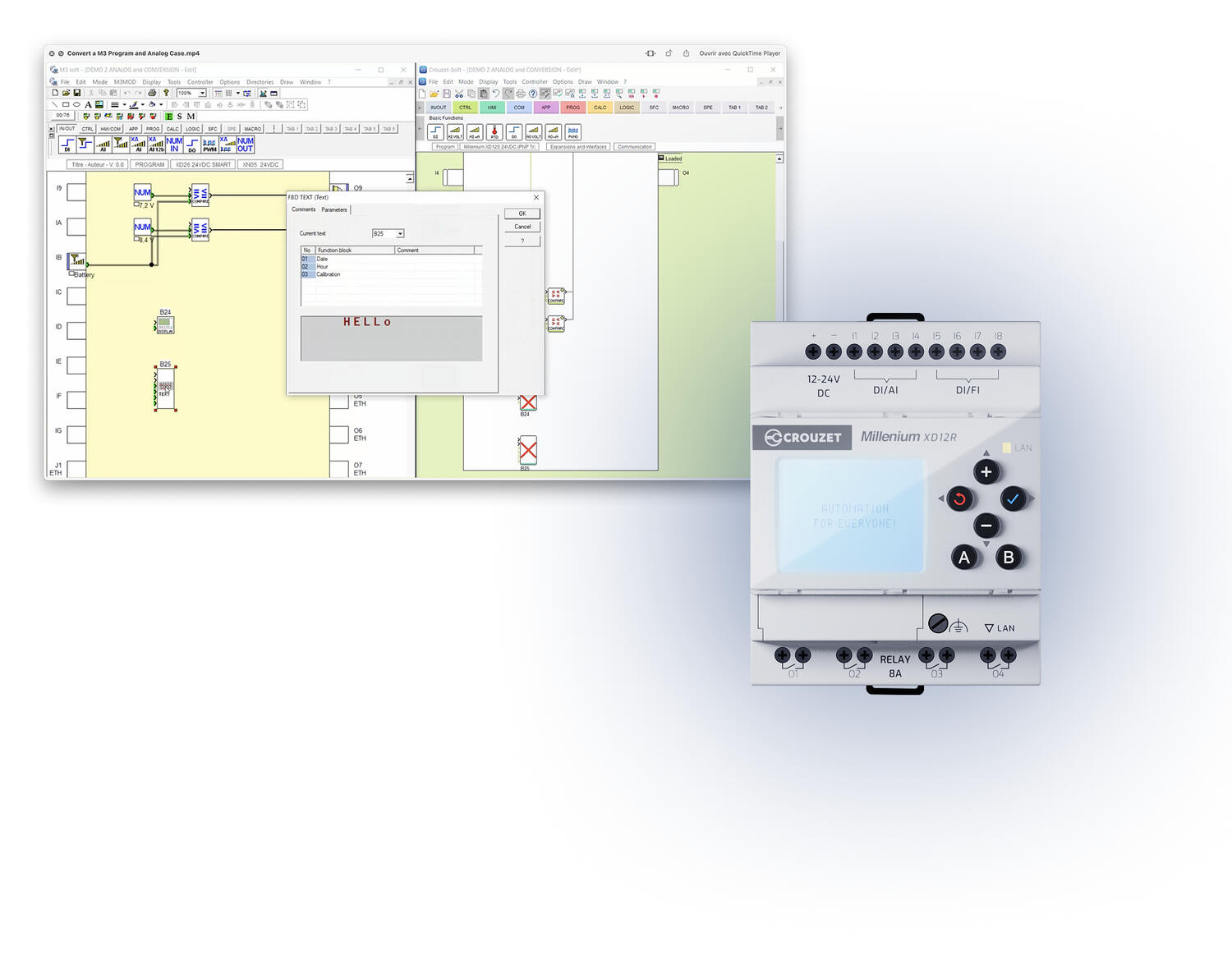

Powered by Crouzet Soft, the world’s most intuitive automation software, you can design programs using simple drag-and-drop Function Blocks or Ladder logic — no coding required. Whether you’re a beginner or an experienced engineer, programming has never been faster or easier.

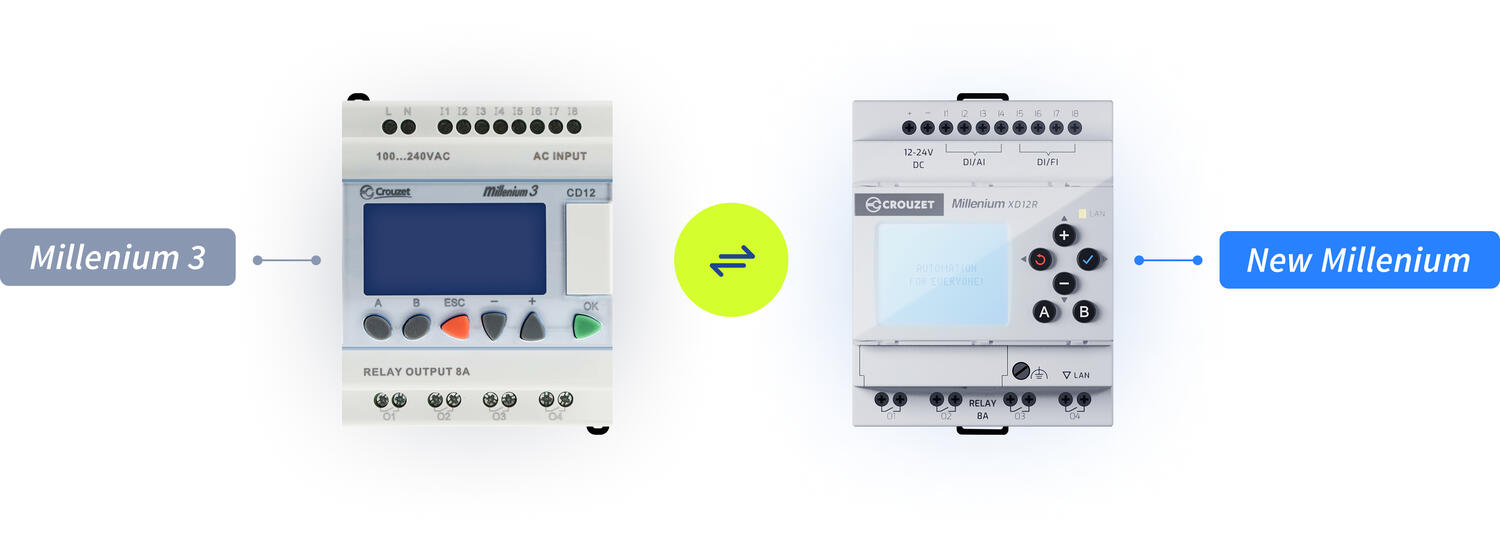

Expanded Range: Wider selection than the Millenium 3 for more project flexibility.
Communication-Ready: Built-in Ethernet TCP/IP, with optional Modbus RS485 via interchangeable interface modules.
Compact & Expandable: Supports 60+ I/Os, including digital, analogue, high-speed, and 4–20 mA inputs and outputs.
More Memory: Double the memory of Millenium 3, plus optional SD card support for program and data storage.

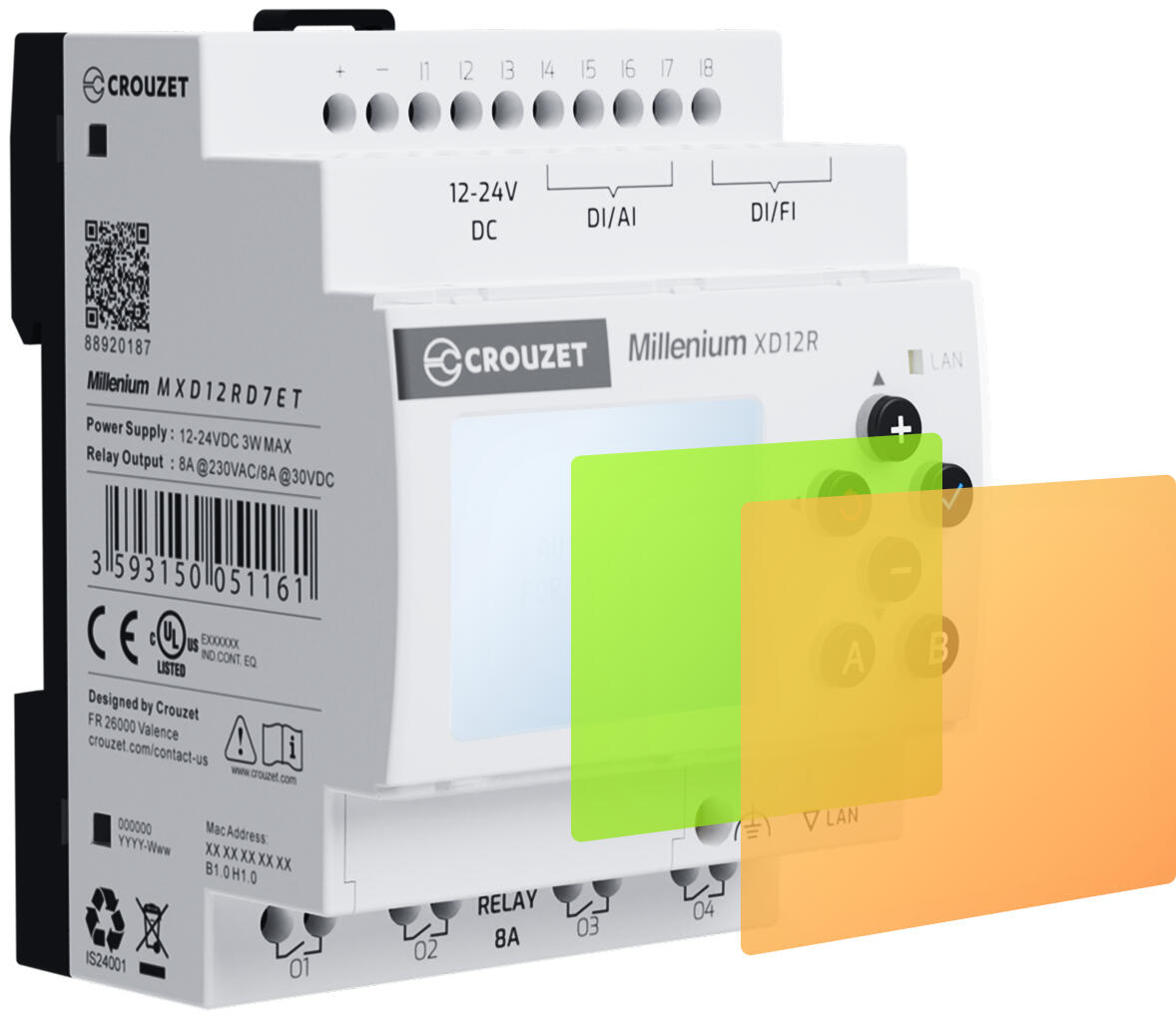

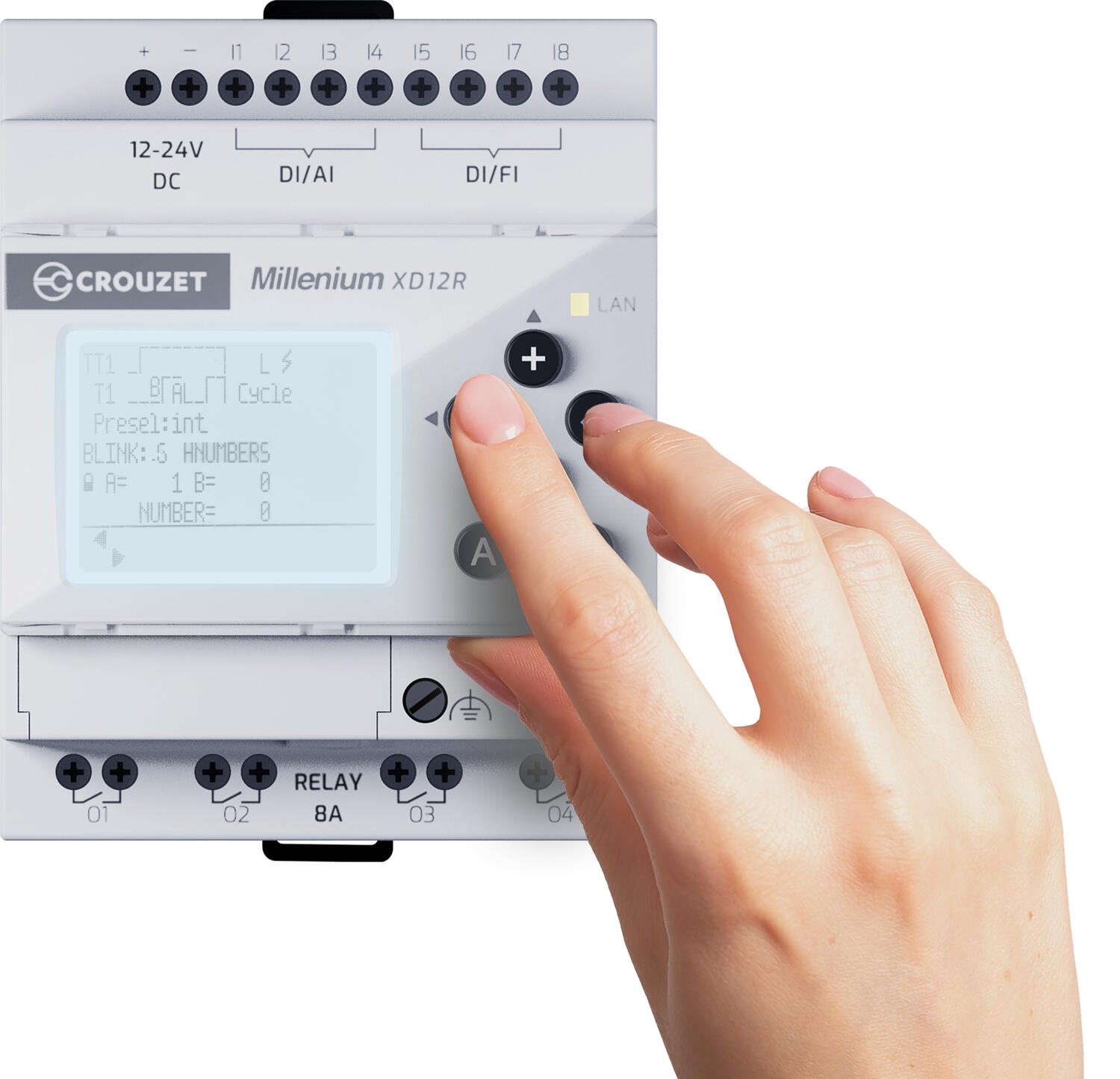

Enhanced Display: A new three-colour screen with 24 characters per line, intuitive navigation, and improved button layout for easy operation.
Integrated Webserver: Remote access for visualisation, interaction, maintenance, and program loading directly over a local network.
General data |
|
|---|---|
| Number of inputs | 8 |
| Number of outputs | 4 |
| Supply voltage | 12-24 V DC |
| Expandable | Yes |
| Current consumption | 1,5 - 3W |
| Backlight | 3 colour display |
| Programming method | CrouzetSoft |
| Program memory | 2000 function blocks |
| I/O ports - ethernet port | Embedded ethernet port |
| Count speed | 5kHz |
| Output type | 4 Relay outputs |
*Invisible Heading* |
|
|---|---|
| Switching voltage max | 250 V AC |

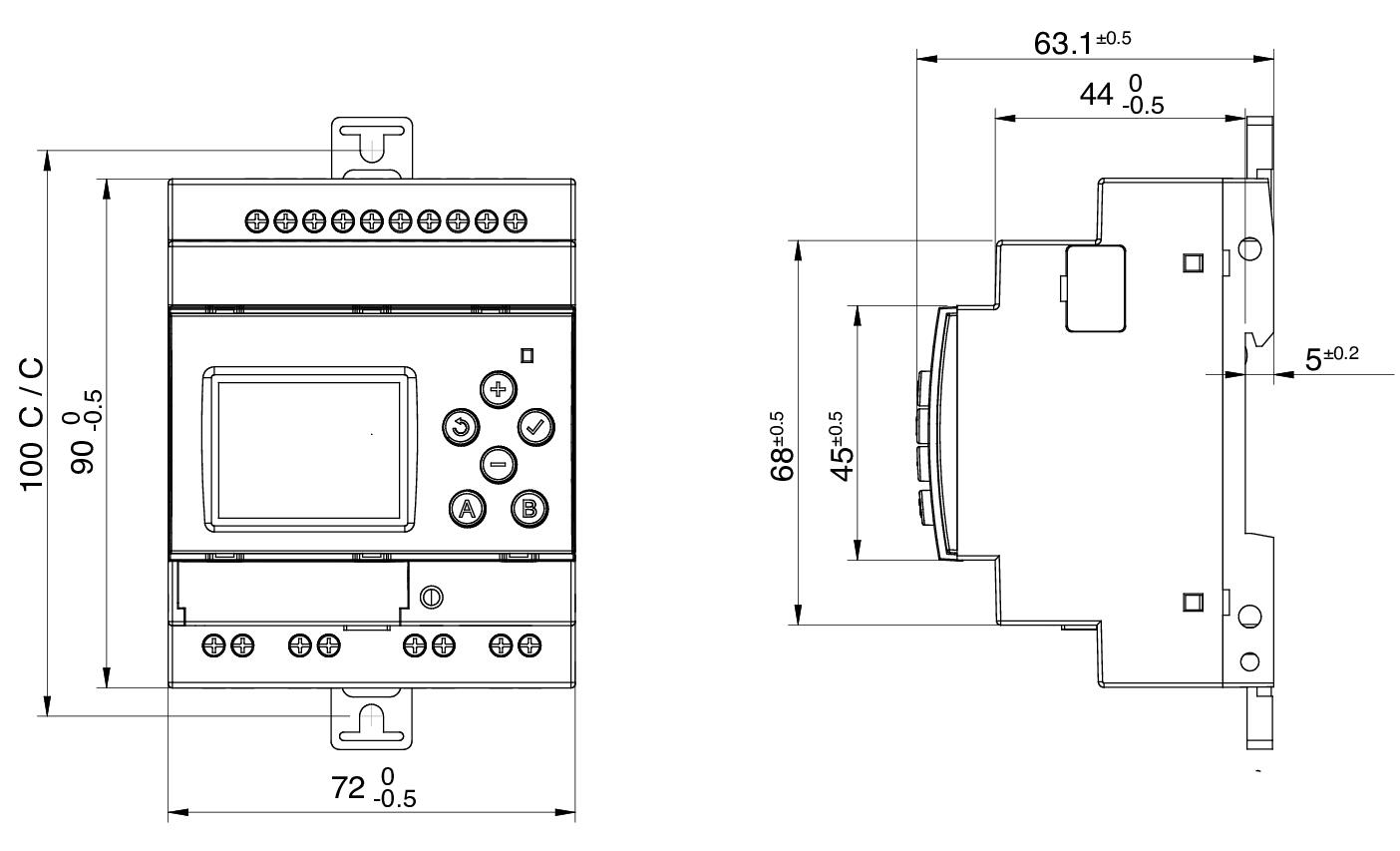

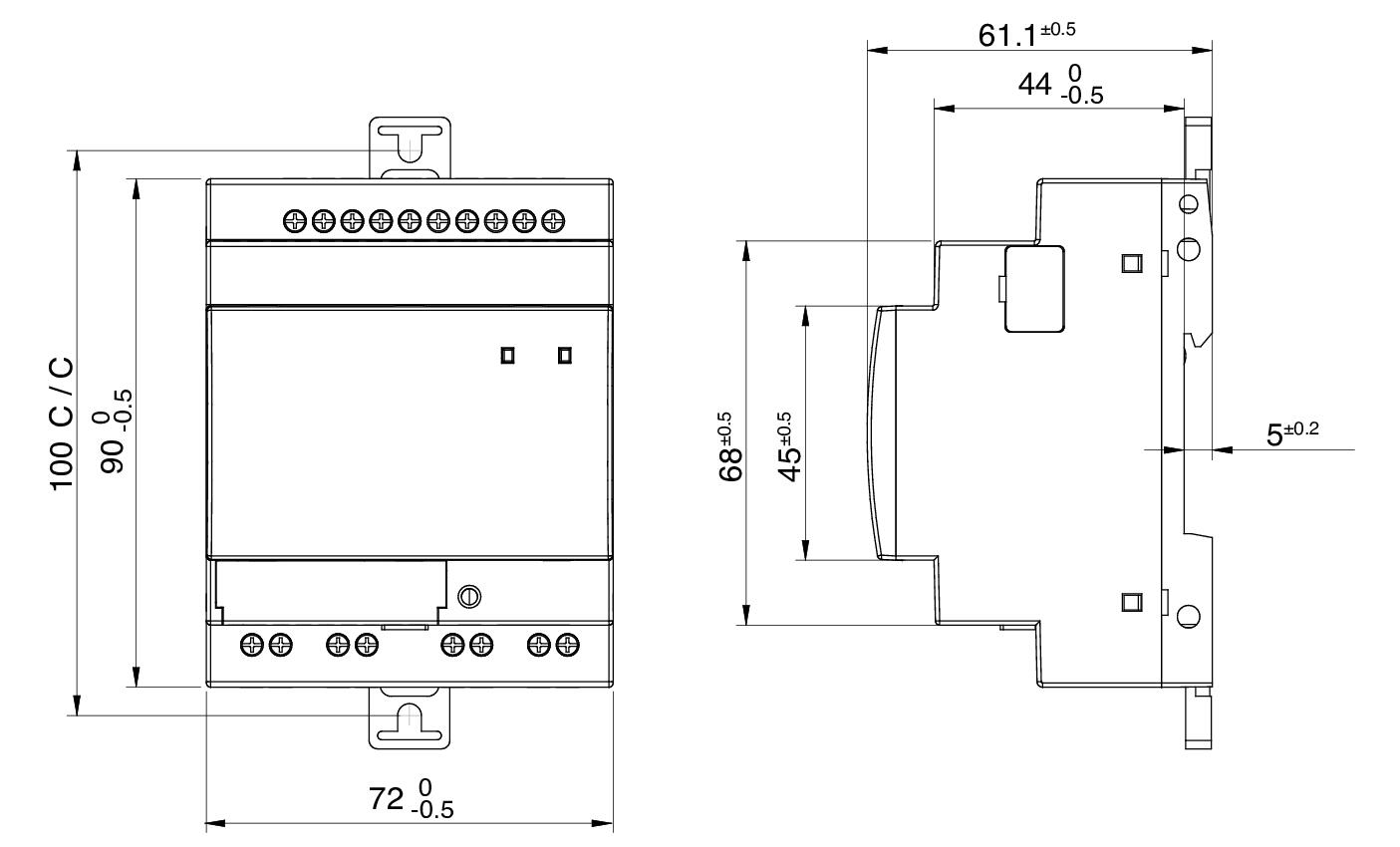

Other technical data |
|
| Length | 72 mm |
| Width | 61 mm |
| Depth | 63 mm |
| Height | 90 mm |
| IP class front | IP40 |
| Temperature operational min | -22 °C |
| Temperature operational max | 55 °C |
| Approvals | CE, cULus, REACH, RoHS |
Make it Simple, Choose Millenium!
The Crouzet Millenium PLC is a compact, networked and communicative logic controller designed for advanced industrial automation applications. Its configurable architecture enables flexible deployment with support for up to 12 expansion modules and a maximum of 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs for scalable control systems. The PLC includes enhanced connectivity features such as embedded Ethernet, Modbus TCP client/server, and an onboard webserver for remote monitoring, diagnostics, datalogging and system updates.
With datalogging via SD card, high-speed inputs up to 5 kHz, and PWM capable transistor outputs on certain models, it is suitable for motion control, counting applications, and varied automation demands. The Millenium PLC offers wide operating temperature performance of -20 °C to +55 °C, CE/UL certifications, and compliance with industrial EMC standards for reliable installation in demanding environments.
Powered by Crouzet Soft, the world’s most intuitive automation software, you can design programs using simple drag-and-drop Function Blocks or Ladder logic — no coding required. Whether you’re a beginner or an experienced engineer, programming has never been faster or easier.
Expanded Range: Wider selection than the Millenium 3 for more project flexibility.
Communication-Ready: Built-in Ethernet TCP/IP, with optional Modbus RS485 via interchangeable interface modules.
Compact & Expandable: Supports 60+ I/Os, including digital, analogue, high-speed, and 4–20 mA inputs and outputs.
More Memory: Double the memory of Millenium 3, plus optional SD card support for program and data storage.
Enhanced Display: A new three-colour screen with 24 characters per line, intuitive navigation, and improved button layout for easy operation.
Integrated Webserver: Remote access for visualisation, interaction, maintenance, and program loading directly over a local network.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Supply voltage | Backlight | Count speed | Output type | Price | ||
|---|---|---|---|---|---|---|---|

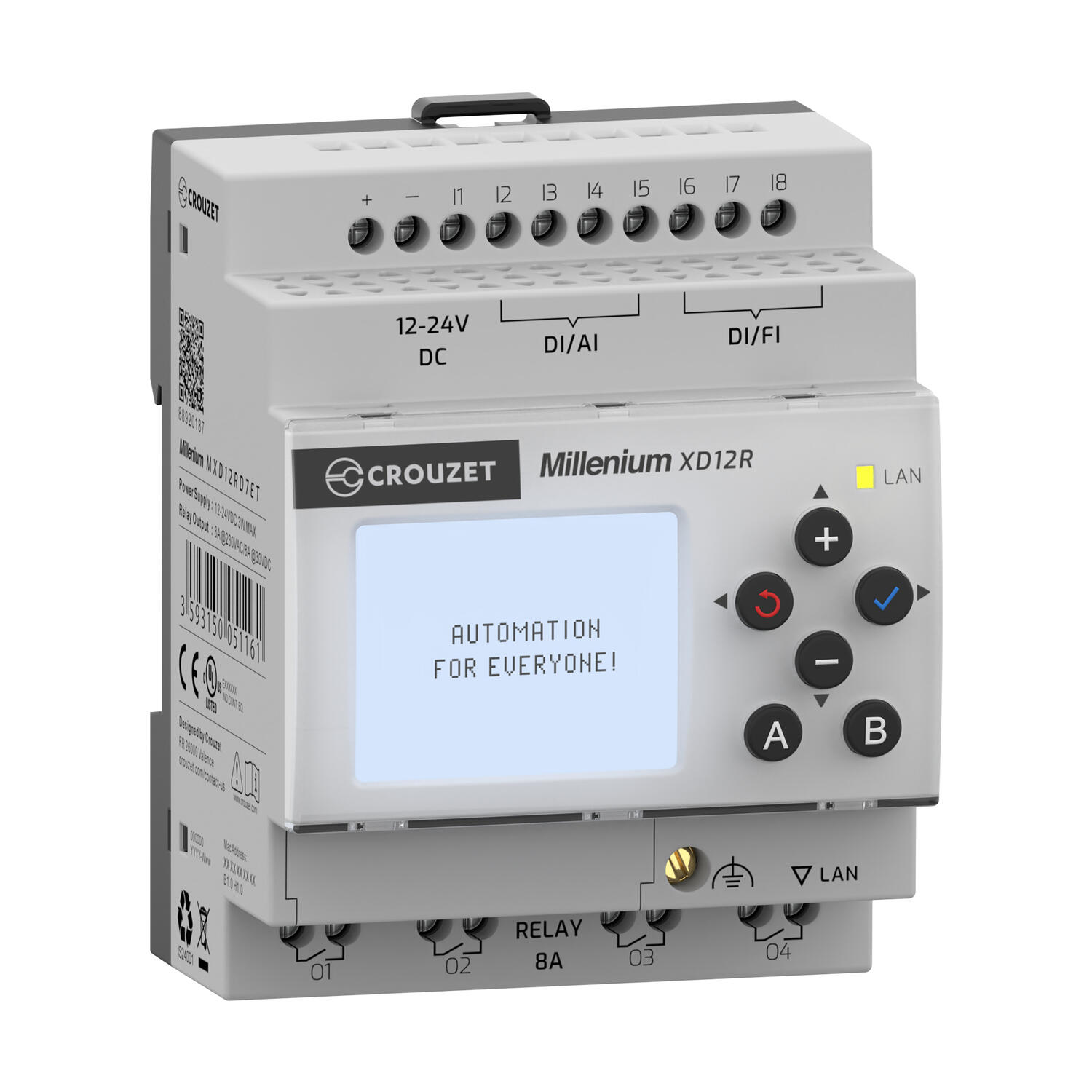

MXD12 12-24 VDC, 4 relay outputs
Art:
MXD12RD7ET
Copied
|
12-24 V DC
|
3 colour display
|
5kHz
|
4 Relay outputs
|
| ||
Millenium 12 I/O, 24VDC, display, static
Art:
MXD12SD1ET
Copied
|
24 V DC
|
3 colour display
|
5kHz
|
4 solid-state outputs
|
| ||
Millenium, 12I/O, 24V AC/DC display
Art:
MXD12RU1ET
Copied
|
24 V AC/DC
|
3 colour display
|
5kHz
|
4 relay outputs
|
| ||
Millenium 12 I/O, 110-240VAC/DC, display
Art:
MXD12RU3ET
Copied
|
110-240 V AC/DC
|
3 colour display
|
5kHz
|
4 relay outputs
|
| ||
Millenium MXB12 12IO blind 12-24VDC
Art:
MXB12RD7ET
Copied
|
12-24 V DC
|
No display
|
5kHz
|
4 Relay outputs
|
| ||
Millenium 12I/O 24Vdc, blind, static out
Art:
MXB12SD1ET
Copied
|
24 V DC
|
No display
|
5kHz
|
4 solid-state outputs
|
| ||

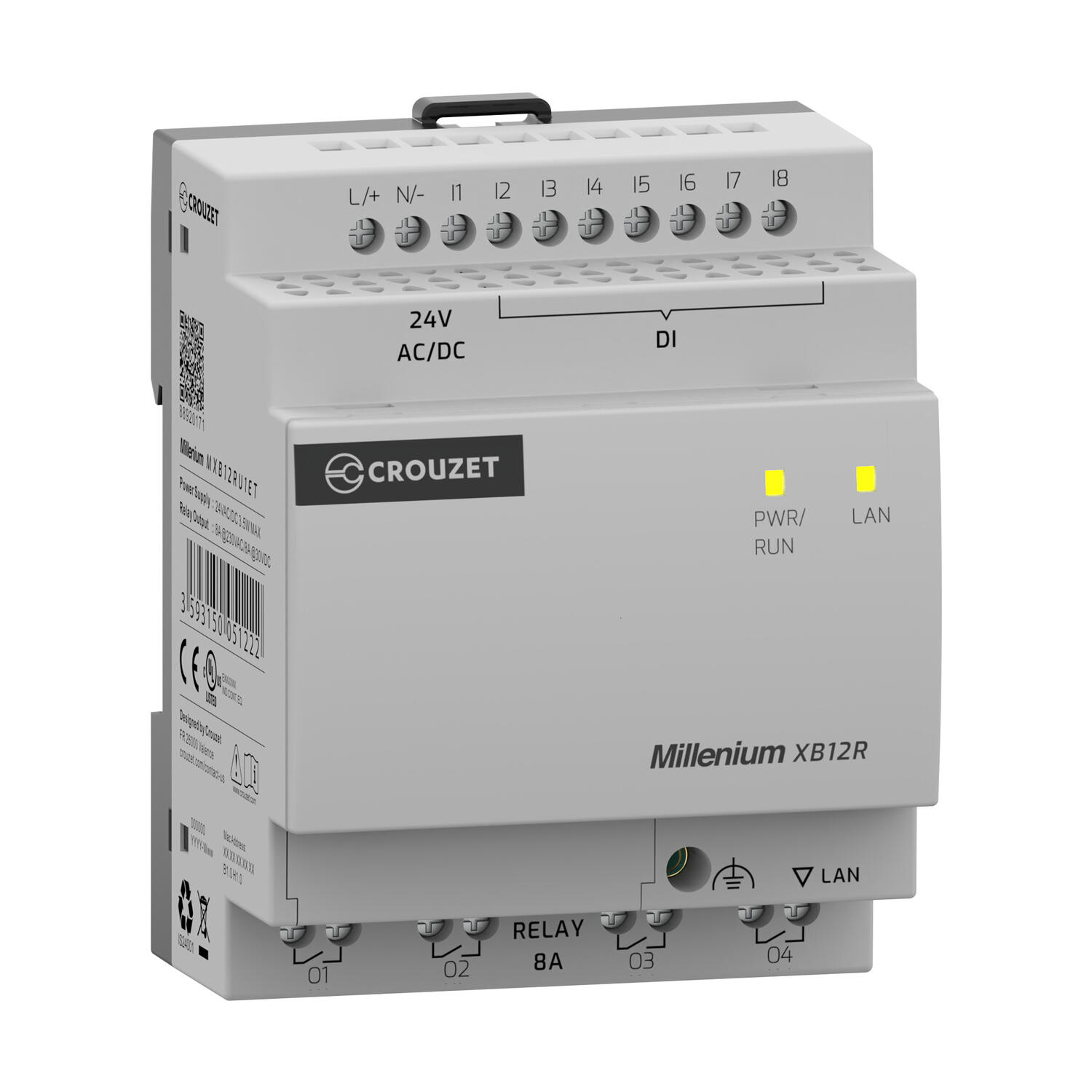

Millenium 12I/O 24V AC/DC Relay outputs
Art:
MXB12RU1ET
Copied
|
24 V AC/DC
|
No display
|
5kHz
|
4 Relay outputs
|
| ||
Millenium 12I/O 110-240Vac blind
Art:
MXB12RU3ET
Copied
|
110-240 V AC
|
No display
|
5Khz
|
4 relay outputs
|
|
Select a variant in the list
