CROUZET AUTOMATION
Extend the capabilities of your Millenium controller with a full range of expansion modules, offering up to 60 I/O in total. Similar to the millenium 3, the new millenium allows you to expand the number of I/O with even more flexibility now.
Expand your system with additional digital I/O using Crouzet’s XR (relay output) and XS (solid state output) series modules. These modules are available in compact 35 mm or 70 mm widths to fit various panel space requirements.
Digital expansion options:
XR08 (35 mm) – 4 digital inputs & 4 relay outputs
XR16 (70 mm) – 8 digital inputs & 8 relay outputs
XS08 (35 mm) – 4 digital inputs & 4 solid-state outputs
XS16 (70 mm) – 8 digital inputs & 8 solid-state outputs
The Millenium supports up to two 70 mm digital expansions or four 35 mm modules, or a combination of both—allowing up to 16 additional digital inputs and 16 relay or solid-state outputs. Modules are available in multiple supply voltages to match the base controller.
For process control and measurement applications, analogue expansions provide precise input and output capability.
Analogue expansion options:
MXAI02D7 – 2 analogue inputs (0–10 V or 0/4–20 mA)
MXAO02D1 – 2 analogue outputs (0–10 V or 0/4–20 mA)
MXAI02PD7 – 2 analogue inputs (PT100 / PT1000 sensors)
The Millenium base unit can be expanded with up to 8 analogue inputs and 4 analogue outputs, providing flexible options for monitoring and control.
In total with the digital expansions and analogue expansions, a total of 60 I/O is possible with the new millenium - up from 50 I/O on the previous millenium 3. The new Millenium allows for greater flexibility with its expansion modules with analogue expansions available for any of the base units. Analogue expansions must be powered seperately.
General data |
|
|---|---|
| Number of inputs | 4 |
| Number of outputs | 4 |
| Supply voltage | 12-24 V DC |
| Input type | 4 digital inputs |
| Output type | 4 relay outputs |

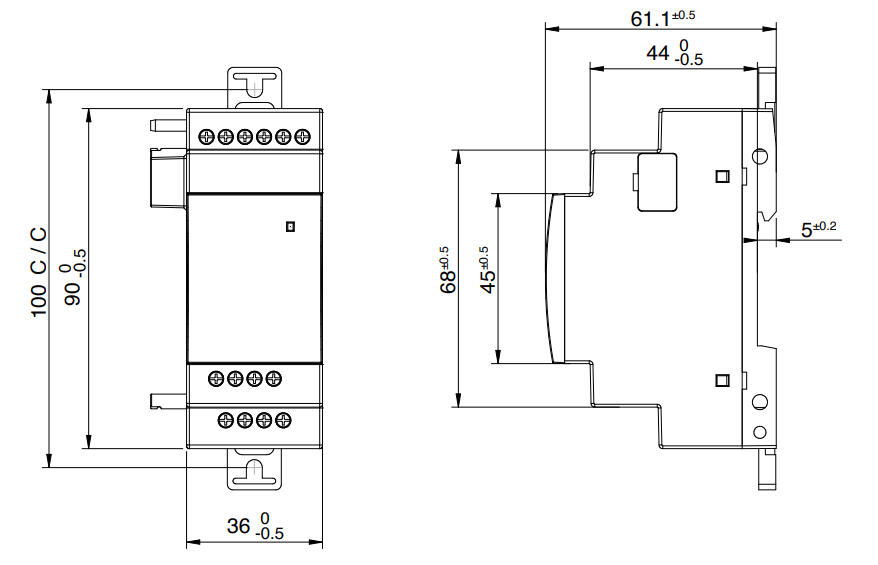

Other technical data |
|
|---|---|
| Length | 90 mm |
| Width | 36 mm |
| Height | 61 mm |
| IP class front | IP40 |
| Temperature operational min | -20 °C |
| Temperature operational max | 55 °C |
| Approvals | CE, cULus, REACH, RoHS |
Extend the capabilities of your Millenium controller with a full range of expansion modules, offering up to 60 I/O in total. Similar to the millenium 3, the new millenium allows you to expand the number of I/O with even more flexibility now.
Expand your system with additional digital I/O using Crouzet’s XR (relay output) and XS (solid state output) series modules. These modules are available in compact 35 mm or 70 mm widths to fit various panel space requirements.
Digital expansion options:
XR08 (35 mm) – 4 digital inputs & 4 relay outputs
XR16 (70 mm) – 8 digital inputs & 8 relay outputs
XS08 (35 mm) – 4 digital inputs & 4 solid-state outputs
XS16 (70 mm) – 8 digital inputs & 8 solid-state outputs
The Millenium supports up to two 70 mm digital expansions or four 35 mm modules, or a combination of both—allowing up to 16 additional digital inputs and 16 relay or solid-state outputs. Modules are available in multiple supply voltages to match the base controller.
For process control and measurement applications, analogue expansions provide precise input and output capability.
Analogue expansion options:
MXAI02D7 – 2 analogue inputs (0–10 V or 0/4–20 mA)
MXAO02D1 – 2 analogue outputs (0–10 V or 0/4–20 mA)
MXAI02PD7 – 2 analogue inputs (PT100 / PT1000 sensors)
The Millenium base unit can be expanded with up to 8 analogue inputs and 4 analogue outputs, providing flexible options for monitoring and control.
In total with the digital expansions and analogue expansions, a total of 60 I/O is possible with the new millenium - up from 50 I/O on the previous millenium 3. The new Millenium allows for greater flexibility with its expansion modules with analogue expansions available for any of the base units. Analogue expansions must be powered seperately.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of inputs | Number of outputs | Supply voltage | Input type | Measurement range analog inputs | Output type | Width | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
Mill digital expansion, 12-24VDC, 8 I/O
Art:
MXR08D7
Copied
|
4
|
4
|
12-24 V DC
|
4 digital inputs
|
|
4 relay outputs
|
36 mm
|
|
||

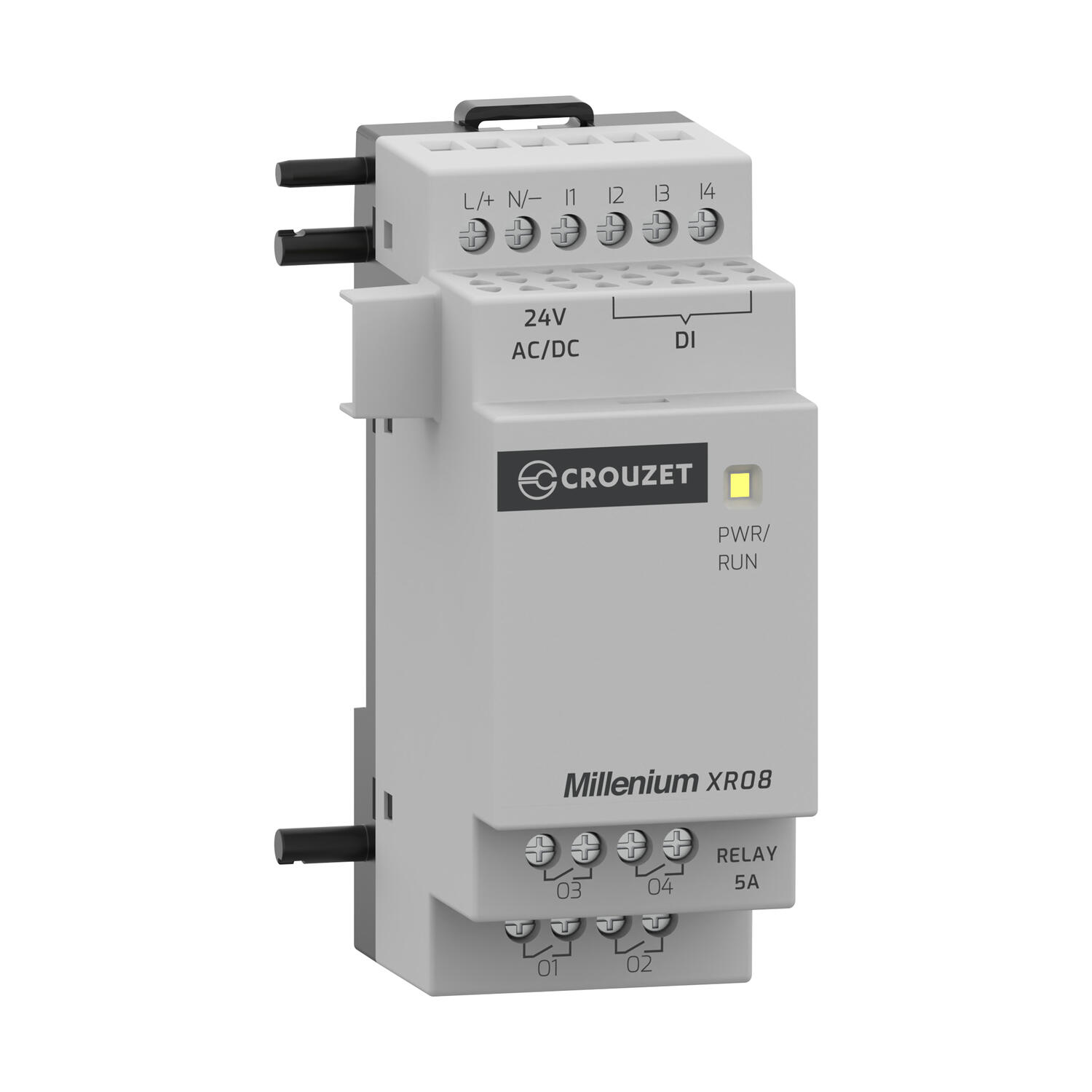

Mill digital expansion, 24 AC/DC, 8 I/O
Art:
MXR08U1
Copied
|
4
|
4
|
24 V AC/DC
|
4 digital inputs
|
|
4 relay outputs
|
36 mm
|
|
||
Mill digital ex, 110-240VAC/DC, 8 I/O
Art:
MXR08U3
Copied
|
4
|
4
|
110-240 V AC
|
4 digital inputs
|
|
4 relay outputs
|
36 mm
|
|
||

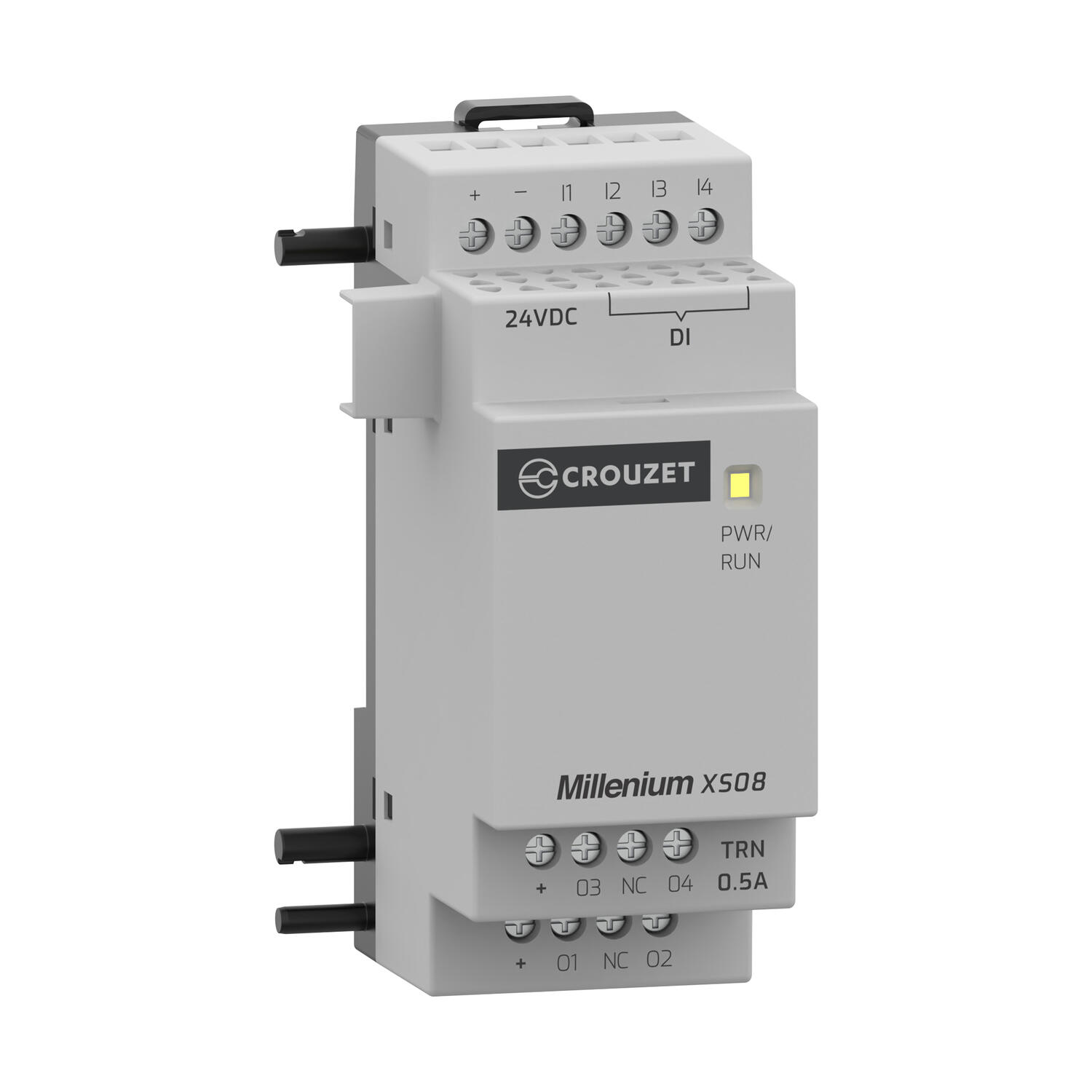

Mill digital exp, 24VDC, 8 I/O, static
Art:
MXS08D1
Copied
|
4
|
4
|
24 V DC
|
4 digital inputs
|
|
4 solid state outputs
|
36 mm
|
|
||
Mill digital expansion, 12-24VDC, 16 I/O
Art:
MXR16D7
Copied
|
8
|
8
|
12-24 V DC
|
8 digital inputs
|
|
8 relay outputs
|
72 mm
|
|
||
Mill digital expansion, 24VAC/DC, 16 I/O
Art:
MXR16U1
Copied
|
8
|
8
|
24 V AC/DC
|
8 digital inputs
|
|
8 relay outputs
|
72 mm
|
|
||

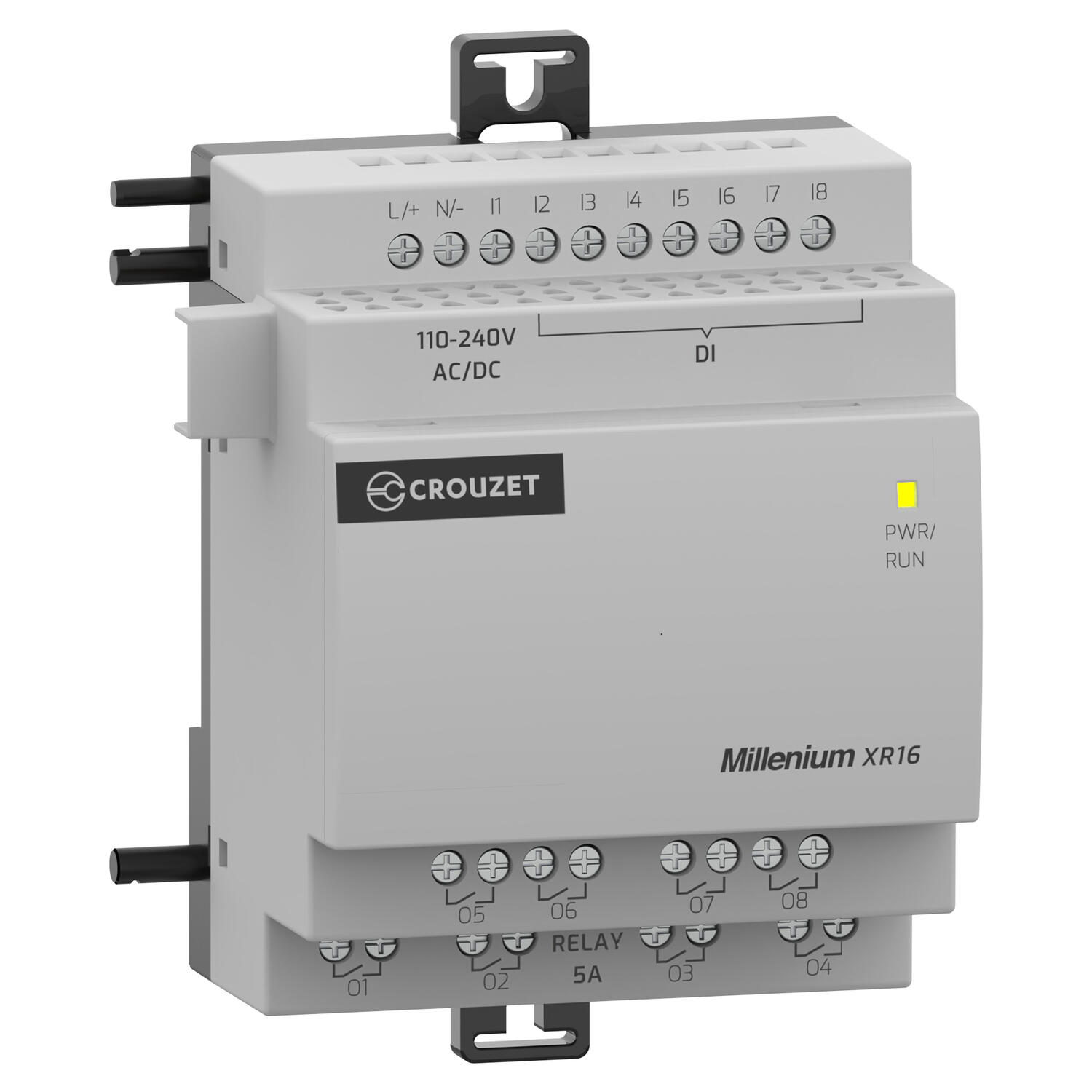

Mill digital exp, 110-240 VAC/DC, 16 I/O
Art:
MXR16U3
Copied
|
8
|
8
|
110-240 V AC/DC
|
8 digital inputs
|
|
8 relay outputs
|
72 mm
|
|
||

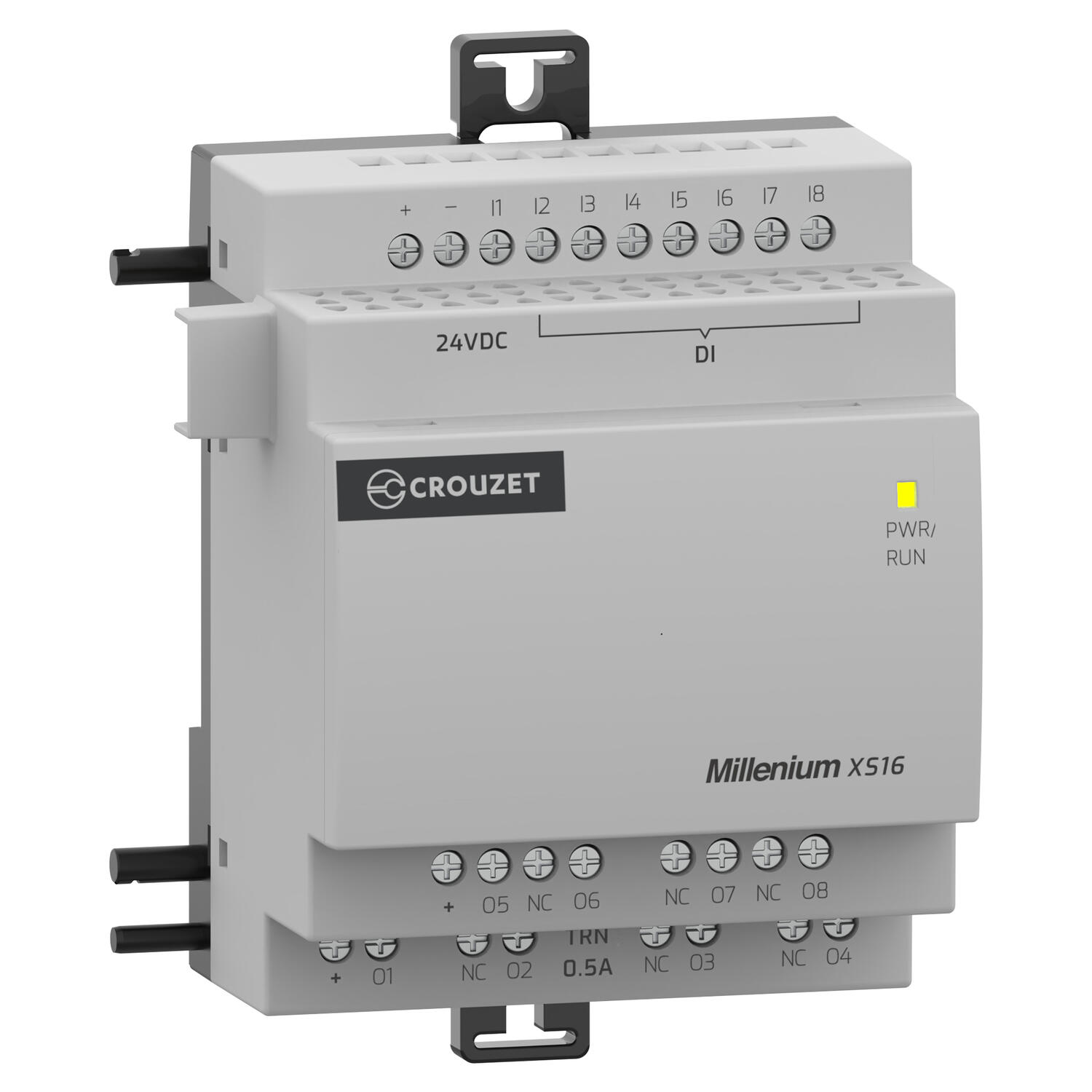

Mill digital exp, 24VDC, 16 I/O static
Art:
MXS16D1
Copied
|
8
|
8
|
24 V DC
|
8 digital inputs
|
|
8 solid state outputs
|
72 mm
|
|
||
Millenium analogue expansion 12-24VDC 2 inputs V/mA
Art:
MXAI02D7
Copied
|
2
|
0
|
12-24 V DC
|
Analogue, 0-10V or 0/4-20mA
|
0-10V or 0/4-20mA
|
No output
|
36 mm
|
|
||

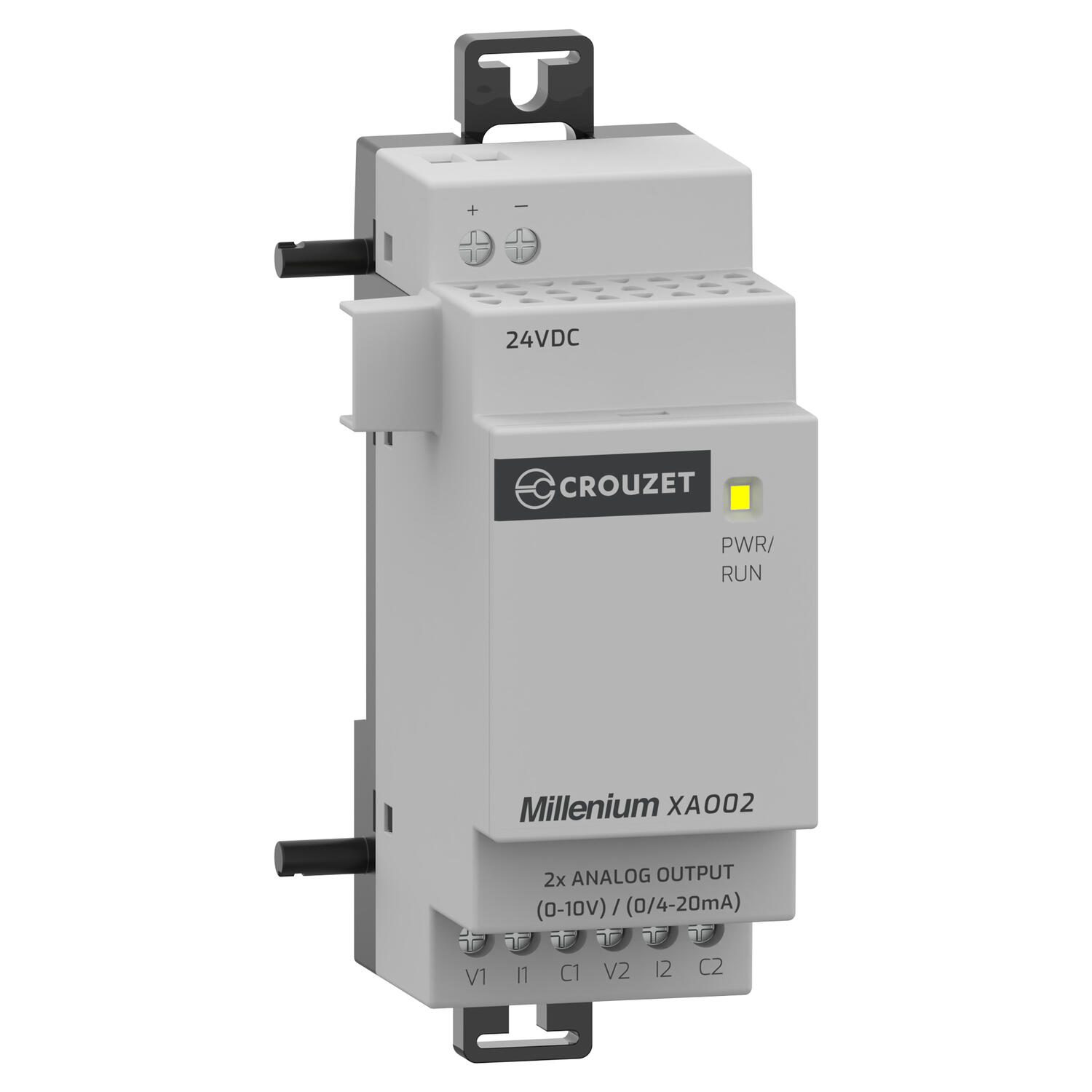

Mill expansion, 24VDC 2 analogue outputs
Art:
MXAO02D1
Copied
|
0
|
2
|
24 V DC
|
No input
|
|
2 analogue outputs, 0-10V or 0/4-20mA
|
36 mm
|
|
||

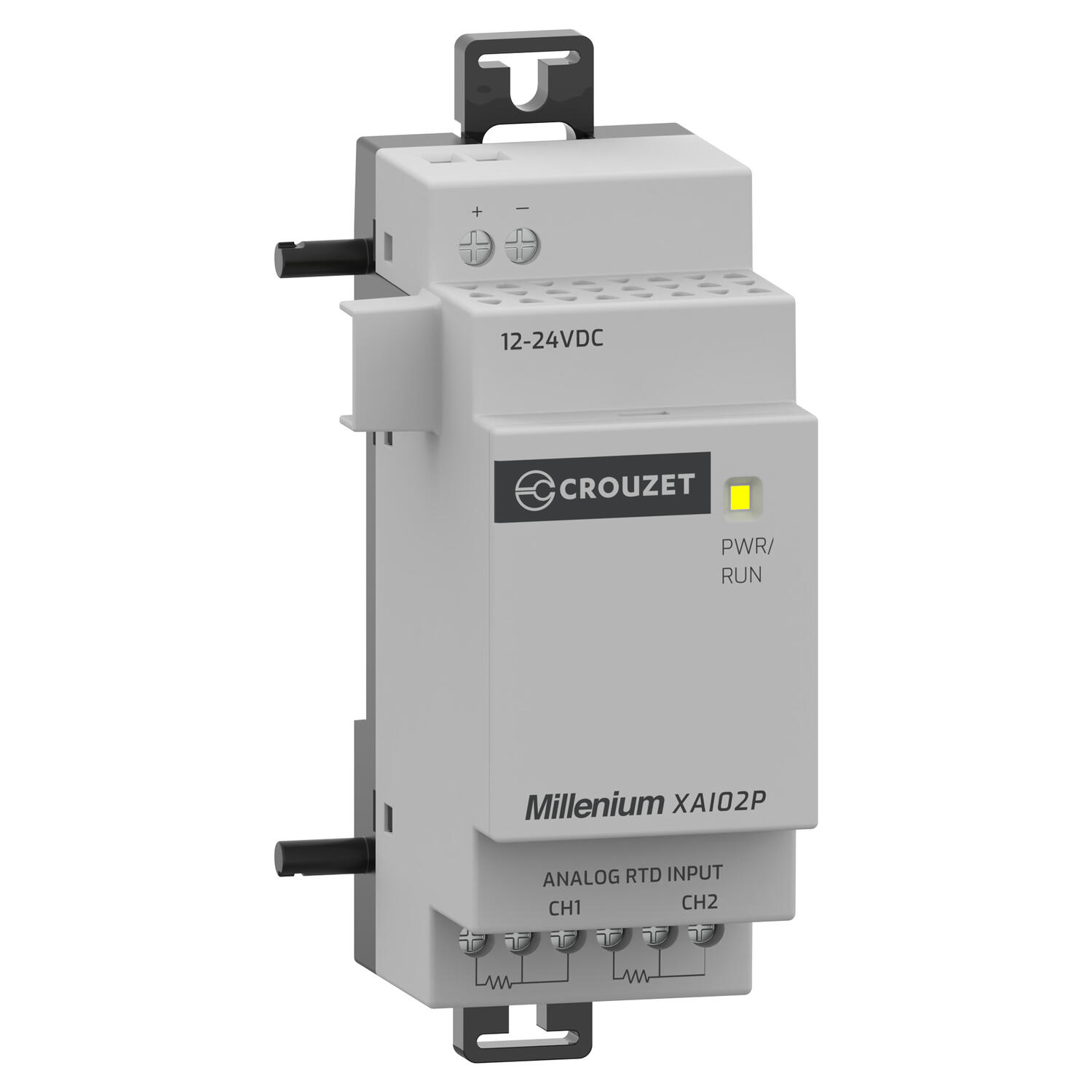

Mill expansion, 12-24VDC, 2 PT100
Art:
MXAI02PD7
Copied
|
2
|
0
|
12-24 V DC
|
2 analogue inputs, PT100/PT1000
|
|
No output
|
36 mm
|
|
