Millenium 3 is a compact control unit with powerful functions that provides the capability to build both simple and more complex control and monitoring functions. A few examples of fields of application are air conditioning and heating systems, authorisation controls, vending machines, packaging, pump control and advertising signs. Millenium 3 has the most extensive function library on the market and can even be programmed in Ladder. Function block examples: Time functions, counters, connection timers, mathematical blocks or blocks for analogue signals, logic functions, control of motors, pump control and PID regulation. Millenium 3 also includes “SFC blocks”, which are very useful for sequence programming.
General data |
|
---|---|
Number of inputs | 8 |
Number of outputs | 4 |
Supply voltage | 12 V DC |
Expandable | No |
Display | Yes |
Immunity From Micro-Interruptions | 1 |
Memory for data | 368 bits / 200 words, stored for 10 years |
Programming method | Functionblocks / SFC or Ladder |
Program memory | Flash EEPROM |
Program size | FBD 180 blocks, Ladder 120 rows normally |
Real time clock | Yes |
Measurement range analog inputs | 0-10 V DC, 0-12 V DC |
Logic 1 voltage threshold (DC input) | 7 V |
*Invisible Heading* |
|
---|---|
Logic 0 voltage threshold (DC input) | 3 V |
Release time | 5 ms |
Output type | Relay |
Switching voltage max | 250 V AC |
Load current min | 10 mA |
Mechanical life expectancy | 10 Million operations |
Other technical data |
|
Width | 71.2 mm |
Depth | 59.5 mm |
Height | 90 mm |
Temperature operational min | -20 °C |
Temperature operational max | 70 °C |
Approvals | CE, CSA, RoHS, UL |
Millenium 3 is a compact control unit with powerful functions that provides the capability to build both simple and more complex control and monitoring functions. A few examples of fields of application are air conditioning and heating systems, authorisation controls, vending machines, packaging, pump control and advertising signs. Millenium 3 has the most extensive function library on the market and can even be programmed in Ladder. Function block examples: Time functions, counters, connection timers, mathematical blocks or blocks for analogue signals, logic functions, control of motors, pump control and PID regulation. Millenium 3 also includes “SFC blocks”, which are very useful for sequence programming.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Number of inputs | Number of outputs | Supply voltage | Expandable | Display | Program size | Measurement range analog inputs | Logic 1 voltage threshold (DC input) | Logic 0 voltage threshold (DC input) | Output type | Switching voltage max | Width | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

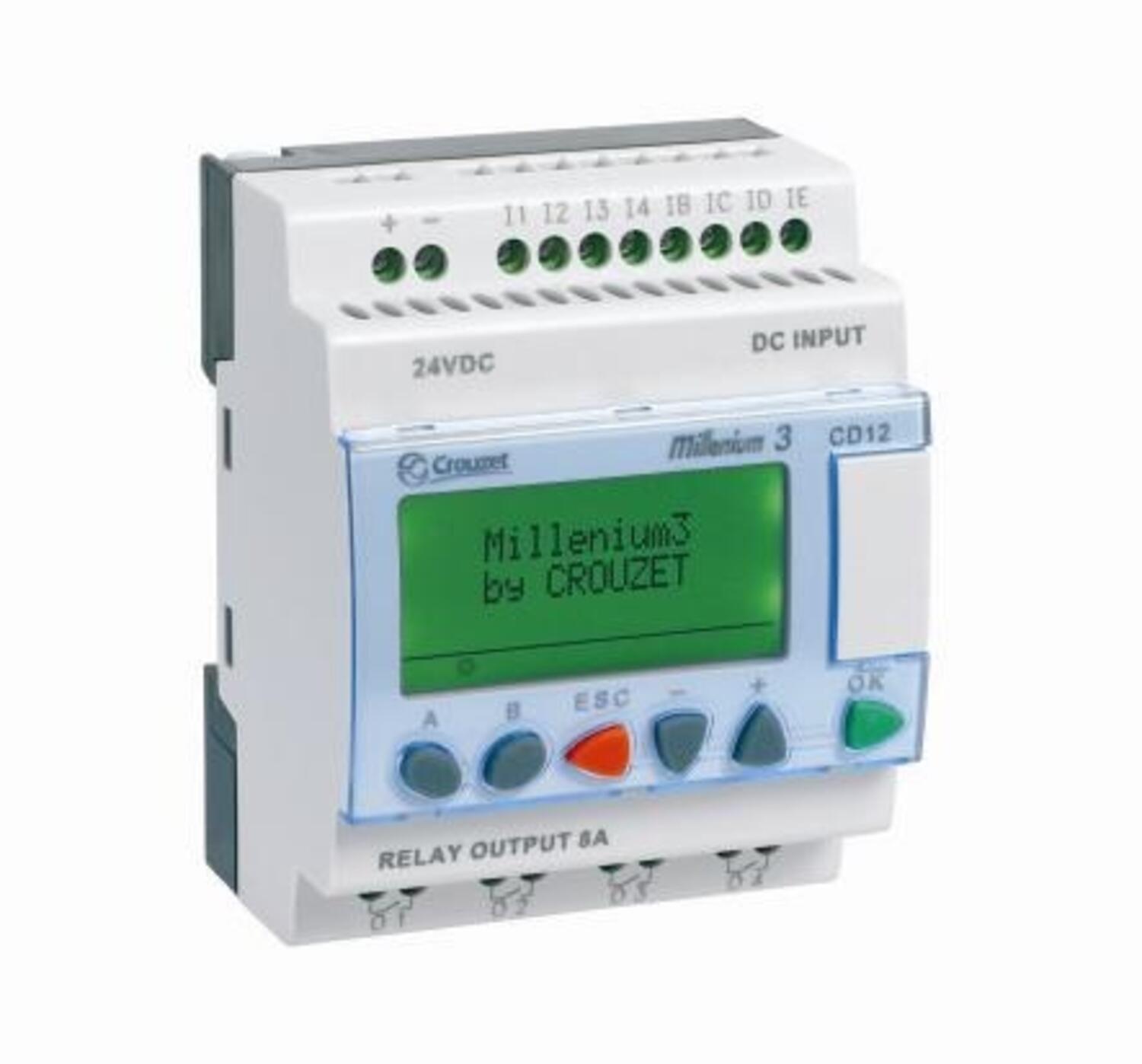

Millenium 3 CD12 8 In 4 Out Relay 12V dc
Art:
88970045
Copied
|
8
|
4
|
12 V DC
|
No
|
Yes
|
FBD 180 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-12 V DC
|
7 V
|
3 V
|
Relay
|
250 V AC
|
71.2 mm
|
| ||
![]()
Millenium 3 CB12 8 In 4 Out Relay 24V dc Blind
Art:
88970021
Copied
|
8
|
4
|
24 V DC
|
No
|
No
|
FBD 180 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Relay
|
250 V AC
|
71.2 mm
|
| ||
![]()
Millenium 3 CD12 8 In 4 Out Relay 24V dc
Art:
88970041
Copied
|
8
|
4
|
24 V DC
|
No
|
Yes
|
FBD 180 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Relay
|
250 V AC
|
71.2 mm
|
| ||
![]()
Millenium 3 CD12 8 In 4 Out Solid State 24V dc
Art:
88970042
Copied
|
8
|
4
|
24 V DC
|
No
|
Yes
|
FBD 180 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Solid State (including 1 PWM)
|
|
71.2 mm
|
| ||
![]()
Millenium 3 CD20 12 In 8 Out Relay 12V dc
Art:
88970055
Copied
|
12
|
8
|
12 V DC
|
No
|
Yes
|
FBD 180 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-12 V DC
|
7 V
|
3 V
|
Relay
|
250 V AC
|
124.6 mm
|
| ||
![]()
Millenium 3 CB20 12 In 8 Out Relay 24V dc Blind
Art:
88970031
Copied
|
12
|
8
|
24 V DC
|
No
|
No
|
FBD 180 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Relay
|
250 V AC
|
124.6 mm
|
| ||
![]()

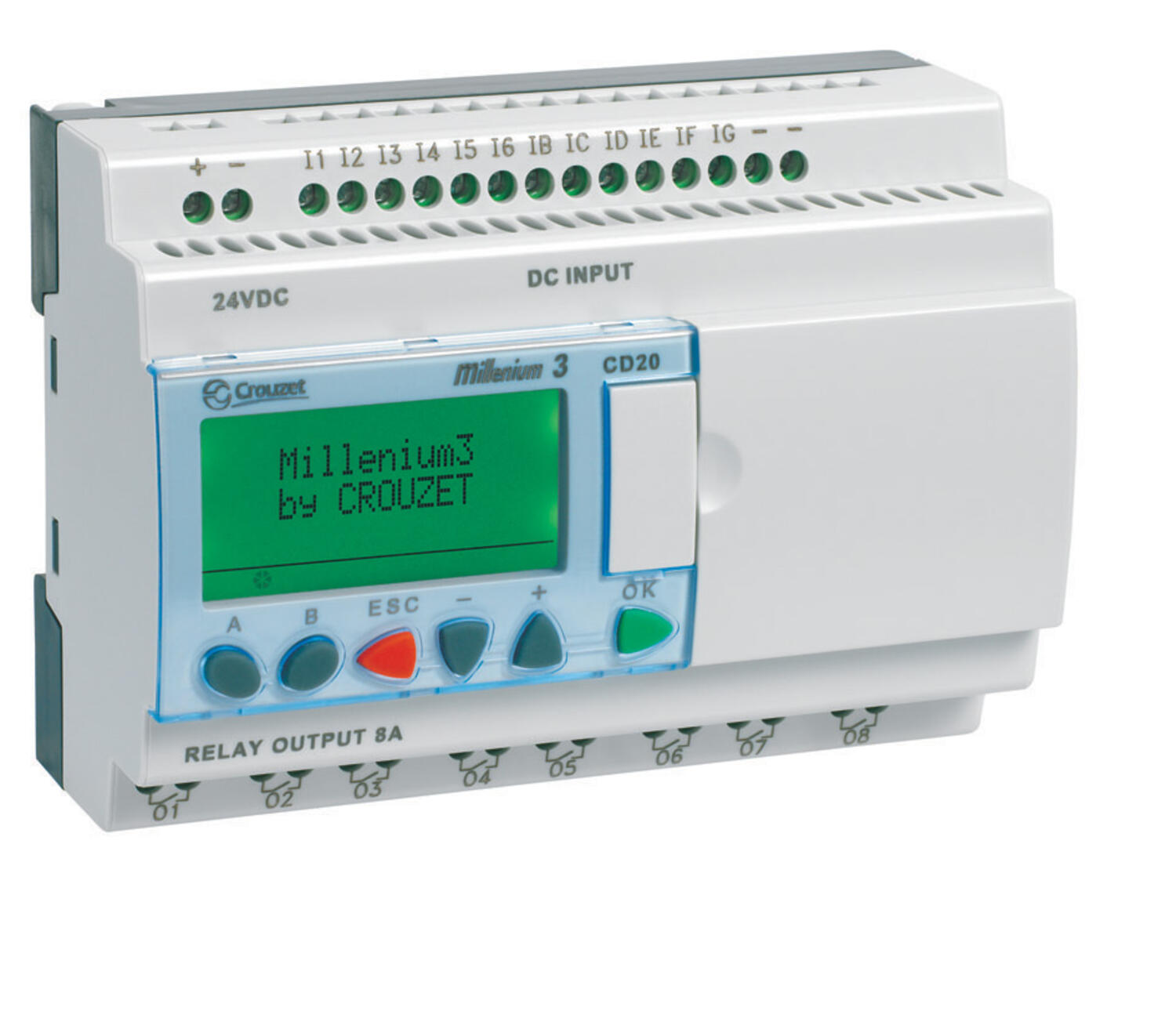

Millenium 3 CD20 12 In 8 Out Relay 24V dc
Art:
88970051
Copied
|
12
|
8
|
24 V DC
|
No
|
Yes
|
FBD 180 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Relay
|
250 V AC
|
124.6 mm
|
| ||
![]()
Millenium 3 CD20 12 In 8 Out Solid State 24V dc
Art:
88970052
Copied
|
12
|
8
|
24 V DC
|
No
|
Yes
|
FBD 180 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Solid State (including 4 PWM)
|
|
124.6 mm
|
| ||
![]()

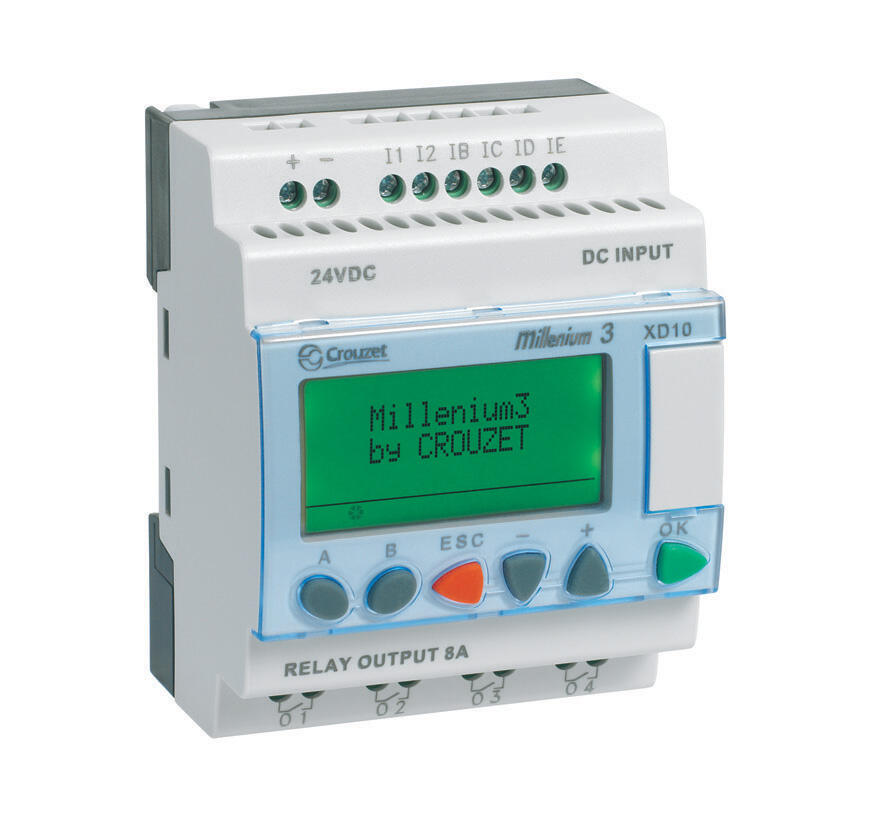

Millenium 3 XD10 6 In 4 Out Relay 24V dc
Art:
88970141
Copied
|
6
|
4
|
24 V DC
|
Yes
|
Yes
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Relay
|
250 V AC
|
71.2 mm
|
| ||
![]()
Millenium 3 XD10 6 In 4 Out Solid State 24V dc
Art:
88970142
Copied
|
6
|
4
|
24 V DC
|
Yes
|
Yes
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Solid State (including 1 PWM)
|
|
71.2 mm
|
| ||
![]()
Millenium 3 XD26 16 In 10 Out Relay 12V dc
Art:
88970165
Copied
|
16
|
10
|
12 V DC
|
Yes
|
Yes
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-12 V DC
|
7 V
|
3 V
|
Relay
|
250 V AC
|
124.6 mm
|
| ||
![]()
Millenium 3 XD26 16 In 10 Out Solid State 24V dc
Art:
88970162
Copied
|
16
|
10
|
24 V DC
|
Yes
|
Yes
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Solid State (including 4 PWM)
|
|
124.6 mm
|
| ||
![]()

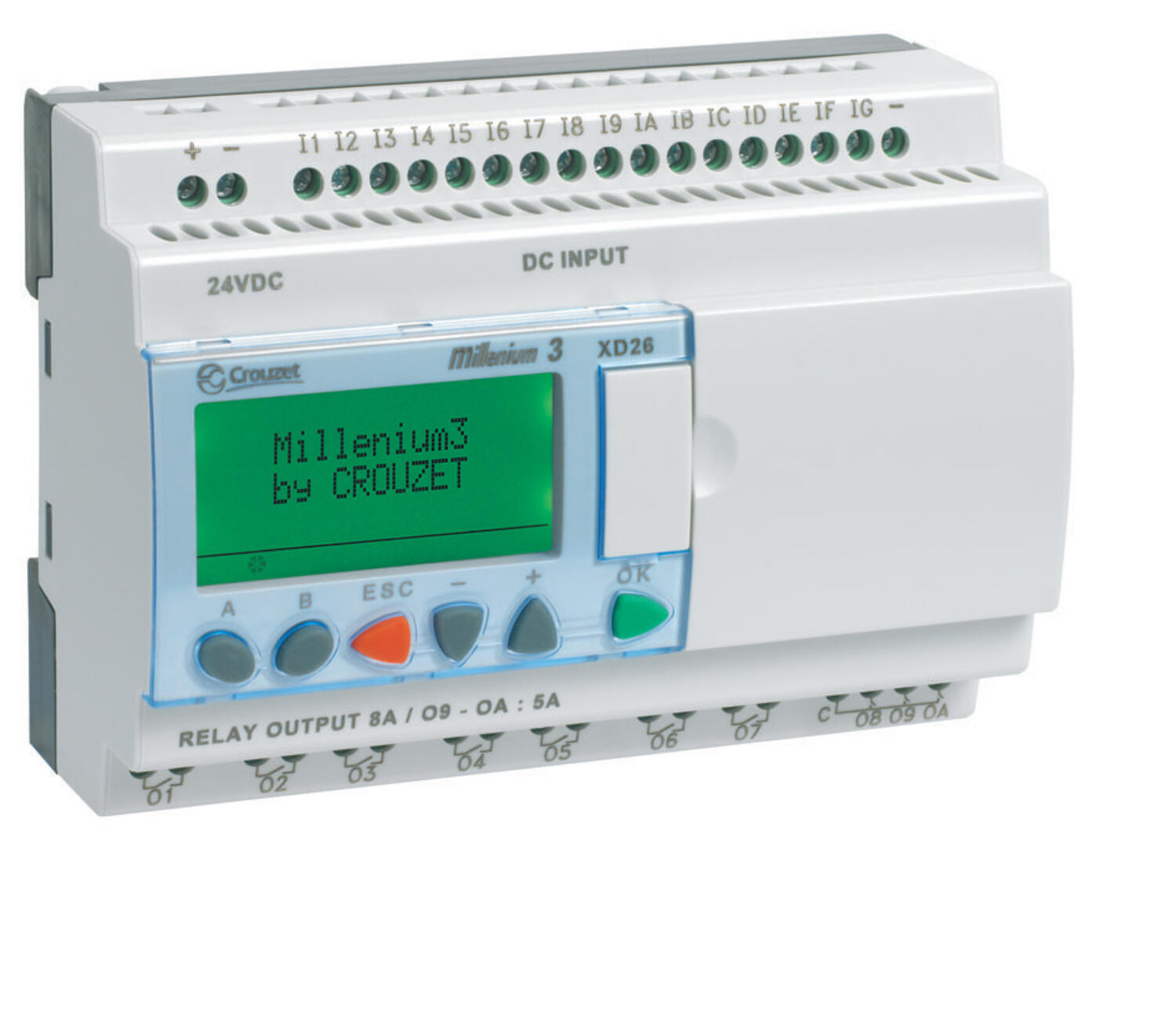

Millenium 3 XD26 16 In 10 Out Relay 24V dc
Art:
88970161
Copied
|
16
|
10
|
24 V DC
|
Yes
|
Yes
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Relay
|
250 V AC
|
124.6 mm
|
| ||
![]()
Millenium 3 XB26 16 In 10 Out Relay 24V dc Blind
Art:
88970151
Copied
|
16
|
10
|
24 V DC
|
Yes
|
No
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Relay
|
250 V AC
|
124.6 mm
|
| ||
![]()

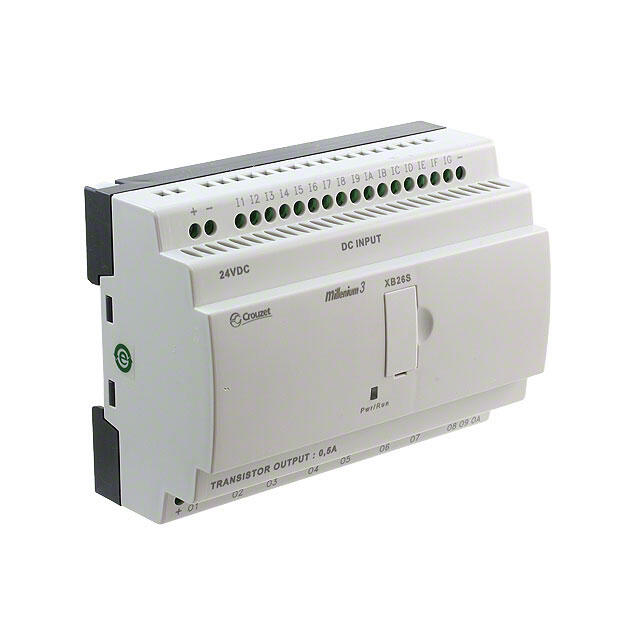

Millenium 3 XB26 16 In 10 Out Solid State 24V dc Blind
Art:
88970152
Copied
|
16
|
10
|
24 V DC
|
Yes
|
No
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Solid State (including 4 PWM)
|
|
124.6 mm
|
| ||
![]()
Millenium 3 XB26 16 In 10 Out Relay 12V dc Blind
Art:
88970155
Copied
|
16
|
10
|
12 V DC
|
Yes
|
No
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-12 V DC
|
7 V
|
3 V
|
Relay
|
250 V AC
|
124.6 mm
|
| ||
![]()
Millenium 3 XD26 16 In 10 Out Solid State 12V dc
Art:
88970814
Copied
|
16
|
10
|
12 V DC
|
Yes
|
Yes
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-12 V DC
|
7 V
|
3 V
|
Solid State (including 4 PWM)
|
|
124.6 mm
|
| ||
![]()
Millenium 3 XB10 6 In 4 Out Relay 24V dc Blind
Art:
88970131
Copied
|
6
|
4
|
24 V DC
|
Yes
|
No
|
FBD 350 blocks, Ladder 120 rows normally
|
0-10 V DC, 0-24 V DC
|
15 V
|
5 V
|
Relay
|
250 V AC
|
71.2 mm
|
|
