General data |
|
---|---|
Number of inputs | 4 |
Number of outputs | 2 |
Supply voltage | 12 V DC |
Logic 1 voltage threshold (DC input) | 7 V |
Logic 0 voltage threshold (DC input) | 3 V |
Output type | Relay |
Switching voltage max | 250 V AC |
Other technical data |
|
---|---|

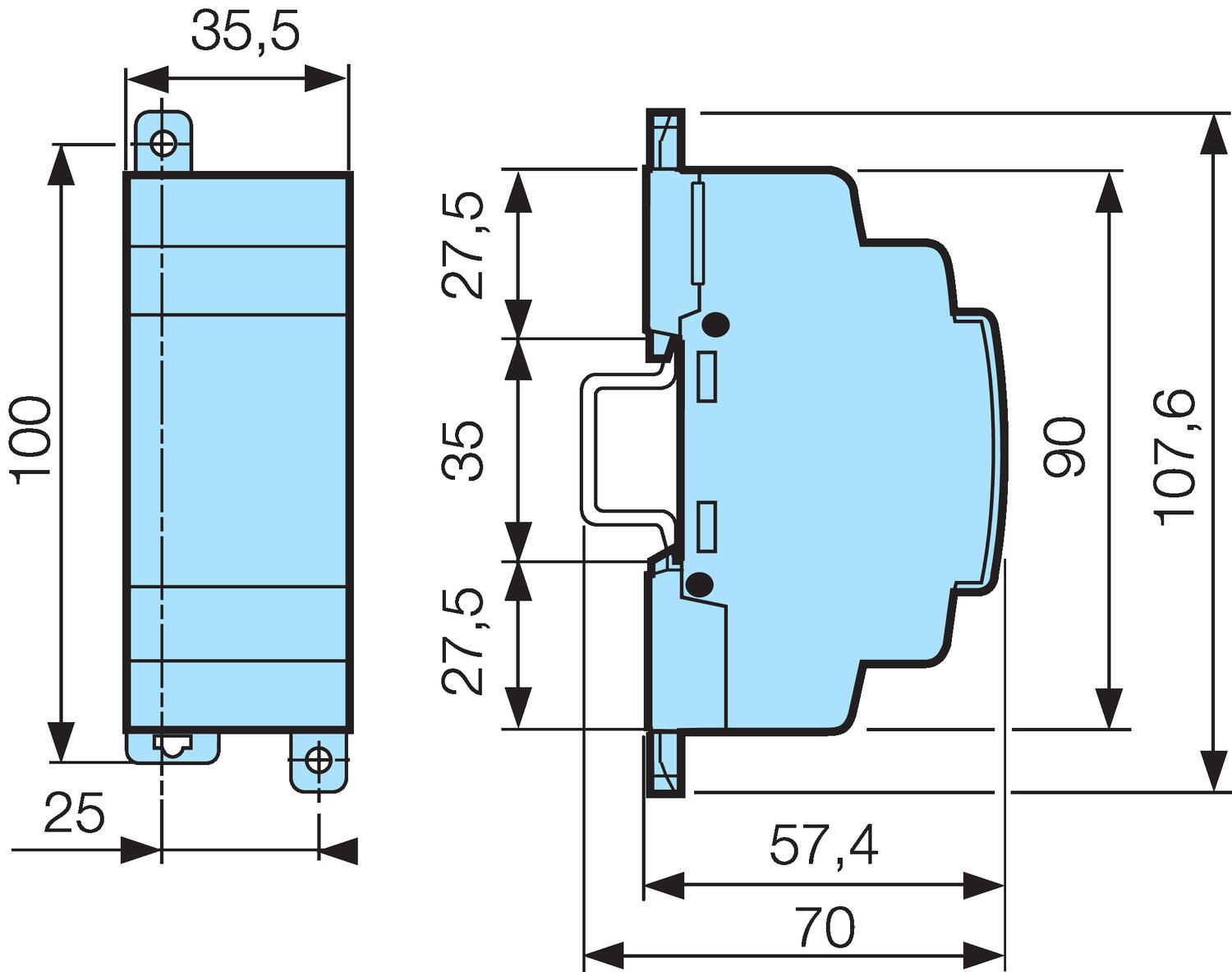

Width | 35.5 mm |
Depth | 57.5 mm |
Height | 90 mm |
Temperature operational min | -20 °C |
Temperature operational max | 70 °C |
Approvals | CE, CSA, RoHS, UL |
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Number of inputs | Number of outputs | Supply voltage | Expandable | Input type | Logic 1 voltage threshold (AC input) | Logic 0 voltage threshold (AC input) | Logic 1 voltage threshold (DC input) | Logic 0 voltage threshold (DC input) | Output type | Switching voltage max | Width | Depth | Height | Temperature operational min | Temperature operational max | Approvals | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Millenium 3 XR06 Extension 4 In 2 Out Relay 12V dc
Art:
88970215
Copied
|
4
|
2
|
12 V DC
|
|
|
|
|
7 V
|
3 V
|
Relay
|
250 V AC
|
35.5 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR06 Extension 4 In 2 Out Relay 24V dc
Art:
88970211
Copied
|
4
|
2
|
24 V DC
|
|
|
|
|
15 V
|
5 V
|
Relay
|
250 V AC
|
35.5 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR06 Extension 4 In 2 Out Relay 24V ac
Art:
88970214
Copied
|
4
|
2
|
24 V AC
|
|
|
14 V
|
5 V
|
|
|
Relay
|
250 V AC
|
35.5 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR06 Extension 4 In 2 Out Relay 100-240V ac
Art:
88970213
Copied
|
4
|
2
|
100-240 V AC
|
|
|
79 V
|
28 V
|
|
|
Relay
|
250 V AC
|
35.5 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR10 Extension 6 In 4 Out Relay 12V dc
Art:
88970225
Copied
|
6
|
4
|
12 V DC
|
|
|
|
|
7 V
|
3 V
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR10 Extension 6 In 4 Out Relay 24V dc
Art:
88970221
Copied
|
6
|
4
|
24 V DC
|
|
|
|
|
15 V
|
5 V
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR10 Extension 6 In 4 Out Relay 24V ac
Art:
88970224
Copied
|
6
|
4
|
24 V AC
|
|
|
14 V
|
5 V
|
|
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR10 Extension 6 In 4 Out Relay 100-240V ac
Art:
88970223
Copied
|
6
|
4
|
100-240 V AC
|
|
|
79 V
|
28 V
|
|
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR14 Extension 8 In 6 Out Relay 12V dc
Art:
88970235
Copied
|
8
|
6
|
12 V DC
|
|
|
|
|
7 V
|
3 V
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR14 Extension 8 In 6 Out Relay 24V dc
Art:
88970231
Copied
|
8
|
6
|
24 V DC
|
|
|
|
|
15 V
|
5 V
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR14 Extension 8 In 6 Out Relay 24V ac
Art:
88970234
Copied
|
8
|
6
|
24 V AC
|
|
|
14 V
|
5 V
|
|
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XR14 Extension 8 In 6 Out Relay 100-240V ac
Art:
88970233
Copied
|
8
|
6
|
100-240 V AC
|
|
|
79 V
|
28 V
|
|
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XE10 Extension 6 In 4 Out Relay 24V dc
Art:
88970321
Copied
|
6
|
4
|
24 V DC
|
Yes
|
|
|
|
15 V
|
5 V
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XE10 Extension 6 In 4 Out Relay 24V ac
Art:
88970324
Copied
|
6
|
4
|
24 V AC
|
Yes
|
|
14 V
|
5 V
|
|
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()
Millenium 3 XE10 Extension 6 In 4 Out Relay 100-240V ac
Art:
88970323
Copied
|
6
|
4
|
100-240 V AC
|
Yes
|
|
79 V
|
28 V
|
|
|
Relay
|
250 V AC
|
72 mm
|
57.5 mm
|
90 mm
|
-20 °C
|
70 °C
|
CE, CSA, RoHS, UL
|
| ||
![]()

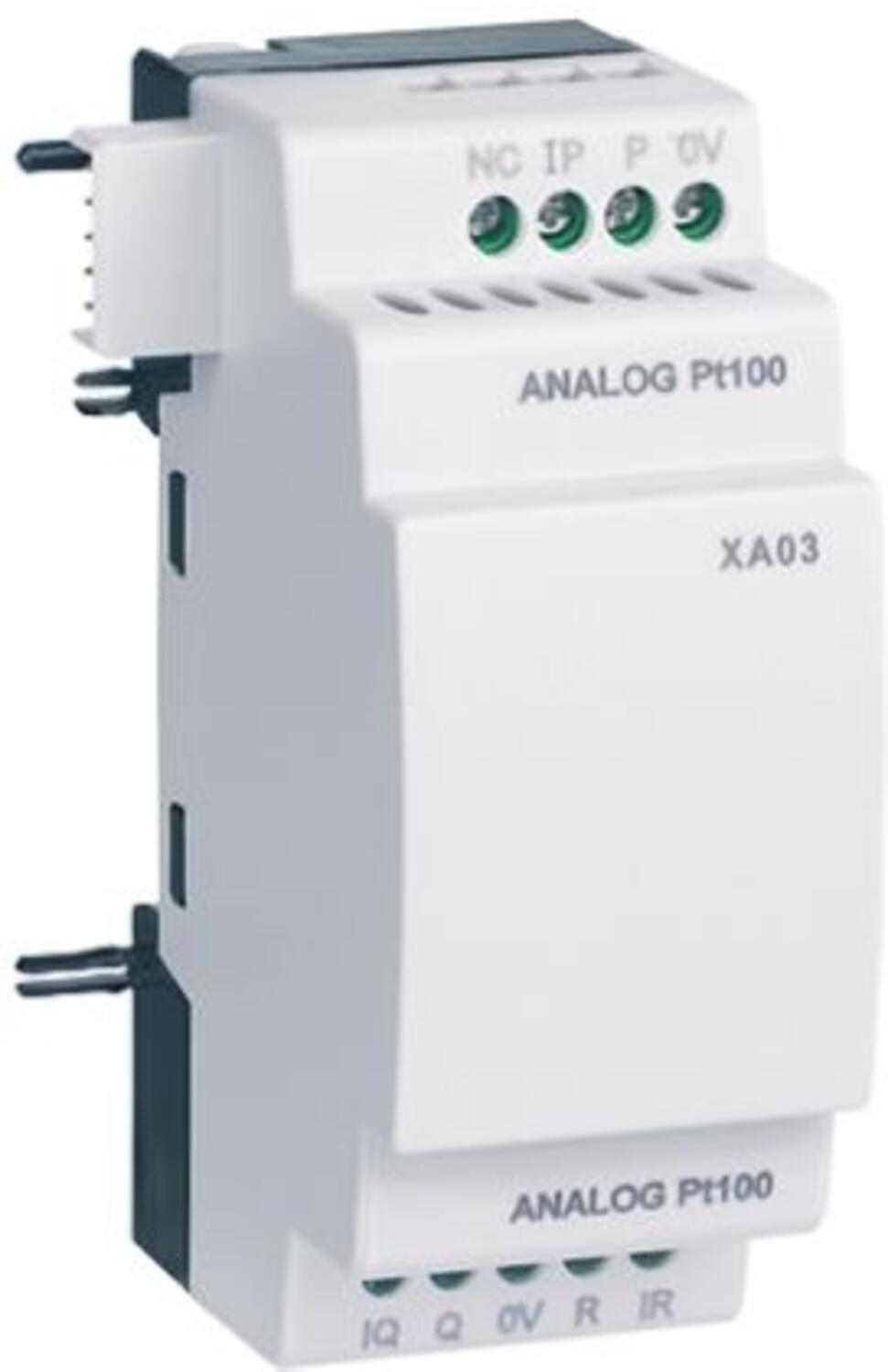

Millenium 3 XA03 Extension 3 x PT100 24Vdc
Art:
88970800
Copied
|
3
|
|
24 V DC
|
|
3 x Pt100 -25°C - +125°C
|
|
|
|
|
|
|
35.5 mm
|
57.4 mm
|
90 mm
|
|
|
CE, CSA, GL, UL
|
| ||
![]()

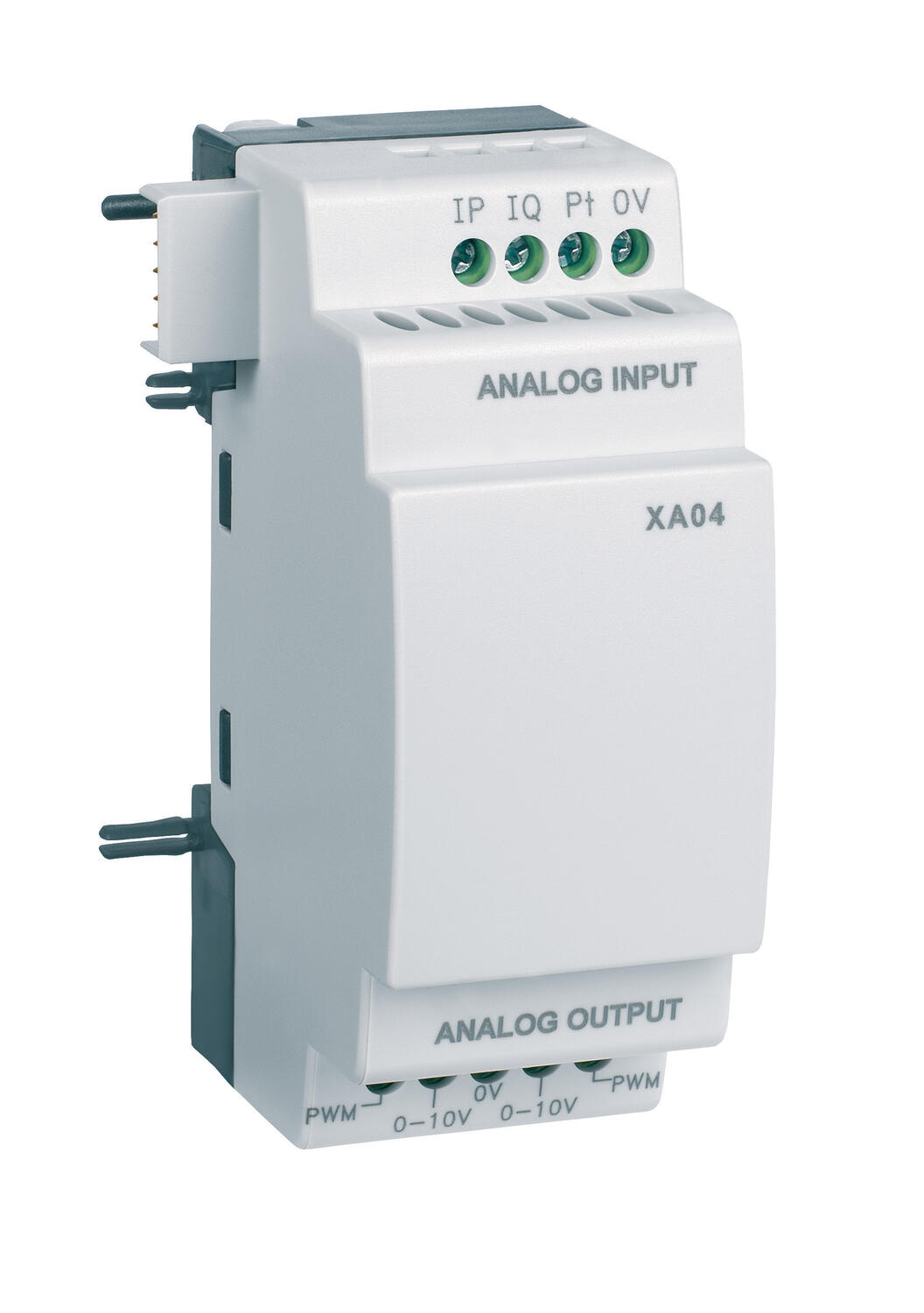

Millenium 3 XA04 Extension 2 In 2 Out Analogue 24V dc
Art:
88970241
Copied
|
2
|
2
|
24 V DC
|
|
1 x 0-10V/0-20mA, 1 x 0-10V/0-20mA/Pt100
|
|
|
|
|
2 x 0-10V/PWM
|
|
35.5 mm
|
57.4 mm
|
90 mm
|
|
|
|
| ||
![]()

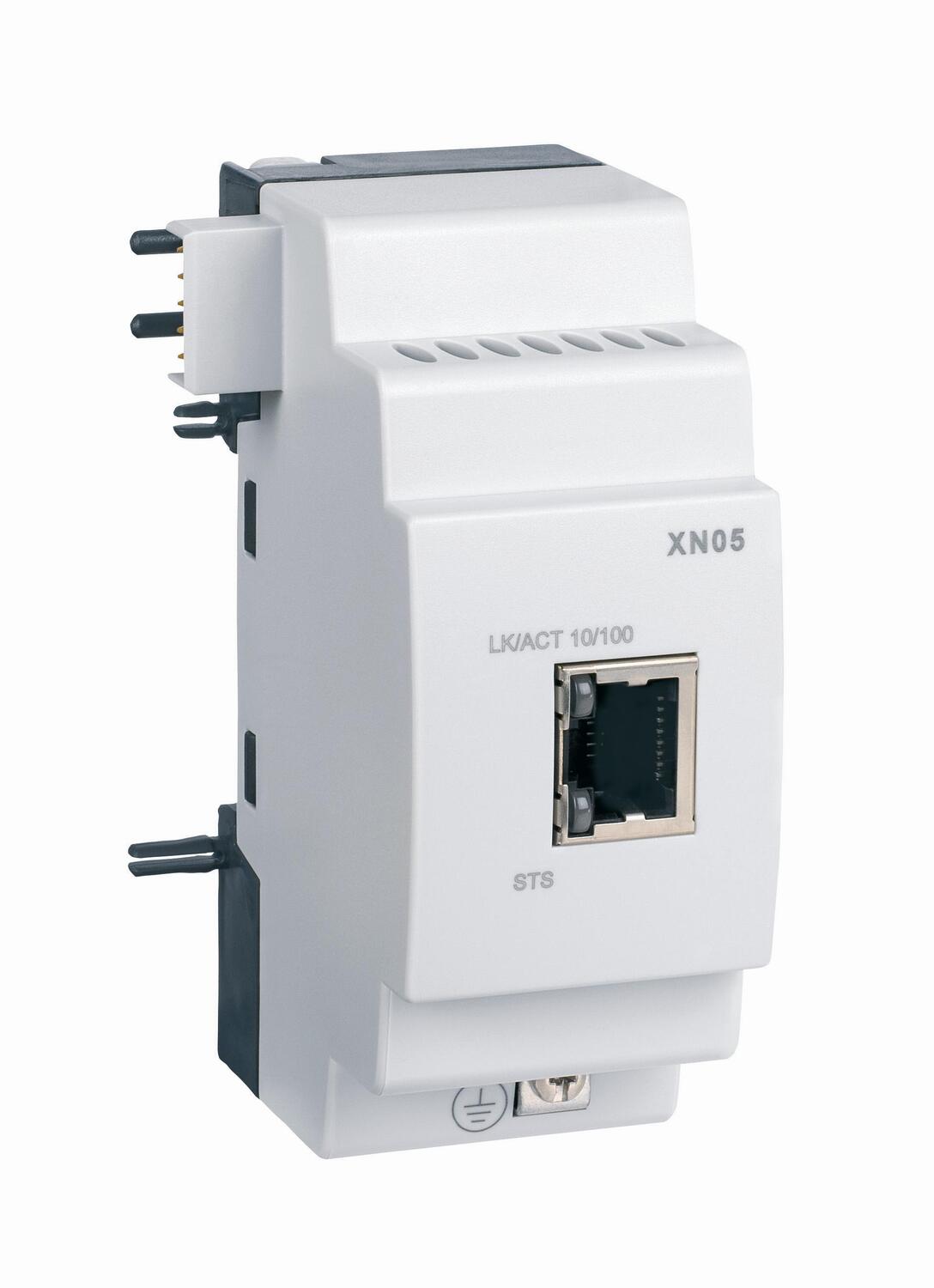

Millenium 3 XN05 Extension Ethernet TCP/IP MODBUS 24V dc
Art:
88970270
Copied
|
|
|
24 V DC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
Millenium 3 XN06 MODBUS Slave 24V dc
Art:
88972250
Copied
|
|
|
24 V DC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()

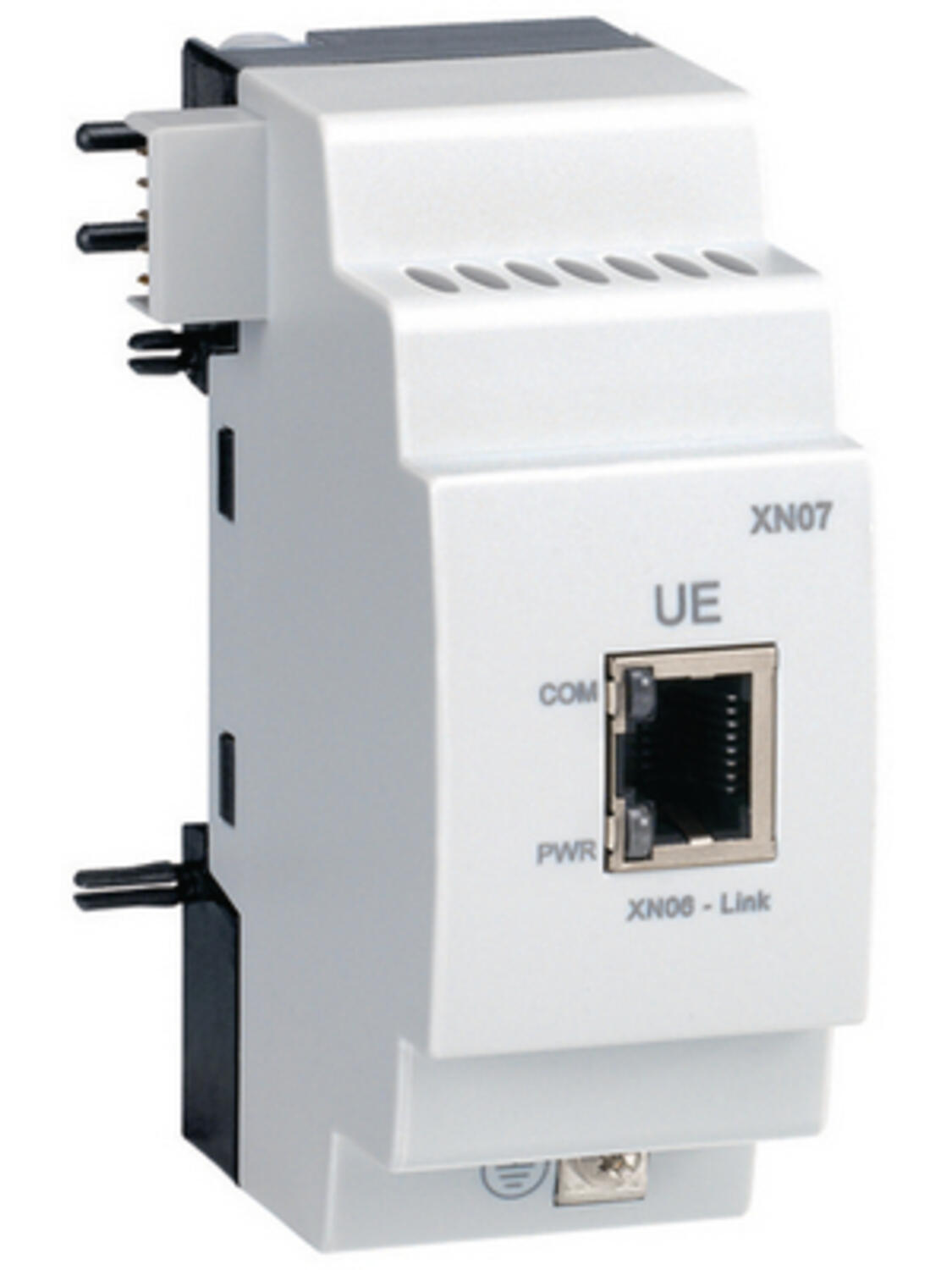

Millenium 3 Smart XN07 MODBUS Master 24V dc
Art:
88974250
Copied
|
|
|
24 V DC
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
