CROUZET AUTOMATION

em4 Local / em4 Ethernet

Save time in designing your application and remote functions using the most intuitive graphical function block language in the market.



em4 offers the ability to control and monitor equipment more advanced than Millenium 3.



em4 features up to 4 high speed counting inputs and can handle 0-10V and 4-20mA inputs.



em4 has 16 inputs and 10 outputs in the basic version. Up to two expansion modules can be connected to increase the I/O count up to 46.



em4 Alert

Can send alarms and logged data via SMS and email. Information can be exchanged between several em4 Alert controllers. Communication via 3g network using and SIM card.



em4 Local

Available in two versions - standalone and with built-in modbus TCP/IP for local communications.



Crouzet Soft

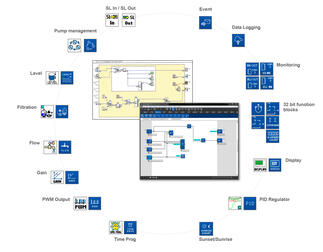

Controller is programmed with function block diagram (FBD) using a PC with free software. The software features function blocks to send alarms and log files making programming easy and intuitive.



Read more
  • 24 V dc control voltage
  • 26 I/O base controller
  • Expandable up to 46 I/O
  • RS485 MODBUS
  • Ethernet connectivity

Selected variant

CROUZET AUTOMATION

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General data
Number of inputs 16
Number of outputs 10
Supply voltage 24 V DC
Expandable Yes
Display Yes
Memory for data 2 k octets
Programming method Function block / SFC
Program memory Flash
Program size FBD typically 1000 blocks
Real time clock Yes
Count speed Up to 60 kHz
Input type 16 digital (8 analog)
Measurement range analog inputs 0-10 V DC, 0-24 V DC, 0-20mA

*Invisible Heading*
Logic 1 voltage threshold (DC input) 15 V
Logic 0 voltage threshold (DC input) 9 V
Output type 2 SSR / PWM, 8 relays
Static / PWM output Outputs O1 & O2
Pulse duty factor PWM O1-O2: PWM 0-100% 100 Step, 14-1758 Hz
Switching voltage max 250 V AC

Other technical data
Width 124,6 mm
Depth 60,6 mm
Height 90 mm
Temperature operational min -20 °C
Temperature operational max 60 °C
Approvals CE, UL

Downloads

Measurements and connections

Product description

Save time in designing your application and remote functions using the most intuitive graphical function block language in the market.



em4 offers the ability to control and monitor equipment more advanced than Millenium 3.



em4 features up to 4 high speed counting inputs and can handle 0-10V and 4-20mA inputs.



em4 has 16 inputs and 10 outputs in the basic version. Up to two expansion modules can be connected to increase the I/O count up to 46.



em4 Alert

Can send alarms and logged data via SMS and email. Information can be exchanged between several em4 Alert controllers. Communication via 3g network using and SIM card.



em4 Local

Available in two versions - standalone and with built-in modbus TCP/IP for local communications.



Crouzet Soft

Controller is programmed with function block diagram (FBD) using a PC with free software. The software features function blocks to send alarms and log files making programming easy and intuitive.



Accessories

Related products

Parts Number of inputs Number of outputs Supply voltage Expandable Display Memory for data Programming method Program memory Program size Real time clock Count speed Input type Measurement range analog inputs Logic 1 voltage threshold (DC input) Logic 0 voltage threshold (DC input) Output type Static / PWM output Pulse duty factor PWM Switching voltage max Width Depth Height Temperature operational min Temperature operational max Approvals Price
em4 B26 Local 16 In 10 Out 24V dc
em4 B26 Local 16 In 10 Out 24V dc
Art:
88981103 Copied
16
10
24 V DC
Yes
Yes
2 k octets
Function block / SFC
Flash
FBD typically 1000 blocks
Yes
Up to 60 kHz
16 digital (8 analog)
0-10 V DC, 0-24 V DC, 0-20mA
15 V
9 V
2 SSR / PWM, 8 relays
Outputs O1 & O2
O1-O2: PWM 0-100% 100 Step, 14-1758 Hz
250 V AC
124,6 mm
60,6 mm
90 mm
-20 °C
60 °C
CE, UL
Crouzet EM4 ethernet nano-plc
em4 B26 Local Ethernet 16 In 10 Out 24V dc
Art:
88981133 Copied
16
10
24 V DC
Yes
Yes
2 k octets
Function block / SFC
Flash
FBD typically 1000 blocks
Yes
Up to 60 kHz
16 digital (8 analog)
0-10 V DC, 0-24 V DC, 0-20mA
15 V
9 V
2 SSR / PWM, 8 relays
Outputs O1 & O2
O1-O2: PWM 0-100% 100 Step, 14-1758 Hz
250 V AC
124,6 mm
60,6 mm
90 mm
-20 °C
60 °C
CE, UL
em4 B26 Alert 3G 16 In 10 Out 24V dc
em4 B26 Alert 3G 16 In 10 Out 24V dc
Art:
88981123 Copied
16
10
24 V DC
Yes
Yes
2 k octets
Function block / SFC
Flash
FBD typically 1000 blocks
Yes
Up to 60 kHz
16 digital (8 analog)
0-10 V DC, 0-24 V DC, 0-20mA
15 V
9 V
2 SSR / PWM, 8 relays
Outputs O1 & O2
O1-O2: PWM 0-100% 100 Step, 14-1758 Hz
250 V AC
124,6 mm
60,6 mm
90 mm
-20 °C
60 °C
CE, UL
em4 E10R Digital Extension 6 In 4 Out 24V dc
em4 E10R Digital Extension 6 In 4 Out 24V dc
Art:
88982113 Copied
6
4
Yes
Digital / 0-10V / 0-24V
11 V
9 V
Relay
250 V AC
53,4 mm
60,6 mm
90 mm
-20 °C
60 °C
CE, cULus
em4 E10A Analogue Extension 6 In 4 Out 24V dc
em4 E10A Analogue Extension 6 In 4 Out 24V dc
Art:
88982213 Copied
6
4
Yes
Digital / 0-10V / 0-20mA / 4-20mA
11 V
8 V
O1-O2: SSR / PWM, O3-O4: 0-10V
O1-O2: PWM 0-100% 100 Step, 14-1758 Hz
53,4 mm
60,6 mm
90 mm
-20 °C
60 °C
CE, cULus
em4 24VDC RS485 MASTER GLOSS BLACK
em4 24VDC RS485 MASTER GLOSS BLACK
Art:
88980122 Copied
em4 Flat Internal / External Antenna 3M
em4 Flat Internal / External Antenna 3M
Art:
88980161 Copied
