STEGO
From thermal management to intelligent condition monitoring!
STEGO CONNECT allows the integration of analogue devices, for example heaters, filter fans, etc. into the digital world.
The system contains analogue and/or digital sensors for the collection and transfer of environmental data (Remote Monitoring) and the data is then used to control analogue devices to control the environment within an application. All this is done with the sensor and actuator hubs
The data is transmitted via IO-Link from the sensors to the cloud via the hubs and IO-Link Master. The data in the cloud (Big Data) serves as basis for the optimization of the overall application conditions and provides a dashboard for visual indication off the system.
| Approvals | CE, UKCA, RoHS |
|---|---|
| Colour | Light gray |
| Depth | 116 mm |
| Height | 35 mm |
| Humidity storage | < 90 % rF |
| Inrush max | 16 A |
| IP class | IP40 |
| Mounting | TS 35, Screw fixing |
| Operating humidity | < 90 % rF |
|---|---|
| Operational temperature | -40 °C to 70 °C |
| Power consumption | 1.4 W |
| Protection class | III |
| Storage temperature | -40 °C to 85 °C |
| Weight | 0.16 kg |
| Width | 107 mm |
From thermal management to intelligent condition monitoring!
STEGO CONNECT allows the integration of analogue devices, for example heaters, filter fans, etc. into the digital world.
The system contains analogue and/or digital sensors for the collection and transfer of environmental data (Remote Monitoring) and the data is then used to control analogue devices to control the environment within an application. All this is done with the sensor and actuator hubs
The data is transmitted via IO-Link from the sensors to the cloud via the hubs and IO-Link Master. The data in the cloud (Big Data) serves as basis for the optimization of the overall application conditions and provides a dashboard for visual indication off the system.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Approvals | Colour | Depth | Height | Humidity storage | Inrush max | IP class | Mounting | Operating humidity | Operational temperature | Power consumption | Protection class | Storage temperature | Weight | Width | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SHC 071, Stego Connect, Digital IO-Link Sensor Hub for up to 4 STEGO sensors
Art:
07100.2-00
Copied
|
CE, UKCA, RoHS
|
Light gray
|
116 mm
|
35 mm
|
< 90 % rF
|
16 A
|
IP40
|
TS 35, Screw fixing
|
< 90 % rF
|
-40 °C to 70 °C
|
1.4 W
|
III
|
-40 °C to 85 °C
|
0.16 kg
|
107 mm
|
|
||
ACH 072, Stego Connect, Digital IO-Link Actuator Hub for up to 3 actuators
Art:
07200.2-00
Copied
|
CE, RoHS 3
|
Light gray
|
108 mm
|
35 mm
|
max. 90 % RH
|
16 A
|
IP40
|
TS 35, Screw fixing
|
max. 90 % RH
|
-40 to +70 °C med 3 utgångar med 2A i varje. -40 to +40 °C med 3 utgångar med 10A i varje
|
1.4 W
|
III
|
-40 to +85 °C
|
0.16 kg
|
107 mm
|
|
||

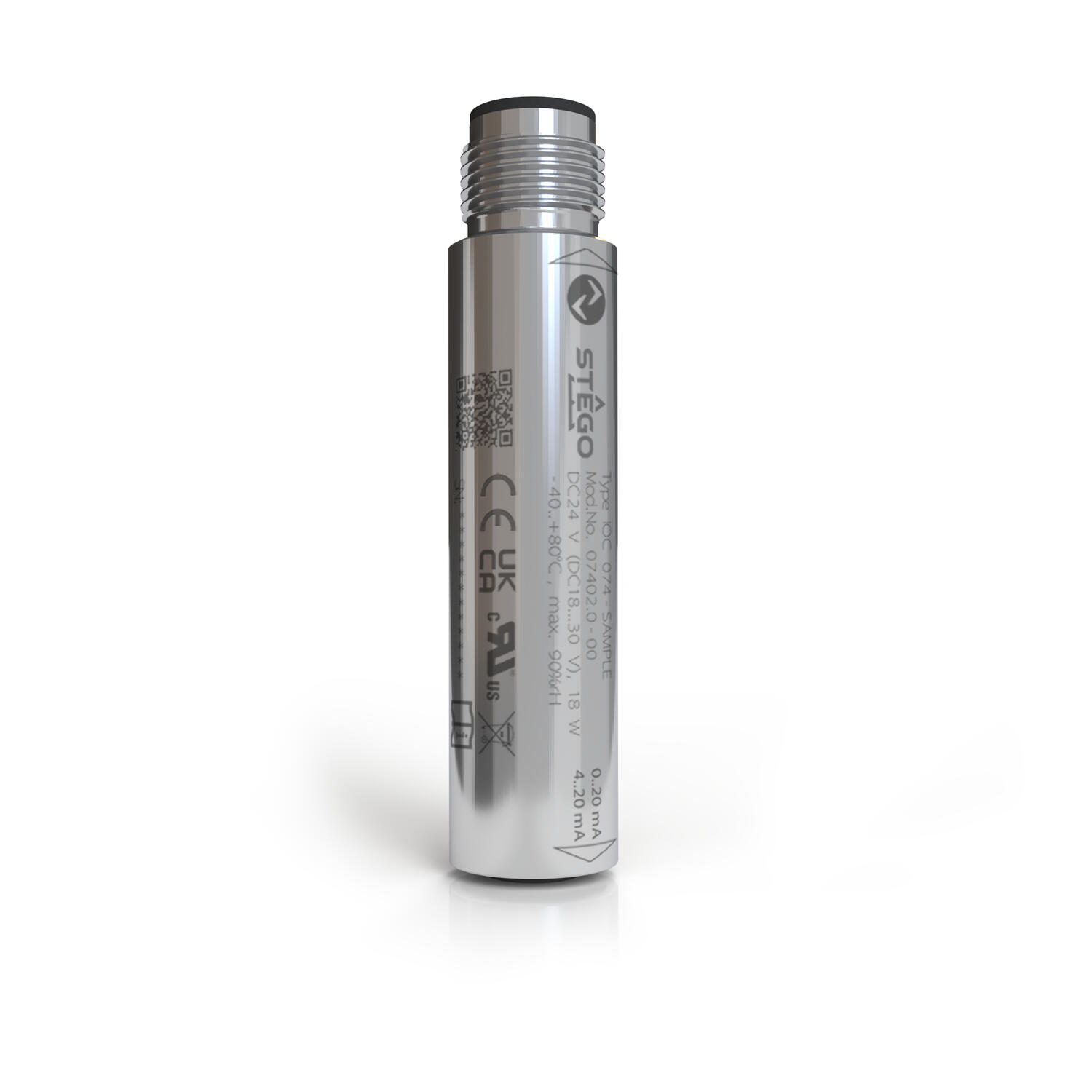

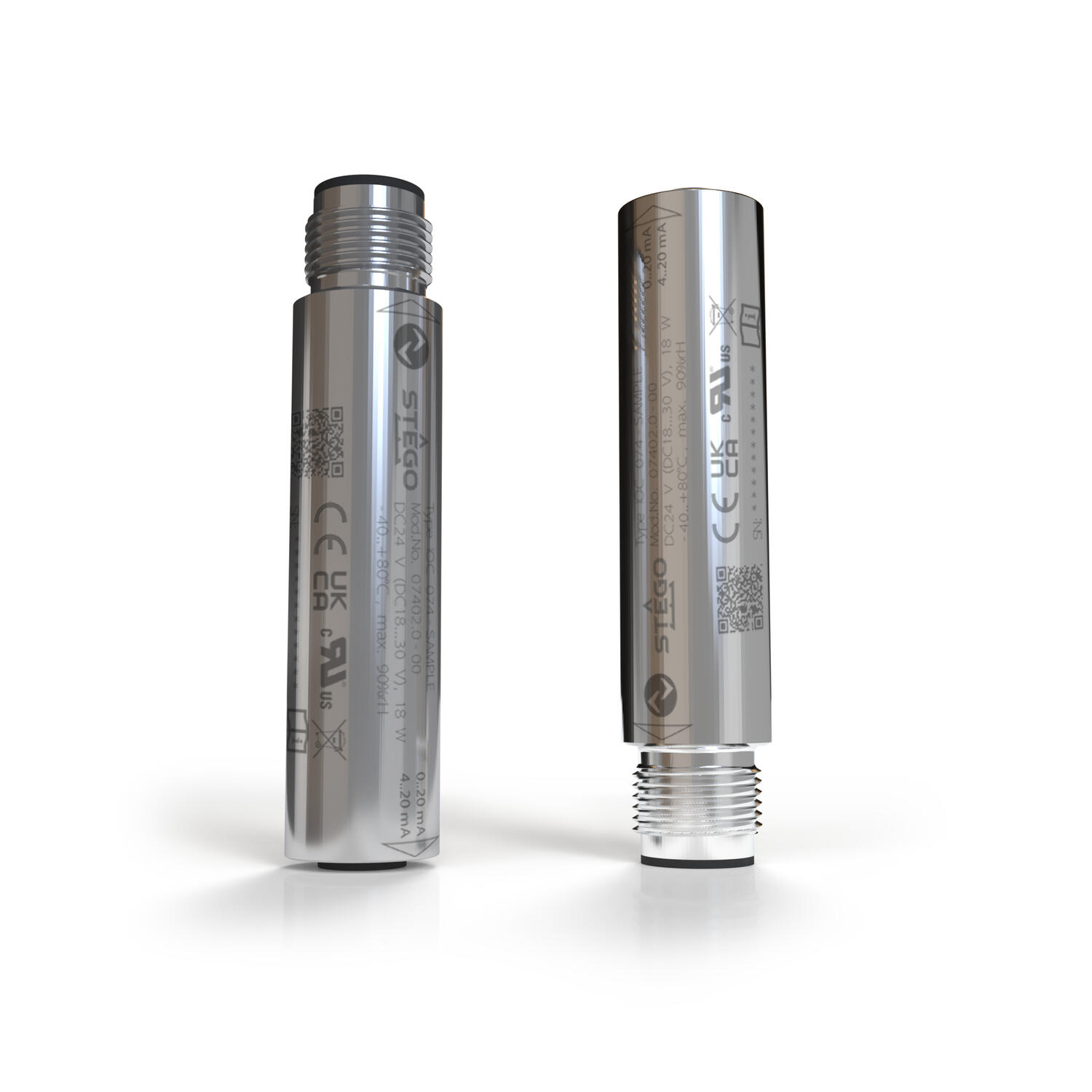

SEN 073, Stego Connect, Temperature and Hunmidity sensor, -40 …+70°C, 0-100% RH, IP64, M12
Art:
07300.0-00
Copied
|
CE, UKCA
|
|
|
|
< 90 % rF
|
|
|
Independent
|
< 100 % rF
|
-40 to +70 °C
|
|
|
-40 °C to 85 °C
|
0.025 kg
|
|
|
||
SEN 073, Stego Connect, Temperature and Hunmidity sensor, -40 …+80°C, 0-100% RH, IP20, 1m cable
Art:
07300.1-00
Copied
|
CE, UKCA
|
|
|
|
< 90 % rF
|
|
|
|
< 100 % rF
|
|
|
|
-40 °C to 85 °C
|
|
|
|
||
|
SEN 073, Stego Connect, Temperature and Hunmidity sensor, -40 …+80°C, 0-100% RH, IP20, 2m cable
Art:
07300.1-01
Copied
|
CE, UKCA
|
|
|
|
< 90 % rF
|
|
|
|
< 100 % rF
|
|
|
|
-40 °C to 85 °C
|
|
|
|
||
SEN 073, Stego Connect, Absolute Pressure and Temperature sensor, 300…1100hPa, -40 …+70°C IP64, M12
Art:
07301.0-00
Copied
|
CE, UKCA
|
|
|
|
< 90 % rF
|
|
|
|
< 100 % rF
|
|
|
|
-40 °C to 85 °C
|
|
|
|
||
SEN 073, Stego Connect, Luminosity sensor, 0.01 …83,865 lx, IP67, M12
Art:
07302.0-00
Copied
|
CE, UKCA
|
|
|
|
< 90 % rF
|
|
|
|
< 100 % rF
|
|
|
|
-40 °C to 85 °C
|
|
|
|
||
Stego Connect, IIoT Gateway by Moxa (UC-8210-T-LX) with Stego Connect Software
Art:
07400.0-00
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Stego Connect, IFM IO-Link Master Interface, 4 port
Art:
07401.0-00
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Stego Connect, Sensor cable 2m, 4x AWG26 Shielded M12 cable socket - fully assembled
Art:
244445
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Stego Connect, Sensor cable 5m, 4x AWG26 Shielded cable socket and M12 Plug - self-assembly
Art:
244446
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Stego Connect, Sensor cable 20m, 4x AWG26 Shielded cable socket and M12 Plug - self-assembly
Art:
244447
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Stego Connect, Edge Box SCE 074 to IO-Link Master SCM 074 Shielded connection cable, 2m, M2/RJ45
Art:
244449
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Stego Connect, IO-Link Master SCM 074 to IO-Link Device, Shielded connection cable, 2m, M12/M12
Art:
244451
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
