PULS
FIEPOS eFuse 3-phase FPT300.246-042-101
3x 380-480 V AC/24-28 V DC, 300 or 500 W
The FPS300 is an industrialgrade power supply for 3-phase networks and is incorporated in a rugged wall- mount housing with IP65/67 protection.
It provides two to four stabilized outputs that are galvanically separated from the input.
The negative potential of the outputs is permanently connected to PE within the unit.
The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the extremely low input inrush current and the very high efficiencies, which are achieved by various design technologies.
Large sized output capacitors can absorb and store regenerative energy from breaking motors.
- Decentralized Power Supply
- Up to 4 switchable outputs
- Output power 360/600 W
- 600/1000 Wpeak 5s
- IP54, IP65/IP67
Selected variant
Technical data
Input |
|
|---|---|
| Number of phases | 3 |
| Input voltage ac | 380-480 |
| Input voltage ac min | 323 V AC |
| Input voltage ac max | 552 V AC |
| Inrush current at 400 V ac typical | 2 A |
| Power factor at 400 V ac, full load. Typical | 0.9 |
| Supply frequency | 50-60 Hz ±6 % |
| Power consumption at 400 V ac | 0.53 A |
Output |
|
| Output voltage | 24 V DC |
| Output voltage min | 24 V DC |
| Output voltage max | 28 V DC |
| Output current | 12.5 A |
| Output current max | 25 A |

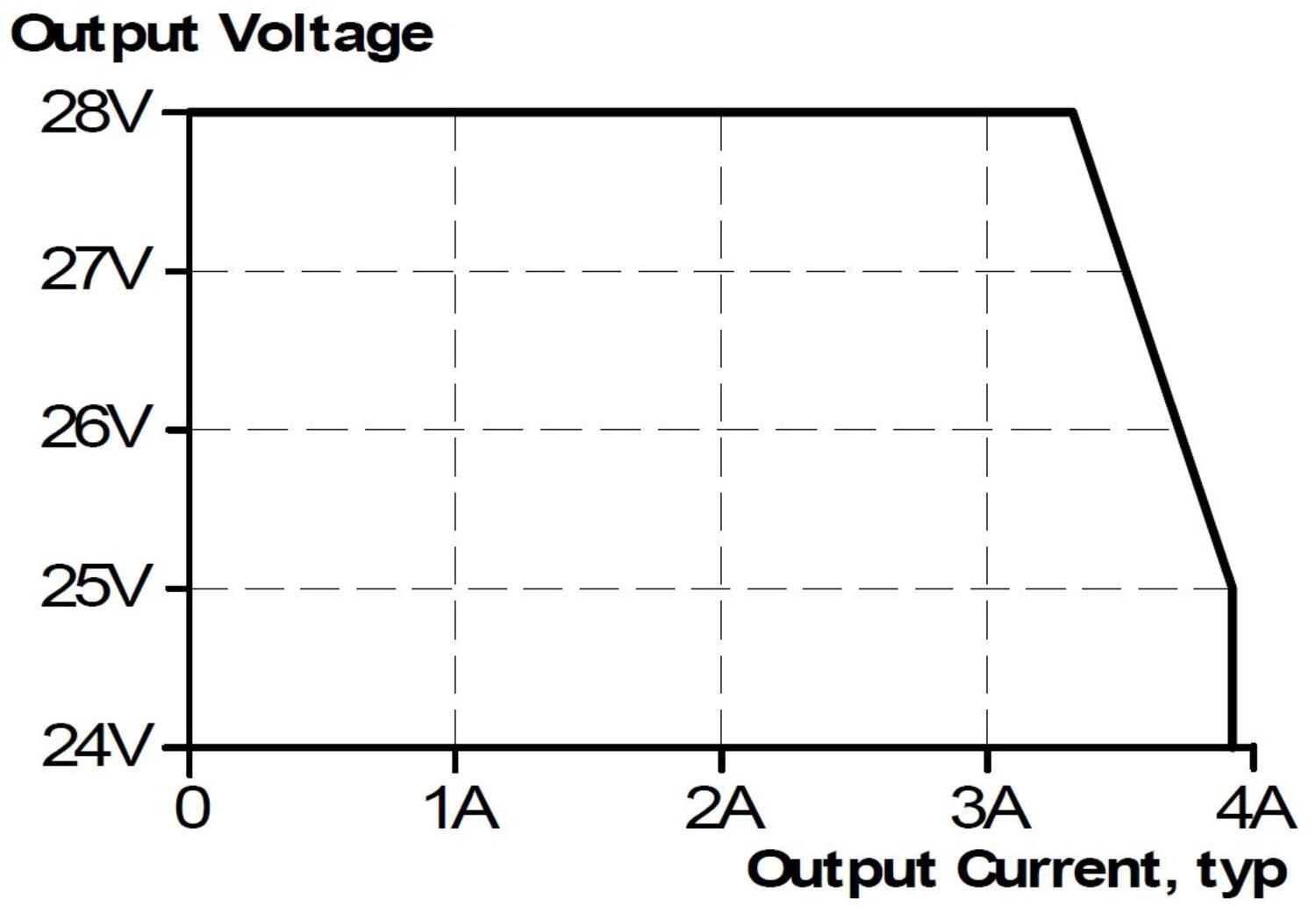

| Max. Current per output | 3.9 A |
| Power | 300 W |

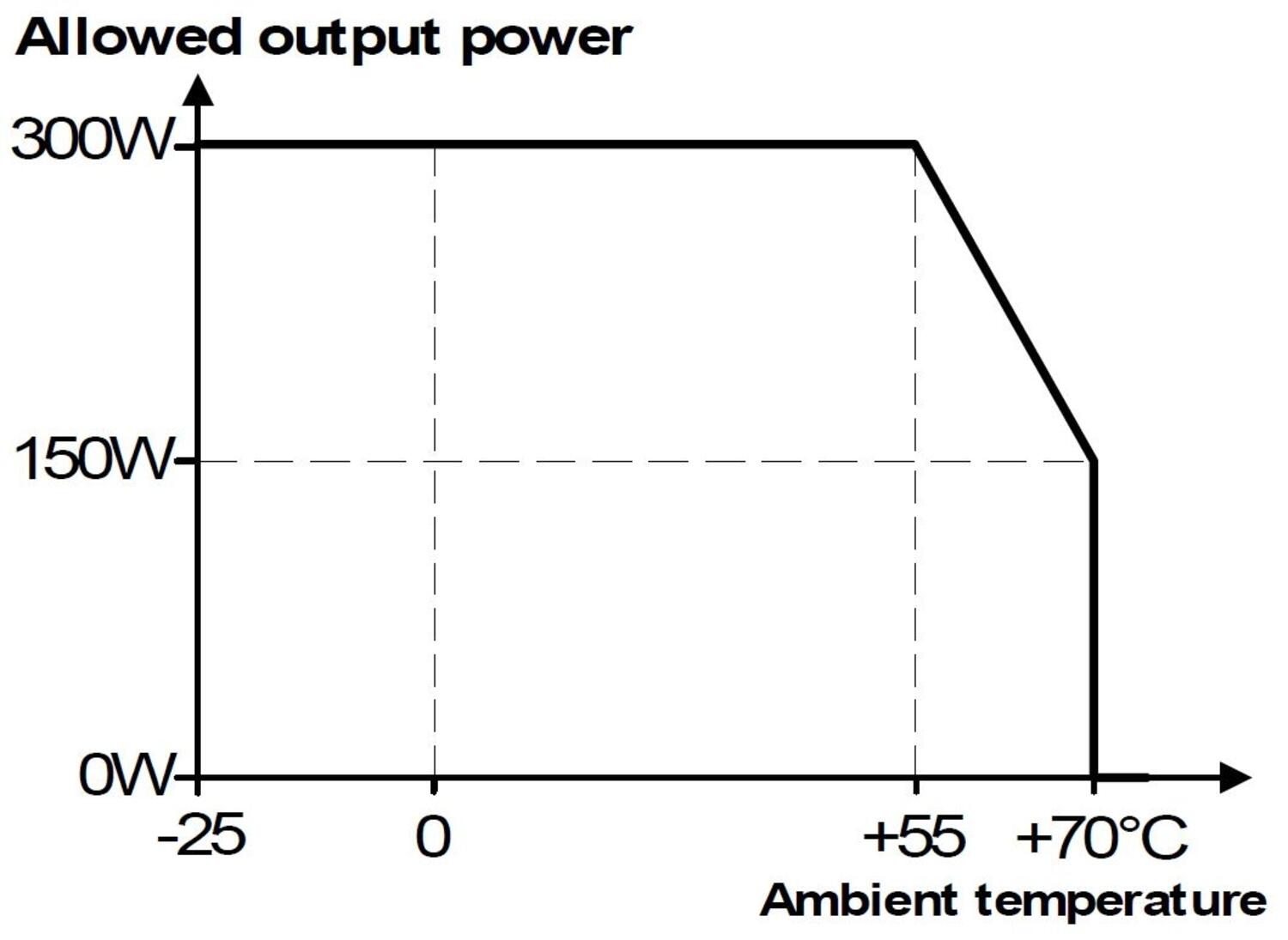

| Total output power <+55°C | 300 W |
| Total output power <+70°C | 150 W |

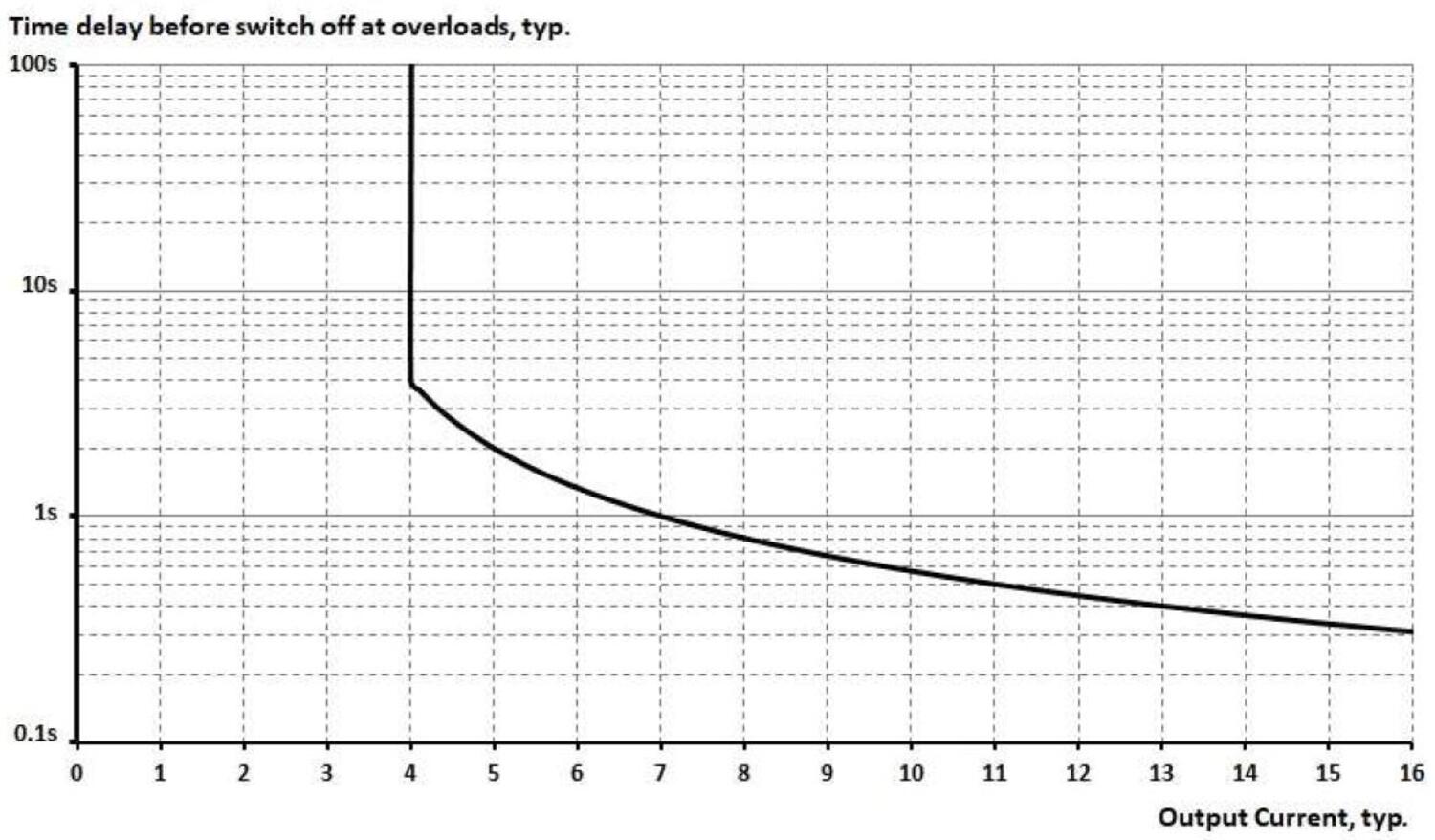

| Total output power <1 s | 600 W |
| Total output power <1 min | 450 W |
| Power drop from +55 °C to + 70 °C | 6 W/°C |
| Ripple max | 100 mV pp |
| Temperature min without derating | -25 °C |
*Invisible Heading* |
|
|---|---|
| Temperature max without derating | 55 °C |
| Back-feeding loads | 35V / 4,3 J |
Efficiency/Lifetime/MTBF |
|

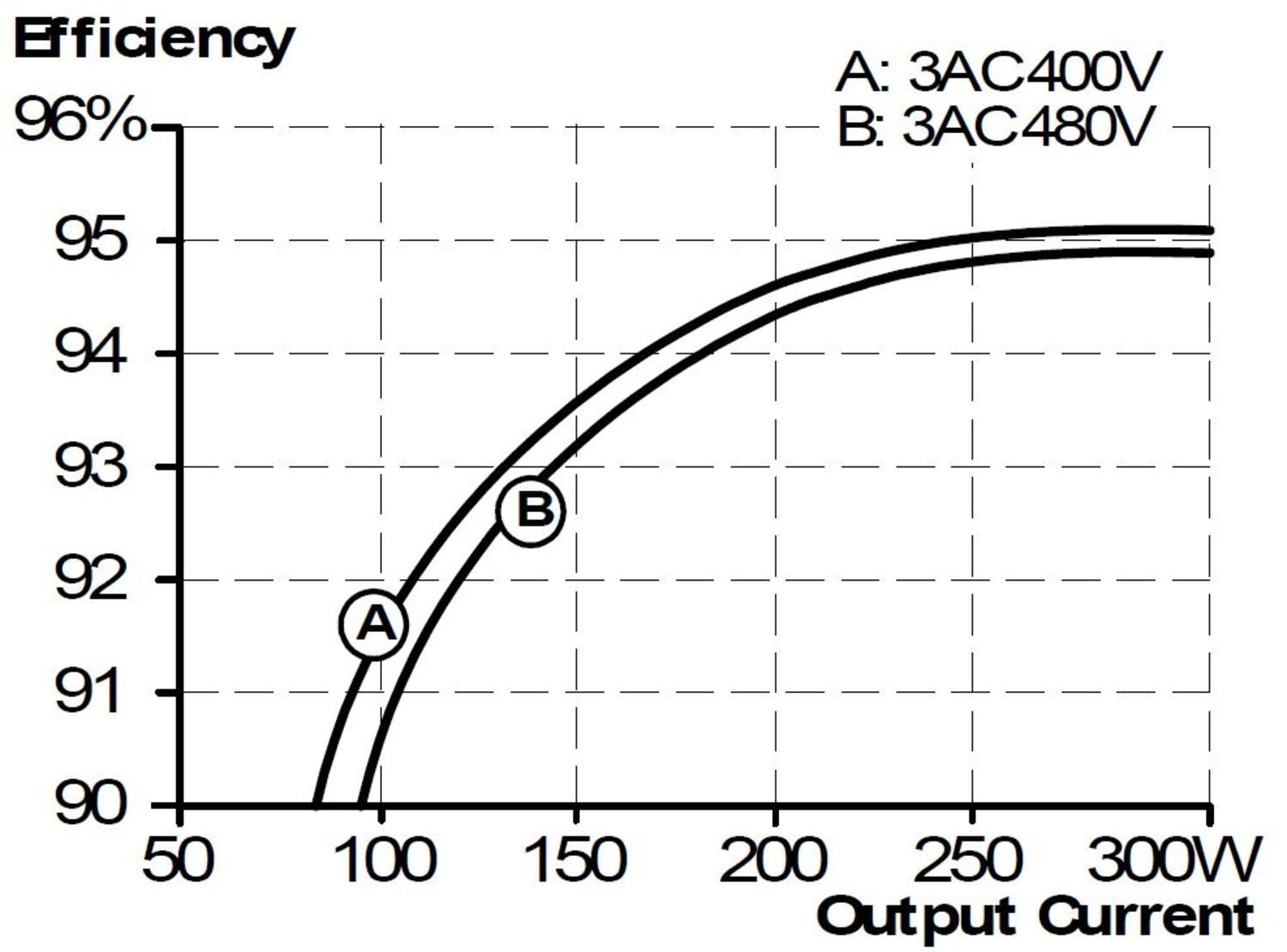

| Efficiency at 400 V ac, typical | 93.5 % |
| Efficiency at 400 V ac, full load, typical | 95.1 % |
| Lifetime at 400 V ac, full load and +40 ° C | 312000 h |
| MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 625000 h |

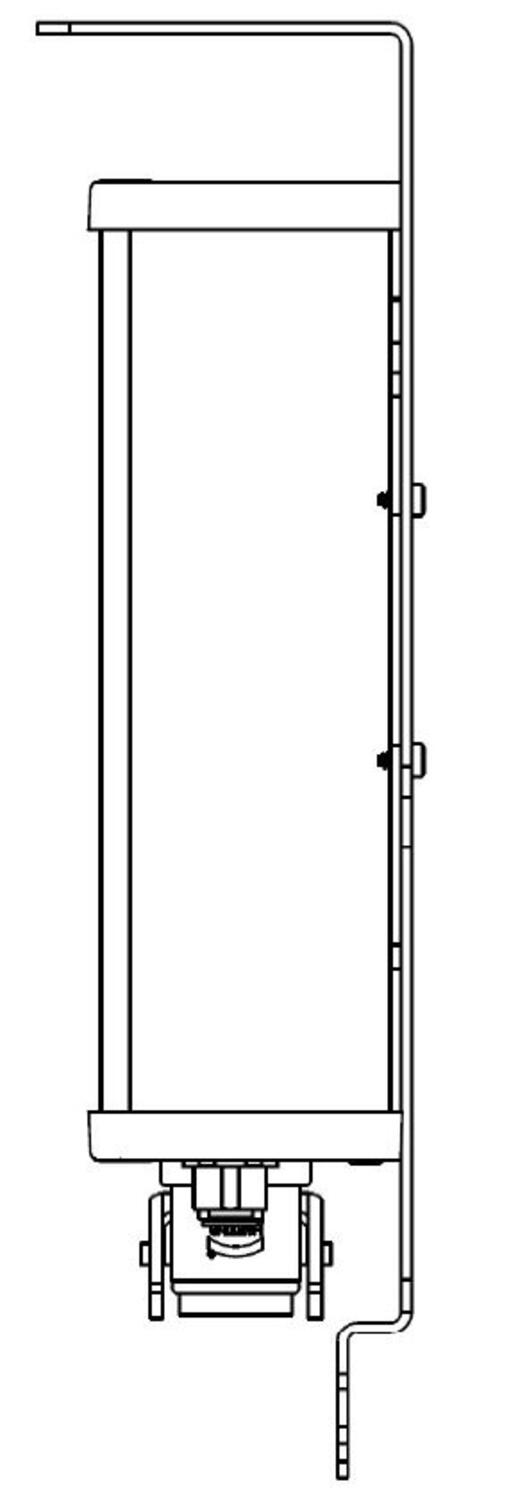

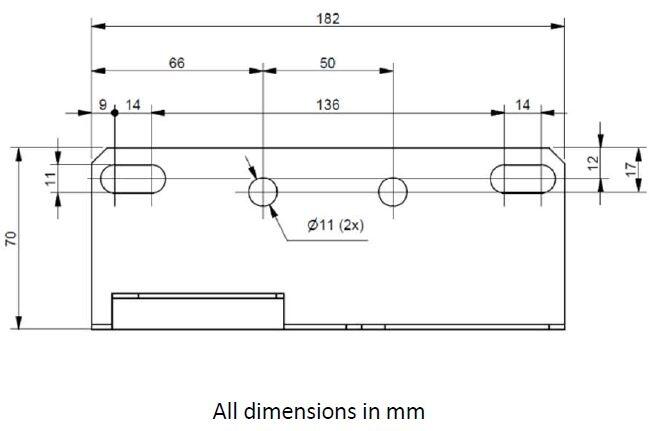

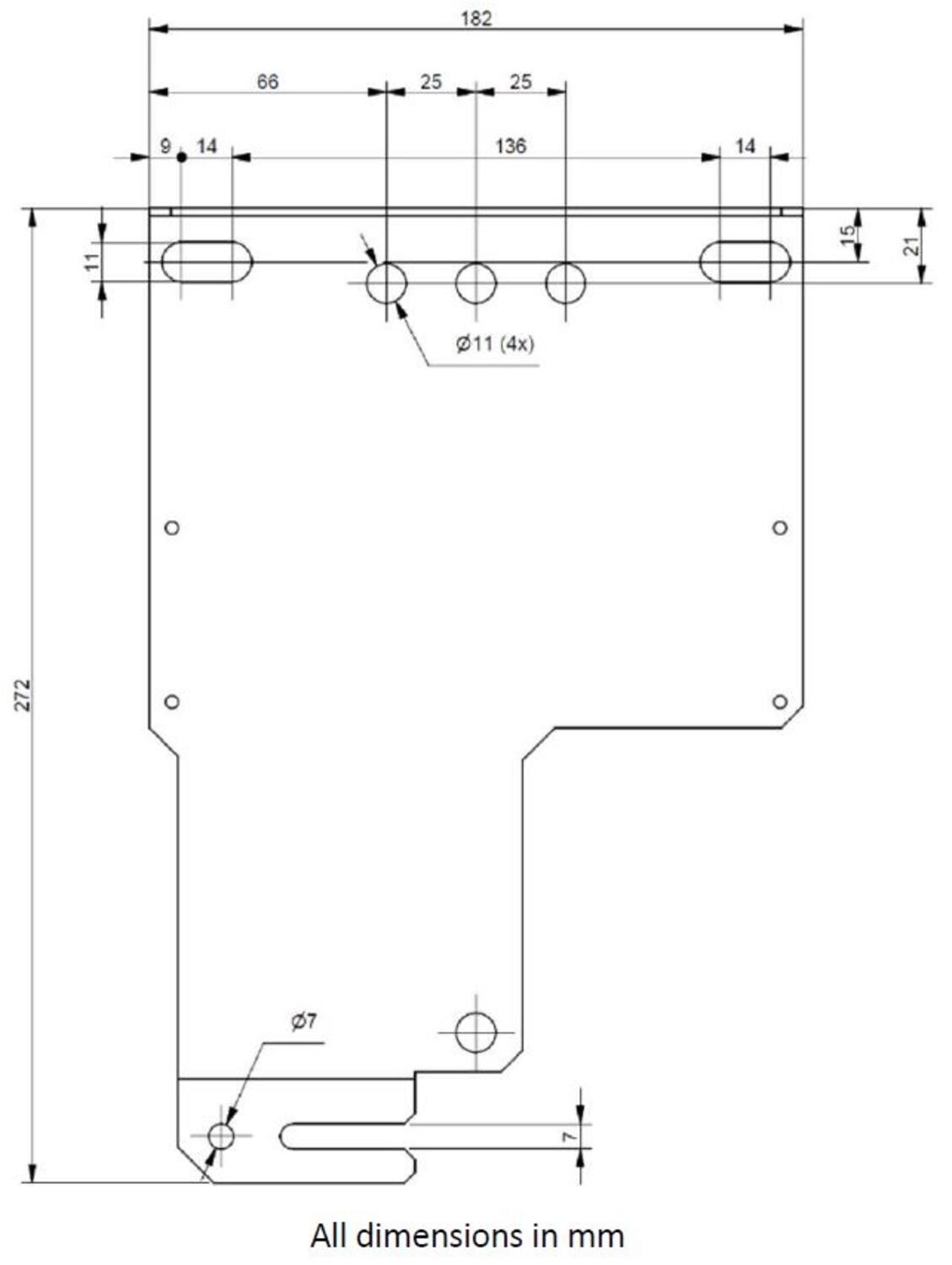

Dimensions |
|
| Width | 182 mm |
| Height | 272 mm |
| Depth | 70 mm |
| Weight | 1.55 kg |

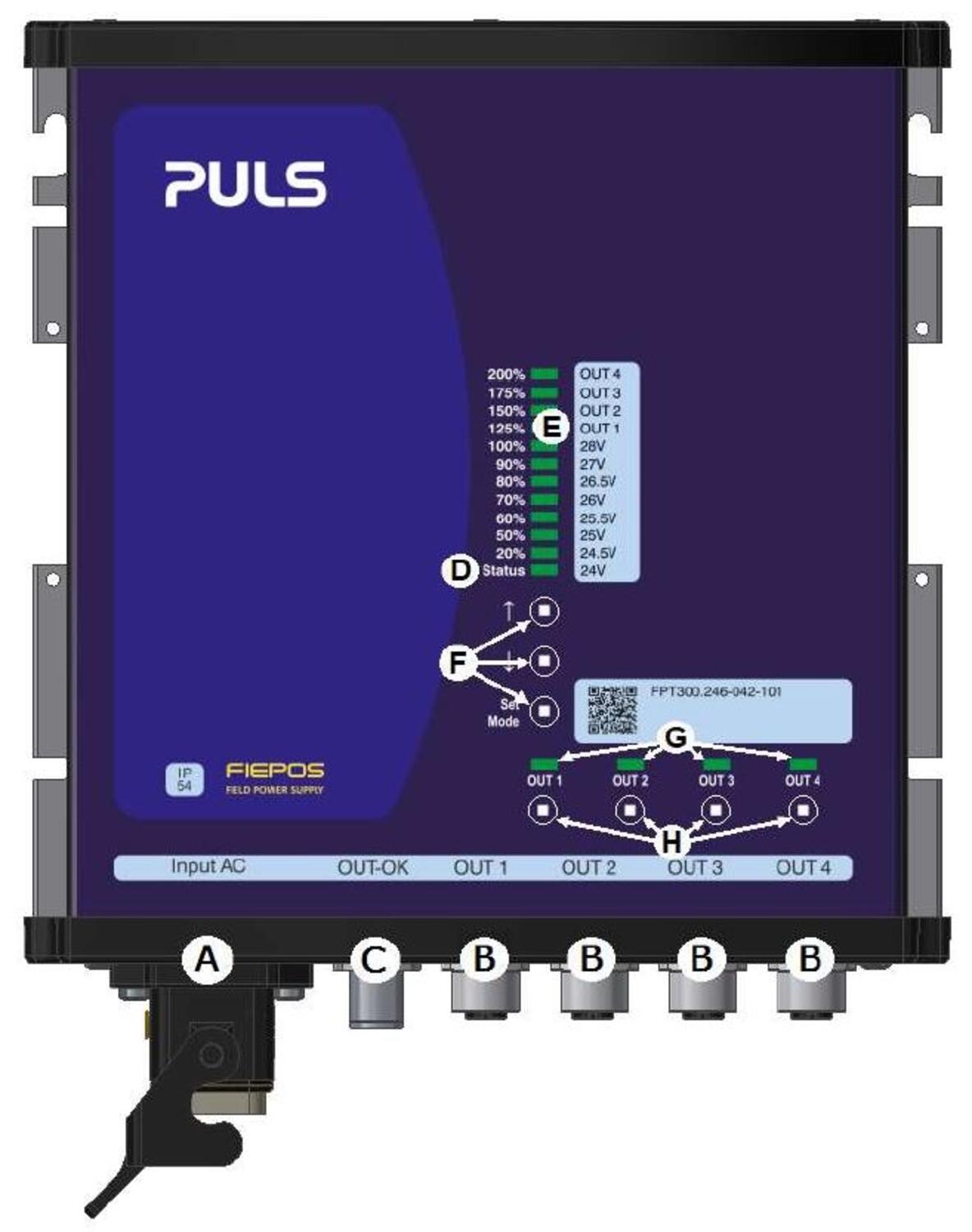

Connection Terminals |
|
| Output connectors | 4x M12-A |
| DC-OK/IO-link connector | M12-A |
| Input connector | HAN Q5/0 |
General |
|
| Series | FIEPOS eFuse |
| Approvals | CB, CE, cULus, NEC Class 2 |
| DC relay output | Yes |
| IO-LINK | No |
| Material protection | Aluminium |
| Hold time at 400 V ac, typical full load | 25 ms |
| IP class | IP54 |
| Active Transient | Yes |
Product description
The FPS300 is an industrialgrade power supply for 3-phase networks and is incorporated in a rugged wall- mount housing with IP65/67 protection.
It provides two to four stabilized outputs that are galvanically separated from the input.
The negative potential of the outputs is permanently connected to PE within the unit.
The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the extremely low input inrush current and the very high efficiencies, which are achieved by various design technologies.
Large sized output capacitors can absorb and store regenerative energy from breaking motors.
