Interface modules allow you to connect standard pre-moulded cable connector sets onto screw or tension-spring PCB terminals. Â
Â
The connections of the multi-pole or high-pole connectors are configured one to-one to the PCB – from the individual wires via connectors to pre-assembled cables. This means the  assembly time and associated costs are reduced.
Â
The compact design of the interface modules, and the clear terminal labelling, and their simple assembly on TS 32 or TS 35 rails, makes this system an attractive alternative to an individual wire approach.
Â
The SD modules use the standard D-SUB, male or female connectors, they are available with either screw or compact tension-spring PCB terminals.
The interface modules range from 9 way to 50 way with a single, double and in some cases triple connector.
Â
A high density 15 way (VGA type) is also included to complete the family.
Â
The SD-LA modules also feature a LED status display.
Â
General Data |
|
|---|---|
| Connector type | D-Sub male, pin |
| Connection type | Screw |
| Number of connections | 1 Â |
| Number of poles | 9 |
| Shielded | Yes |
Dimensions |
|
| Length | 47 mm |
| Width | 37 mm |
| Height TS 35/7.5 | 61 mm |
Connection Data |
|
| Cross section single wire from | 0.2 mm² |
| Cross section stranded with ferrule to | 2.5 mm² |
| Cross section single wire to | 2.5 mm² |
| Cross section stranded with ferrule from | 0.2 mm² |
| Stripping length | 7 mm |
| Torque | 0.6 |
Ratings |
|
|---|---|
| Operating voltage ac/dc max | 125 V |
| Current carrying capacity per channel max | 1.5 A |
| DIN-VDE Spec | DIN VDE 0110 / EN 50178 |
| Overvoltage category | III |
| Contamination degree | 2 |
| Test voltage eff | 0.67 kV |
| Operating temperature from | -20 °C |
| Operating temperature to | 50 °C |
Additional Data |
|
| Tariff code | 85369010 |
| Country of origin | NL |
| Weight | 93.8 g |
| Pack size | 1 Â |
Interface modules allow you to connect standard pre-moulded cable connector sets onto screw or tension-spring PCB terminals. Â
Â
The connections of the multi-pole or high-pole connectors are configured one to-one to the PCB – from the individual wires via connectors to pre-assembled cables. This means the  assembly time and associated costs are reduced.
Â
The compact design of the interface modules, and the clear terminal labelling, and their simple assembly on TS 32 or TS 35 rails, makes this system an attractive alternative to an individual wire approach.
Â
The SD modules use the standard D-SUB, male or female connectors, they are available with either screw or compact tension-spring PCB terminals.
The interface modules range from 9 way to 50 way with a single, double and in some cases triple connector.
Â
A high density 15 way (VGA type) is also included to complete the family.
Â
The SD-LA modules also feature a LED status display.
Â
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Connector type | Connection type | Number of connections | Number of poles | Length | Width | Height TS 35/7.5 | Cross section single wire from | Cross section stranded with ferrule to | Cross section stranded with ferrule from | Stripping length | Torque | Operating voltage ac/dc max | Current carrying capacity per channel max | Weight | Operating voltage dc max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SD-S9C, 9 way D-Sub interface module, Male, screw terminals
Art:
15292.2
Copied
|
D-Sub male, pin
|
Screw
|
1
|
9
|
47 mm
|
37 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
93.8 g
|
|
|
||
|
SD-S9CZ, 9 way D-Sub interface module, Male, tension spring terminals
Art:
15293.2
Copied
|
D-Sub male, pin
|
Spring clamp
|
1
|
9
|
47 mm
|
37 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
47.12 g
|
|
|
||
SD-B9C, 9 way D-Sub interface module, Female, screw terminals
Art:
15294.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
9
|
47 mm
|
37 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
93.7 g
|
|
|
||
|
SD-B9CZ, 9 way D-Sub interface module, Female, tension spring terminals
Art:
15295.2
Copied
|
D-Sub female, socket
|
Spring clamp
|
1
|
9
|
47 mm
|
37 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
62 g
|
|
|
||
|

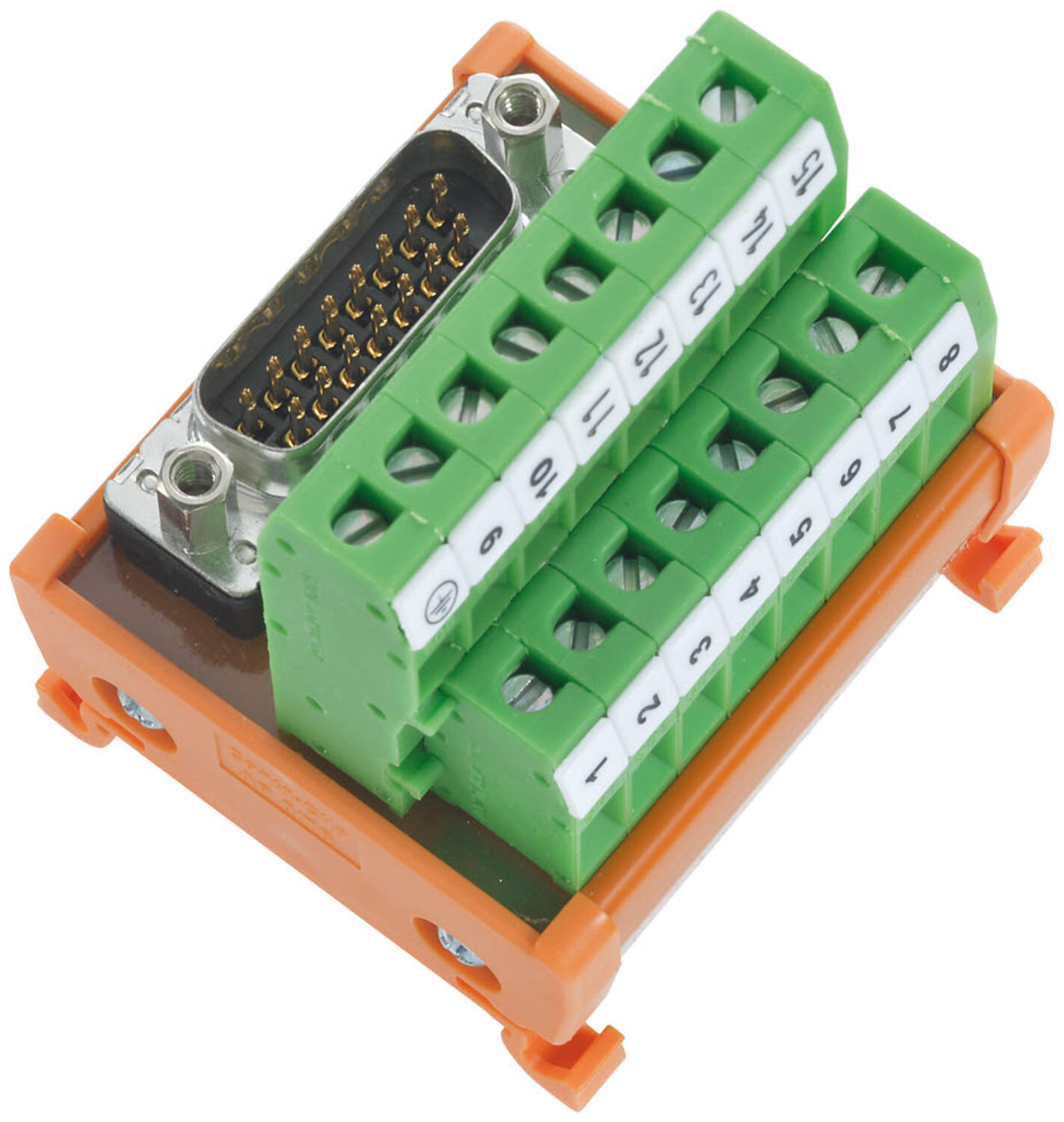

SD-S15C, 15 way D-Sub interface module, Male, screw terminals
Art:
15296.2
Copied
|
D-Sub male, pin
|
Screw
|
1
|
15
|
47 mm
|
51 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
102.1 g
|
|
|
||
|
SD-S15CZ, 15 way D-Sub interface module, Male, tension spring terminals
Art:
15297.2
Copied
|
D-Sub male, pin
|
Spring clamp
|
1
|
15
|
47 mm
|
51 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
67 g
|
|
|
||
|
SD-B15C, 15 way D-Sub interface module, Female, screw terminals
Art:
15298.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
15
|
47 mm
|
51 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
137.7 g
|
|
|
||
|
SD-B15CZ, 15 way D-Sub interface module, Female, tension spring terminals
Art:
15299.2
Copied
|
D-Sub female, socket
|
Spring clamp
|
1
|
15
|
47 mm
|
51 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
109.8 g
|
|
|
||
|
SD-S25C, 25 way D-Sub interface module, Male, screw terminals
Art:
15300.2
Copied
|
D-Sub male, pin
|
Screw
|
1
|
25
|
47 mm
|
78 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
139.3 g
|
|
|
||
|
SD-S25CZ, 25 way D-Sub interface module, Male, tension spring terminals
Art:
15301.2
Copied
|
D-Sub male, pin
|
Spring clamp
|
1
|
25
|
47 mm
|
78 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
129.9 g
|
|
|
||
|
SD-B25C, 25 way D-Sub interface module, Female, screw terminals
Art:
15302.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
25
|
47 mm
|
78 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
171.5 g
|
|
|
||
|
SD-B25CZ, 25 way D-Sub interface module, Female, tension spring terminals
Art:
15303.2
Copied
|
D-Sub female, socket
|
Spring clamp
|
1
|
25
|
47 mm
|
78 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
99.05 g
|
|
|
||

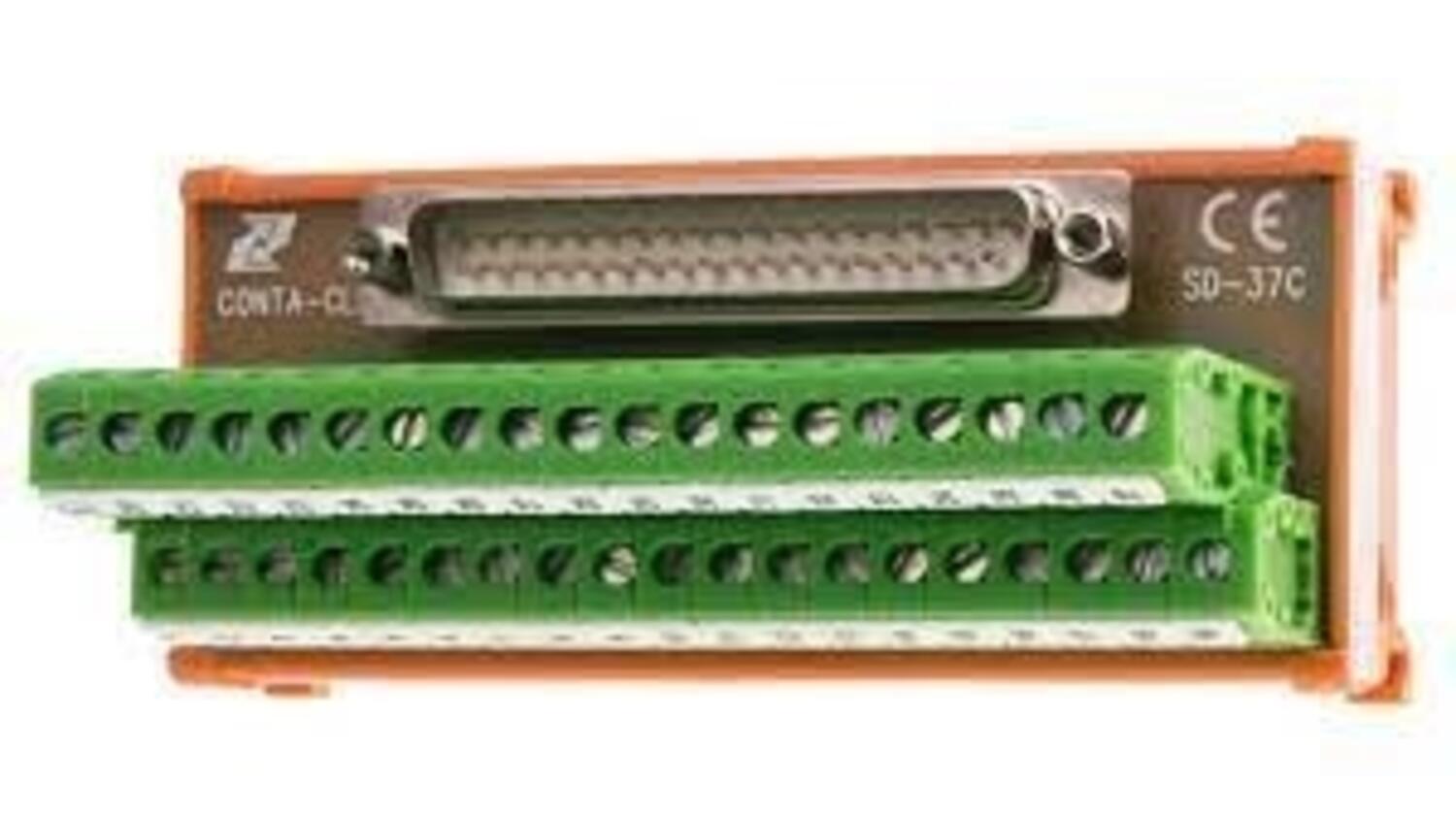

SD-S37C, 37 way D-Sub interface module, Male, screw terminals
Art:
15304.2
Copied
|
D-Sub male, pin
|
Screw
|
1
|
37
|
47 mm
|
107 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
213.7 g
|
|
|
||
|
SD-S37CZ, 37 way D-Sub interface module, Male, tension spring terminals
Art:
15305.2
Copied
|
D-Sub male, pin
|
Spring clamp
|
1
|
37
|
47 mm
|
107 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
134.8 g
|
|
|
||
|
SD-B37C, 37 way D-Sub interface module, Female, screw terminals
Art:
15306.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
37
|
47 mm
|
107 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
194.9 g
|
|
|
||
|
SD-B37CZ, 37 way D-Sub interface module, Female, tension spring terminals
Art:
15307.2
Copied
|
D-Sub female, socket
|
Spring clamp
|
1
|
37
|
47 mm
|
107 mm
|
36 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
137.05 g
|
|
|
||
SD2-S9C, 2x9 way D-Sub interface module, Male, screw terminals
Art:
6301.2
Copied
|
D-Sub male, pin
|
Screw
|
2
|
9
|
87 mm
|
37 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
116 g
|
|
|
||
SD2-S15C, 2x15 way D-Sub interface module, Male, screw terminals
Art:
6302.2
Copied
|
D-Sub male, pin
|
Screw
|
2
|
15
|
87 mm
|
51 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1 A
|
142 g
|
|
|
||
|
SD2-S25C, 2x25 way D-Sub interface module, Male, screw terminals
Art:
6303.2
Copied
|
D-Sub male, pin
|
Screw
|
2
|
25
|
87 mm
|
77 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1 A
|
206 g
|
|
|
||
|
SD2-S37C, 2x37 way D-Sub interface module, Male, screw terminals
Art:
6304.2
Copied
|
D-Sub male, pin
|
Screw
|
2
|
37
|
87 mm
|
107 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1 A
|
288 g
|
|
|
||
|

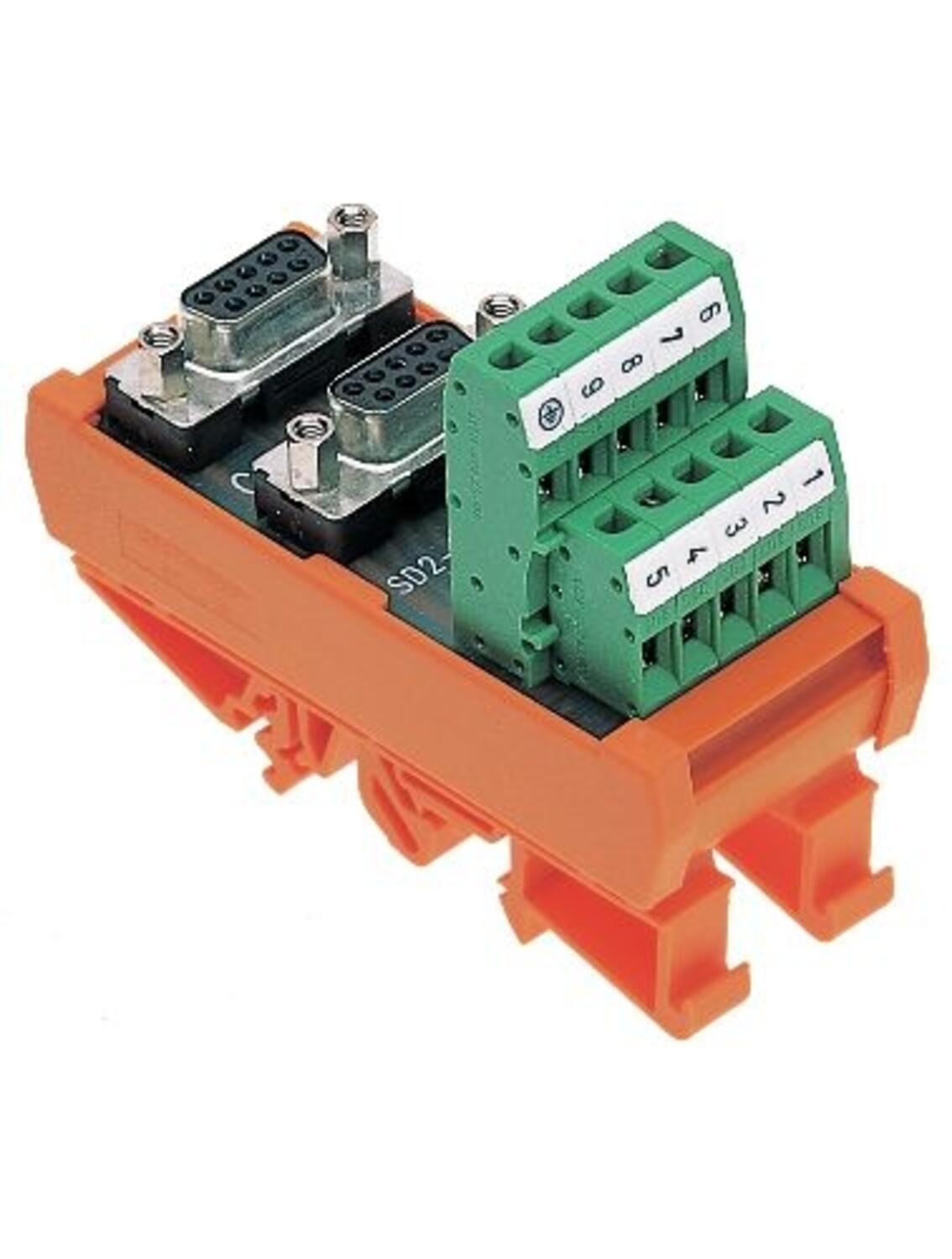

SD2-B9C, 2x9 way D-Sub interface module, Female, screw terminals
Art:
6306.2
Copied
|
D-Sub female, socket
|
Screw
|
2
|
9
|
87 mm
|
37 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1 A
|
115.5 g
|
|
|
||
|
SD2-B15C, 2x15 way D-Sub interface module, Female, screw terminals
Art:
6307.2
Copied
|
D-Sub female, socket
|
Screw
|
2
|
15
|
87 mm
|
51 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1 A
|
134 g
|
|
|
||
|
SD2-B25C, 2x25 way D-Sub interface module, Female, screw terminals
Art:
6308.2
Copied
|
D-Sub female, socket
|
Screw
|
2
|
25
|
87 mm
|
77 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1 A
|
206 g
|
|
|
||
|
SD2-B37C, 2x37 way D-Sub interface module, Female, screw terminals
Art:
6309.2
Copied
|
D-Sub female, socket
|
Screw
|
2
|
37
|
87 mm
|
107 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1 A
|
288 g
|
|
|
||
SD-S9LA, 9 way D-Sub interface module with LED's, Male, screw terminals
Art:
6520.2
Copied
|
D-Sub male, pin
|
Screw
|
1
|
9
|
87 mm
|
41 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
|
1 A
|
117 g
|
24 V
|
|
||
|
SD-S15LA, 15 way D-Sub interface module with LED's, Male, screw terminals
Art:
6521.2
Copied
|
D-Sub male, pin
|
Screw
|
1
|
15
|
87 mm
|
56 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
|
1 A
|
144 g
|
24 V
|
|
||
|

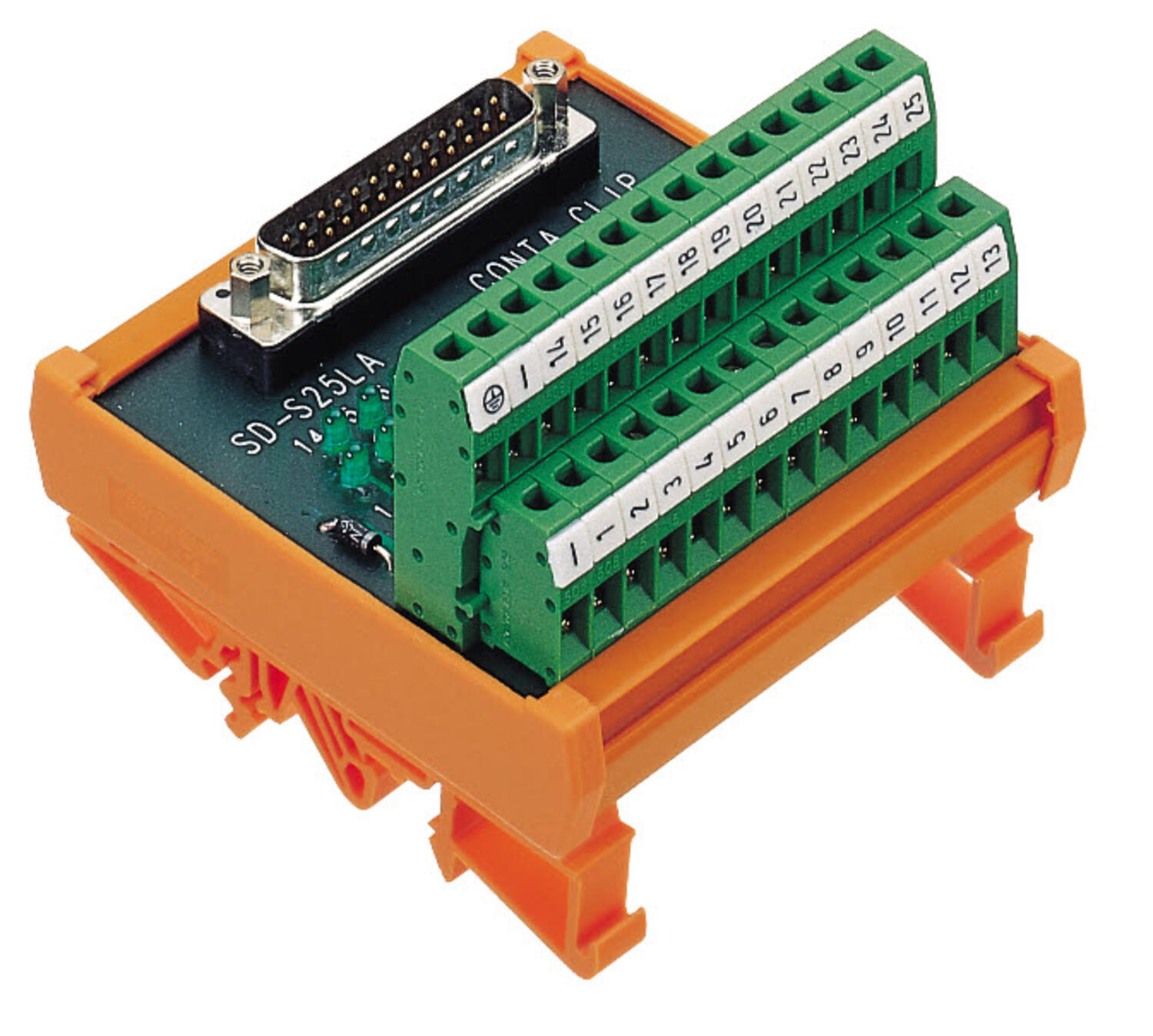

SD-S25 LA, 25 way D-Sub interface module with LED's, Male, screw terminals
Art:
6135.2
Copied
|
D-Sub male, pin
|
Screw
|
1
|
25
|
87 mm
|
83 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
|
1 A
|
208 g
|
24 V
|
|
||
|
SD-S37 LA, 37 way D-Sub interface module with LED's, Male, screw terminalsv
Art:
6522.2
Copied
|
D-Sub male, pin
|
Screw
|
1
|
37
|
87 mm
|
112 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
|
1 A
|
268.7 g
|
24 V
|
|
||
SD-B9 LA, 9 way D-Sub interface module with LED's, Female, screw terminals
Art:
6524.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
9
|
87 mm
|
41 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
|
1 A
|
117 g
|
24 V
|
|
||
|
SD-B15LA, 15 way D-Sub interface module with LED's, Female, screw terminals
Art:
6525.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
15
|
87 mm
|
56 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
|
1 A
|
144 g
|
24 V
|
|
||

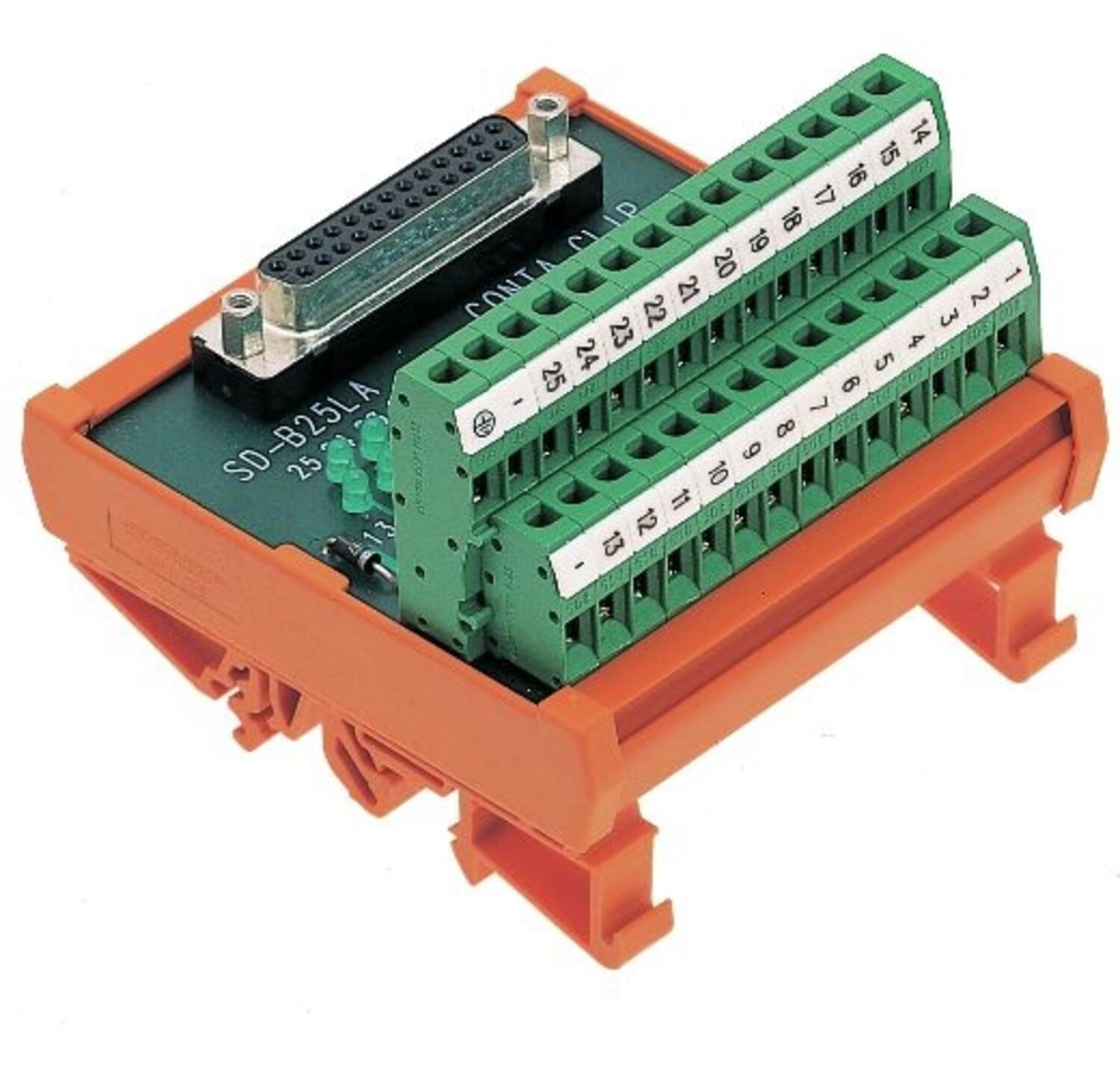

SD-B25LA, 25 way D-Sub interface module with LED's, Female, screw terminals, screw terminals
Art:
6136.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
25
|
87 mm
|
83 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
|
1 A
|
209 g
|
24 V
|
|
||
|
SD-B37LA 37 way D-Sub interface module with LED's, Female, screw terminals
Art:
6526.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
37
|
87 mm
|
112 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
|
1 A
|
262 g
|
24 V
|
|
||

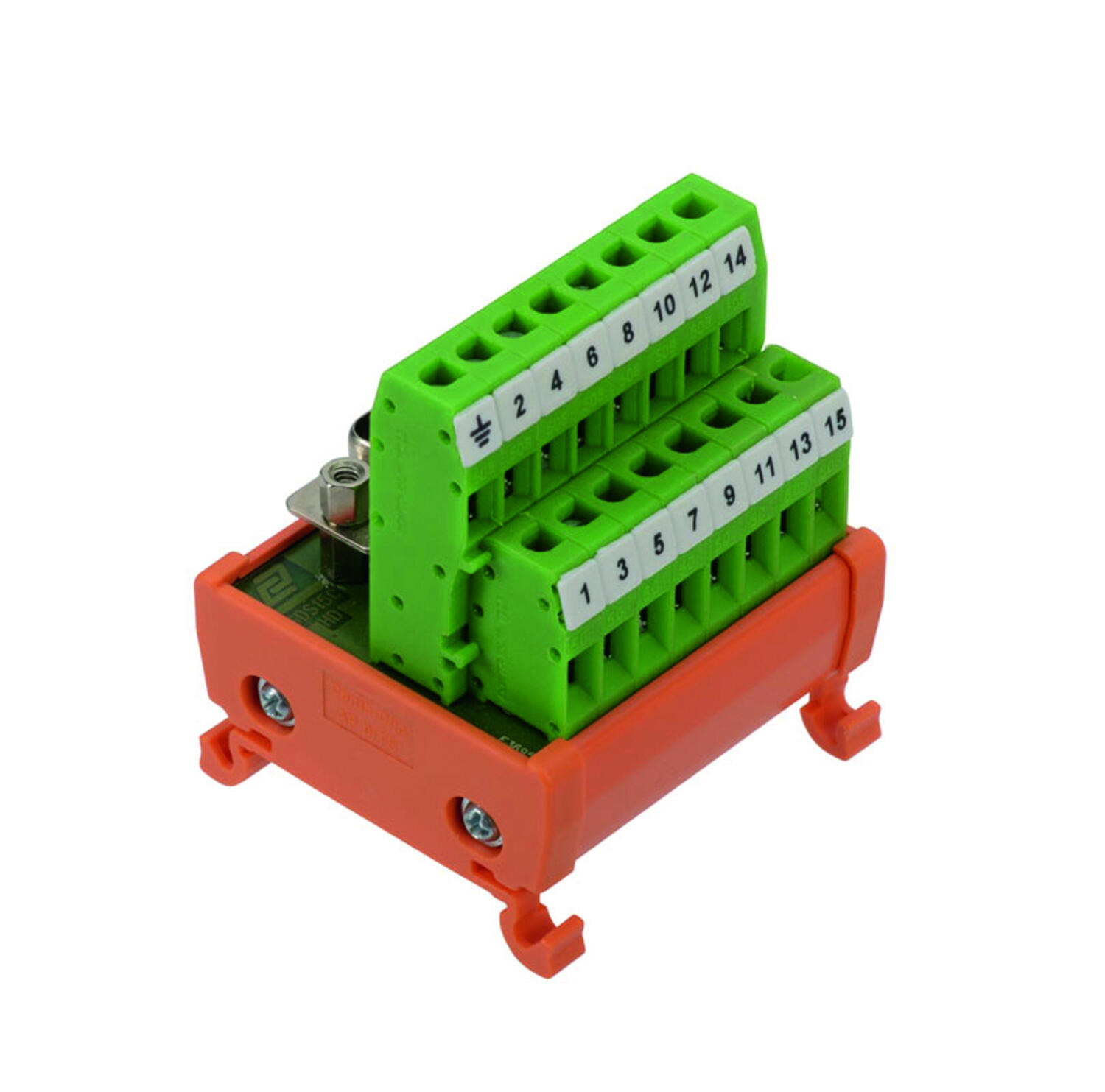

SD-S15C-HD, 15 way High Density D-Sub interface module, Male, screw terminals
Art:
16105.2
Copied
|
D-Sub high density male, pin
|
Screw
|
1
|
15
|
87 mm
|
49 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
103 g
|
|
|
||
|
SD-S15CZ-HD, 15 way High Density D-Sub interface module, Male, tension spring terminals
Art:
16106.2
Copied
|
D-Sub high density male, pin
|
Spring clamp
|
1
|
15
|
87 mm
|
49 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
73 g
|
|
|
||
SD-B15C-HD, 15 way High Density D-Sub interface module, Female, screw terminals
Art:
16107.2
Copied
|
D-Sub high density female, socket
|
Screw
|
1
|
15
|
87 mm
|
49 mm
|
61 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
103 g
|
|
|
||
|

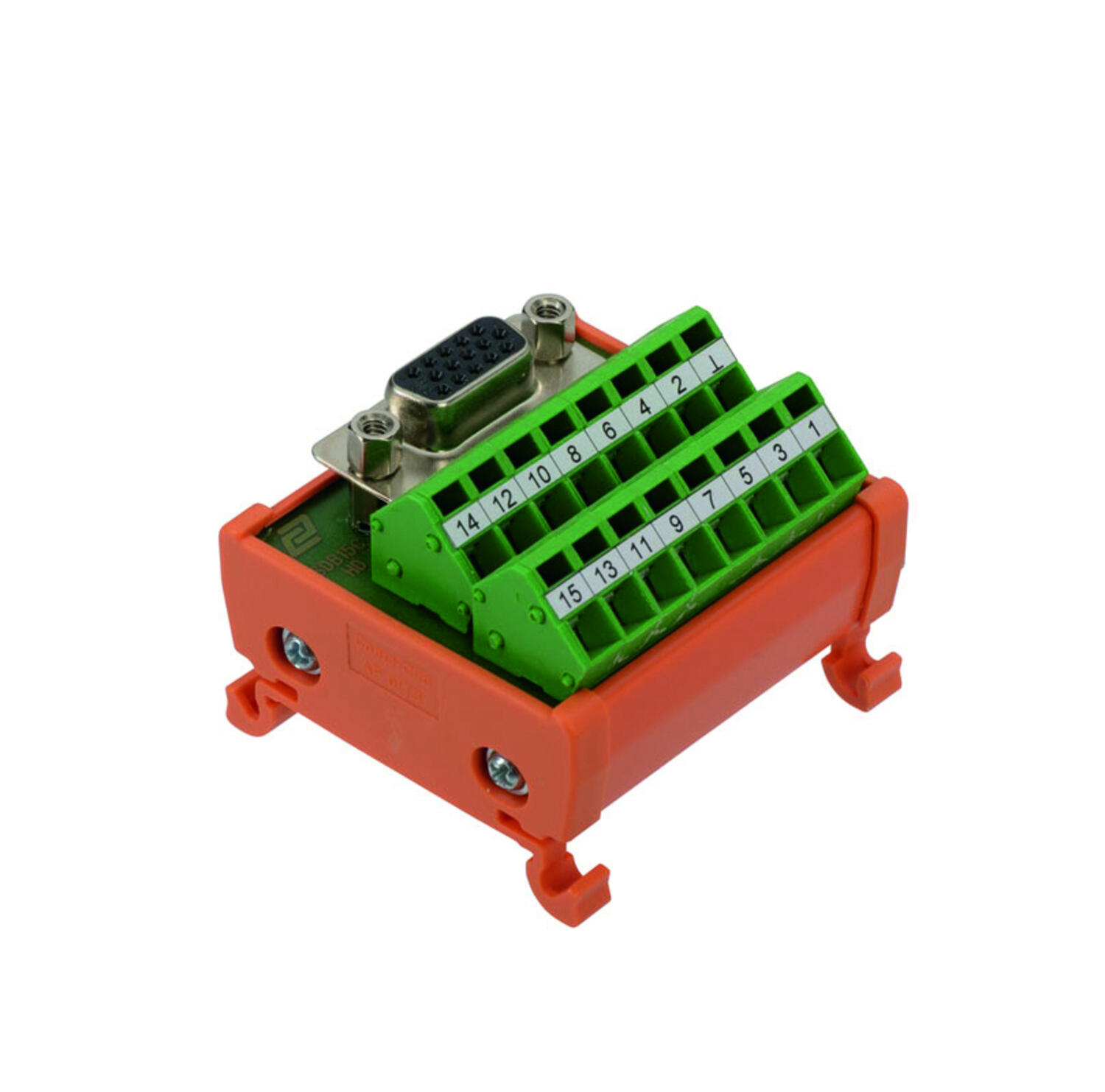

SD-B15CZ-HD, 15 way High Density D-Sub interface module, Female, tension spring terminals
Art:
16108.2
Copied
|
D-Sub high density female, socket
|
Spring clamp
|
1
|
15
|
87 mm
|
49 mm
|
38 mm
|
0.14 mm²
|
1.5 mm²
|
0.14 mm²
|
6 mm
|
|
125 V
|
1.5 A
|
73 g
|
|
|
||
SD-B50/3, 50 way D-Sub interface module, 3 Level, Female, screw terminals
Art:
6414.2
Copied
|
D-Sub female, socket
|
Screw
|
1
|
50
|
87 mm
|
97 mm
|
72 mm
|
0.2 mm²
|
2.5 mm²
|
0.2 mm²
|
7 mm
|
0.6
|
125 V
|
1.5 A
|
279 g
|
|
|
Select a variant in the list
