DF ELECTRIC
gS NH fuse links 800V AC
gS NH

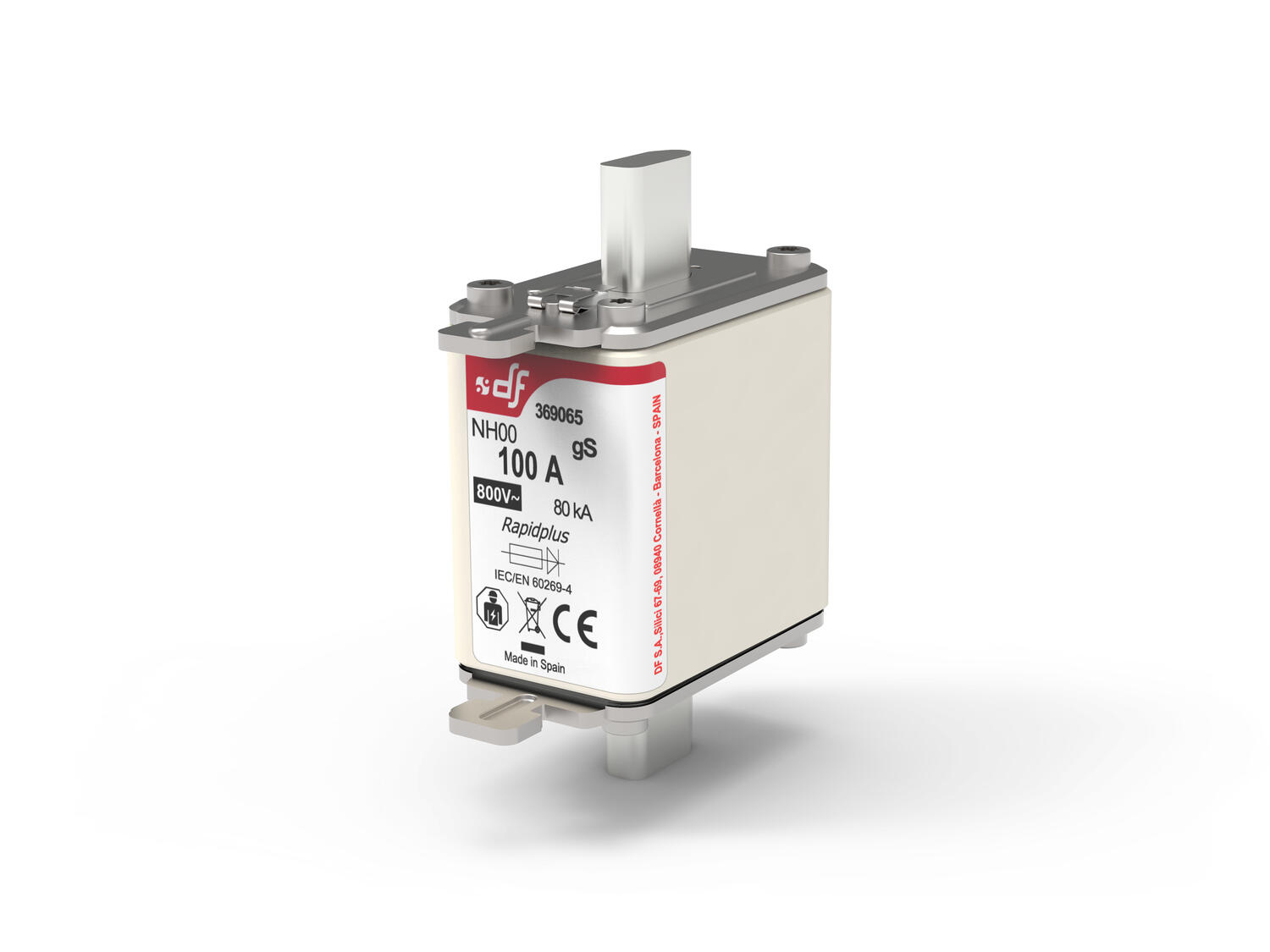

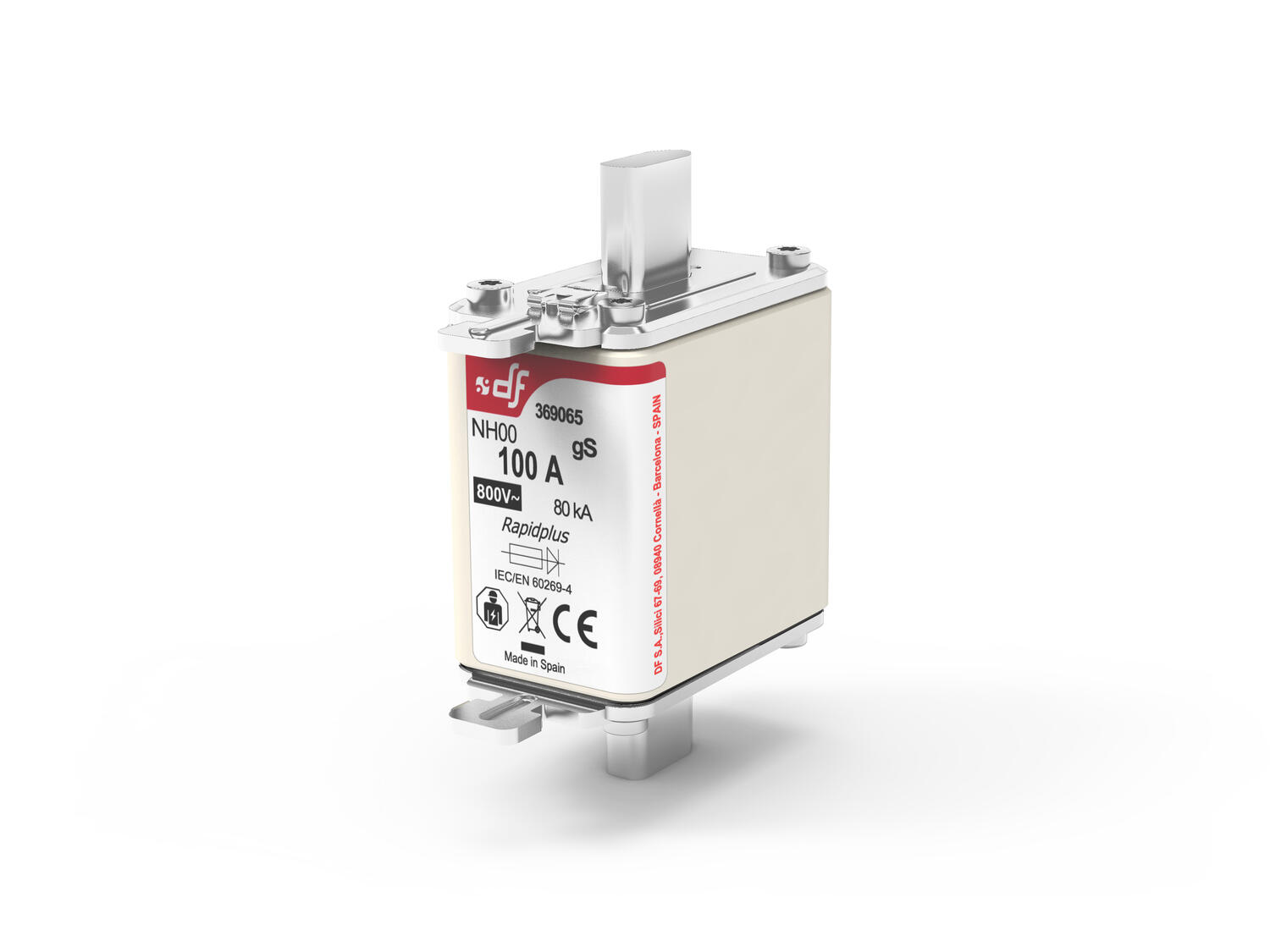

NH Fuse Links from df Electric, designed for the output side of the latest generation of photovoltaic inverters. These are the latest edge knife-type fuse links from df Electric with a high breaking capacity up to 120kA and providing protection for photovoltaic inverters operating at an 800V AC output voltage.
Â
Distinguished by their gS class designation and designed with efficiency as a focus with low values of power dissipation. Produced with a ceramic body engineered to withstand internal pressure and thermal shock, they guarantee a high breaking capacity even in the most demanding conditions. The knife contacts, made of silver-plated copper or brass, ensure durability and dependable electrical conductivity.
Â
Compliance with IEC/EN60269 Standards and adherence to the RoHS directive underline our commitment to quality and environmental responsibility. Installation is versatile, allowing these fuse links to be seamlessly mounted in open-type ST fuse bases or fuse disconnectors type BS.
Â
Â
- Fuses designed for protecting photovoltaic inverters
- Rated breaking capacity up to 120kA
- Rated currents between 25A up to 400A
- Standards include: IEC/EN 60269-1 IEC/EN 60269-4
- Rated voltage up to 800VAC
Selected variant
Technical data
General data |
|
|---|---|
| Type | NH00 gS |
| Rated current | 25 A |
| Voltage ac max | 800 V |
| Breaking capacity | 120 kA |
Rated operating conditions |
|
| Operational temperature | -40-80 |
Additional data |
|
| Tariff code | 85361050 |
| Country of origin | ES |
| Weight | 180 g |
| Pack size | 3 Â |
Product description
NH Fuse Links from df Electric, designed for the output side of the latest generation of photovoltaic inverters. These are the latest edge knife-type fuse links from df Electric with a high breaking capacity up to 120kA and providing protection for photovoltaic inverters operating at an 800V AC output voltage.
Â
Distinguished by their gS class designation and designed with efficiency as a focus with low values of power dissipation. Produced with a ceramic body engineered to withstand internal pressure and thermal shock, they guarantee a high breaking capacity even in the most demanding conditions. The knife contacts, made of silver-plated copper or brass, ensure durability and dependable electrical conductivity.
Â
Compliance with IEC/EN60269 Standards and adherence to the RoHS directive underline our commitment to quality and environmental responsibility. Installation is versatile, allowing these fuse links to be seamlessly mounted in open-type ST fuse bases or fuse disconnectors type BS.
Â
Â
