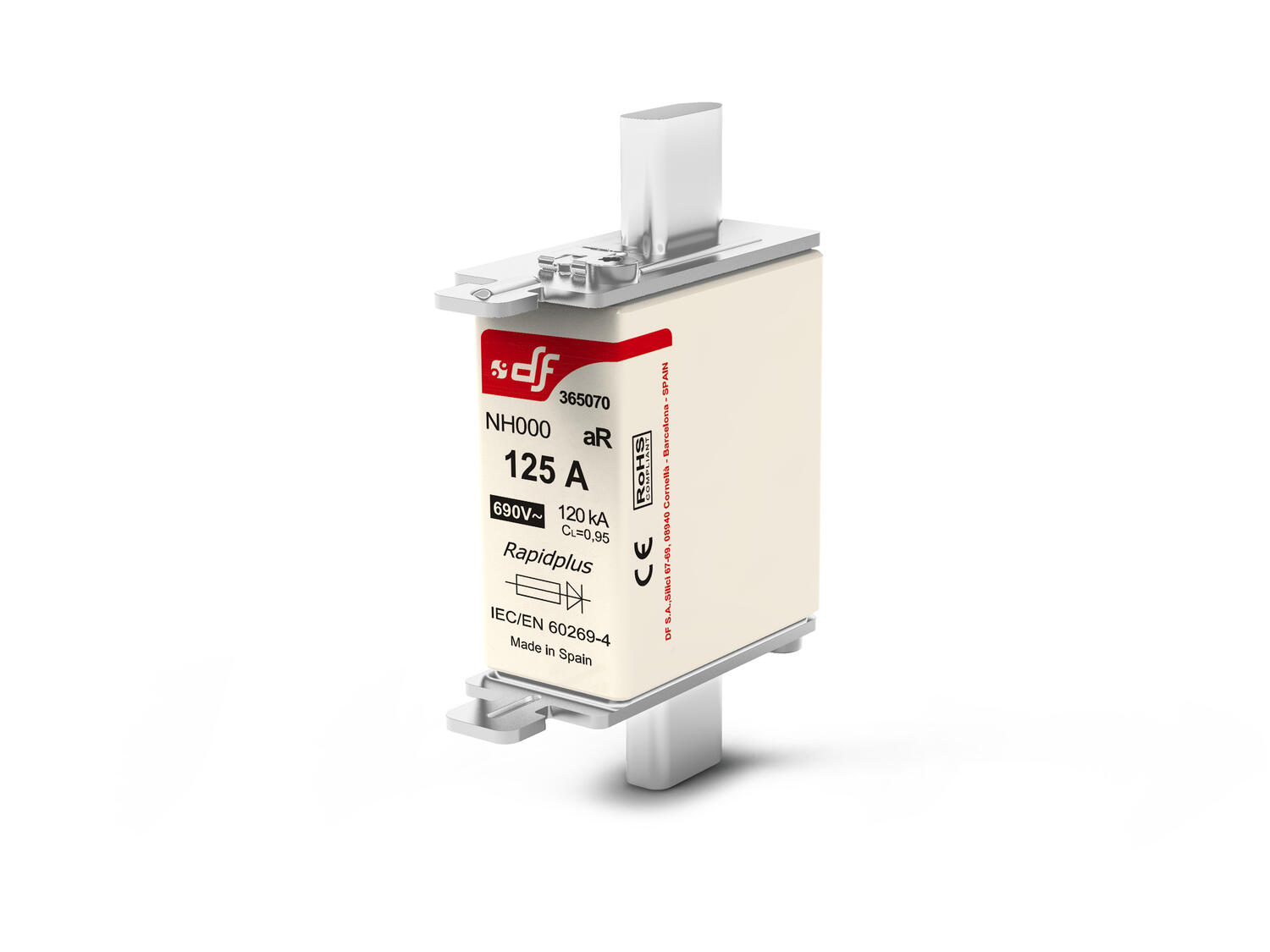

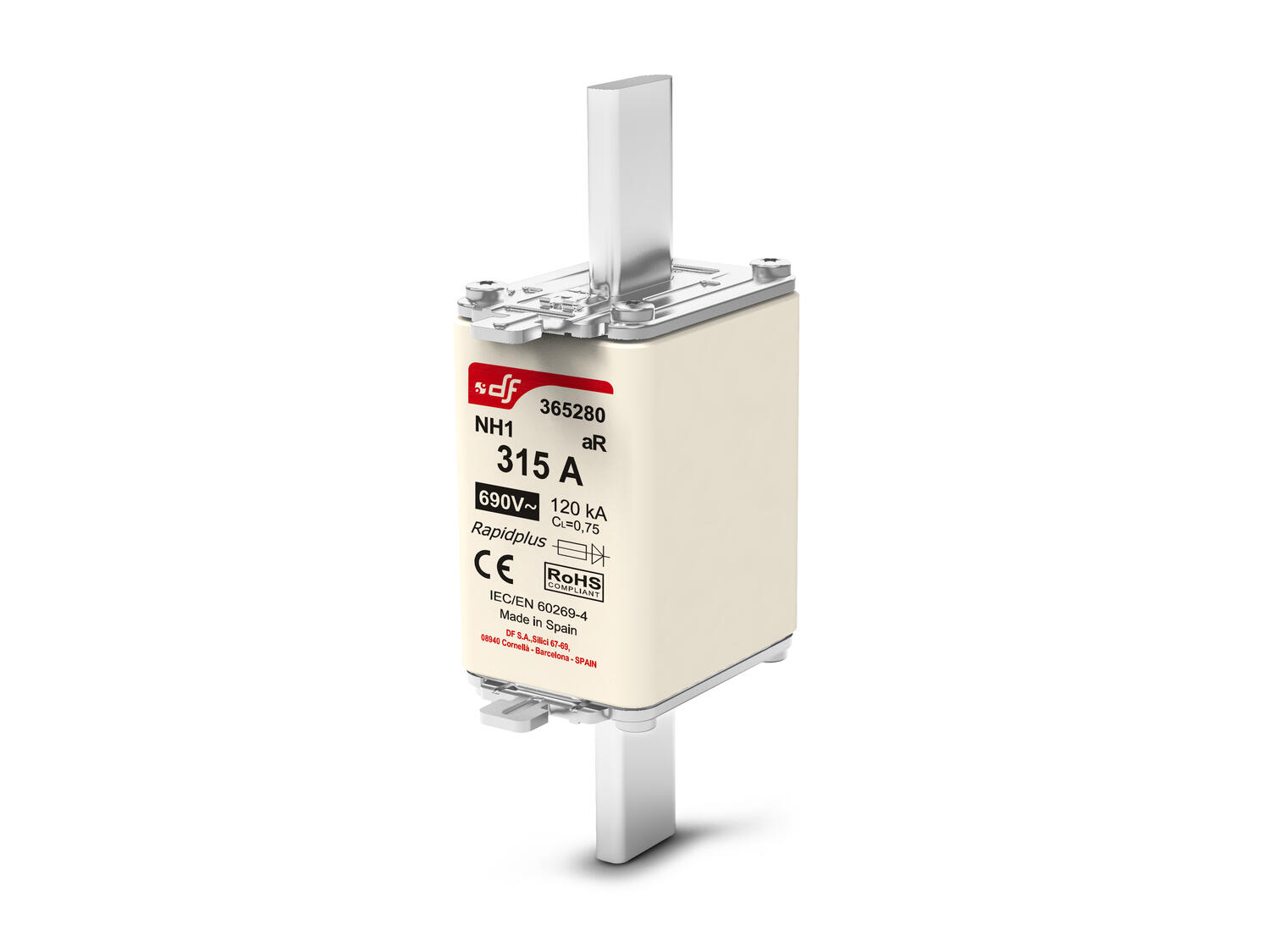

DF Electric’s Rapidplus® NH000 aR fuse links deliver lightning-fast fault clearance to safeguard power semiconductor devices like IGBTs, thyristors, diodes, triacs, and more in critical applications.
aR operating class (IEC/EN 60269‑4) provides ultra-fast fuse operation with minimal I²t, reducing stress on semiconductors.
Rated Voltage: 690 V AC (+10%); capable of up to 440 V DC (L/R = 10 ms)Â
Current Range: 16A (NH000) to up to 1000A (NH3 size)
Breaking Capacity: 120 kA @ 690 V AC and 30 kA @ 440 V DC
Low I²t Design: Pure silver melting elements and solidified sand ensure quick arc extinguishing and minimal let-throughÂ
Visual Trip Indicator & Microswitch Compatible: Offers instant fault visibility and remote signalling options
General data |
|
|---|---|
| Type | NH000 aR |
| Rated current | 16 A |
| Voltage ac max | 690 V |
| Voltage dc max | 440 V |
Rated operating conditions |
|
| Operational temperature | -25.....60 |
Additional data |
|
| Tariff code | 85361050 |
| Country of origin | ES |
| Weight | 120 g |
| Pack size | 3 Â |
DF Electric’s Rapidplus® NH000 aR fuse links deliver lightning-fast fault clearance to safeguard power semiconductor devices like IGBTs, thyristors, diodes, triacs, and more in critical applications.
aR operating class (IEC/EN 60269‑4) provides ultra-fast fuse operation with minimal I²t, reducing stress on semiconductors.
Rated Voltage: 690 V AC (+10%); capable of up to 440 V DC (L/R = 10 ms)Â
Current Range: 16A (NH000) to up to 1000A (NH3 size)
Breaking Capacity: 120 kA @ 690 V AC and 30 kA @ 440 V DC
Low I²t Design: Pure silver melting elements and solidified sand ensure quick arc extinguishing and minimal let-throughÂ
Visual Trip Indicator & Microswitch Compatible: Offers instant fault visibility and remote signalling options
