DF ELECTRIC
aR Cylindrical fuse links for semiconductors
Rapidplus cylindrical fuse links for semiconductors
aR Cylindrical Semiconductor Fuse Links – Fast-Acting Protection for Power Electronics
DF Electric’s aR cylindrical fuse links are high-speed aR-class fuses, specifically designed to protect semiconductor components such as IGBTs, thyristors, SCRs, and diodes. These fast-acting fuses provide critical protection in circuits where conventional fuses are too slow to react to short-circuit events.
 Key Features
aR operating class – Offers ultra-fast disconnection to protect sensitive semiconductors from damage during fault conditions
Voltage rating – Up to 690V AC and 700V DC (L/R = 10ms)
Breaking capacity – 200kA at 690V AC, 30kA at 700V DC
Current ratings – 1A to 100A
Optional striker pin – Compatible with microswitches for remote fault indication
Construction – Ceramic tube with silver-plated contacts for high durability and conductivity
Standards – Compliant with IEC/EN 60269-1/-4 and UL 248-1/-13
Applications
Power semiconductor protection (IGBTs, MOSFETs, thyristors)
DC/AC inverters and rectifiers
Soft starters and variable speed drives (VSD/VFD)
UPS systems, welding controls, and high-speed DC switching equipment
Any power electronics requiring low I²t and rapid fault isolation
Why Choose DF Electric AR Fuse Links?
Specifically engineered for semiconductor fault protection
Fast acting with minimal energy let-through (low I²t)
Supports both AC and DC environments with high breaking capacity
Reliable performance in industrial automation, drive systems, and precision electronics

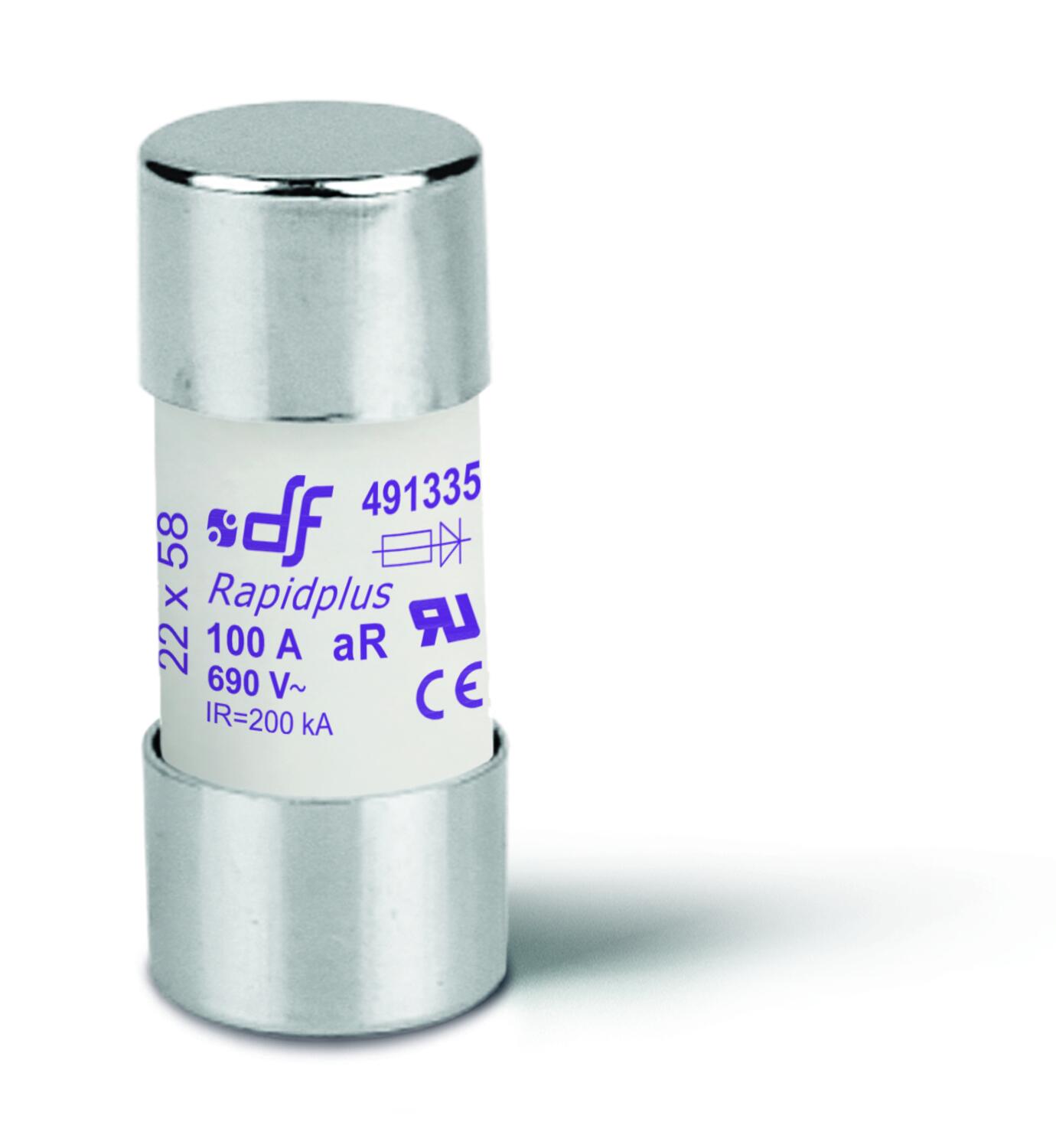

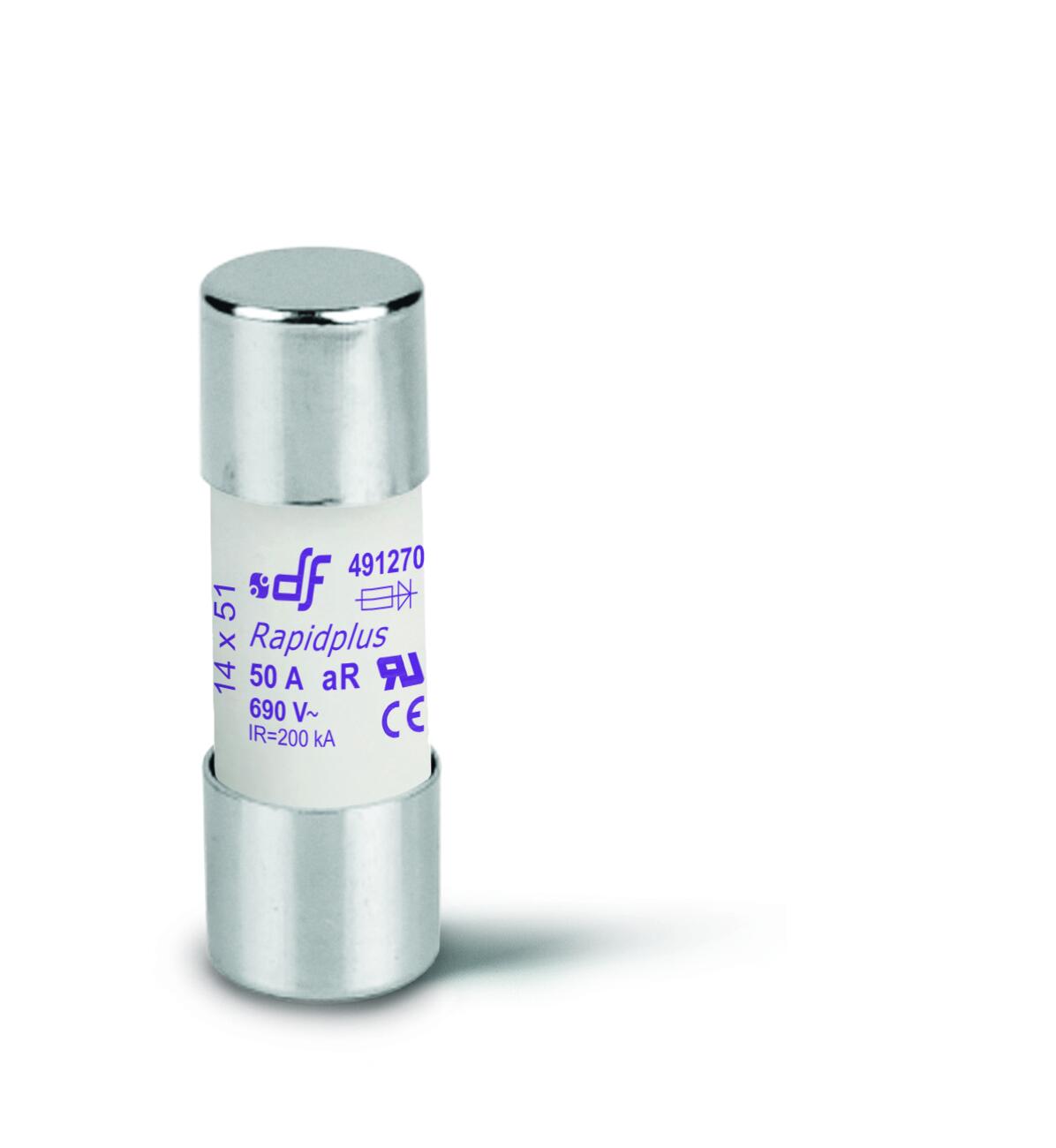

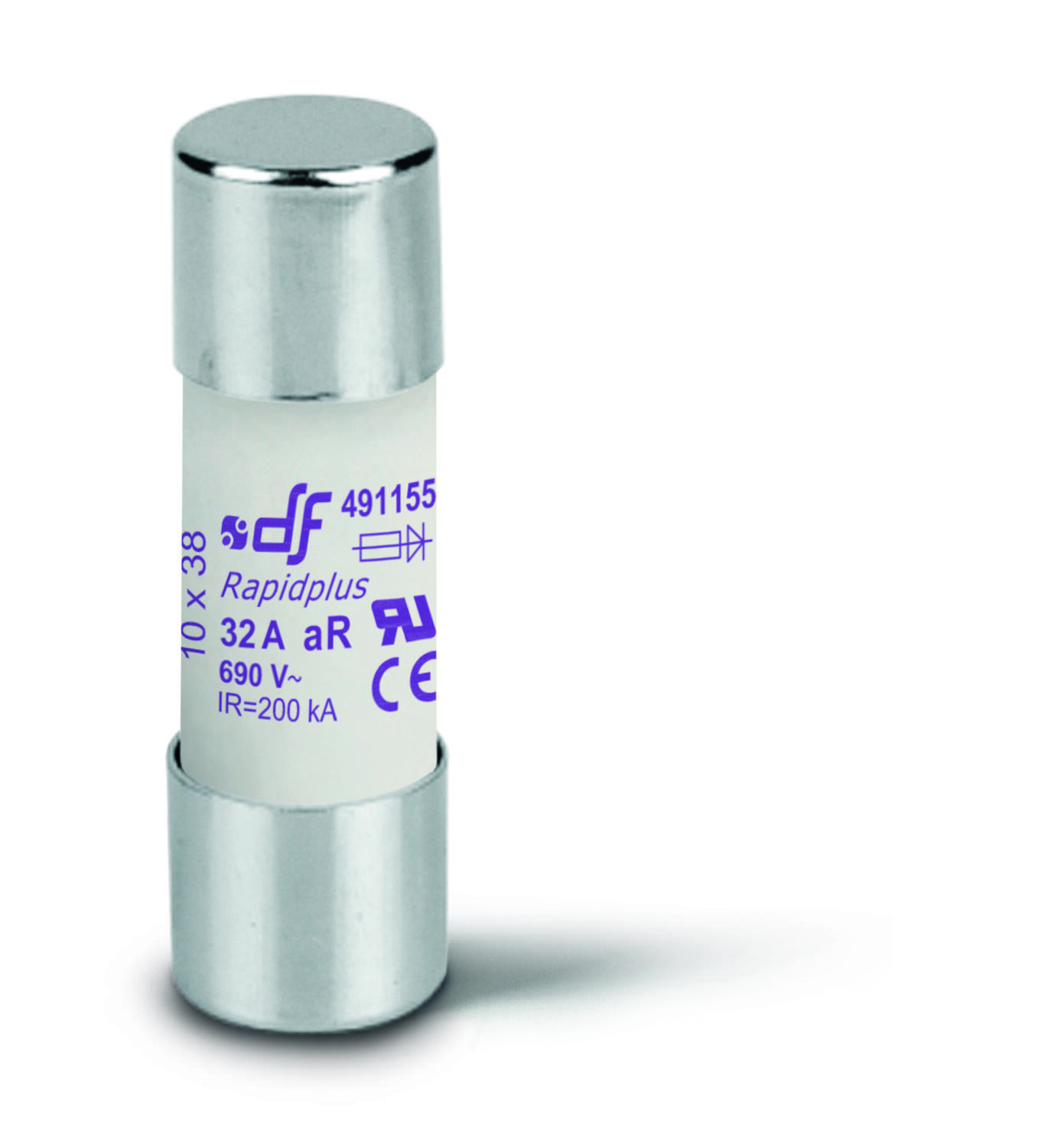

- 10x38, 14x51 and 22x58 sizes
- wide range rated between 1A and 100A
- UL and IEC approved
- Rated up to 690VAC
Selected variant
Technical data
General data |
|
|---|---|
| Type | aR |
| Size | 10x38 |
| Rated current | 1 A |
| Voltage ac max | 690 V |
| Voltage dc max | 700 V |
| Frequency | 42...62Hz |
*Invisible Heading* |
|
|---|---|
| Indicator | No |
Additional data |
|
| Tariff code | 85361010 |
| Country of origin | ES |
| Weight | 8 g |
| Pack size | 10 Â |
Product description
aR Cylindrical Semiconductor Fuse Links – Fast-Acting Protection for Power Electronics
DF Electric’s aR cylindrical fuse links are high-speed aR-class fuses, specifically designed to protect semiconductor components such as IGBTs, thyristors, SCRs, and diodes. These fast-acting fuses provide critical protection in circuits where conventional fuses are too slow to react to short-circuit events.
 Key Features
aR operating class – Offers ultra-fast disconnection to protect sensitive semiconductors from damage during fault conditions
Voltage rating – Up to 690V AC and 700V DC (L/R = 10ms)
Breaking capacity – 200kA at 690V AC, 30kA at 700V DC
Current ratings – 1A to 100A
Optional striker pin – Compatible with microswitches for remote fault indication
Construction – Ceramic tube with silver-plated contacts for high durability and conductivity
Standards – Compliant with IEC/EN 60269-1/-4 and UL 248-1/-13
Applications
Power semiconductor protection (IGBTs, MOSFETs, thyristors)
DC/AC inverters and rectifiers
Soft starters and variable speed drives (VSD/VFD)
UPS systems, welding controls, and high-speed DC switching equipment
Any power electronics requiring low I²t and rapid fault isolation
Why Choose DF Electric AR Fuse Links?
Specifically engineered for semiconductor fault protection
Fast acting with minimal energy let-through (low I²t)
Supports both AC and DC environments with high breaking capacity
Reliable performance in industrial automation, drive systems, and precision electronics
