DF ELECTRIC

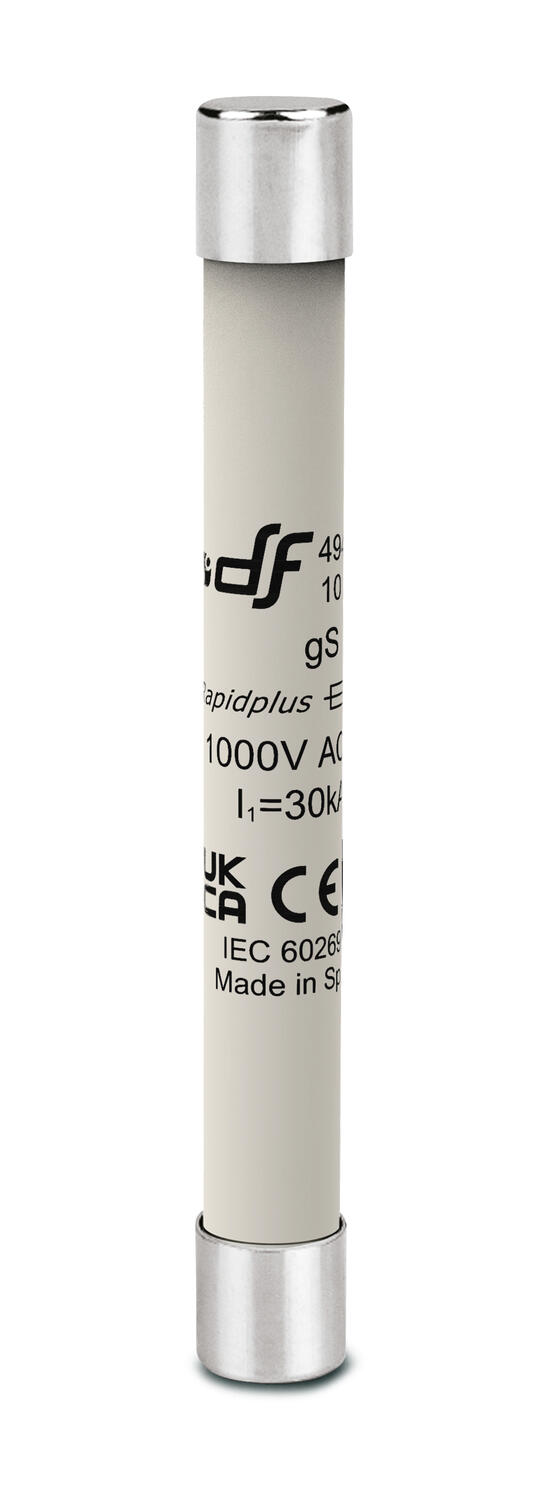

RAPIDPLUS CYL 10x85 gS 1,000V fuse links are designed to clear all types of overcurrents, including overloads and short circuits. These fuse links protect semiconductors, cables, and all installation switchgear. High-speed fuse links with very fast melting characteristics are designed for use with semiconductors as semiconductors are are highly sensitive to even brief overcurrent conditions and can be easily damaged. Any excessive current can be detrimental to semiconductors therefore a fuse with rapid response times is required.
Â
This product range is primarily intended for protecting auxiliary circuits in photovoltaic plants with string inverters, operating at voltages up to 1,000V AC/DC. However, they can also be used in other applications such as rectifiers, UPS systems, converters, motor drives, soft starters, solid-state relays, welding inverters, and more.
General data |
|
---|---|
Type | gS |
Size | 10x85 |
Rated current | 1 A |
Voltage ac/dc max | 1000 V |
Frequency | 42...62Hz |
Indicator | No |
Additional data |
|
---|---|
Tariff code | 85361010 |
Country of origin | ES |
Weight | 14 g |
Pack size | 10 Â |
RAPIDPLUS CYL 10x85 gS 1,000V fuse links are designed to clear all types of overcurrents, including overloads and short circuits. These fuse links protect semiconductors, cables, and all installation switchgear. High-speed fuse links with very fast melting characteristics are designed for use with semiconductors as semiconductors are are highly sensitive to even brief overcurrent conditions and can be easily damaged. Any excessive current can be detrimental to semiconductors therefore a fuse with rapid response times is required.
Â
This product range is primarily intended for protecting auxiliary circuits in photovoltaic plants with string inverters, operating at voltages up to 1,000V AC/DC. However, they can also be used in other applications such as rectifiers, UPS systems, converters, motor drives, soft starters, solid-state relays, welding inverters, and more.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Rated current | Tariff code | Price | ||
---|---|---|---|---|---|
![]()
Cylindrical Fuse10x85 gS 1A 1000V AC/DC
Art:
494001
Copied
|
1 A
|
85361010
|
| ||
![]()
Cylindrical Fuse10x85 gS 2A 1000V AC/DC
Art:
494002
Copied
|
2 A
|
85361010
|
| ||
![]()
Cylindrical Fuse10x85 gS 3A 1000V AC/DC
Art:
494003
Copied
|
3 A
|
85361010
|
| ||
![]()
Cylindrical Fuse10x85 gS 4A 1000V AC/DC
Art:
494004
Copied
|
4 A
|
85361010
|
| ||
![]()
Cylindrical Fuse10x85 gS 5A 1000V AC/DC
Art:
494005
Copied
|
5 A
|
85361010
|
| ||
![]()
Cylindrical Fuse10x85 gS 6A 1000V AC/DC
Art:
494006
Copied
|
6 A
|
85361010
|
| ||
![]()
Cylindrical Fuse10x85 gS 8A 1000V AC/DC
Art:
494008
Copied
|
8 A
|
85361010
|
| ||
![]()
Cylindrical Fuse10x85 gS 10A 1000V AC/DC
Art:
494010
Copied
|
10 A
|
85361010
|
| ||
![]()
Cylindrical Fuse10x85 gS 12A 1000V AC/DC
Art:
494012
Copied
|
10 A
|
85361050
|
| ||
![]()
Cylindrical Fuse10x85 gS 16A 1000V AC/DC
Art:
494016
Copied
|
16 A
|
85361050
|
| ||
![]()
Cylindrical Fuse10x85 gS 20A 1000V AC/DC
Art:
494020
Copied
|
20 A
|
85361050
|
|
Select a variant in the list
