DF ELECTRIC
NH ST fuse bases are compatible with NH Knife-blade fuse links, providing reliable protection for various electrical applications. These fuse bases offer easy installation and options for mounting on DIN/EN rails or via screw fixing. Available in single-phase or three-pole configurations, NH ST fuse bases ensure versatile connectivity options through screws, fixed nuts, or clamps.
Â
Constructed from high-quality, self-extinguishing materials, NH ST fuse bases prioritize safety and durability. Their silver-plated copper contacts enhance conductivity and minimize the risk of corrosion, ensuring long-term performance. Notably, NH ST fuse bases feature two contact styles, one of which incorporates a double spring mechanism for optimal operational efficiency.
Â
Adhering to IEC, EN, and DIN standards, NH ST fuse bases meet industry requirements for quality and reliability. A wide range of accessories, including contact covers, fuse link covers, and partition walls, enables customisation while achieving an IP20 protection index.
Â
Â
General data |
|
|---|---|
| Type | NH00 |
| Rated current | 160 A |
| Voltage ac max | 800 V |
Additional data |
|
| Weight | 120 g |
NH ST fuse bases are compatible with NH Knife-blade fuse links, providing reliable protection for various electrical applications. These fuse bases offer easy installation and options for mounting on DIN/EN rails or via screw fixing. Available in single-phase or three-pole configurations, NH ST fuse bases ensure versatile connectivity options through screws, fixed nuts, or clamps.
Â
Constructed from high-quality, self-extinguishing materials, NH ST fuse bases prioritize safety and durability. Their silver-plated copper contacts enhance conductivity and minimize the risk of corrosion, ensuring long-term performance. Notably, NH ST fuse bases feature two contact styles, one of which incorporates a double spring mechanism for optimal operational efficiency.
Â
Adhering to IEC, EN, and DIN standards, NH ST fuse bases meet industry requirements for quality and reliability. A wide range of accessories, including contact covers, fuse link covers, and partition walls, enables customisation while achieving an IP20 protection index.
Â
Â
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Type | Rated current | Voltage ac max | Voltage dc max | Number of poles | Weight | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Polyester base NH 00 ST SINGLE POLE 160 A "screw fixing" Screw / Screw connection IP00
Art:
354100
Copied
|
NH00
|
160 A
|
800 V
|
|
|
120 g
|
|
|
|
||
|
Polyester base NH 00 ST SINGLE POLE 160 A "screw fixing" Clamp / Clamp connection IP00
Art:
354105
Copied
|
NH00
|
160 A
|
800 V
|
|
|
120 g
|
3
|
|
|
||
|
Polyester base NH 00 ST SINGLE POLE 160 A "screw fixing" Clamp / Screw connection IP00
Art:
354110
Copied
|
NH00
|
160 A
|
800 V
|
|
|
120 g
|
3
|
|
|
||
|
Polyester base NH 00 ST SINGLE POLE 160 A "rail fixing" Screw / Screw connection FIXED NUT IP00
Art:
354115
Copied
|
NH00
|
160 A
|
800 V
|
|
|
120 g
|
3
|
|
|
||

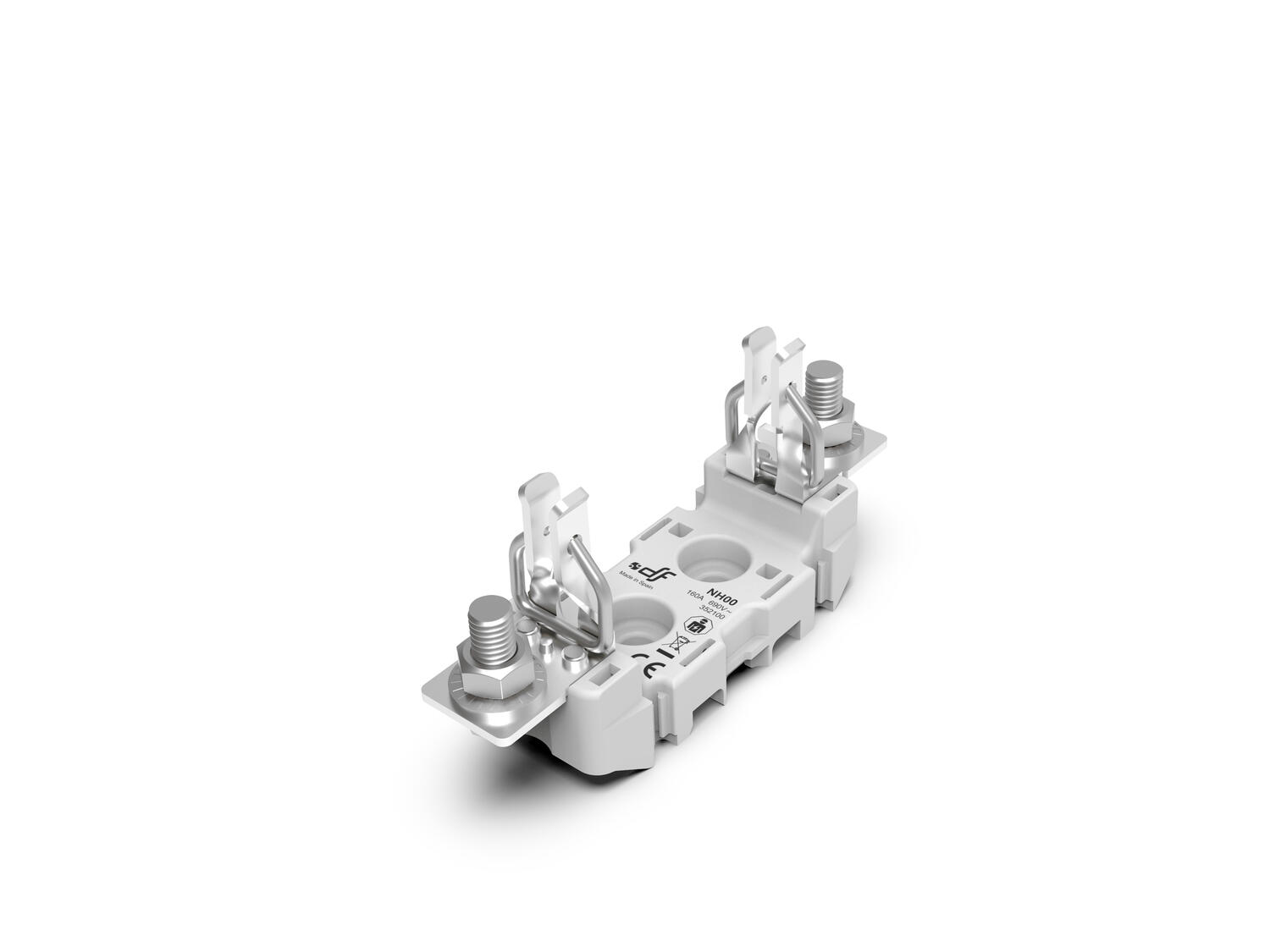

Polyester base NH 00 ST SINGLE POLE 160 A "rail fixing" Screw / Screw connection IP00
Art:
352100
Copied
|
NH00
|
160 A
|
800 V
|
|
|
120 g
|
3
|
|
|
||
|
Polyester base NH 00 ST SINGLE POLE 160 A "rail fixing" Clamp / Clamp connection IP00
Art:
352105
Copied
|
NH00
|
160 A
|
800 V
|
|
|
120 g
|
3
|
|
|
||
Polyester base NH 00 ST SINGLE POLE 160 A "rail fixing" Clamp / Screw connection IP00
Art:
352110
Copied
|
NH00
|
160 A
|
800 V
|
|
|
120 g
|
3
|
|
|
||
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Screw / Screw connection IP00
Art:
353102
Copied
|
NH00
|
160 A
|
800 V
|
|
|
370 g
|
1
|
|
|
||
|
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Clamp / Clamp connection IP00
Art:
353105
Copied
|
NH00
|
160 A
|
800 V
|
|
|
370 g
|
1
|
|
|
||
|
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Clamp / Screw connection IP00
Art:
353110
Copied
|
NH00
|
160 A
|
800 V
|
|
|
370 g
|
1
|
|
|
||
|
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Screw / Screw connection FIXED NUT IP00
Art:
353115
Copied
|
NH00
|
160 A
|
800 V
|
|
|
370 g
|
1
|
|
|
||
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Screw / Screw connection with cover shields
Art:
335120
Copied
|
NH00
|
160 A
|
800 V
|
|
|
430 g
|
1
|
|
|
||
|
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Clamp / Clamp connection with cover shields
Art:
335125
Copied
|
NH00
|
160 A
|
800 V
|
|
|
430 g
|
1
|
|
|
||
|
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Clamp / Screw connection with cover shields
Art:
335130
Copied
|
NH00
|
160 A
|
800 V
|
|
|
430 g
|
1
|
|
|
||
Art:
334717
Copied
|
NH00
|
160 A
|
800 V
|
|
|
465 g
|
1
|
|
|
||
|
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Clamp / Clamp connection IP20
Art:
334720
Copied
|
NH00
|
160 A
|
800 V
|
|
|
465 g
|
1
|
|
|
||
|
Polyester base NH 00 ST THREE POLES 160 A "rail fixing" Screw / Screw connection FIXED NUT IP20
Art:
334730
Copied
|
NH00
|
160 A
|
800 V
|
|
|
465 g
|
1
|
|
|
||
Art:
354160
Copied
|
NH0
|
160 A
|
690 V
|
|
|
180 g
|
3
|
|
|
||
|

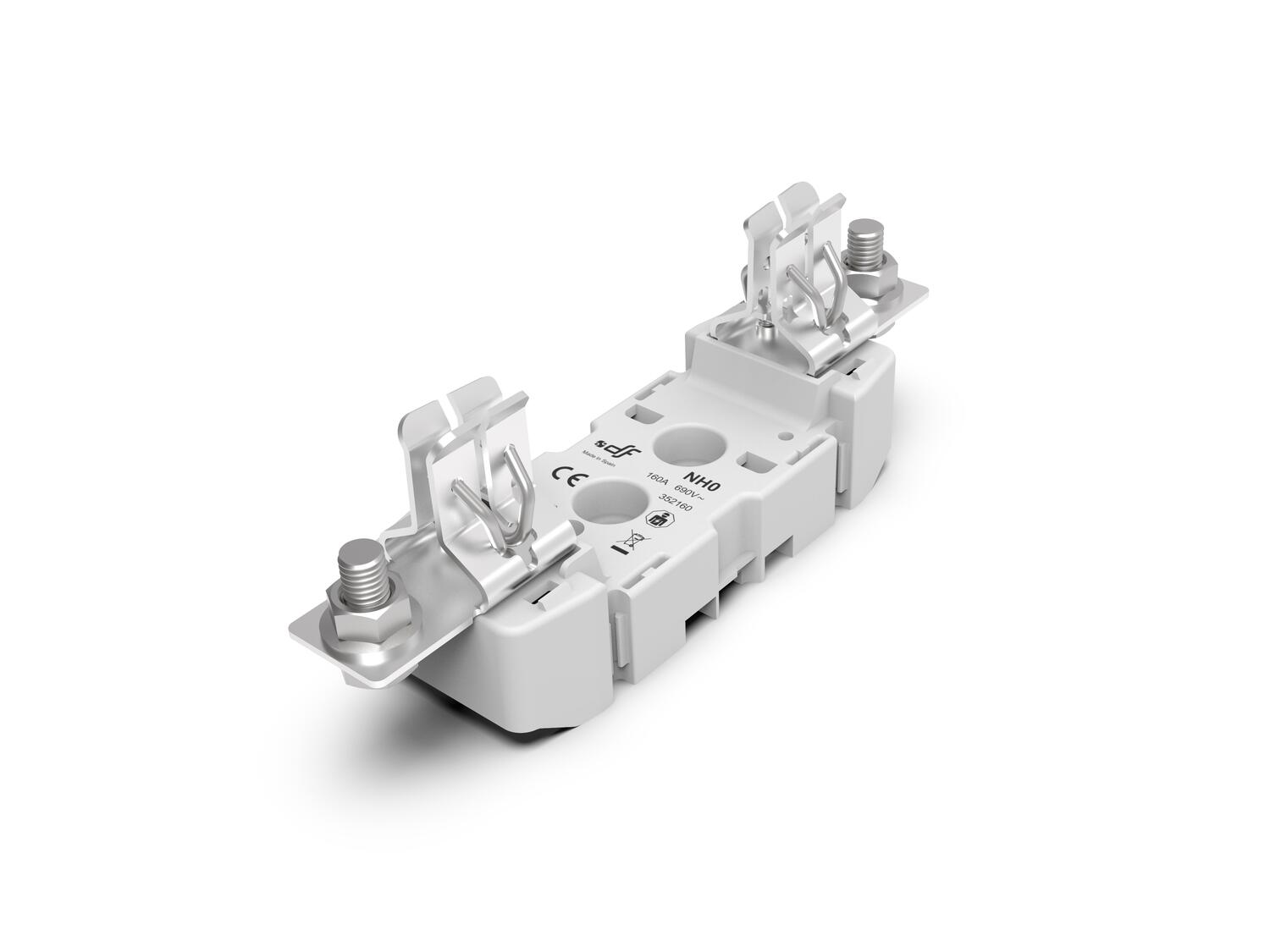

Polyester base NH 0 ST SINGLE POLE 160 A "screw & rail fixing" Screw / Screw connection IP00
Art:
352160
Copied
|
NH0
|
160 A
|
690 V
|
|
|
180 g
|
3
|
|
|
||
Polyester base NH 0 ST SINGLE POLE 160 A "screw & rail fixing" Screw / Screw connection IP00 with micro switch
Art:
355160
Copied
|
NH0
|
160 A
|
690 V
|
|
|
620 g
|
1
|
|
|
||
|
Polyester base NH 0 ST THREE POLES 160 A "screw & rail fixing" Screw / Screw connection IP00
Art:
353160
Copied
|
NH0
|
160 A
|
690 V
|
|
|
620 g
|
1
|
|
|
||

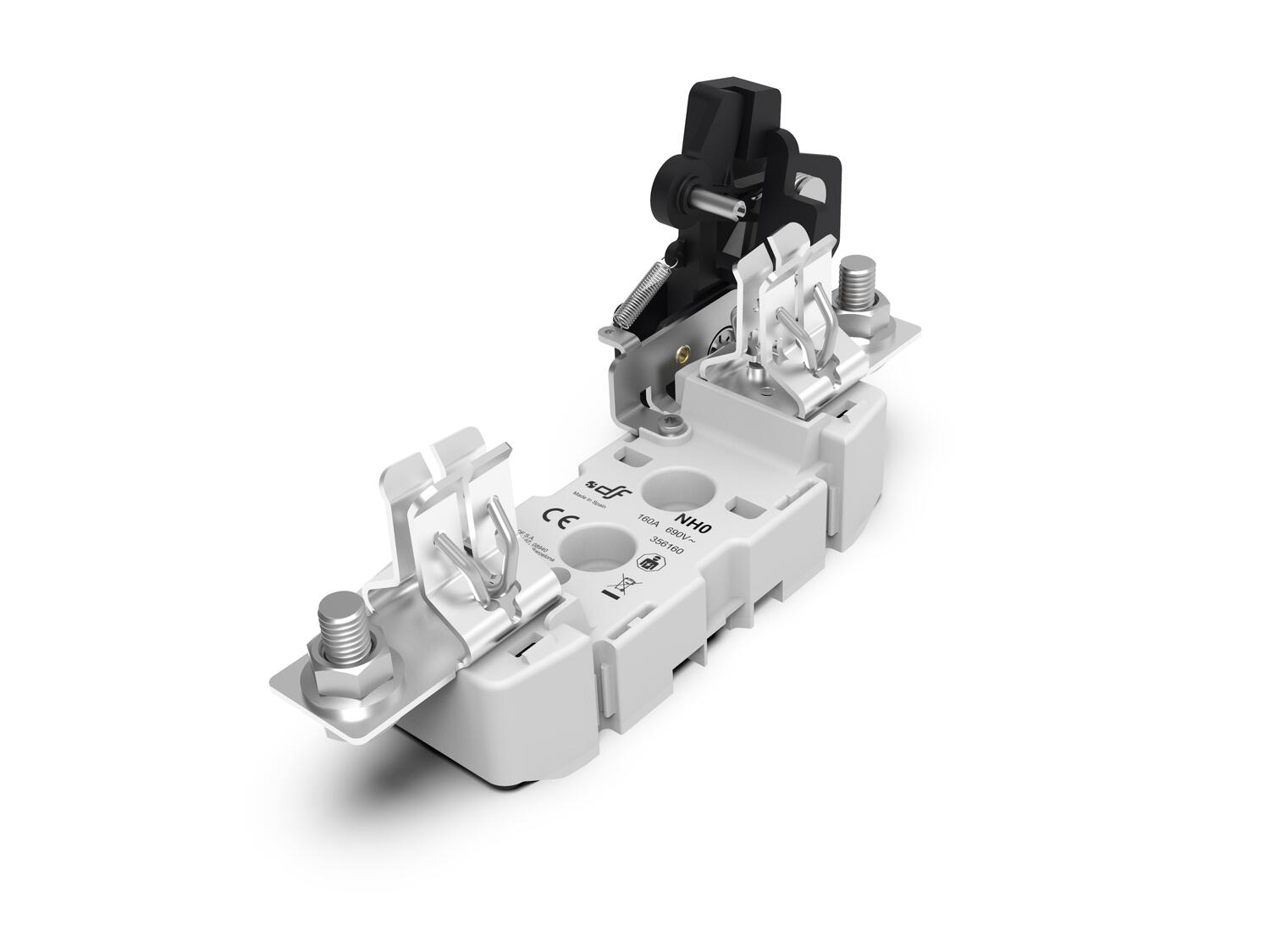

Polyester base NH 0 ST SINGLE POLE 160 A "screw & rail fixing" Screw / Screw connection IP00 with micro switch
Art:
356160
Copied
|
NH0
|
160 A
|
690 V
|
|
|
250 g
|
1
|
|
|
||

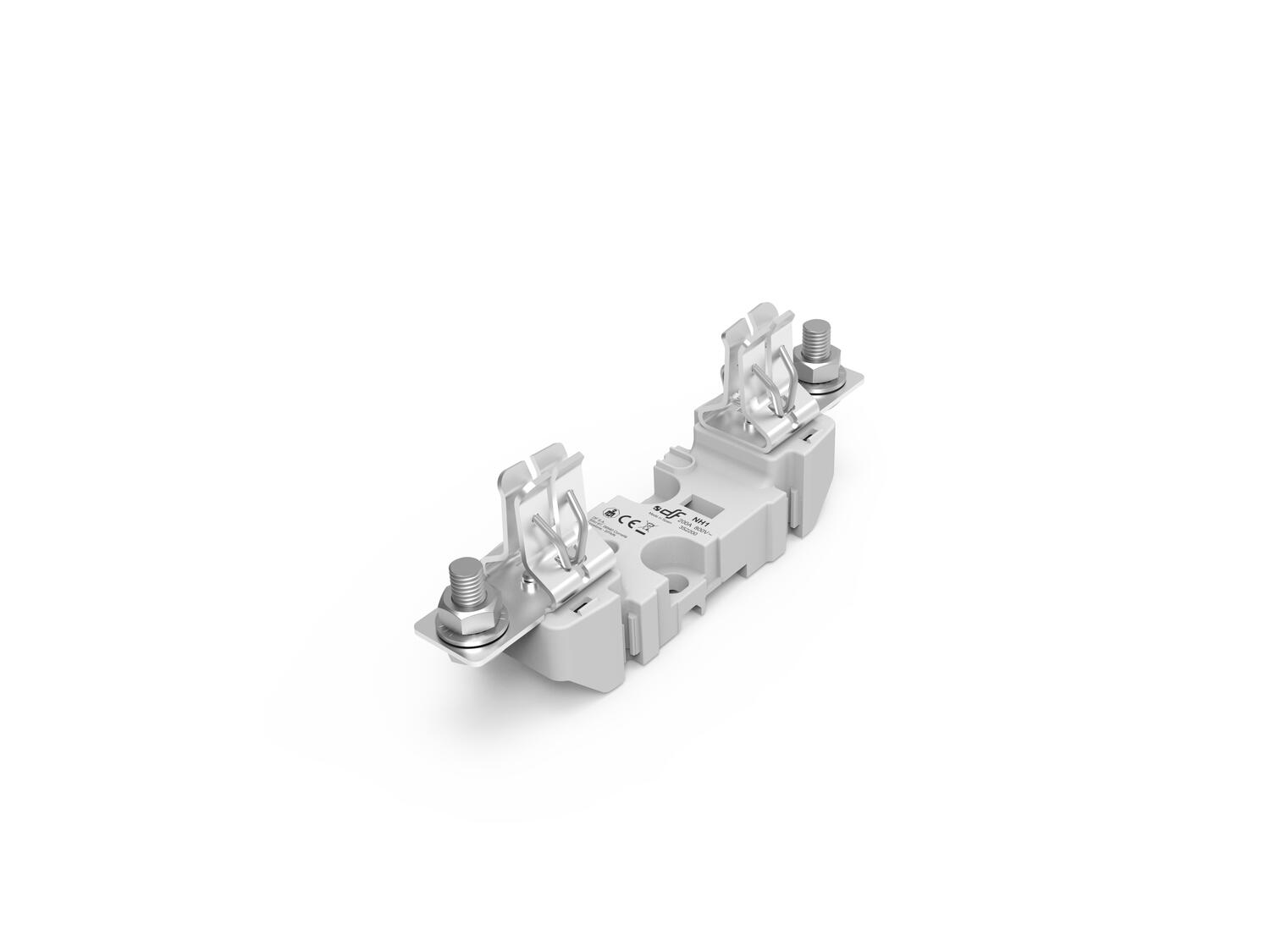

Polyester base NH 1 ST SINGLE POLE 250 A 690V/800V "Screw & rail din fixing" Spring Contact Screw / Screw connection IP00
Art:
352300
Copied
|
NH1
|
250 A
|
800 V
|
750 V
|
|
320 g
|
1
|
|
|
||

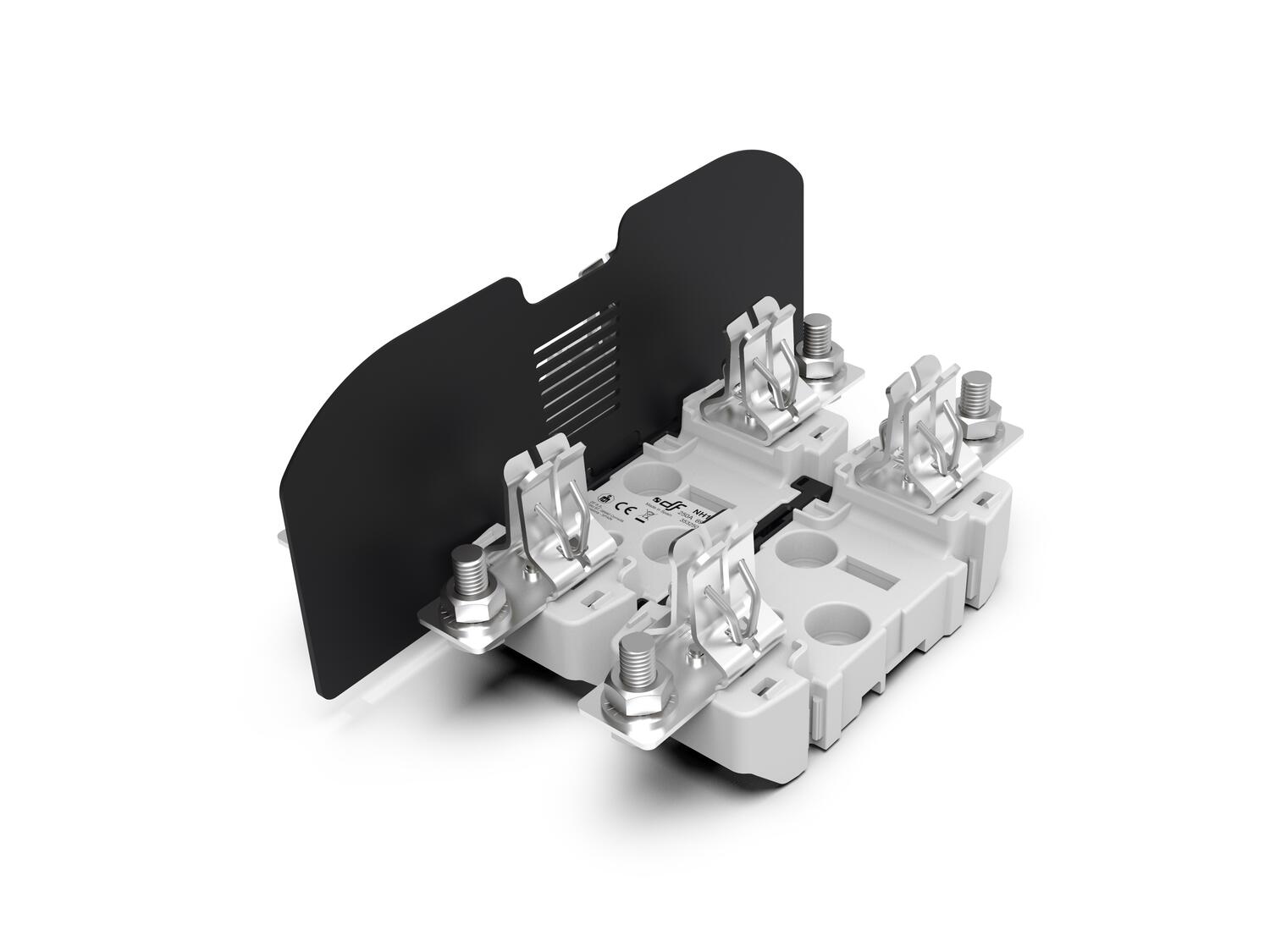

Polyester base NH 1 ST THREE POLES 250 A 690V/ 800V "screw & rail fixing" Spring Contact Screw / Screw connection IP00
Art:
353300
Copied
|
NH1
|
250 A
|
800 V
|
750 V
|
|
|
1
|
1 kg
|
|
||

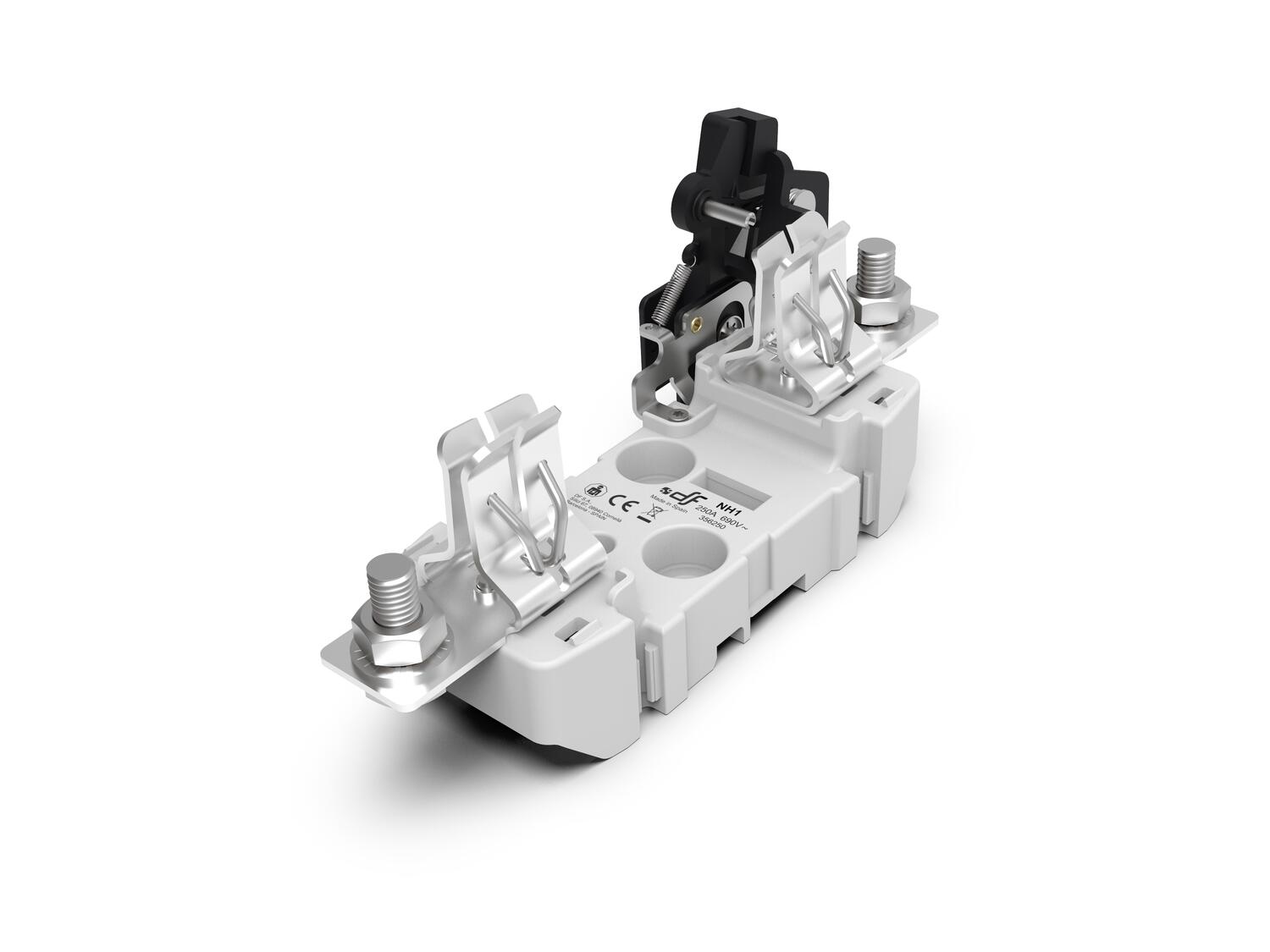

Polyester base NH 1 ST SINGLE POLE 250 A "screw & rail fixing" Spring Contact Screw / Screw connection IP00 with micro switch
Art:
356250
Copied
|
NH0
|
160 A
|
690 V
|
|
|
250 g
|
1
|
|
|
||
|
Polyester base NH 2 ST SINGLE POLE 400 A "screw & rail fixing" Spring Contact Screw / Screw connection IP00
Art:
352400
Copied
|
NH2
|
400 A
|
800 V
|
|
|
500 g
|
3
|
|
|
||
|
Polyester base NH 2 ST SINGLE POLE 400 A "screw fixing" Spring Contact KALEI connection IP00
Art:
354251
Copied
|
NH2
|
400 A
|
800 V
|
|
|
500 g
|
3
|
|
|
||
Polyester base NH 2 ST THREE POLES 400 A "screw & rail fixing" Spring Contact Screw / Screw connection IP00
Art:
353400
Copied
|
NH2
|
400 A
|
800 V
|
|
|
|
1
|
1.68 kg
|
|
||

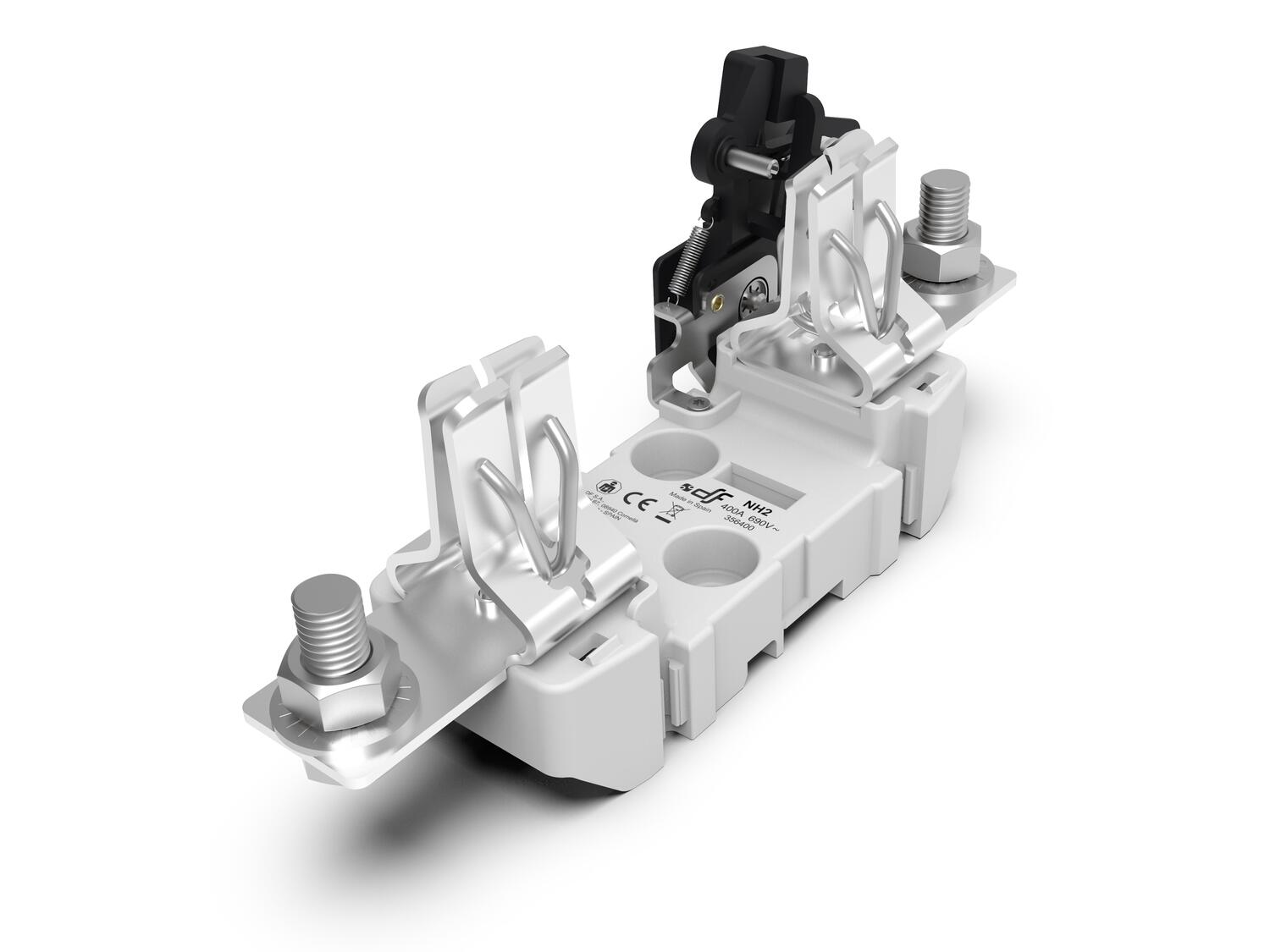

Polyester base NH 2 ST SINGLE POLE 400 A "screw & rail fixing" Screw / Screw connection IP00 with micro switch
Art:
356400
Copied
|
NH2
|
400 A
|
800 V
|
|
|
560 g
|
1
|
|
|
||
Polyester base NH 3 ST THREE POLES 630 A "screw & rail fixing" Spring Contact Screw / Screw connection IP00
Art:
353630
Copied
|
NH3
|
630 A
|
800 V
|
750 V
|
|
|
1
|
2.04 kg
|
|
||
|
630A NH3 Fuse Base Single Pole
Art:
352630
Copied
|
NH3
|
630 A
|
800 V
|
750 V
|
|
630 g
|
3
|
|
|
||

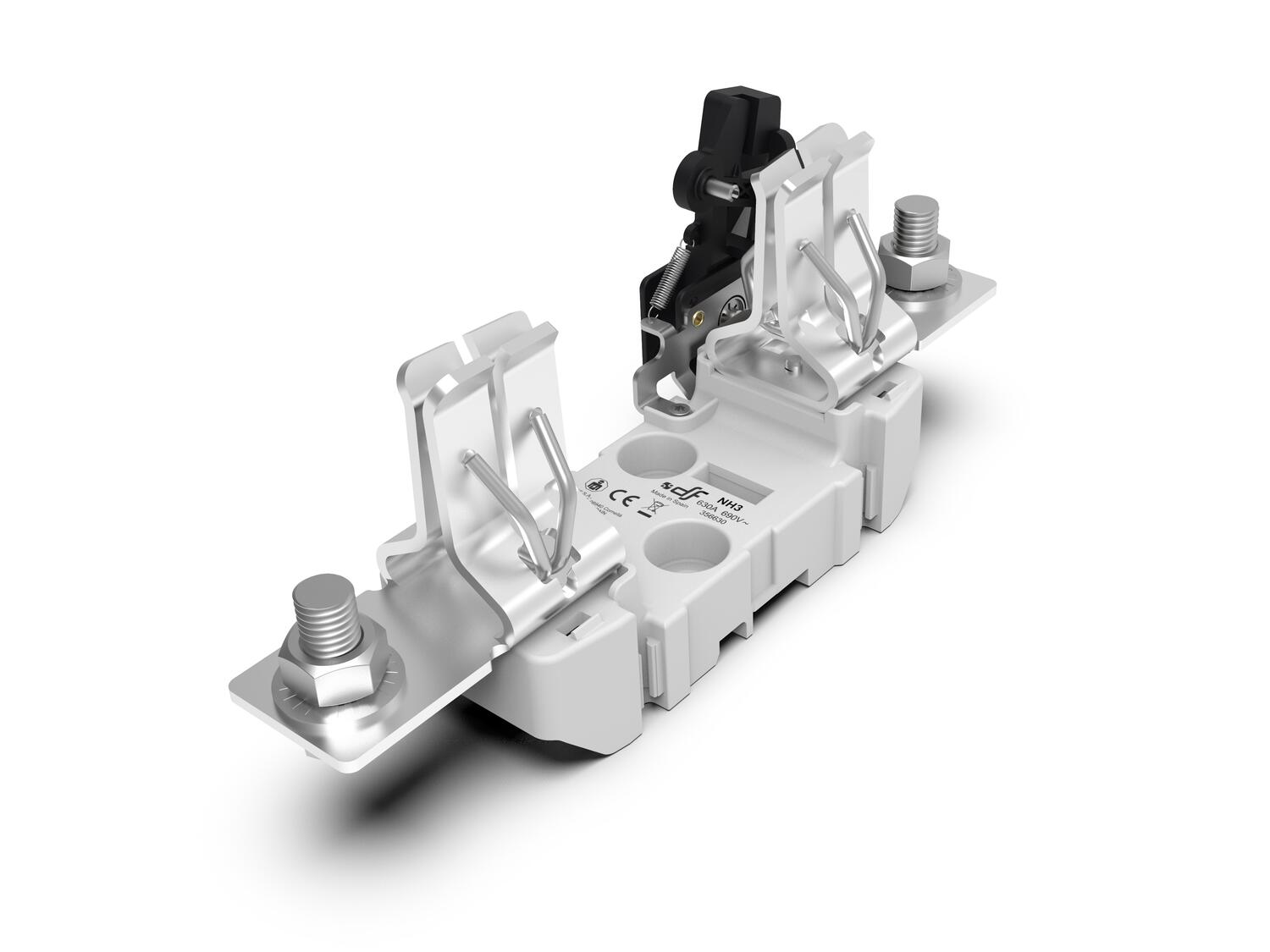

Polyester base NH 3 ST SINGLE POLE 630 A "screw & rail fixing" Spring Contact Screw / Screw connection IP00 with micro switch
Art:
356630
Copied
|
NH3
|
630 A
|
800 V
|
750 V
|
|
690 g
|
1
|
|
|
||

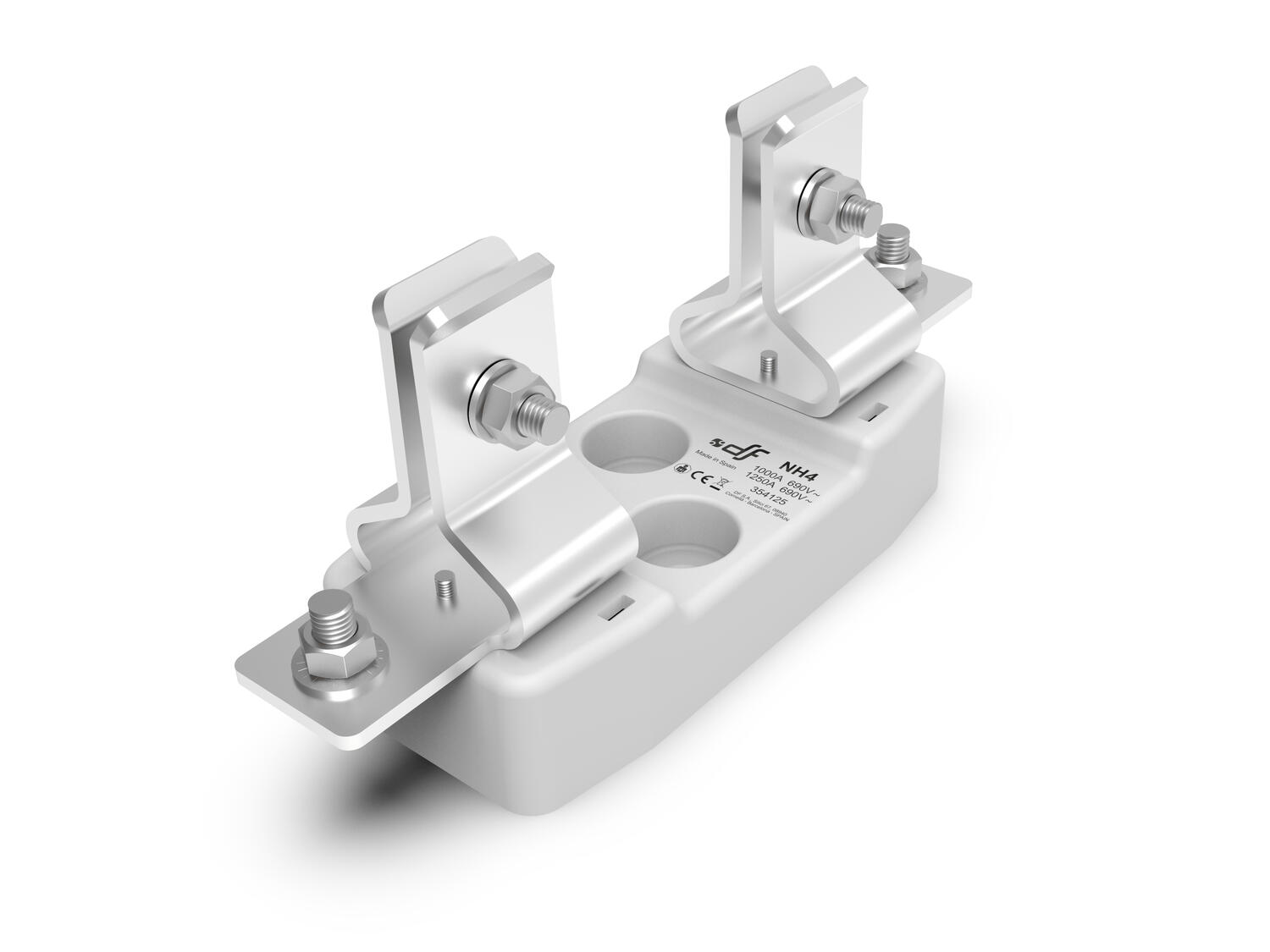

Art:
354125-DF
Copied
|
NH4
|
1250 A
|
690 V
|
|
|
|
1
|
2.45 kg
|
|
||

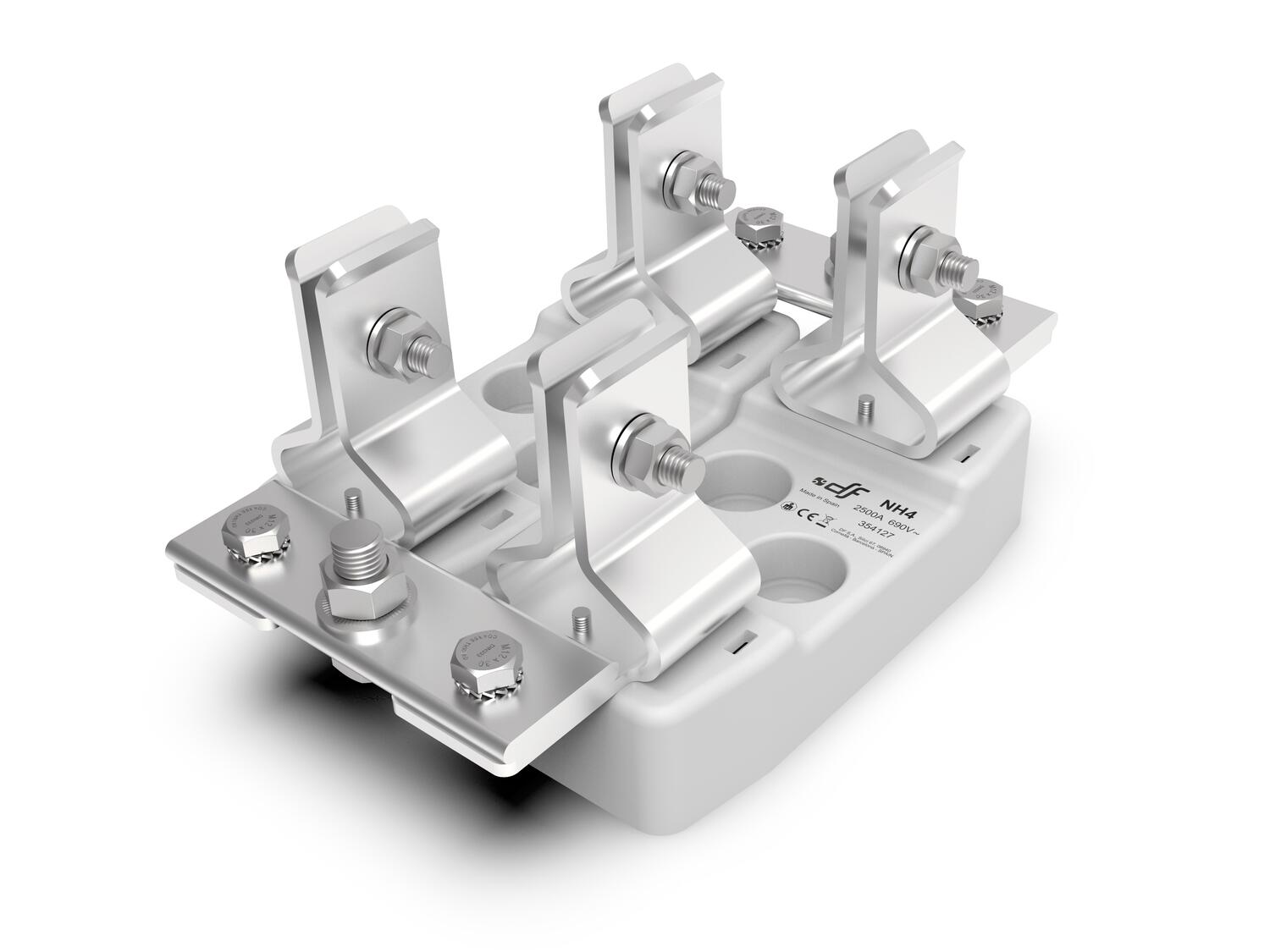

Polyester base NH4 ST (GROUP) 2500 A "screwed fixing" Screw / Screw connection IP00
Art:
354127
Copied
|
NH4
|
2500 A
|
690 V
|
|
2
|
|
1
|
|
|
Select a variant in the list
