DF ELECTRIC
gPV 10x38 cylindrical fuse links from DF Electric are designed to provide compact, safe, and cost-effective protection for photovoltaic modules (string protection) with voltages up to 1000V DC. These fuses safeguard against both overloads and short circuits, meeting the standards of IEC60269-6 and UL248-19 (gPV class).
Constructed with a high-strength ceramic tube, these fuse links can withstand internal pressure and thermal shock, allowing for a high breaking capacity in a compact design. The contacts are made of silver-plated copper, and the melting elements are crafted from pure silver to prevent aging, ensuring the electrical characteristics remain consistent over time.
We recommend using these fuse links with 10x38 PMX-PV fuse holders for optimal performance.
Read more about our photovoltaic fuses and their applications here.
General data |
|
|---|---|
| Type | gPV |
| 4853_Size (mm) | 10x38 |
| Rated current | 1 A |
| Voltage dc max | 1000 V |
| Breaking capacity | 30 kA |
| Frequency | 42...62Hz |
*Invisible Heading* |
|
|---|---|
| Indicator | No |
Additional data |
|
| Tariff code | 85361010 |
| Country of origin | ES |
| Weight | 8 g |
| Pack size | 10 Â |
gPV 10x38 cylindrical fuse links from DF Electric are designed to provide compact, safe, and cost-effective protection for photovoltaic modules (string protection) with voltages up to 1000V DC. These fuses safeguard against both overloads and short circuits, meeting the standards of IEC60269-6 and UL248-19 (gPV class).
Constructed with a high-strength ceramic tube, these fuse links can withstand internal pressure and thermal shock, allowing for a high breaking capacity in a compact design. The contacts are made of silver-plated copper, and the melting elements are crafted from pure silver to prevent aging, ensuring the electrical characteristics remain consistent over time.
We recommend using these fuse links with 10x38 PMX-PV fuse holders for optimal performance.
Read more about our photovoltaic fuses and their applications here.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | 4853_Size (mm) | Rated current | Voltage dc max | Breaking capacity | Tariff code | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV, 1000V DC, 1A
Art:
491601
Copied
|
10x38
|
1 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV, 1000V DC, 2A
Art:
491602
Copied
|
10x38
|
2 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV, 1000V DC, 3A
Art:
491604
Copied
|
10x38
|
3 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV, 1000V DC, 4A
Art:
491605
Copied
|
10x38
|
4 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV, 1000V DC, 5A
Art:
491606
Copied
|
10x38
|
5 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV , 1000V DC, 6A
Art:
491610
Copied
|
10x38
|
6 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV , 1000V DC, 8A
Art:
491615
Copied
|
10x38
|
8 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV , 1000V DC, 10A
Art:
491620
Copied
|
10x38
|
10 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV , 1000V DC, 12A
Art:
491625
Copied
|
10x38
|
12 A
|
1000 V
|
30 kA
|
85361050
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV , 1000V DC, 15A
Art:
491629
Copied
|
10x38
|
15 A
|
1000 V
|
30 kA
|
85361050
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV , 1000V DC, 16A
Art:
491630
Copied
|
10x38
|
16 A
|
1000 V
|
30 kA
|
85361050
|
8 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x38 mm gPV , 1000V DC, 20A
Art:
491635
Copied
|
10x38
|
20 A
|
1000 V
|
30 kA
|
85361010
|
8 g
|
|
||
Cylindrical PV Fuse Link for Photovoltaic Applications 14x51 mm gPV , 1100V DC, 15A
Art:
491647
Copied
|
14x51
|
15 A
|
1100 V
|
10 kA
|
85361050
|
18 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 14x51 mm gPV , 1100V DC, 20A
Art:
491648
Copied
|
14x51
|
20 A
|
1100 V
|
10 kA
|
85361050
|
18 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 14x51 mm gPV , 1000V DC, 25A
Art:
491650
Copied
|
14x51
|
25 A
|
1000 V
|
10 kA
|
85361050
|
18 g
|
|
||
|

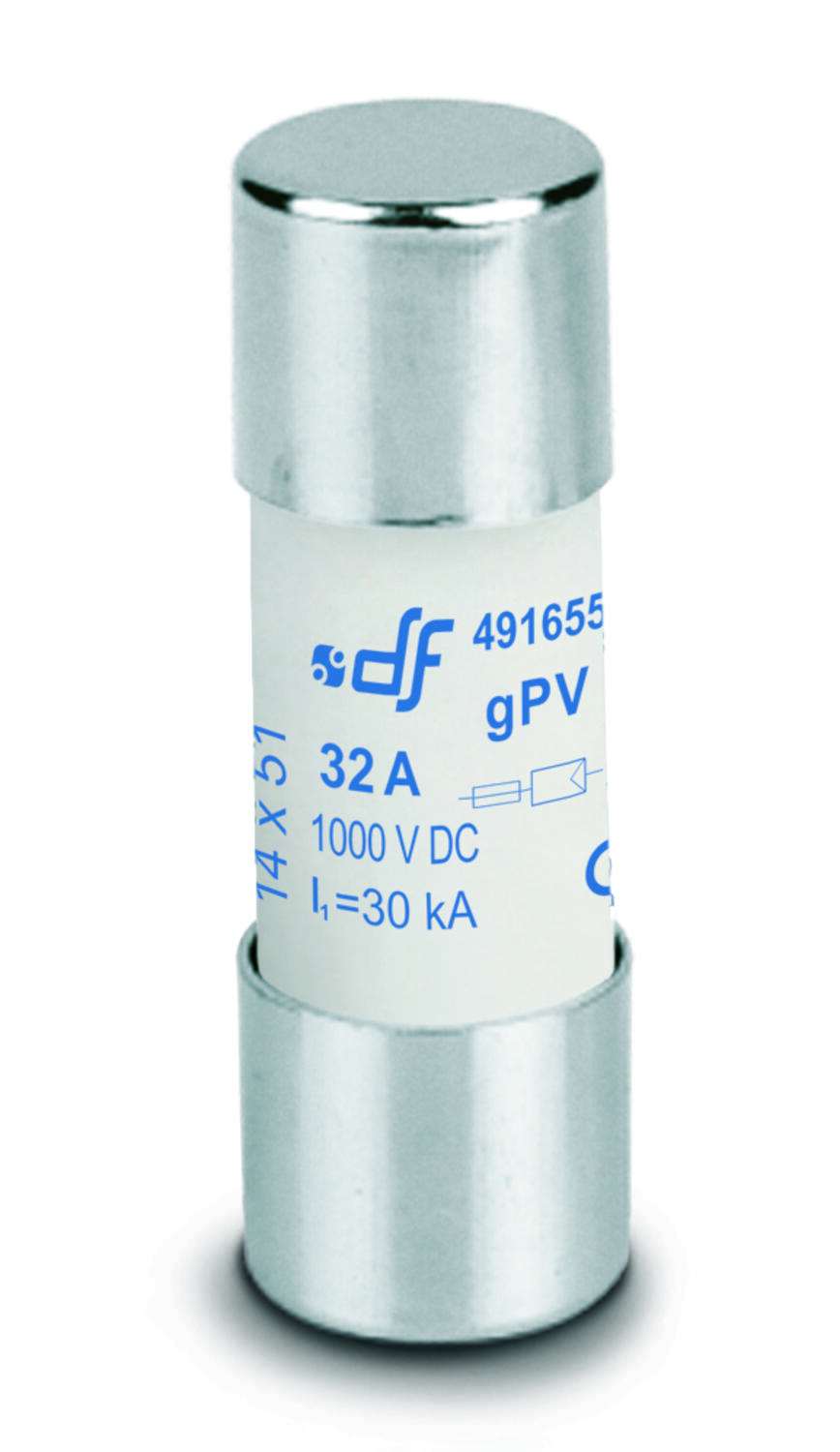

Cylindrical PV Fuse Link for Photovoltaic Applications 14x51 mm gPV , 1000V DC, 32A
Art:
491655
Copied
|
14x51
|
30 A
|
1000 V
|
10 kA
|
85361050
|
18 g
|
|
||
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV, 1500V DC, 2A
Art:
492202
Copied
|
10x85
|
2 A
|
1500 V
|
30 kA
|
85361010
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV, 1500V DC, 4A
Art:
492205
Copied
|
10x85
|
4 A
|
1500 V
|
30 kA
|
85361010
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV , 1500V DC, 6A
Art:
492210
Copied
|
10x85
|
6 A
|
1500 V
|
30 kA
|
85361010
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV , 1500V DC, 8A
Art:
492215
Copied
|
10x85
|
8 A
|
1500 V
|
30 kA
|
85361010
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV , 1500V DC, 10A
Art:
492220
Copied
|
10x85
|
10 A
|
1500 V
|
30 kA
|
85361010
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV , 1500V DC, 12A
Art:
492225
Copied
|
10x85
|
12 A
|
1500 V
|
30 kA
|
85361050
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV , 1500V DC, 15A
Art:
492229
Copied
|
10x85
|
15 A
|
1500 V
|
30 kA
|
85361050
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV , 1500V DC, 16A
Art:
492230
Copied
|
10x85
|
16 A
|
1500 V
|
30 kA
|
85361050
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV , 1200V DC, 20A
Art:
492235
Copied
|
10x85
|
20 A
|
1200 V
|
10 kA
|
85361050
|
14.5 g
|
|
||
|

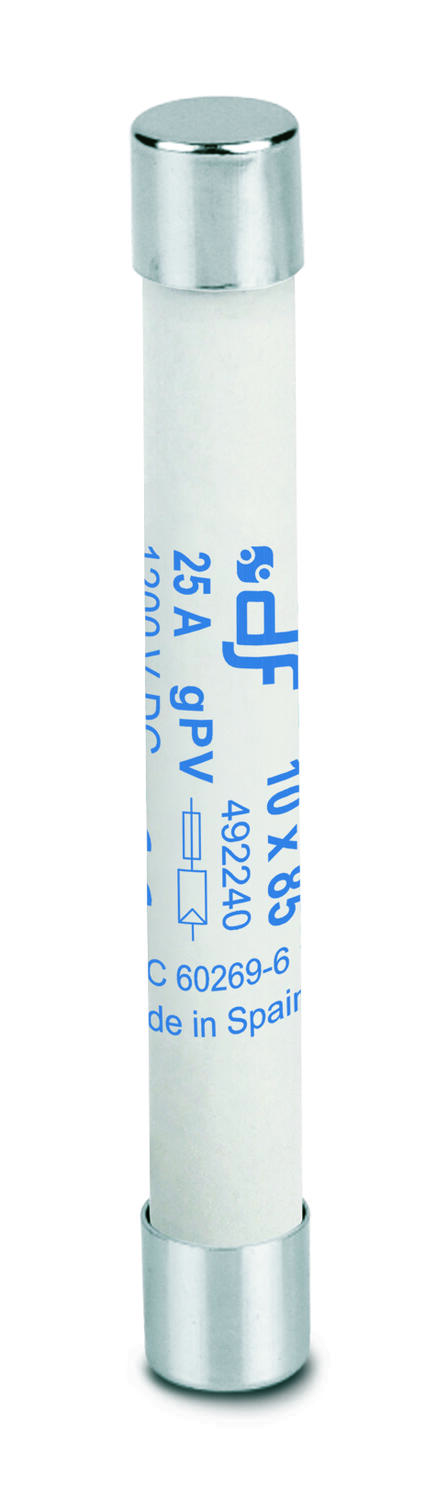

Cylindrical PV Fuse Link for Photovoltaic Applications 10x85 gPV , 1200V DC, 25A
Art:
492240
Copied
|
10x85
|
25 A
|
1200 V
|
10 kA
|
85361050
|
14.5 g
|
|
||
Cylindrical PV Fuse Link for Photovoltaic Applications 10/14x85 gPV , 1500V DC, 20A
Art:
492250
Copied
|
10/14x85
|
20 A
|
1500 V
|
30 kA
|
85361050
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10/14x85 gPV , 1500V DC, 25A
Art:
492255
Copied
|
10/14x85
|
25 A
|
1500 V
|
30 kA
|
85361050
|
14.5 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 10/14x85 gPV , 1500V DC, 30A
Art:
492260
Copied
|
10/14x85
|
30 A
|
1500 V
|
30 kA
|
85361050
|
14.5 g
|
|
||
|

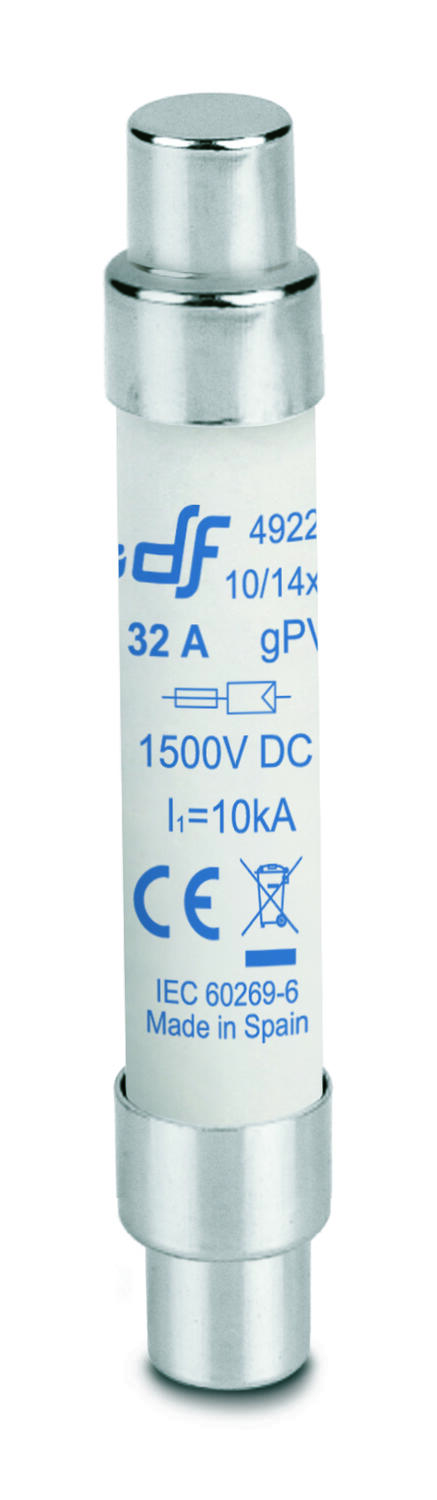

Cylindrical PV Fuse Link for Photovoltaic Applications 10/14x85 gPV , 1500V DC, 32A
Art:
492262
Copied
|
10/14x85
|
32 A
|
1500 V
|
30 kA
|
85361050
|
14.5 g
|
|
||
Cylindrical PV Fuse Link for Photovoltaic Applications 22x65 mm gPV , 1500V DC, 40A
Art:
492270
Copied
|
22x65
|
40 A
|
1500 V
|
30 kA
|
85361050
|
58 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 22x65 mm gPV , 1500V DC, 45A
Art:
492272
Copied
|
22x65
|
45 A
|
1500 V
|
30 kA
|
85361050
|
58 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 22x65 mm gPV , 1500V DC, 50A
Art:
492275
Copied
|
22x65
|
50 A
|
1500 V
|
30 kA
|
85361050
|
58 g
|
|
||
|
Cylindrical PV Fuse Link for Photovoltaic Applications 22x65 mm gPV , 1500V DC, 55A
Art:
492278
Copied
|
22x65
|
55 A
|
1500 V
|
30 kA
|
85361050
|
58 g
|
|
||
|

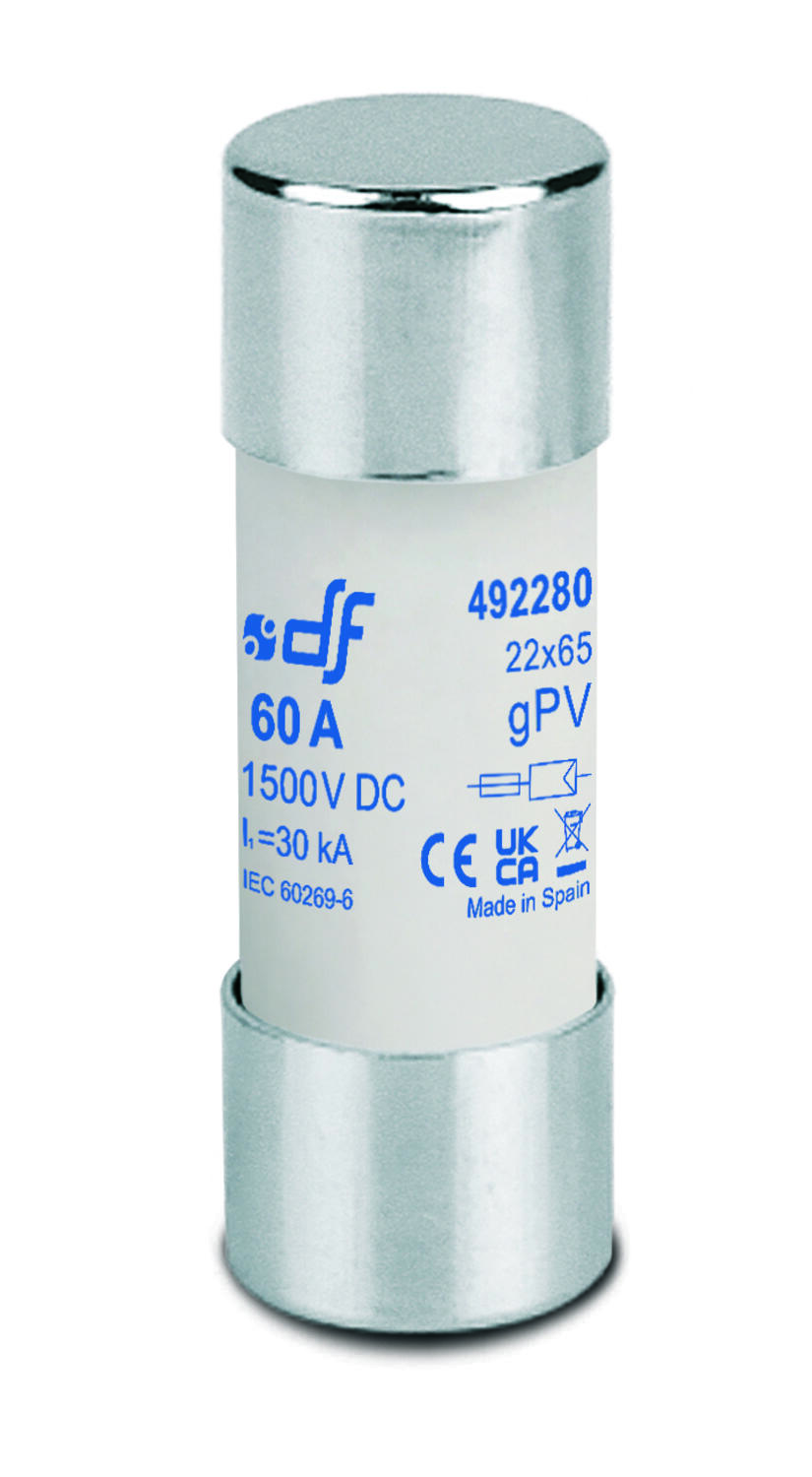

Cylindrical PV Fuse Link for Photovoltaic Applications 22x65 mm gPV , 1500V DC, 60A
Art:
492280
Copied
|
22x65
|
60 A
|
1500 V
|
30 kA
|
85361050
|
58 g
|
|
Select a variant in the list
