DF ELECTRIC
 Battery Storage Protection Fuse Links
Â
Introducing gBat NH fuse links from df Electric, designed to safeguard battery systems in compliance with Standard IEC60269-7.
Â
gBat fuse links offer comprehensive protection, quickly protecting battery systems from overcurrents, overloads, and short-circuits to ensure the safety of batteries, cables, and associated switchgear within installations.
Â
Manufactured using techniques similar to semiconductor fuse links, gBat fuse links ensure rapid operation and maintain performance over multiple charging and discharging cycles. Additionally, optimized power dissipation enhances efficiency and longevity.
Â
gBat NH 1500V DC fuse-links range are available in NH1XL, NH2XL and NH3L with rated currents between 63A and 500A, with rated voltage of 1500V DC. The rated breaking capacity is 100kA and 50kA (NH3 L bolted blade)
General data |
|
---|---|
Type | NH1 XL gBat |
Rated current | 63 A |
Voltage dc max | 1500 V |
Breaking capacity | 100 kA |
Rated operating conditions |
|
Operational temperature | -40-80 |
Additional data |
|
Tariff code | 85361050 |
Weight | 650 g |
Pack size | 1 Â |
 Battery Storage Protection Fuse Links
Â
Introducing gBat NH fuse links from df Electric, designed to safeguard battery systems in compliance with Standard IEC60269-7.
Â
gBat fuse links offer comprehensive protection, quickly protecting battery systems from overcurrents, overloads, and short-circuits to ensure the safety of batteries, cables, and associated switchgear within installations.
Â
Manufactured using techniques similar to semiconductor fuse links, gBat fuse links ensure rapid operation and maintain performance over multiple charging and discharging cycles. Additionally, optimized power dissipation enhances efficiency and longevity.
Â
gBat NH 1500V DC fuse-links range are available in NH1XL, NH2XL and NH3L with rated currents between 63A and 500A, with rated voltage of 1500V DC. The rated breaking capacity is 100kA and 50kA (NH3 L bolted blade)
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Type | Rated current | Tariff code | Weight | Weight | Price | ||
---|---|---|---|---|---|---|---|---|
![]()
FUSE NH1-XL gBat 63A 1500V DC for battery storage protection
Art:
368235
Copied
|
NH1 XL gBat
|
63 A
|
85361050
|
650 g
|
|
| ||
![]()
Fuse NH1-XL gBat 80A 1500V DC for battery storage protection
Art:
368240
Copied
|
NH1 XL gBat
|
80 A
|
85361090
|
650 g
|
|
| ||
![]()
Fuse NH1-XL gBat 100A 1500V DC for battery storage protection
Art:
368245
Copied
|
NH1 XL gBat
|
100 A
|
85361090
|
650 g
|
|
| ||
![]()
Fuse NH1-XL gBat 125A 1500V DC for battery storage protection
Art:
368250
Copied
|
NH1 XL gBat
|
125 A
|
85361090
|
650 g
|
|
| ||
![]()
Fuse NH1-XL gBat 160A 1500V DC for battery storage protection
Art:
368255
Copied
|
NH1 XL gBat
|
160 A
|
85361090
|
650 g
|
|
| ||
![]()
Fuse NH2-XL gBat 200A 1500V DC for battery storage protection
Art:
368350
Copied
|
NH2 XL gBat
|
200 A
|
85361090
|
990 g
|
|
| ||
![]()

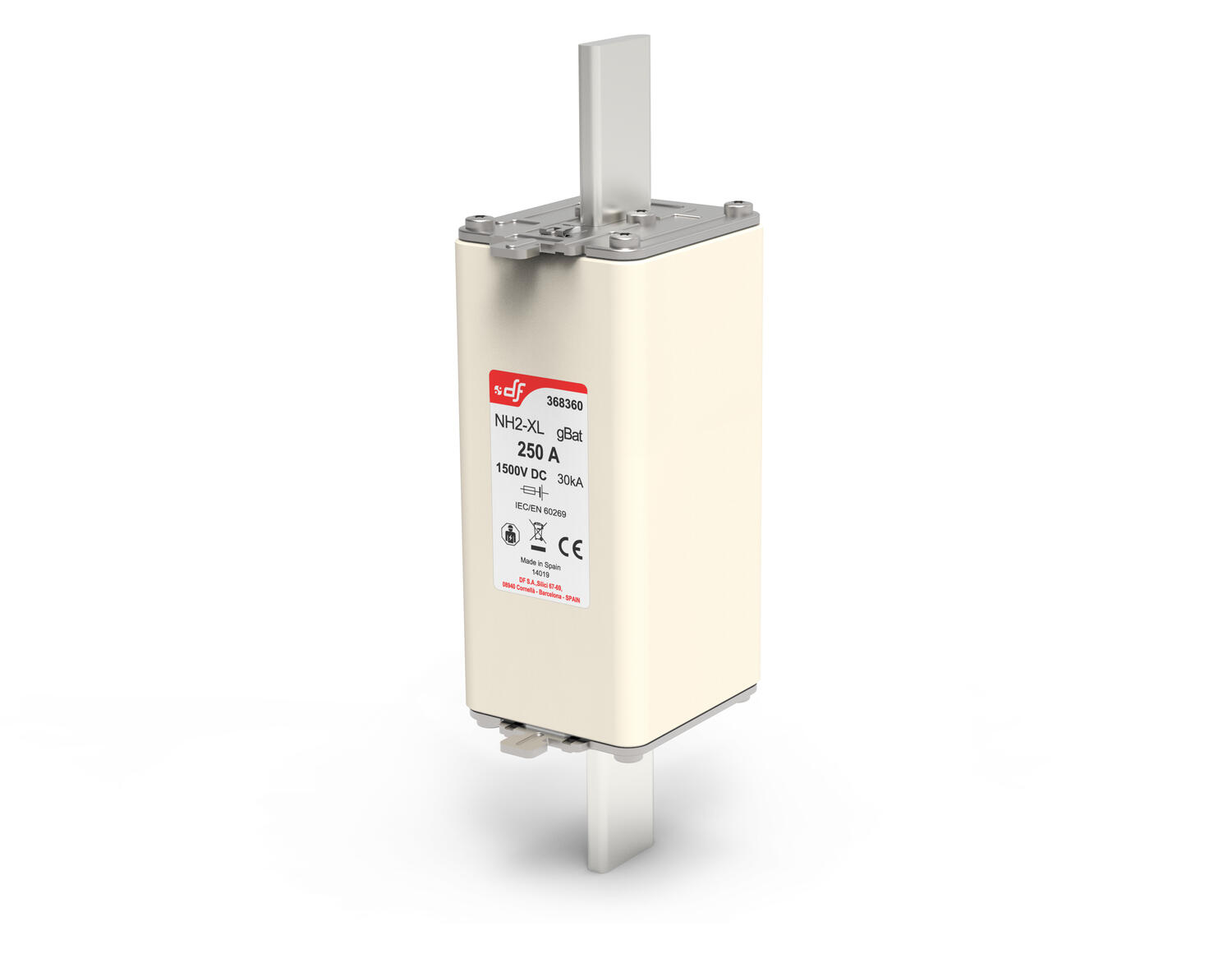

Fuse NH2-XL gBat 250A 1500V DC for battery storage protection
Art:
368360
Copied
|
NH2 XL gBat
|
250 A
|
85361090
|
990 g
|
|
| ||
![]()
Fuse NH3-L gBat 315A 1500V DC for battery storage protection
Art:
368445
Copied
|
NH3 L gBat
|
315 A
|
85361090
|
|
1.65 kg
|
| ||
![]()
Fuse NH3-L gBat 355A 1500V DC for battery storage protection
Art:
368450
Copied
|
NH3 L gBat
|
355 A
|
85361090
|
|
1.65 kg
|
| ||
![]()

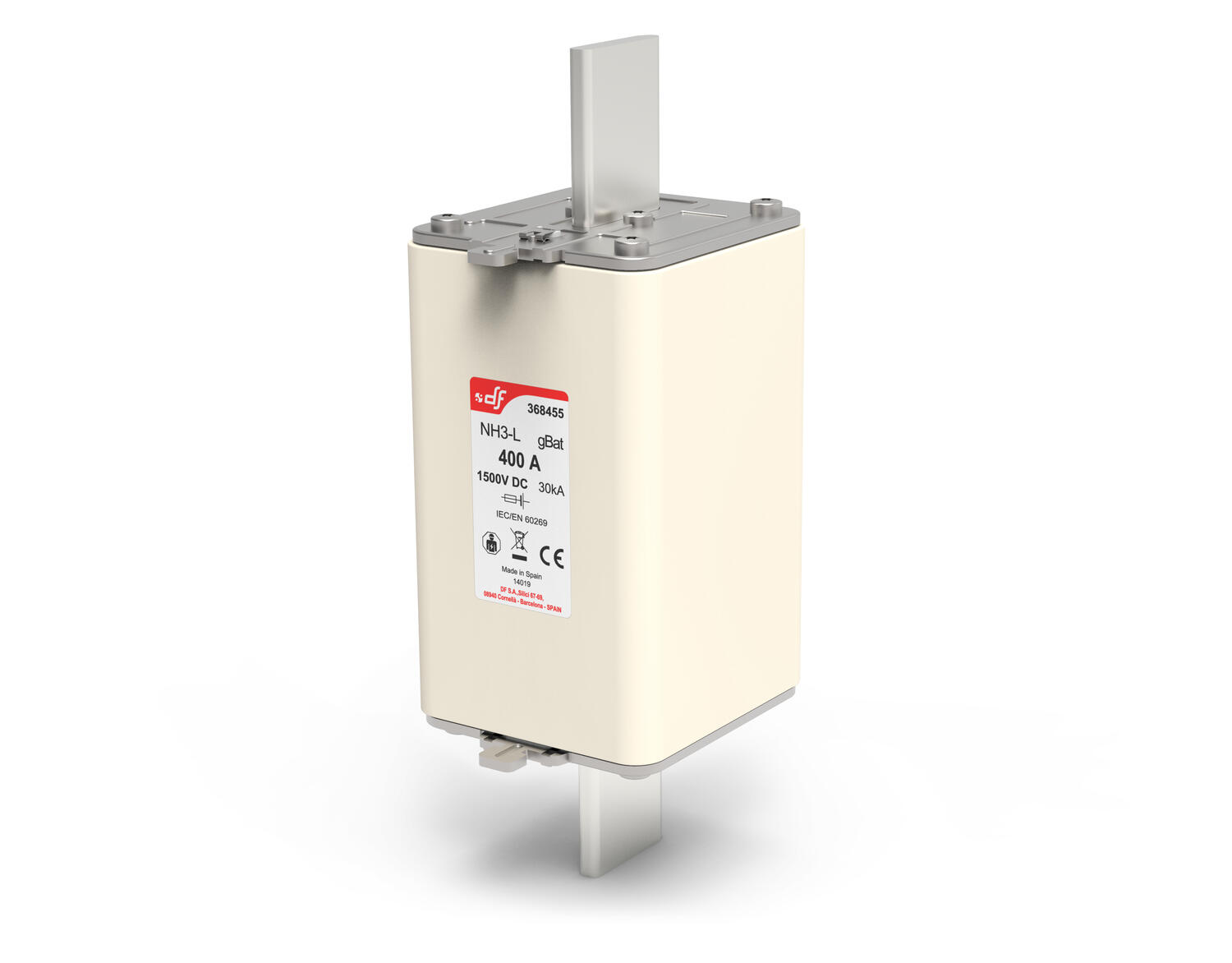

Fuse NH3-L gBat 400A 1500V DC for battery storage protection
Art:
368455
Copied
|
NH3 L gBat
|
400 A
|
85361090
|
|
1.65 kg
|
|
