DF ELECTRIC

gBat Cylindrical Fuse Links

gBat Cylindrical fuse links, compliant with the IEC60269-7 Standard, are designed to safeguard battery systems. These fuse links offer comprehensive protection by quickly clearing overcurrents, overloads, and short-circuits, ensuring the safety of batteries, cables, and all associated switchgear installations.



gBat fuse links exhibit rapid operation during short-circuits and maintain reliable performance through continuous charge/discharge cycles. The design optimisation results in reduced power dissipations, enabling their versatile use across a broad spectrum of fuse bases, disconnectors, and fuse-switch disconnectors.



The gBat Cylindrical fuse links range is available in 14×51 and 22×58 sizes and include rated currents from 2A to 80A, and a rated voltage of 600V DC. These fuse links come in standard versions and striker versions and are compatible with fuse bases featuring microswitches.





Read more
  • Available in 14×51 and 22×58 sizes
  • Rated current between 2A to 80A
  • Rated voltage of 600V DC
  • Ideal for battery protection

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General data
Type gBat
Size 14x51
Rated current 2 A
Voltage dc max 600 V
Breaking capacity 50 kA
Frequency 42...62Hz

*Invisible Heading*
Indicator No

Additional data
Tariff code 85361010
Country of origin ES
Weight 18 g
Pack size 10

Product description

gBat Cylindrical fuse links, compliant with the IEC60269-7 Standard, are designed to safeguard battery systems. These fuse links offer comprehensive protection by quickly clearing overcurrents, overloads, and short-circuits, ensuring the safety of batteries, cables, and all associated switchgear installations.



gBat fuse links exhibit rapid operation during short-circuits and maintain reliable performance through continuous charge/discharge cycles. The design optimisation results in reduced power dissipations, enabling their versatile use across a broad spectrum of fuse bases, disconnectors, and fuse-switch disconnectors.



The gBat Cylindrical fuse links range is available in 14×51 and 22×58 sizes and include rated currents from 2A to 80A, and a rated voltage of 600V DC. These fuse links come in standard versions and striker versions and are compatible with fuse bases featuring microswitches.





Accessories

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Size Rated current Tariff code Weight Price

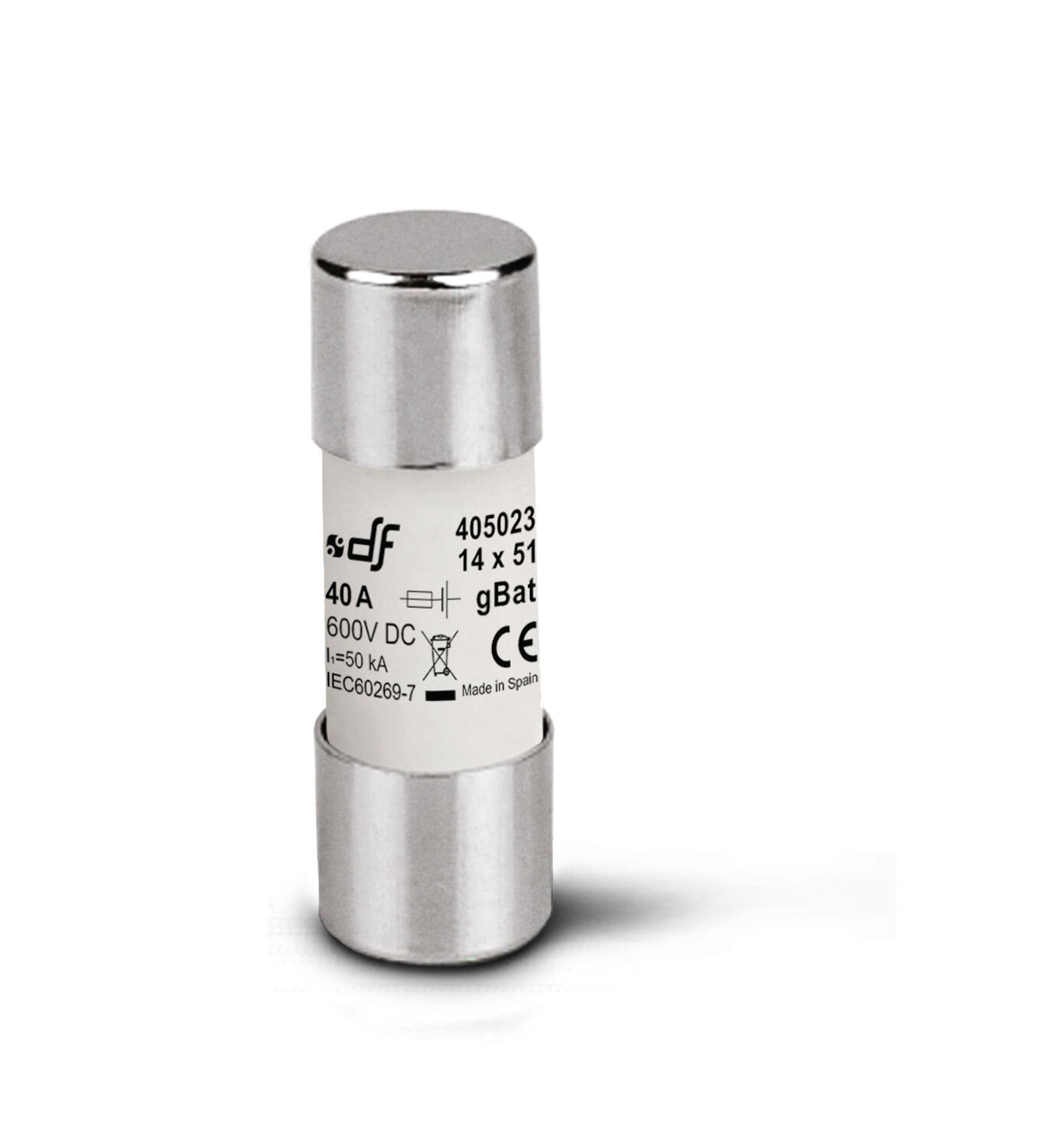

14x51_CYL_gBat_fuse_links_battery_protection.tif
CYLINDRICAL fuses 14x51 gBat 2A 600 VDC for battery storage protection
Art:
405015 Copied
14x51
2 A
85361010
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 4A 600 VDC for battery storage protection
Art:
405016-DF Copied
14x51
4 A
85361010
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
CYLINDRICAL fuses 14x51 gBat 6A 600 VDC for battery storage protection
Art:
405017-DF Copied
14x51
6 A
85361010
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 8A 600 VDC for battery storage protection
Art:
405018-DF Copied
14x51
8 A
85361010
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 10A 600 VDC for battery storage protection
Art:
405019-DF Copied
14x51
10 A
85361010
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 12A 600 VDC for battery storage protection
Art:
405020 Copied
14x51
12 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 16A 600 VDC for battery storage protection
Art:
405021-DF Copied
14x51
16 A
85361010
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 20A 600 VDC for battery storage protection
Art:
405022-DF Copied
14x51
20 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 25A 600 VDC for battery storage protection
Art:
405023-DF Copied
14x51
25 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 32A 600 VDC for battery storage protection
Art:
405024-DF Copied
14x51
32 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 40A 600 VDC for battery storage protection
Art:
405025 Copied
14x51
40 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
CYLINDRICAL fuses 14x51 gbat 8A 600 VDC with striker for battery storage protection
Art:
405118-DF Copied
14x51
8 A
85361010
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 10A 600 VDC with striker for battery storage protection
Art:
405119-DF Copied
14x51
10 A
85361010
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 12A 600 VDC with striker for battery storage protection
Art:
405120 Copied
14x51
12 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 16A 600 VDC with striker for battery storage protection
Art:
405121-DF Copied
14x51
16 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
CCylindrical fuses 14x51 gbat 25A 600 VDC with striker for battery storage protection
Art:
405122-DF Copied
14x51
25 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 25A 600 VDC with striker for battery storage protection
Art:
405123-DF Copied
14x51
25 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 32A 600 VDC with striker for battery storage protection
Art:
405124-DF Copied
14x51
32 A
85361050
18 g
14x51_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 14x51 gbat 40A 600 VDC with striker for battery storage protection
Art:
405125 Copied
14x51
40 A
85361050
18 g

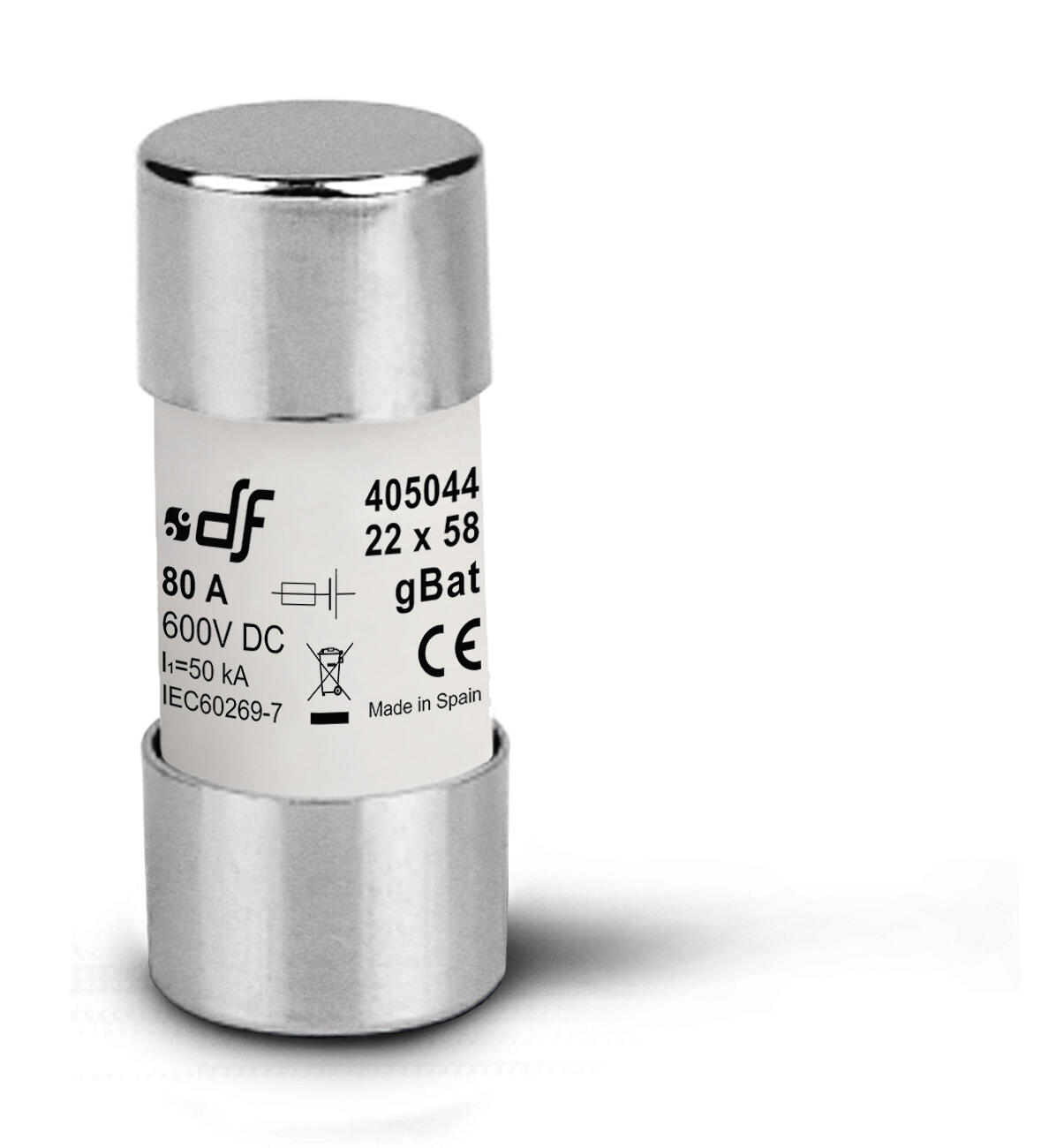

22x58_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 22x58 gbat 40A 600 VDC for battery storage protection
Art:
405041-DF Copied
22x58
40 A
85361050
50 g
22x58_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 22x58 gbat 50A 600 VDC for battery storage protection
Art:
405042-DF Copied
22x58
50 A
85361050
50 g
22x58_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 22x58 gbat 63A 600 VDC for battery storage protection
Art:
405043-DF Copied
22x58
63 A
85361010
50 g
22x58_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 22x58 gbat 63A 600 VDC with striker for battery storage protection
Art:
405044-DF Copied
22x58
63 A
85361050
50 g
22x58_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 22x58 gbat 40A 600 VDC with striker for battery storage protection
Art:
405141-DF Copied
22x58
40 A
85361050
50 g
22x58_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 22x58 gbat 50A 600 VDC with striker for battery storage protection
Art:
405142-DF Copied
22x58
50 A
85361050
50 g
22x58_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 22x58 gbat 63A 600 VDC with striker for battery storage protection
Art:
405143-DF Copied
22x58
63 A
85361050
50 g
22x58_CYL_gBat_fuse_links_battery_protection.tif
Cylindrical fuses 22x58 gbat 80A 600 VDC with striker for battery storage protection
Art:
405144-DF Copied
22x58
63 A
85361050
50 g
