LUMEL

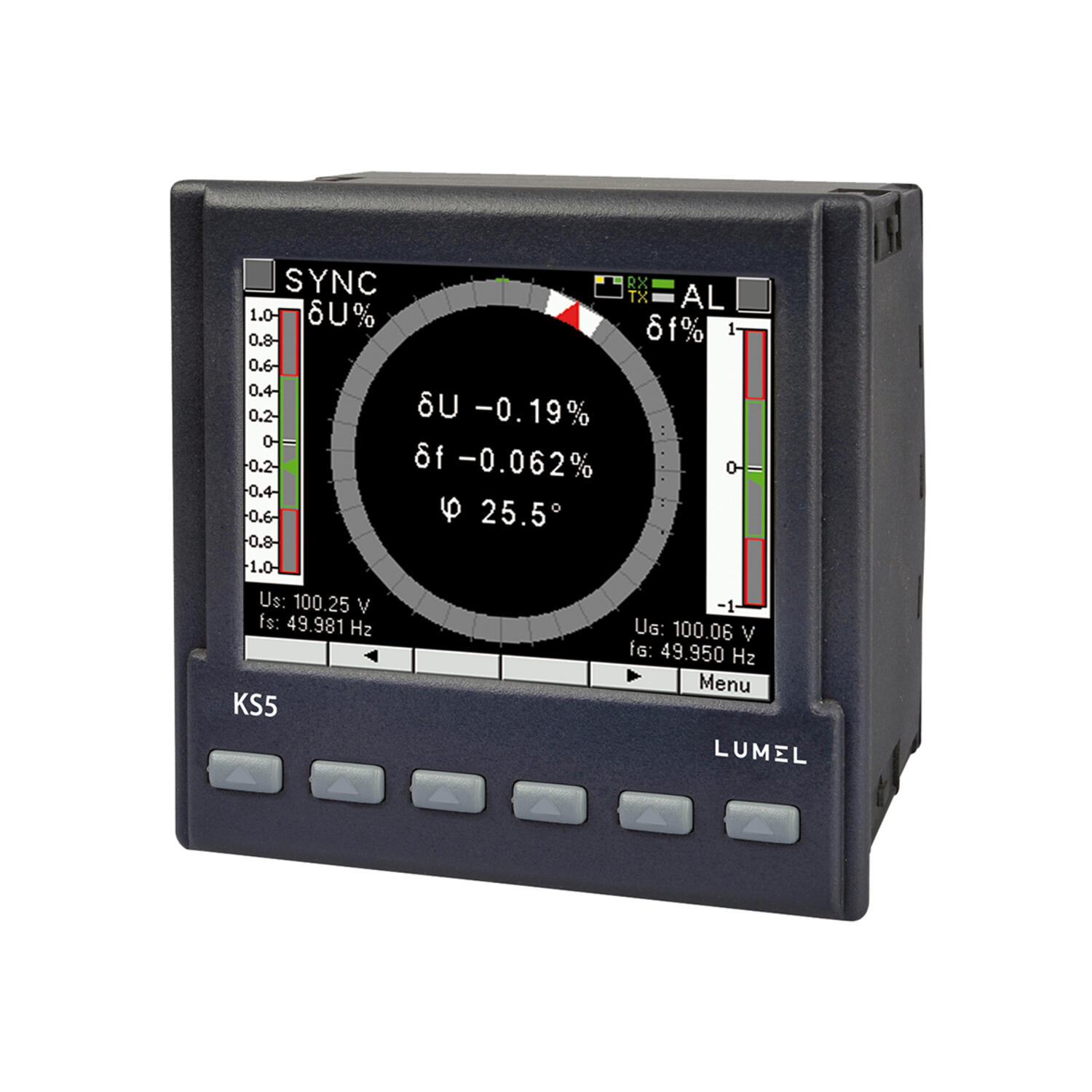

3-Phase Synchronisation Meter, KS5

Clear data visualization thanks to color graphic display 3.5’’ TFT (separately for the synchroscope,
differential voltmeter, frequency meter);
Range of input signals: 50...150 V or 150...400 V;
Direct or indirect measurement through voltage transformers;
Additional control inputs: BLK - lock synchronization, START - start synchronization
Programmable hysteresis of voltage difference, frequency, and phase shift angle
Ethernet interface 10/100 BASE-T for connecting the synchronization meter to the local area network (LAN) or the global one (WAN);
Network services: web server, Modbus TCP / IP, DHCP server;
RS-485 interface with Modbus RTU protocol;
Password protection for two accounts of Web Server user,
Measurement of the minimum and maximum values of voltage and frequency
External dimensions: 96 x 96 x 77mm.

Automatic switching of 3-phase generators
50>150V or 150>400V input signals
TCP/IP, DHCP client and RS485 MODBUS

Selected variant

3-PH SYNC UNIT, 50-150V, RS485 + ETH

Art:

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Downloads

Lumel eCon Programming Software V0.3.3

Product description

Clear data visualization thanks to color graphic display 3.5’’ TFT (separately for the synchroscope,
differential voltmeter, frequency meter);
Range of input signals: 50...150 V or 150...400 V;
Direct or indirect measurement through voltage transformers;
Additional control inputs: BLK - lock synchronization, START - start synchronization
Programmable hysteresis of voltage difference, frequency, and phase shift angle
Ethernet interface 10/100 BASE-T for connecting the synchronization meter to the local area network (LAN) or the global one (WAN);
Network services: web server, Modbus TCP / IP, DHCP server;
RS-485 interface with Modbus RTU protocol;
Password protection for two accounts of Web Server user,
Measurement of the minimum and maximum values of voltage and frequency
External dimensions: 96 x 96 x 77mm.
