ENSTO
Cubo C (Medium & Large Enclosures.)

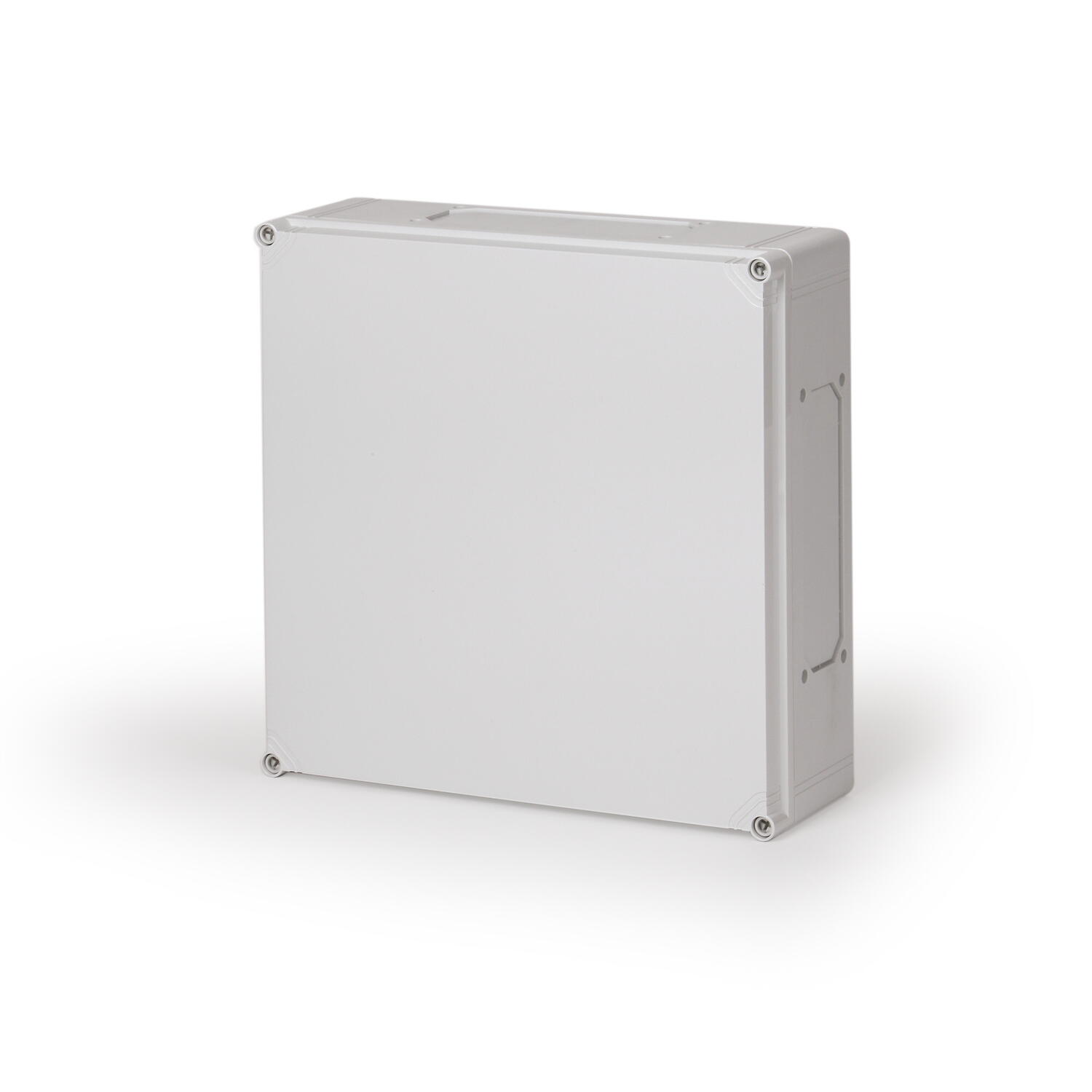

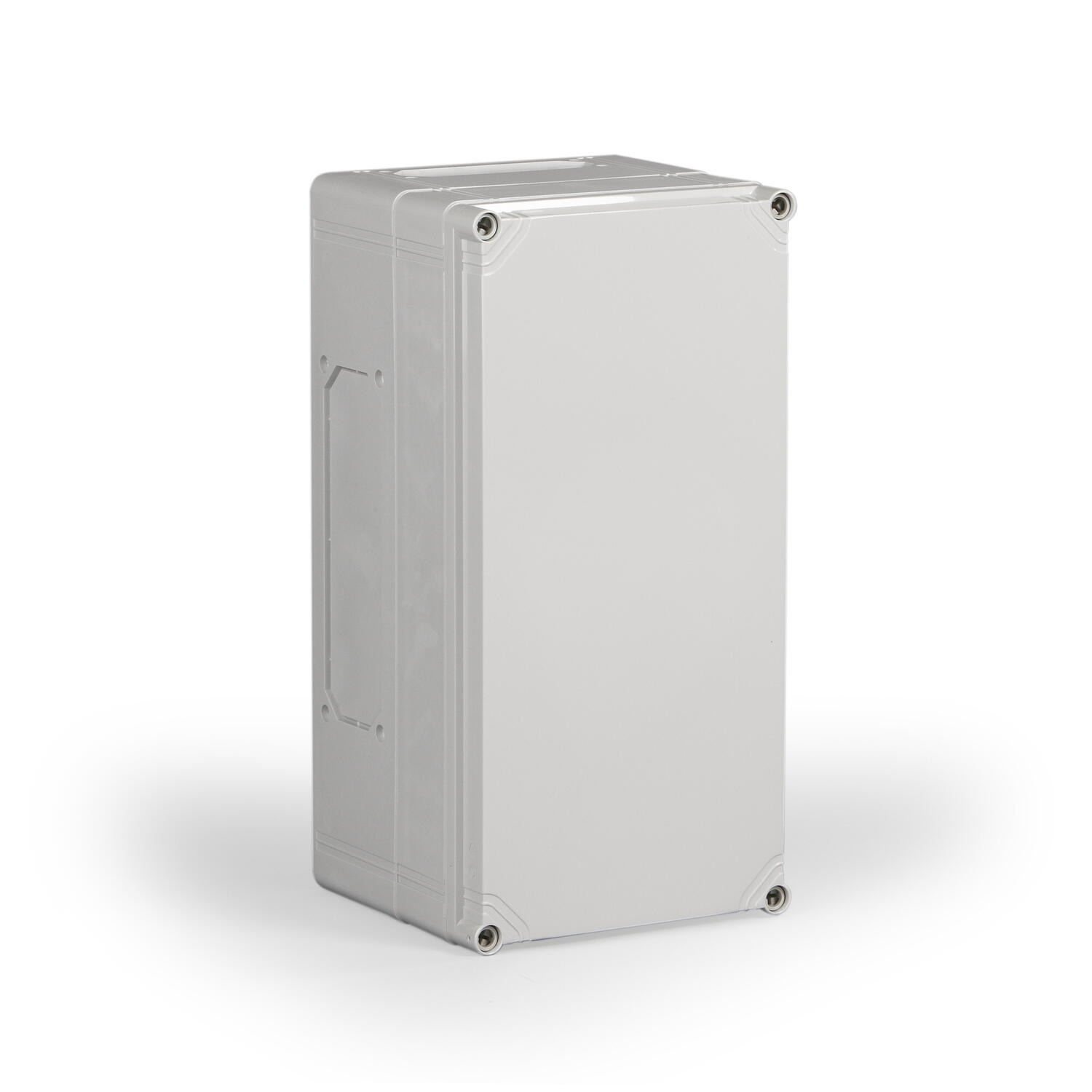

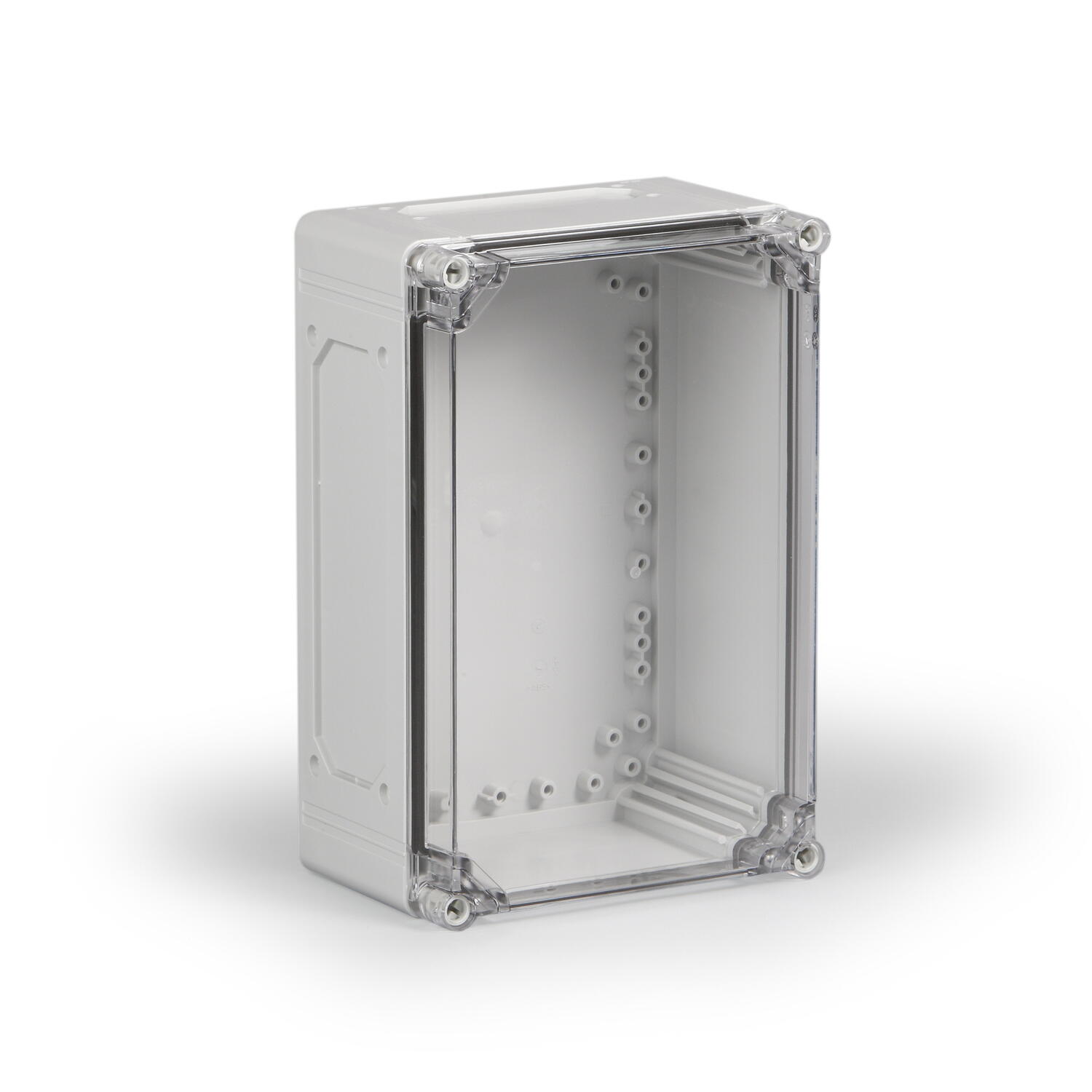

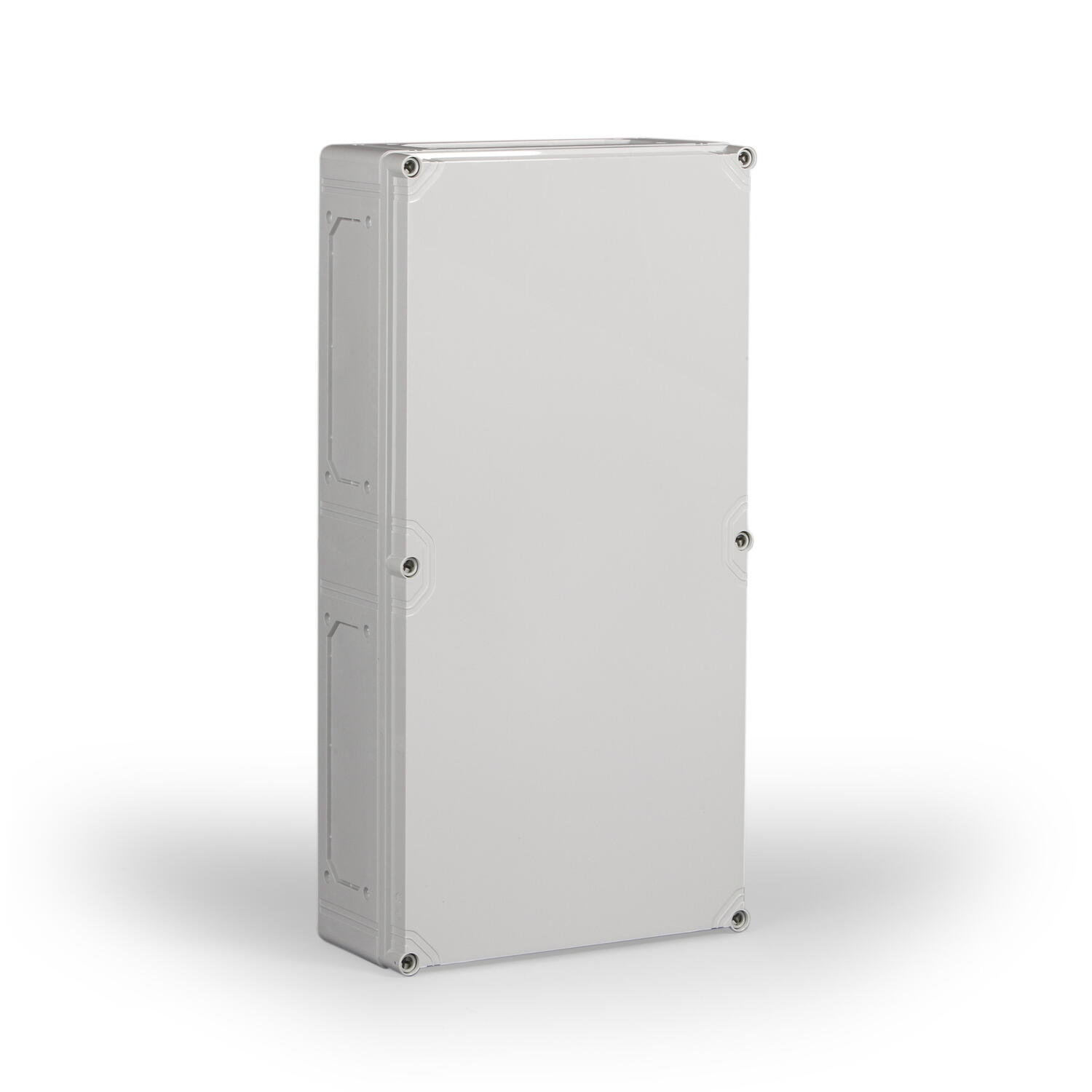

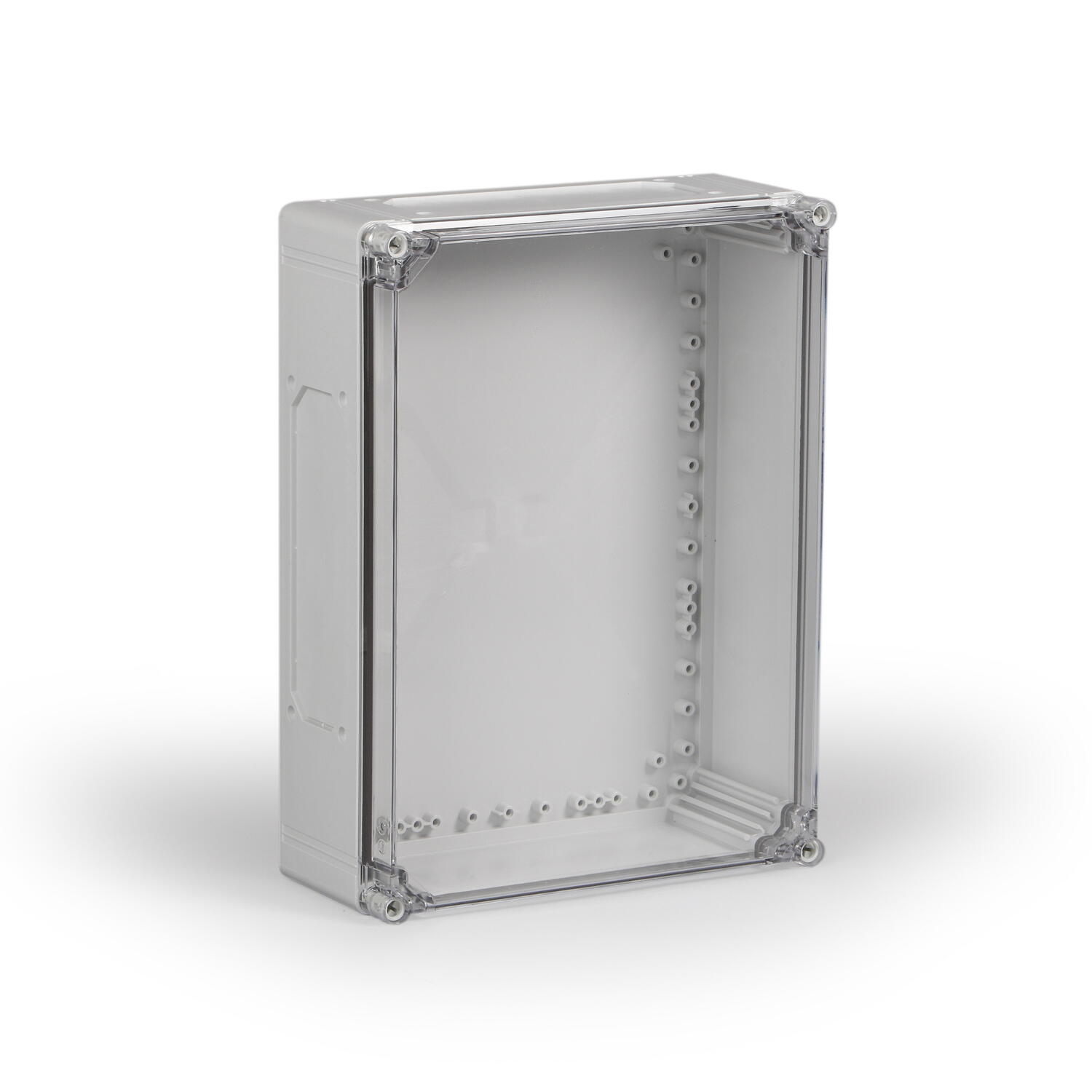

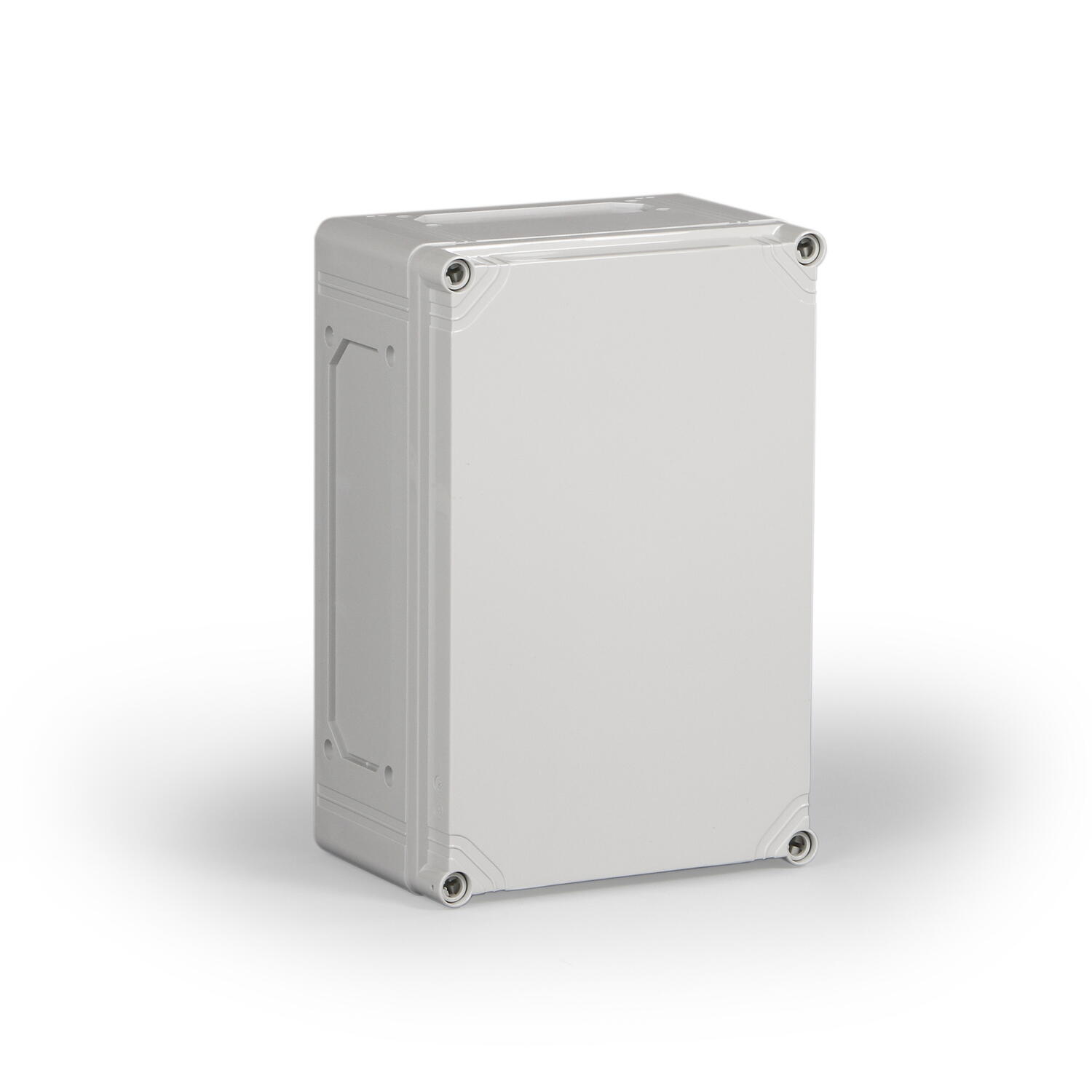

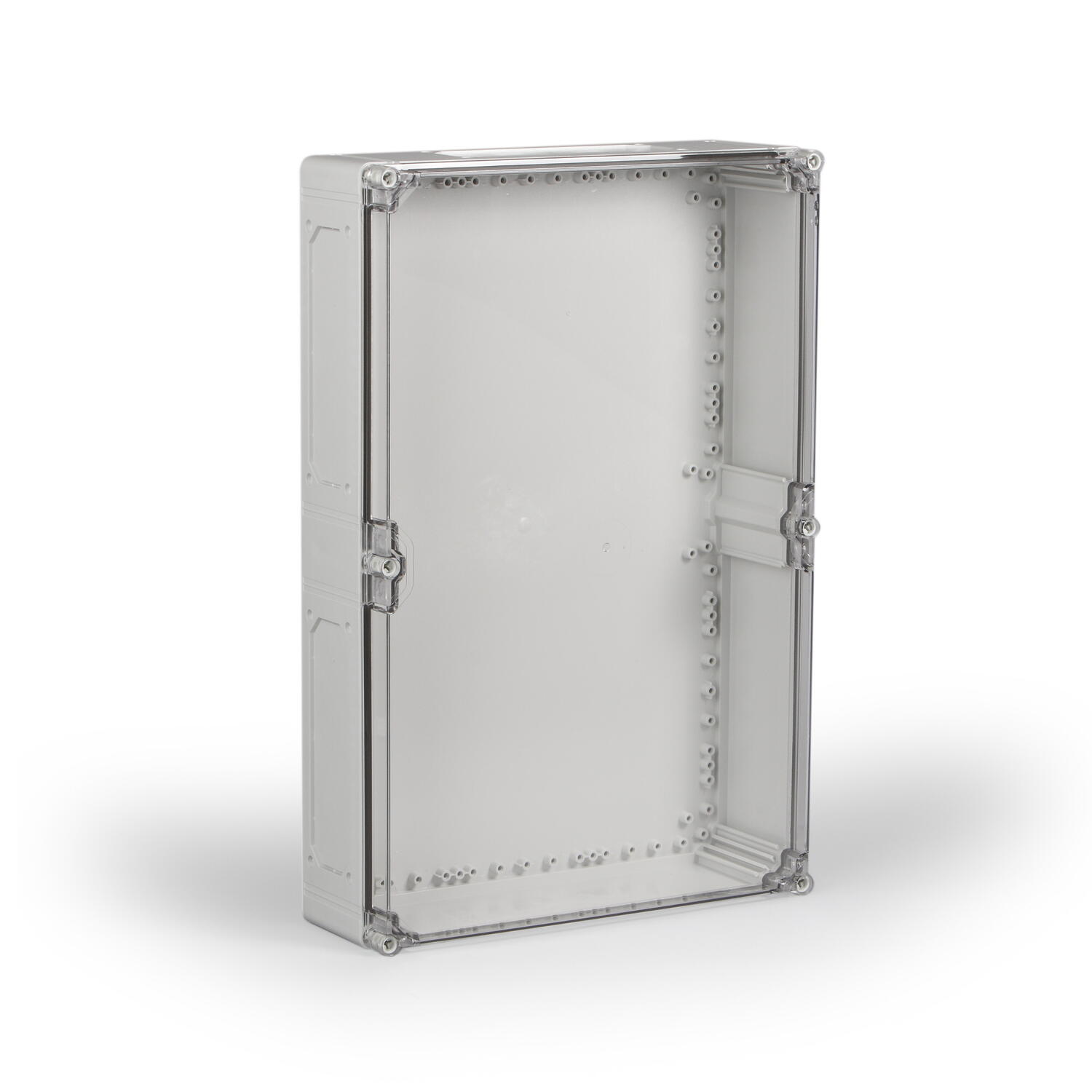

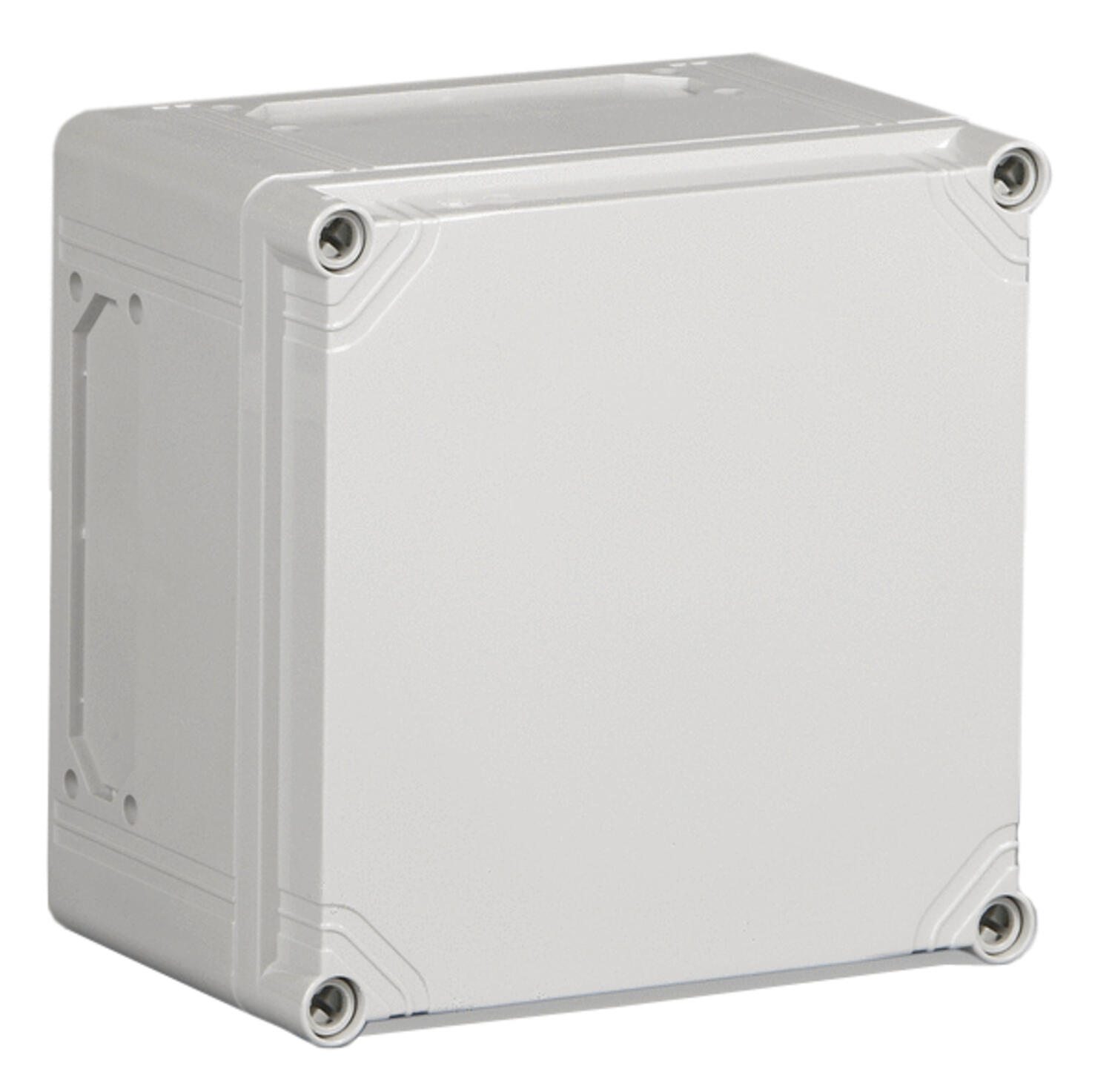

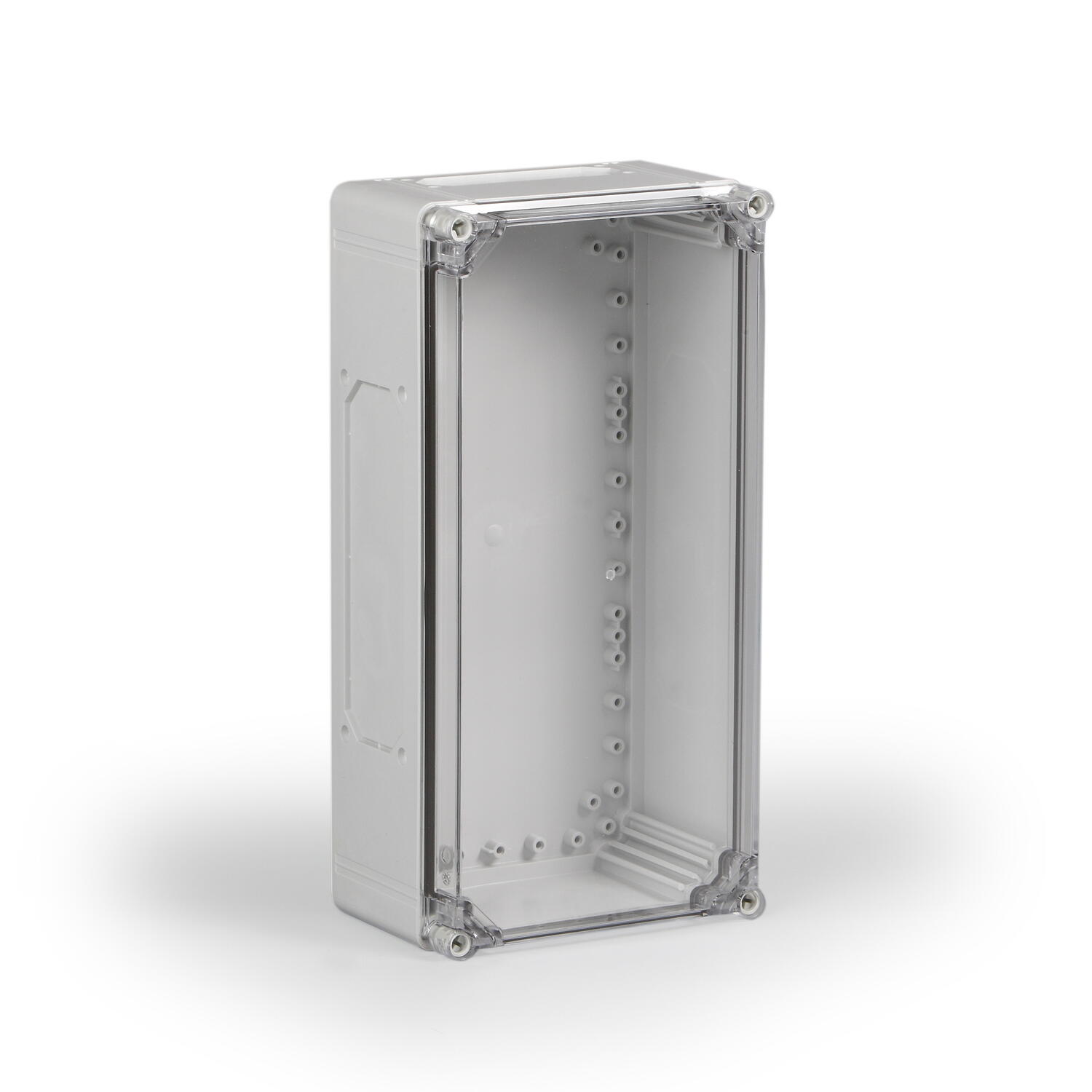

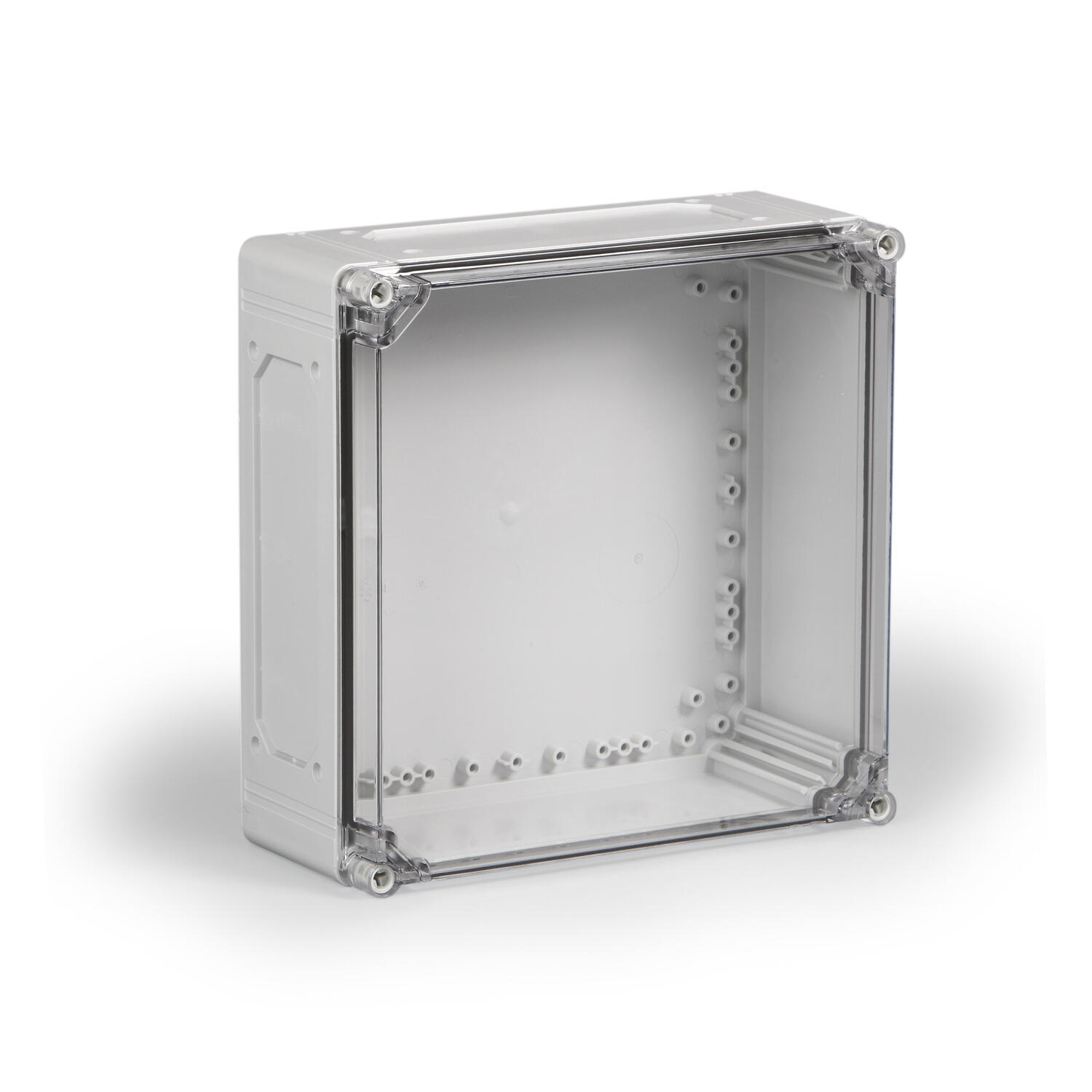

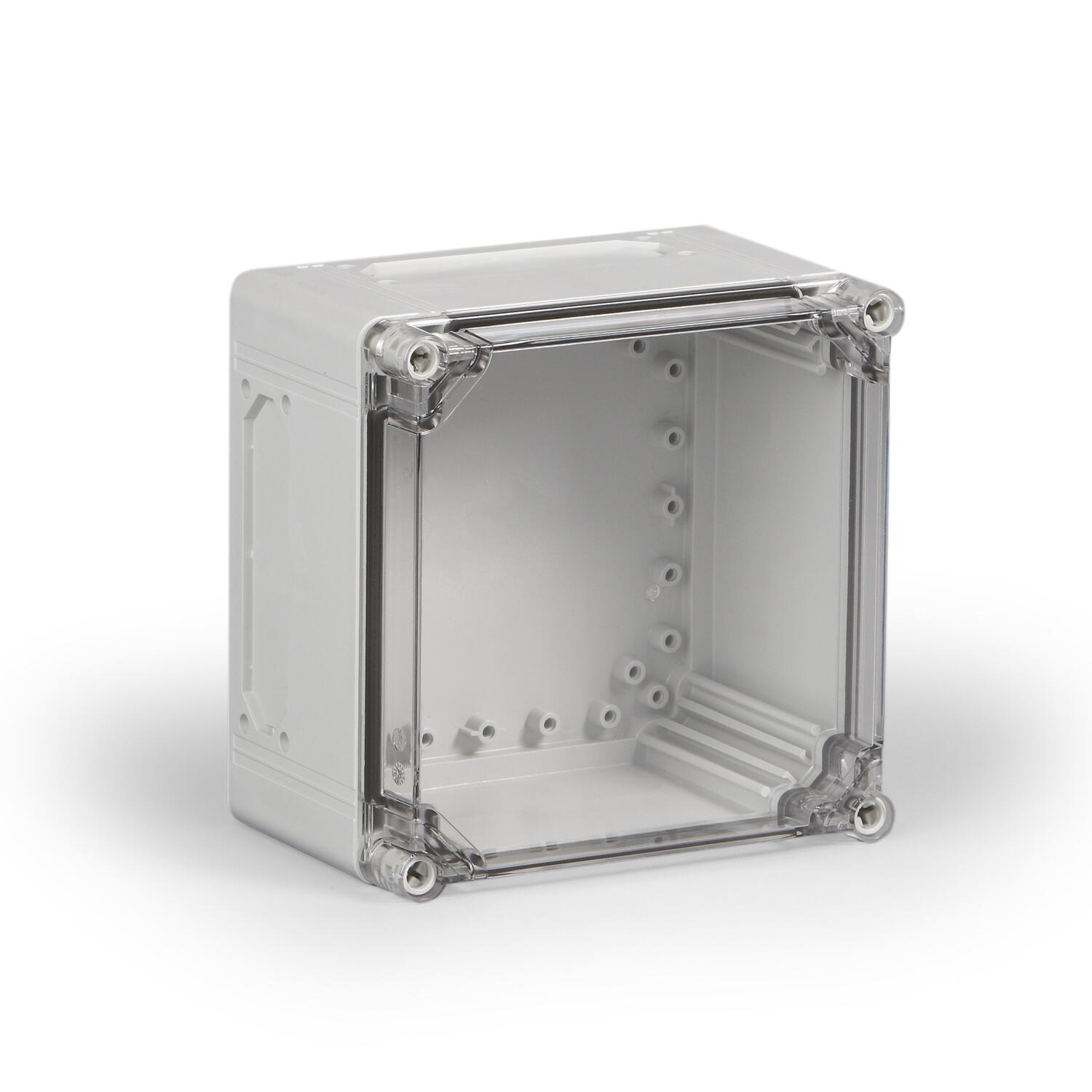

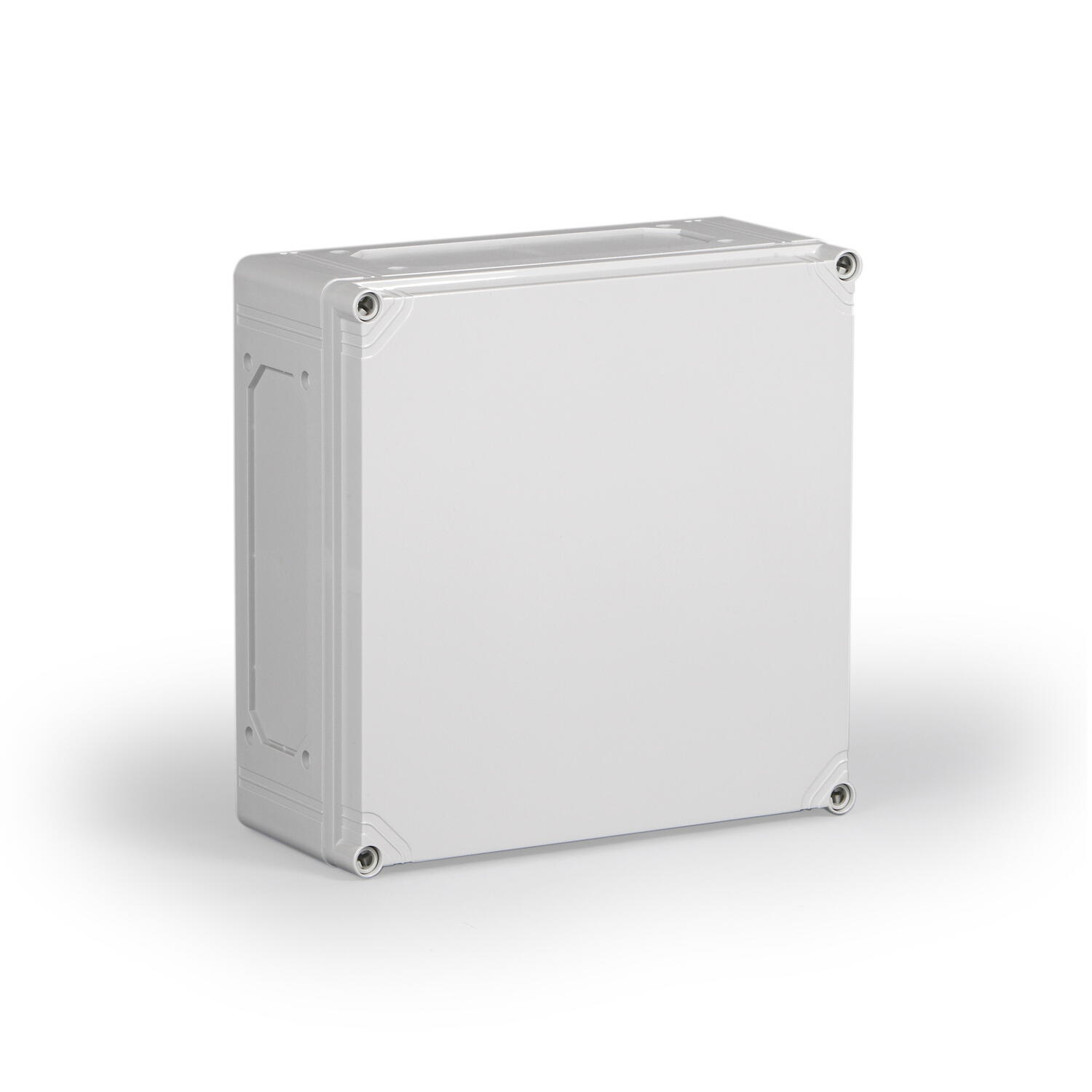

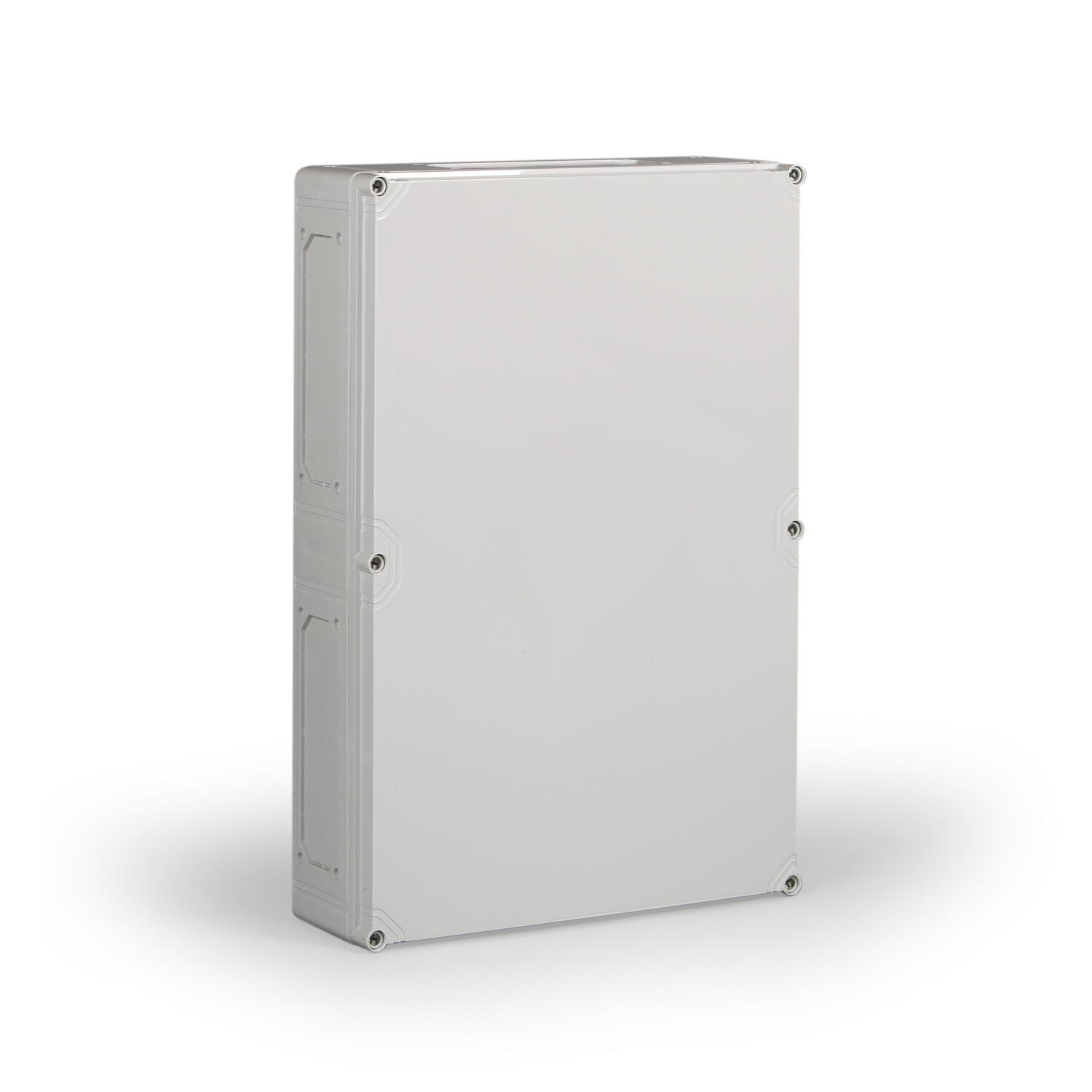

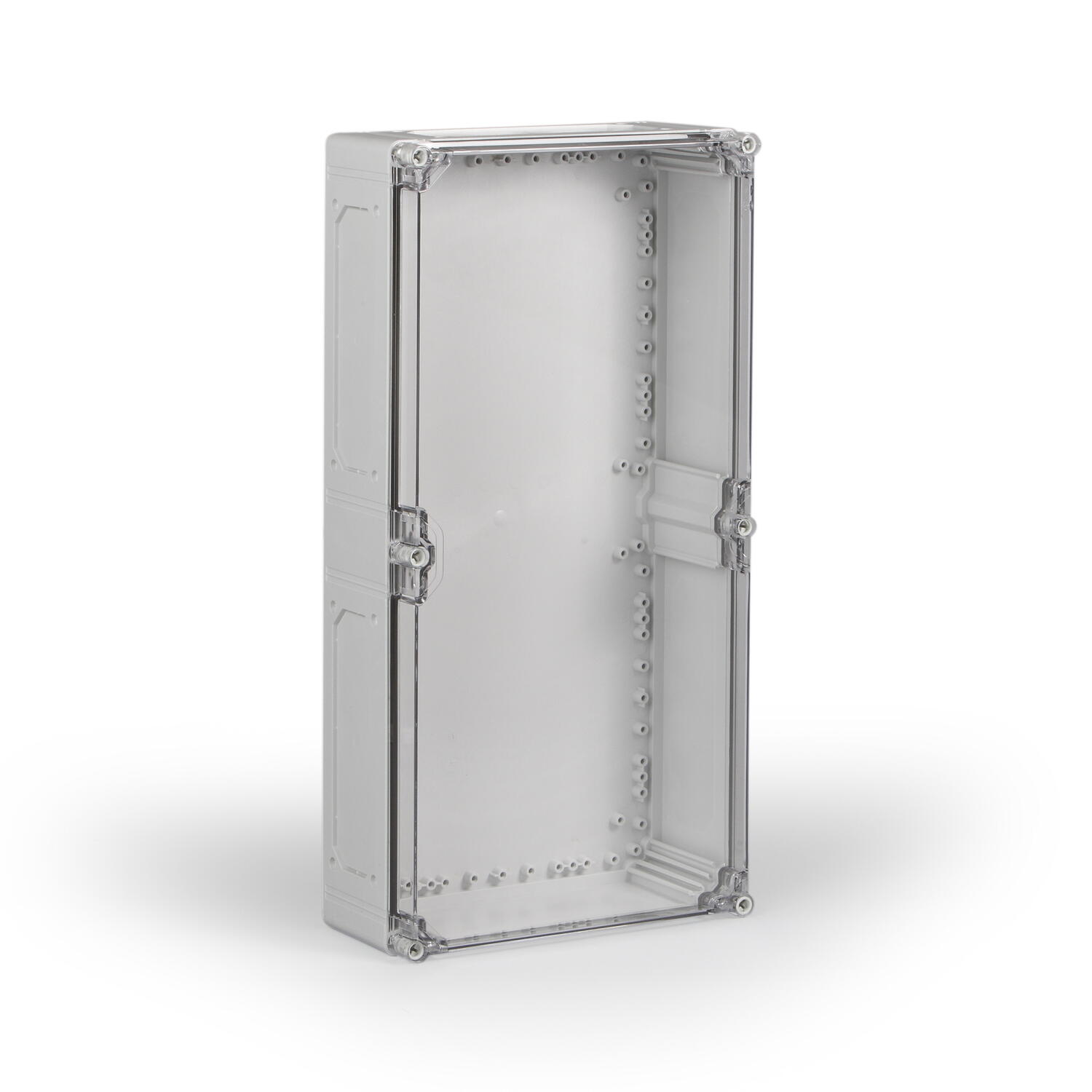

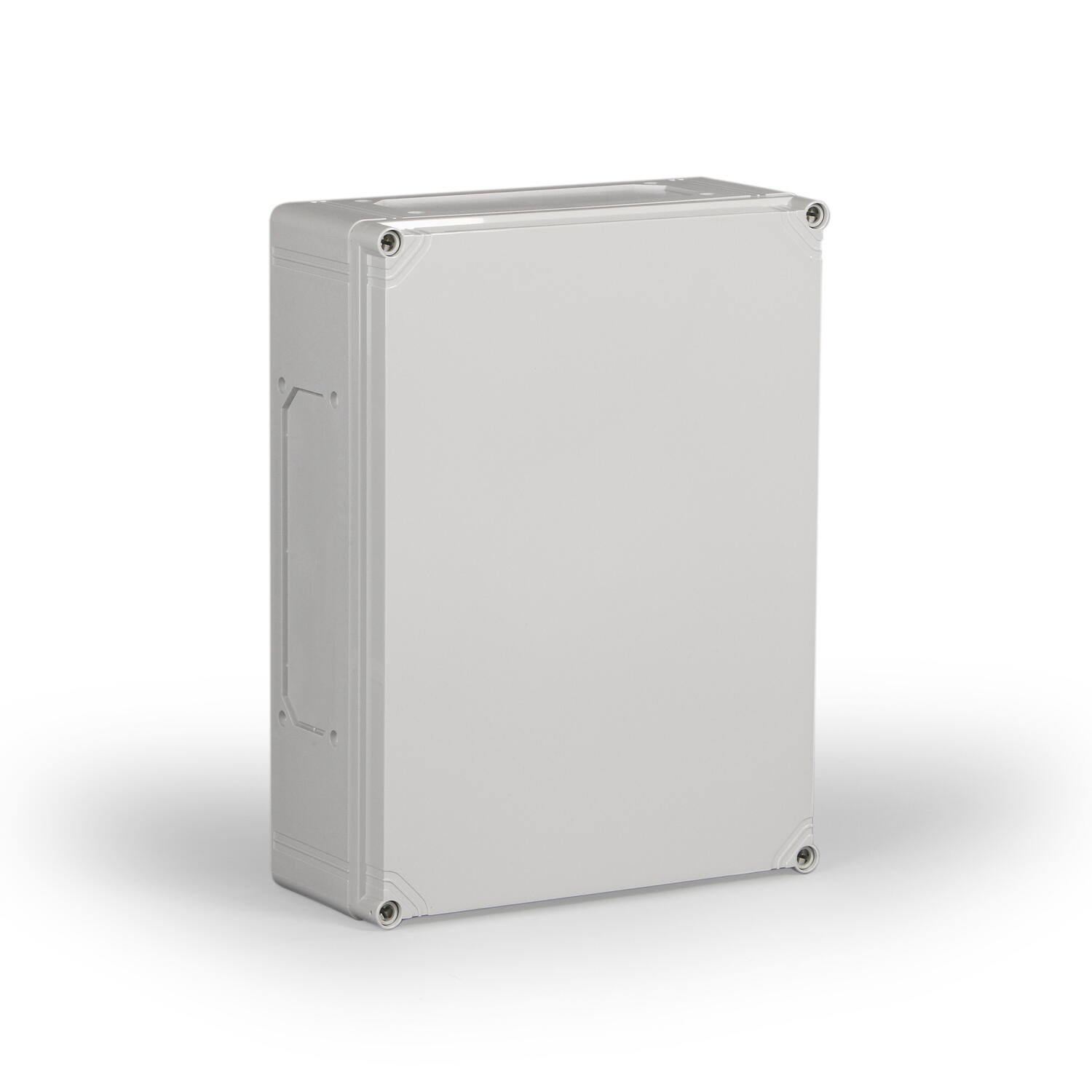

Ensto Cubo C universal coverings are made of polycarbonate. Bottoms have knock-outs for FL13 / FL21 flanges on all sides. Standard color is gray RAL 7035, gray or transparent lid.
Â
All dimensions follow 100mm modules the smallest 200x200 and the largest 400x600mm; depth 130 or 185 mm. For all sizes, there is a 55 mm deep extension frame for alternative depths.
Â
Stackless adjustable mounting brackets (corner lifts) in the drawer latch make it possible to attach mounting plates and panels to the desired height.
Â
The lower parts can be easily assembled into larger units, see also Ensto Cubo P Central Building System.
- polycarbonate
- IP 66/67
- Knock outs for FL 13 / FL21 flange
- Raise frame, 55 mm

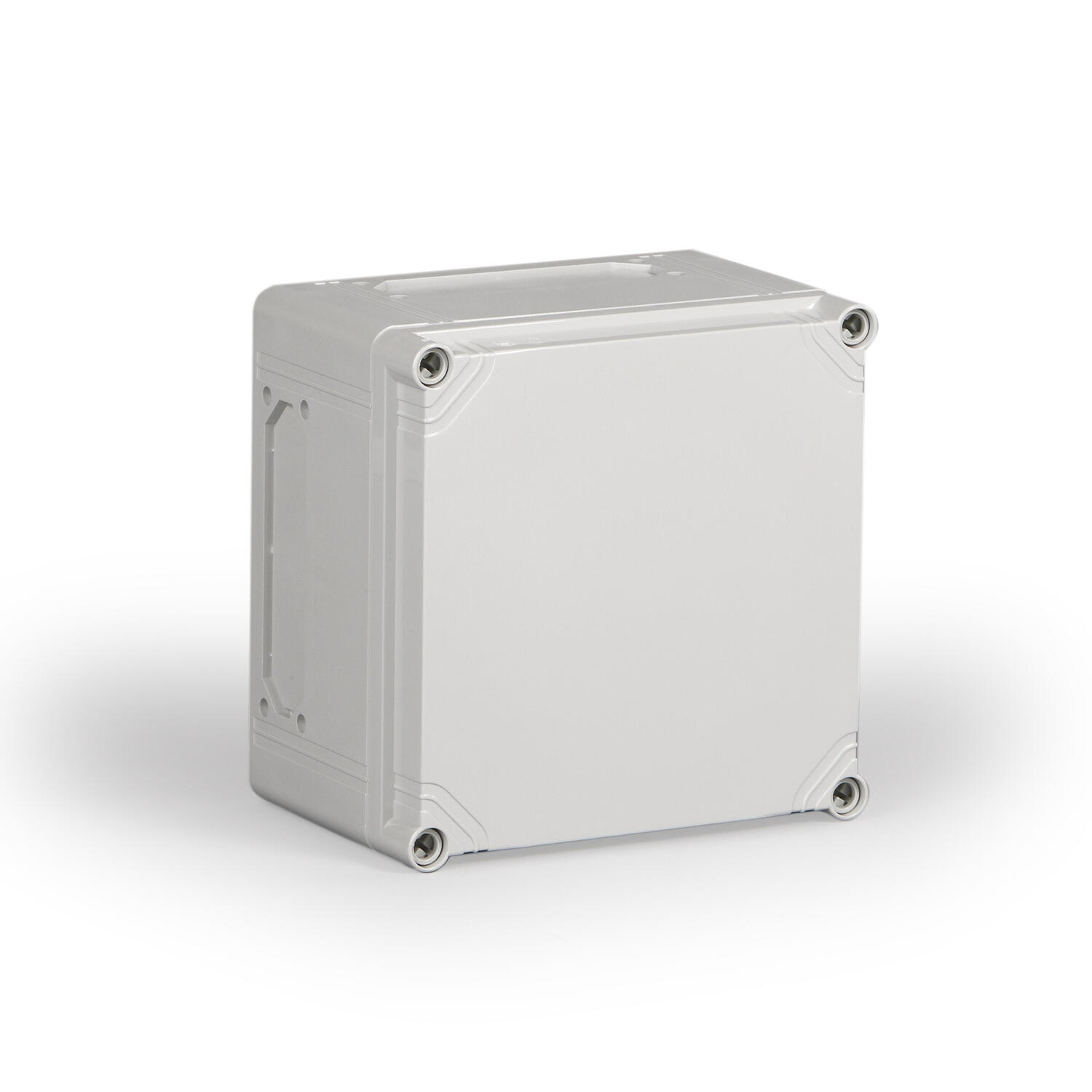

Selected variant
Technical data
Data |
|
|---|---|
| Width | 200 mm |
| Depth | 132 mm |
| Height | 200 mm |
| Colour | Grey RAL 7035 |
| Material | Polycarbonate |
| Lid | Grey |
*Invisible Heading* |
|
|---|---|
| IP class | IP66, IP67 |
| Operating temperature from | -40 °C |
| Operating temperature to | 80 °C |
| Temperature range, short term min | -40 °C |
| Temperature range, short term max | 120 °C |
Downloads
Product description
Ensto Cubo C universal coverings are made of polycarbonate. Bottoms have knock-outs for FL13 / FL21 flanges on all sides. Standard color is gray RAL 7035, gray or transparent lid.
Â
All dimensions follow 100mm modules the smallest 200x200 and the largest 400x600mm; depth 130 or 185 mm. For all sizes, there is a 55 mm deep extension frame for alternative depths.
Â
Stackless adjustable mounting brackets (corner lifts) in the drawer latch make it possible to attach mounting plates and panels to the desired height.
Â
The lower parts can be easily assembled into larger units, see also Ensto Cubo P Central Building System.
