ENSTO
Fire protection junction boxes – Steel
Technical equipment with functional maintenance is critical at all locations where large numbers of people tend to gather such as airports, hospitals, government agencies and industrial plants. The Ensto Vulcano high-quality fire protection junction boxes are designed to be used in cable systems with system circuit integrity.
Technical equipment with function maintenance is required for e.g. the following buildings and systems:
- Hospitals
- Commercial buildings
- Underground railway systems
- Chemicals industry
- Hotels and restaurants
- Airports

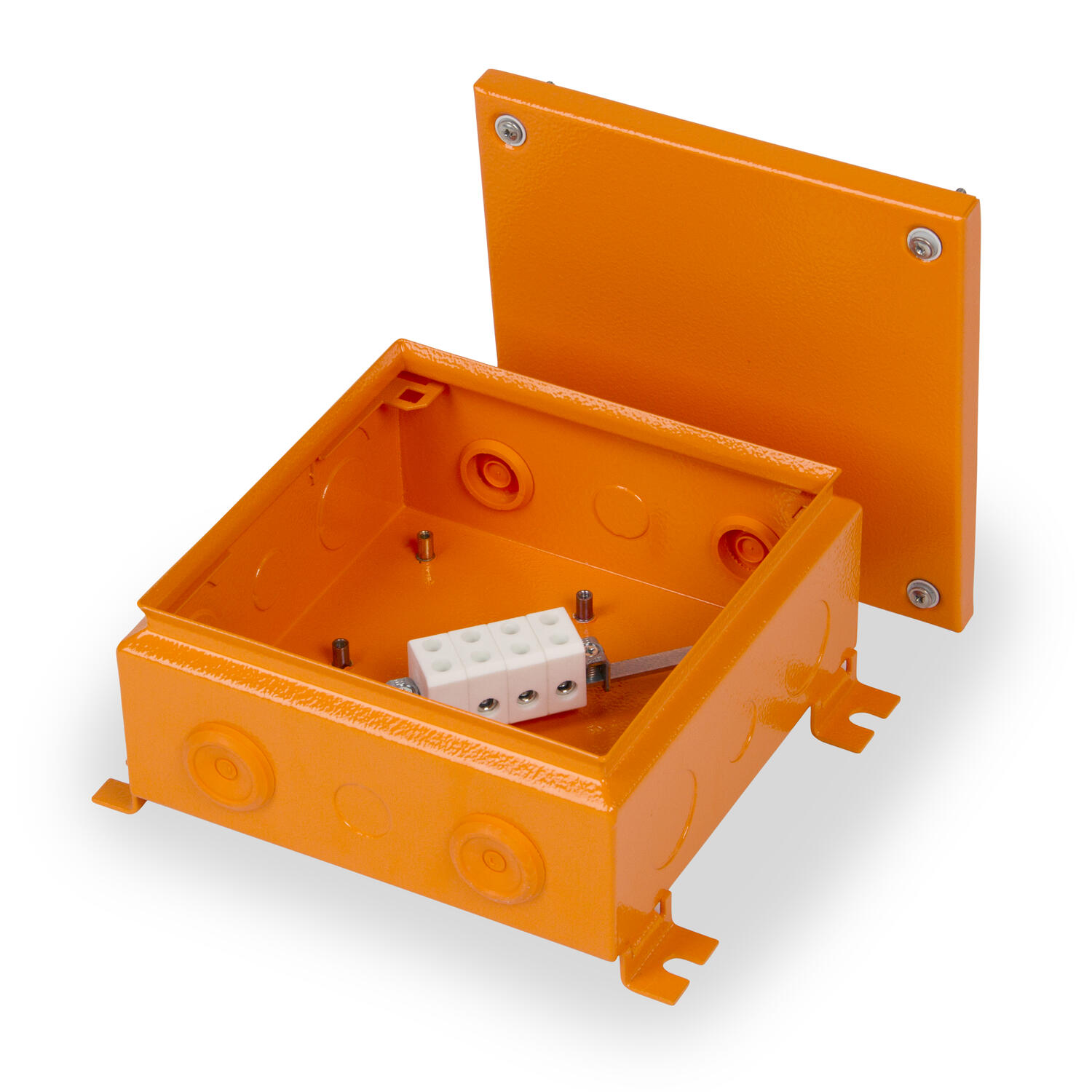

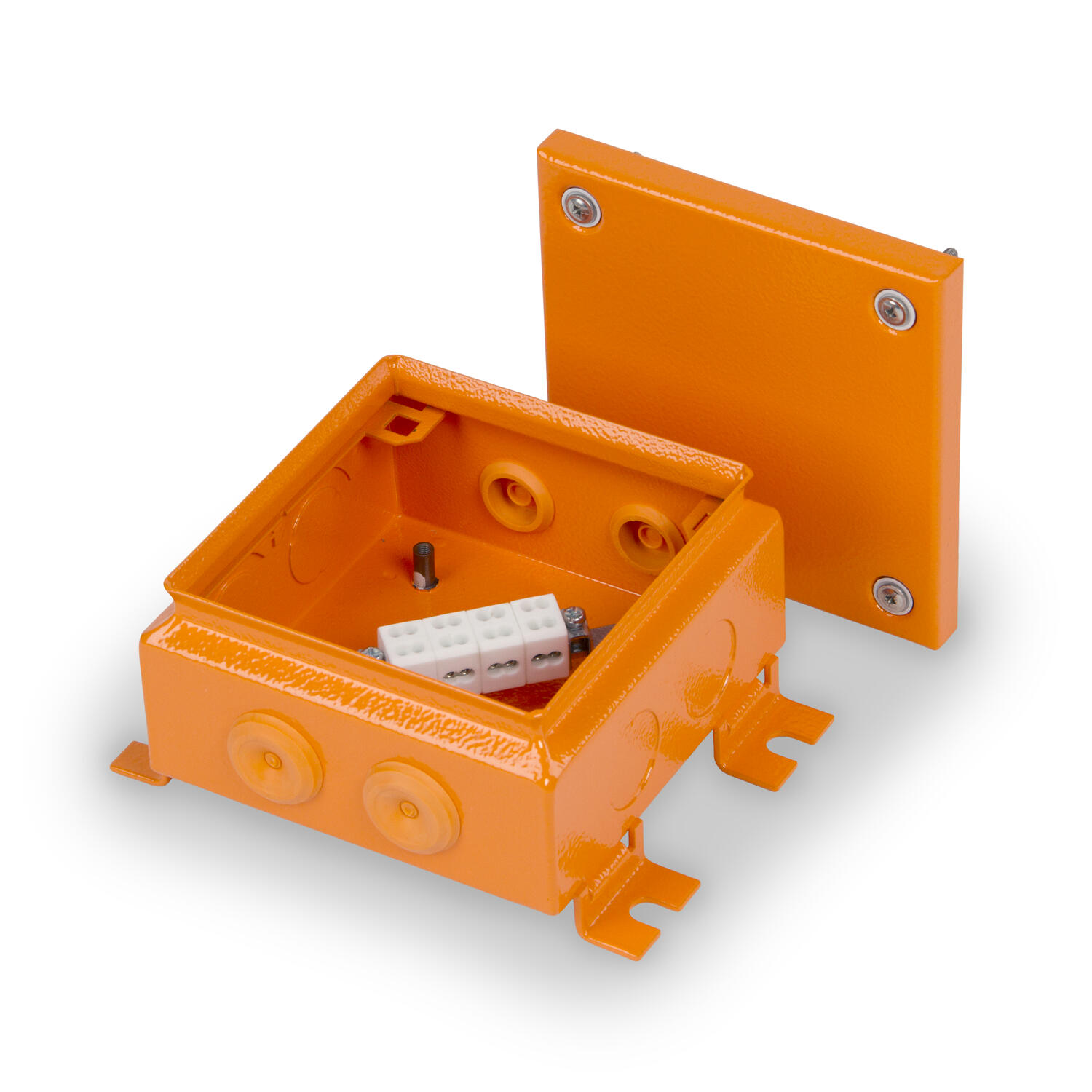

Ensto Vulcano steel fire protection junction boxes are manufactured from polyester painted mild steel. They meet the degree of protection of IP65 and impact resistance of IK09. The boxes are equipped with ceramic terminals.
Steel junction boxes in brief
- Available in three sizes
- Factory-mounted cable entries and fastening lugs
- Screw anchors for wall/ceiling installation included
- Terminal rail easy to mount/dismount
- Available with single terminal blocks or tapping terminals
Contents of product package
- Enclosure base
- Cover
- Cover screws with gaskets and cage nuts
- Screw anchors for wall/ceiling mounting
- Terminal rail
- Terminal rail mounting screws
- Ceramic terminals
- PE terminal(s)
- Rubber grommets
- Accessories for earthing the cover
- Polyester painted mild steel
- Available in three sizes
- Factory mounted cable entries and fastening lugs
Selected variant
Technical data
| Colour | Orange RAL 2003 |
|---|---|
| Cross section | 1,5-6 mm² |
| Depth | 80 mm |
| Height | 150 mm |
| Impact resistance | IK09 |
| IP class | IP65 |
| Isolation voltage | 750 V |
| Material | Steel |
|---|---|
| Number of poles | 4 |
| Rated current | 41 A |
| Temperature operational max | 40 °C |
| Temperature operational min | -25 °C |
| Width | 150 mm |
Downloads
Product description
Technical equipment with functional maintenance is critical at all locations where large numbers of people tend to gather such as airports, hospitals, government agencies and industrial plants. The Ensto Vulcano high-quality fire protection junction boxes are designed to be used in cable systems with system circuit integrity.
Technical equipment with function maintenance is required for e.g. the following buildings and systems:
- Hospitals
- Commercial buildings
- Underground railway systems
- Chemicals industry
- Hotels and restaurants
- Airports
Ensto Vulcano steel fire protection junction boxes are manufactured from polyester painted mild steel. They meet the degree of protection of IP65 and impact resistance of IK09. The boxes are equipped with ceramic terminals.
Steel junction boxes in brief
- Available in three sizes
- Factory-mounted cable entries and fastening lugs
- Screw anchors for wall/ceiling installation included
- Terminal rail easy to mount/dismount
- Available with single terminal blocks or tapping terminals
Contents of product package
- Enclosure base
- Cover
- Cover screws with gaskets and cage nuts
- Screw anchors for wall/ceiling mounting
- Terminal rail
- Terminal rail mounting screws
- Ceramic terminals
- PE terminal(s)
- Rubber grommets
- Accessories for earthing the cover
