STEGO

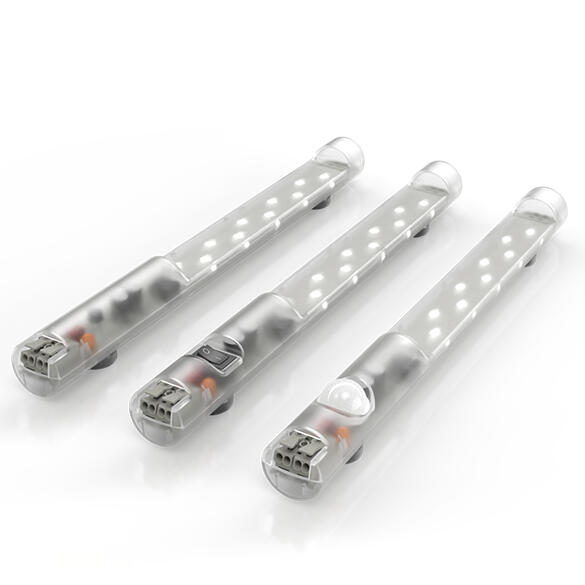

Enclosure Lighting LED 0255 MV Range
LED lights with Multi Wide Voltage are ideal for flexible use in enclosures and casings of different sizes. The Multi Wide Voltage supports both AC and DC voltages, ensuring maximum flexibility in the application. Fewer versions mean optimised processes in procurement and materials management. The mounting kit supplied also enables simple and versatile installation.
- Multi-wide-range voltage (AC, DC
- Durable and maintenance-free thanks to LED technology
- Daisy chain (up to 10 lights)
- On/off switch or motion detector
- Mounting kit for magnet, screw and clip fixing
Selected variant
Technical data
General Data |
|
|---|---|
| Mounting | Mounting brackets, Magnet |
| Nominal voltage | 24-240 V AC/DC |
| Activation | Switch |
| Light source | LED |
Dimensions |
|
| Length | 351 mm |
| Width | 40 mm |
| Height | 42 mm |
Electrical specification |
|
| Power consumption | 4.5 W |
Safety & approvals |
|
| Protection class | II (double insulated) |
| IP class | IP20 |
| Approvals pending | CCC, EAC, UL E234324, VDE |
Materials - Conditions |
|
|---|---|
| Material of body | Plastic |
| Colour | Transparent |
| Operational temperature | -40 °C...+60 °C |
| Storage temperature | -40 °C ...+85 °C |
| Operating humidity | < 90 % RH |
| Humidity storage | < 90 % RH |
| Voltage max | 265 V |
| Weight | 0.2 kg |
| Life span | 60.000 h (+20 °C) |
Product description
LED lights with Multi Wide Voltage are ideal for flexible use in enclosures and casings of different sizes. The Multi Wide Voltage supports both AC and DC voltages, ensuring maximum flexibility in the application. Fewer versions mean optimised processes in procurement and materials management. The mounting kit supplied also enables simple and versatile installation.
