Enclosure Lighting LED 025 Ecoline Ecoline 02542.1-11 | OEM Automatic Ltd

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Mounting	Screw fixing
Nominal voltage	24-48 V DC
Activation	No switch
Connection type	2-pole dual cage clamp
Light source	LED
Luminance	400Lm at 120°
Life span	60,000h at +20°C
Electrical lifetime	60 000h at +20 °C:ssa (+68 °F)
Dimensions
Length	351 mm
Width	52 mm
Height	34 mm
Electrical specification
Power consumption	5 W
Safety & approvals
Protection class	II (double insulated)

Invisible Heading
IP class	IP20
Approvals	CE, cULus, EAC, RoHS, UL, UL E234324, VDE
Materials - Conditions
Material of body	Plastic
Colour	Transparent
Operational temperature	-30°C ... +60°C
Storage temperature	-40°C ... +85°C
Operating humidity	< 90% RH
Humidity storage	<90% RH
Voltage min	20 V dc
Voltage max	60 V dc
Weight	0.2 kg

Downloads

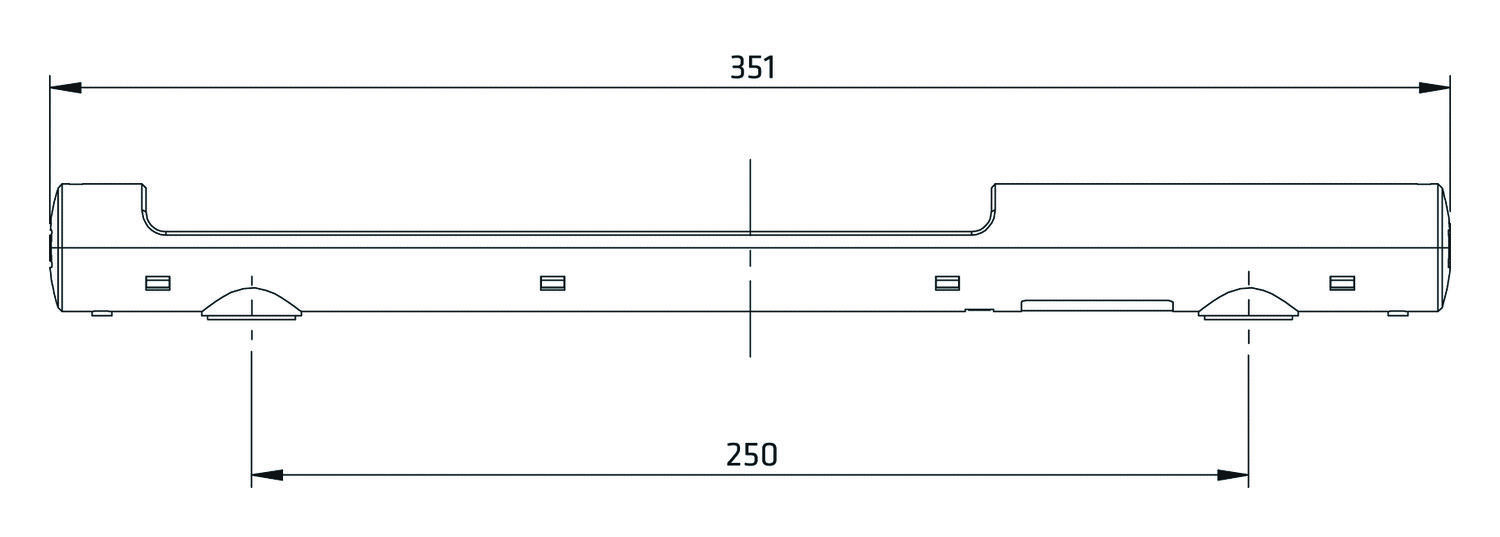

Measurements and connections

Product description

LED025 ECOLINE is a LED light from STEGO with quick connection through spring clamp.

LED025 ECOLINE can be used for all types of panel or cabinet installations, but is particularly good when space is limited due to its optimal size. The lighting has a very long life due to LED technology, which results in savings in service and maintenance.

LED025 ECOLINE is available in three different mounting options to suit different applications:

Magnetic assembly, which can be mounted very quickly and can be moved around the cabinet if necessary.

Screw mounting, for "traditional" mounting.

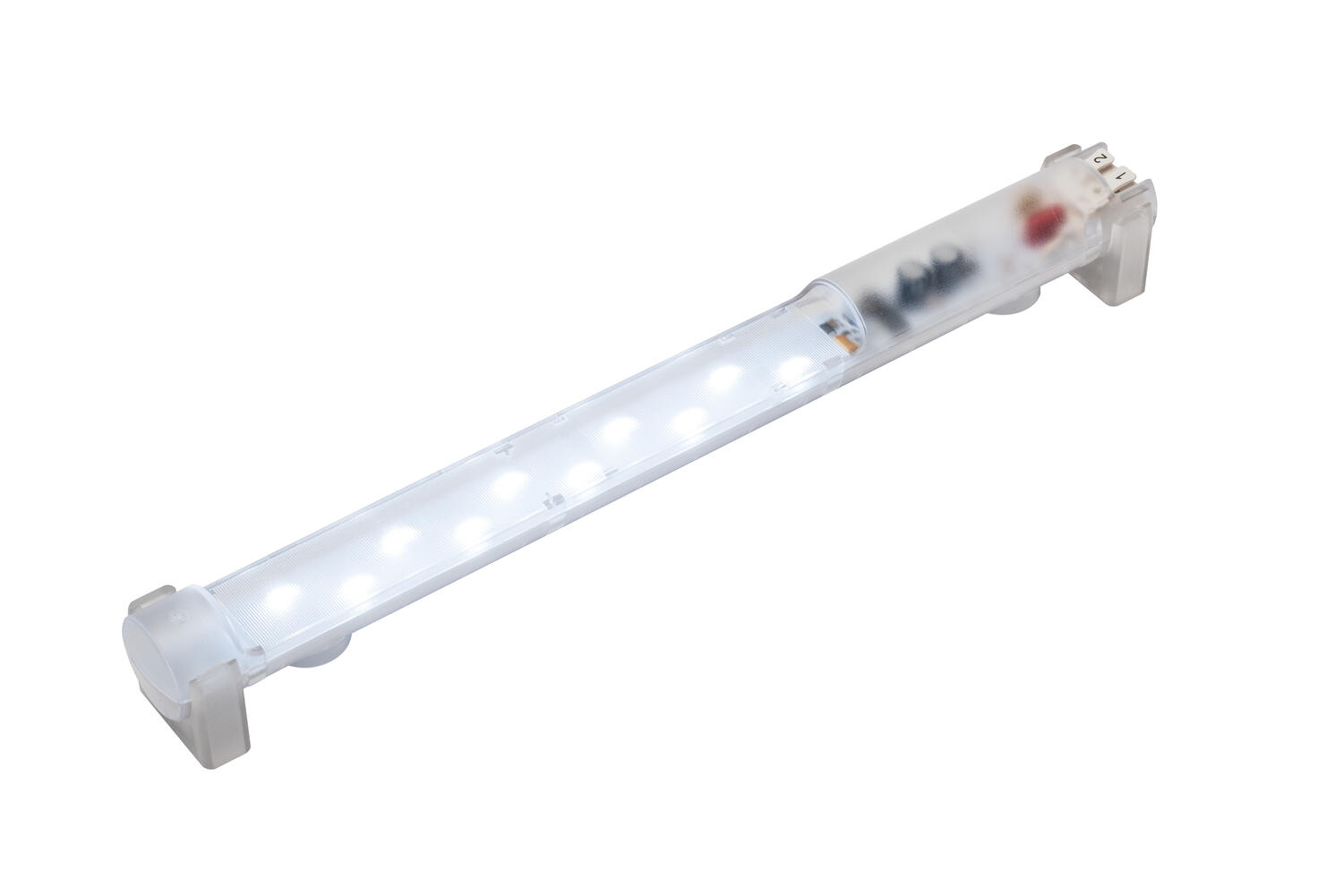

Clip assembly, which is a type of screw mounting, but where the lighting can be angled and also easily moved as needed.

LED025 ECOLINE has the same luminance as a 95W bulb, but consumes only 5 W.

LED025 ECOLINE is available with both 100-240 V AC and 90-110 V DC in one and the same unit, which makes it easy for both purchases and storage.

Accessories

Related

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Kubler slip rings encoders

Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

	Parts	Mounting	Nominal voltage	Activation	Width	Height	Approvals	Voltage min	Voltage max	Price
	LED 025 Eco, 24-48V dc, screw fixing Art: 02542.1-11 Copied	Screw fixing	24-48 V DC	No switch	52 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc
	LED 025 Eco, 24-48V dc, clip fixing Art: 02542.1-13 Copied	Clip on	24-48 V DC	No switch	40 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc
	LED 025 Eco, 24-48V dc, magnetic Art: 02542.1-10 Copied	Magnetic mount	24-48 V DC	No switch	32 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc
	LED 025 Eco, 24-48V dc, with on/off switch, screw fixing Art: 02540.1-11 Copied	Screw fixing	24-48 V DC	Switch	52 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc
	LED 025 Eco, 24-48V dc, with on/off switch, clip fixing Art: 02540.1-13 Copied	Clip on	24-48 V DC	Switch	40 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc

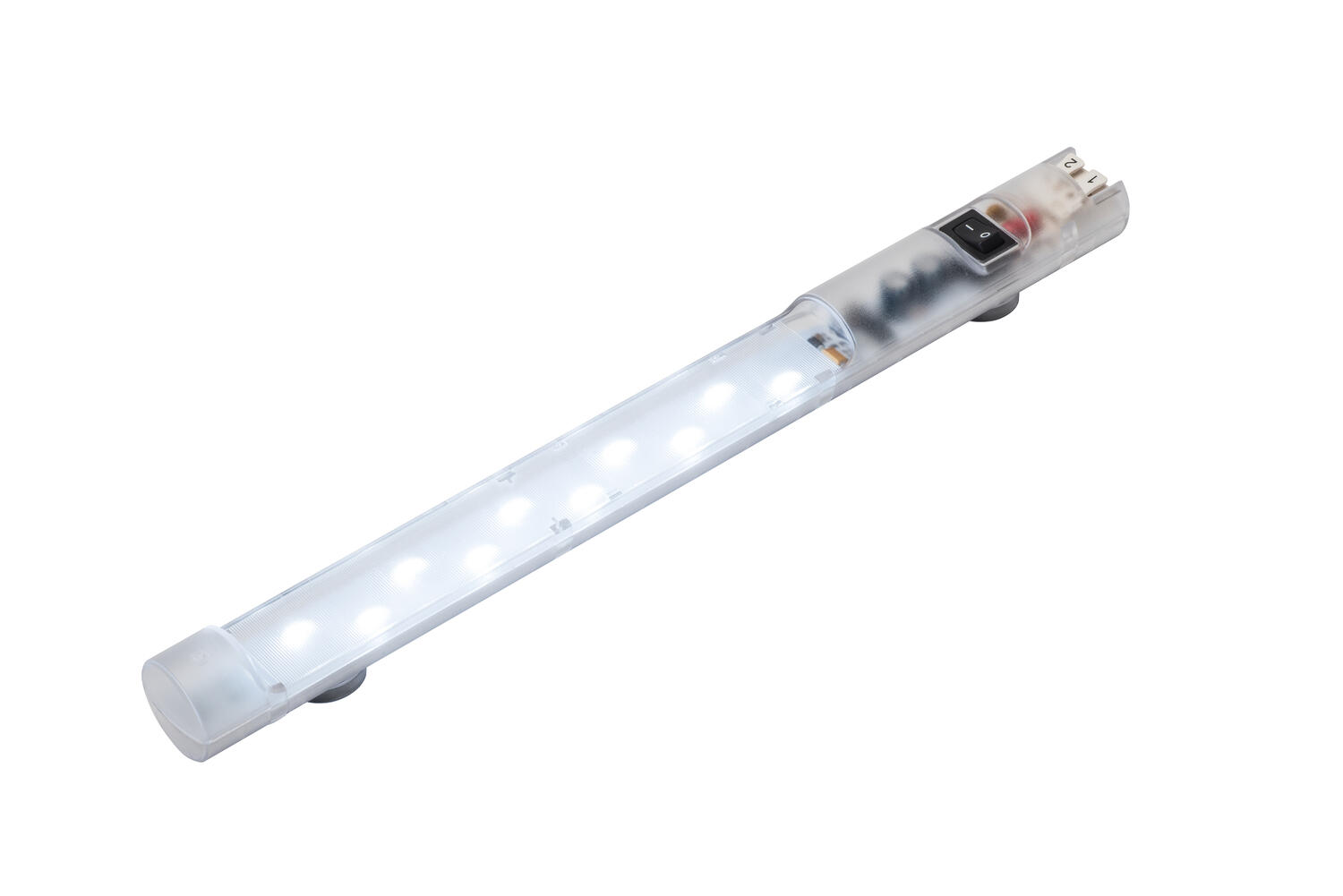

	LED 025 Eco, 24-48V dc, with on/off switch, magnetic Art: 02540.1-10 Copied	Magnetic mount	24-48 V DC	Switch	32 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc

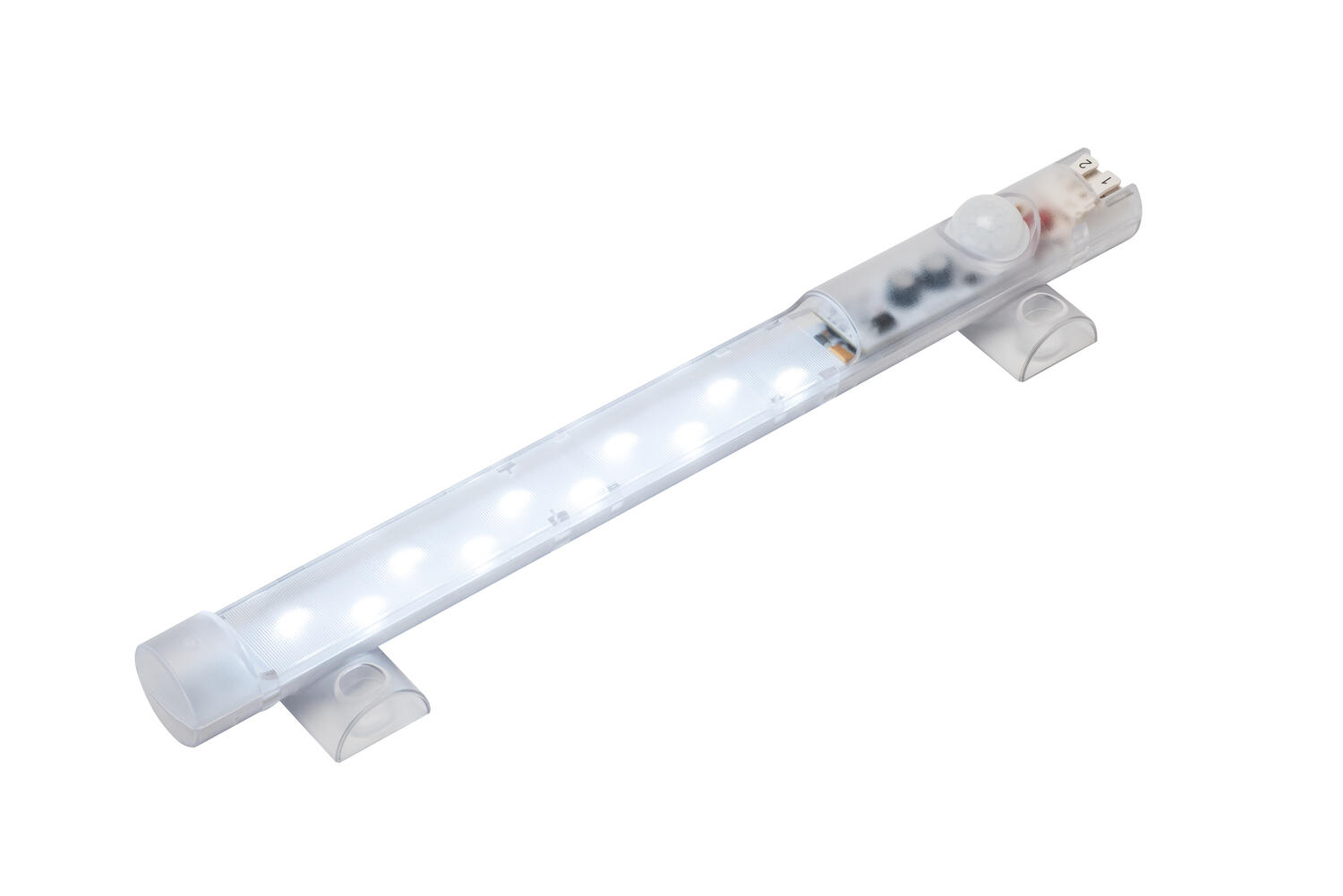

	LED 025 Eco, 24-48V dc, with PIR sensor, screw fixing Art: 02541.1-11 Copied	Screw fixing	24-48 V DC	IR sensor	52 mm	39 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc
	LED 025 Eco, 24-48V dc, with PIR sensor, clip fixing Art: 02541.1-13 Copied	Clip on	24-48 V DC	IR sensor	40 mm	39 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc
	LED 025 Eco, 100-240V ac, 110V dc, screw fixing Art: 02542.3-11 Copied	Screw fixing	100-240 V AC	No switch	52 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	90 V ac/80 V dc	265 V ac/125 V dc
	LED 025 Eco, 100-240V ac, 110V dc, clip fixing Art: 02542.3-13 Copied	Clip on	100-240 V AC	No switch	40 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	20 V dc	60 V dc
	LED 025 Eco, 100-240V ac, 110V dc, magnetic Art: 02542.3-10 Copied	Magnetic mount	100-240 V AC	No switch	32 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	90 V ac/80 V dc	265 V ac/125 V dc
	LED 025 Eco, 100-240V ac, 110V dc, on/off, screw fixing Art: 02540.3-11 Copied	Screw fixing	100-240 V AC	Switch	52 mm	36 mm	CE, cRUus, EAC, RoHS, UL, UL E234324, VDE	90 V ac/80 V dc	265 V ac/125 V dc
	LED 025 Eco, 100-240V ac, 110V dc, on/off, clip fixing Art: 02540.3-13 Copied	Clip on	100-240 V AC	Switch	40 mm	36 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	90 V ac/ 80 V dc	265 V ac/125 V dc
	LED 025 Eco, 100-240V ac, 110V dc, on/off, magnetic Art: 02540.3-10 Copied	Magnetic mount	100-240 V AC	Switch	32 mm	34 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	90 V ac/80 V dc	265 V ac/125 V dc
	LED 025 Eco, 100-240V ac, 110V dc, PIR sensor, screw fixing Art: 02541.3-11 Copied	Screw fixing	100-240 V AC	IR sensor	52 mm	39 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	90 V ac/80 V dc	265 V ac/125 V dc
	LED 025 Eco, 100-240V ac, 110V dc, PIR sensor, clip fixing Art: 02541.3-13 Copied	Clip on	100-240 V AC	IR sensor	40 mm	39 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	90 V ac/80 V dc	265 V ac/125 V dc
	LED 025 Eco, 100-240V ac, 110V dc, PIR sensor, magnetic Art: 02541.3-10 Copied	Magnetic mount	100-240 V AC	IR sensor	32 mm	39 mm	CE, cULus, EAC, RoHS, UL, UL E234324, VDE	90 V ac/80 V dc	265 V ac/125 V dc
