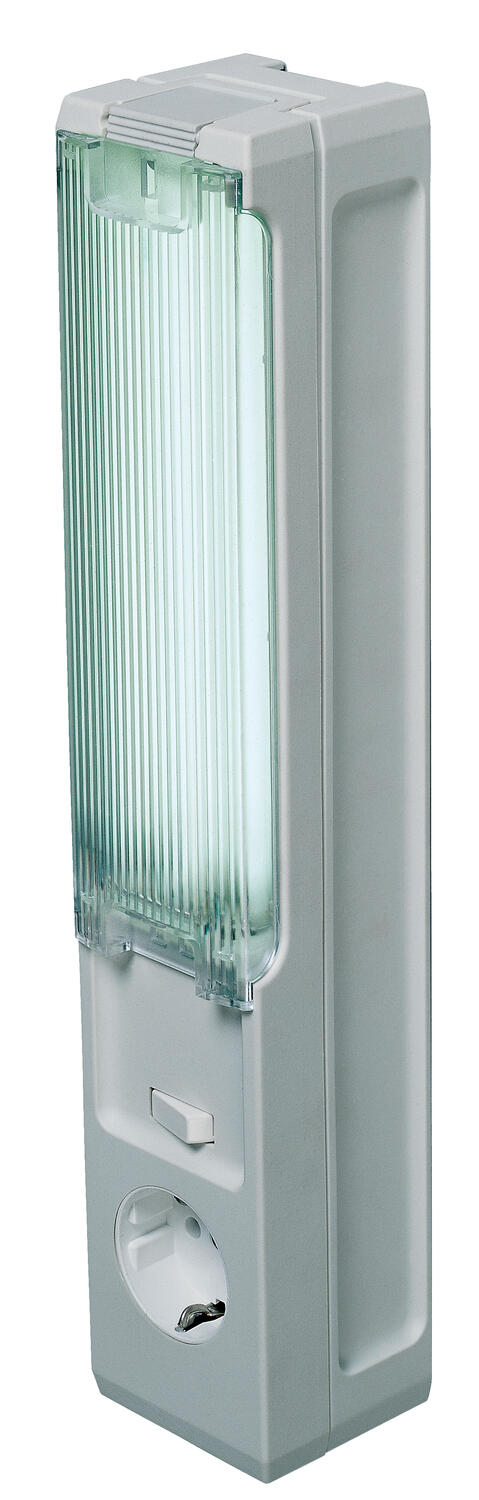

The KL025 cabinet light is compactly designed especially for use in the cabinet. With the powerful magnetic mount, the lighting can easily be installed without any installation work anywhere in steel cabinet. Alternatively, it can be screw-mounted with 2 pieces of DIN (150-180 mm long) pieces inserted from the short sides. The integrated socket enables operation of other electrical auxiliary equipment.
Â
Other voltages may be on request.
General Data |
|
---|---|
Mounting | Magnetic mount |
Nominal voltage | 120 V AC |
Activation | Switch |
Connection type | 3-pole terminal |
Light source | Fluorescent lamp |
Luminance | 900Lm |
Life span | 5,000 hrs |

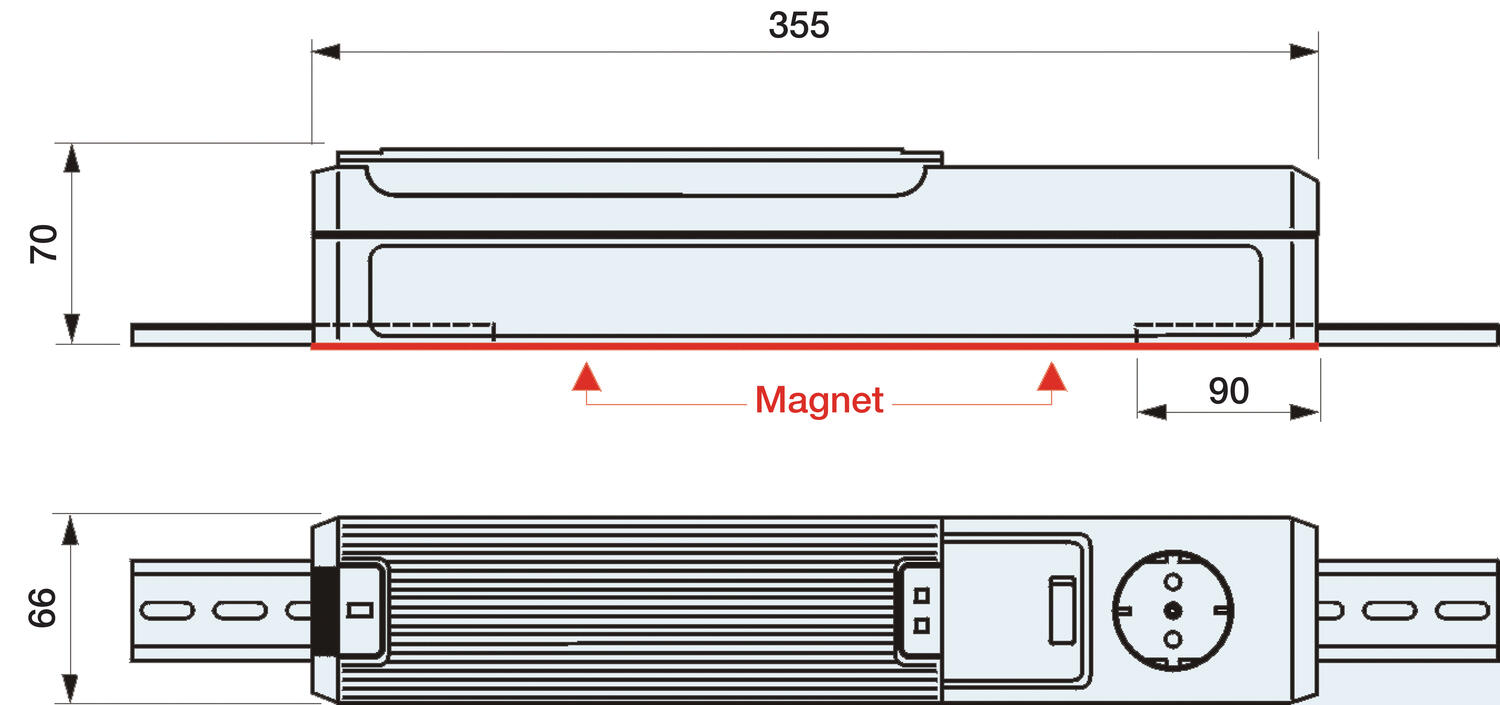

Dimensions |
|
Length | 355 mm |
Width | 355 mm |
Height | 70 mm |
Electrical specification |
|
Frequency | 60 Hz |
Power consumption | 9 W |
Safety & approvals |
|
---|---|
IP class | IP20 |
Approvals | CE, EAC, GS, RoHS |
Materials - Conditions |
|
Material plastic housing | Plastic |
Colour | Light grey |
Operational temperature | -20°C ... +50°C |
Storage temperature | -45°C ... +70°C |
Operating humidity | < 90% RH |
Humidity storage | <90% RH |
Voltage min | 120 V ac |
Voltage max | 120 V ac |
Weight | 1 kg |
The KL025 cabinet light is compactly designed especially for use in the cabinet. With the powerful magnetic mount, the lighting can easily be installed without any installation work anywhere in steel cabinet. Alternatively, it can be screw-mounted with 2 pieces of DIN (150-180 mm long) pieces inserted from the short sides. The integrated socket enables operation of other electrical auxiliary equipment.
Â
Other voltages may be on request.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Mounting | Nominal voltage | Activation | Connection type | Socket | Nominal socket current | Light source | Luminance | Width | Frequency | Power consumption | IP class | Approvals | Colour | Voltage min | Voltage max | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
KL 025 Lamp, 120V ac, 60Hz, without socket, magnetic - OBSOLETE
Art:
02505.9-01
Copied
|
Magnetic mount
|
120 V AC
|
Switch
|
3-pole terminal
|
|
|
Fluorescent lamp
|
900Lm
|
355 mm
|
60 Hz
|
9 W
|
IP20
|
CE, EAC, GS, RoHS
|
Light grey
|
120 V ac
|
120 V ac
|
1 kg
|
| ||
![]()
KL 025 Lamp, 230V ac, 50Hz, without socket, magnetic - OBSOLETE
Art:
02500.0-07
Copied
|
Magnetic mount
|
230 V AC
|
Switch
|
3-pole terminal
|
|
|
Fluorescent lamp
|
900Lm
|
355 mm
|
50 Hz
|
11 W
|
IP20
|
CE, EAC, GS, RoHS
|
Light grey
|
230 V ac
|
230 V ac
|
1 kg
|
| ||
![]()
KL 025 Lamp, 230V ac, 50Hz, Germany/Russia socket, magnetic - OBSOLETE
Art:
02500.0-14
Copied
|
Magnetic mount
|
230 V AC
|
Switch
|
3-pole terminal
|
DE/DK/FI/NO/RU/SE
|
16 A
|
Fluorescent lamp
|
900Lm
|
355 mm
|
50 Hz
|
11 W
|
IP20
|
CE, EAC, GS, RoHS
|
Light grey
|
230 V ac
|
230 V ac
|
1 kg
|
| ||
![]()
KL 025 Lamp, 230V ac, 50Hz, Germany/Russia socket, magnetic - OBSOLETE
Art:
02500.0-00
Copied
|
Magnetic mount
|
230 V AC
|
Switch
|
3-pole terminal
|
DE/DK/FI/NO/RU/SE
|
16 A
|
Fluorescent lamp
|
900Lm
|
355 mm
|
50 Hz
|
11 W
|
IP20
|
CE, EAC, GS, RoHS, VDE
|
Light grey
|
|
|
1 kg
|
| ||
![]()
KL 025 Lamp, 230V ac, 50Hz, France socket, magnetic - OBSOLETE
Art:
02501.0-00
Copied
|
Magnetic mount
|
230 V AC
|
Switch
|
3-pole terminal
|
FR/PL/CZ/SK
|
16 A
|
Fluorescent lamp
|
900Lm
|
355 mm
|
50 Hz
|
11 W
|
IP20
|
CE, EAC, GS, RoHS
|
Light grey
|
230 V ac
|
230 V ac
|
1 kg
|
| ||
![]()
KL 025 Lamp, 230V ac, 50Hz, Switzerland socket, magnetic - OBSOLETE
Art:
02502.0-00
Copied
|
Magnetic mount
|
230 V AC
|
Switch
|
3-pole terminal
|
CH
|
10 A
|
Fluorescent lamp
|
900Lm
|
355 mm
|
50 Hz
|
11 W
|
IP20
|
CE, EAC, GS, RoHS
|
Light grey
|
230 V ac
|
230 V ac
|
1 kg
|
| ||
![]()
KL 025 Lamp, 230V ac, 50Hz, UK Socket, magnetic - OBSOLETE
Art:
02510.0-00
Copied
|
Magnetic mount
|
230 V AC
|
Switch
|
3-pole terminal
|
|
|
Fluorescent lamp
|
900Lm
|
355 mm
|
50 Hz
|
11 W
|
IP20
|
CE, EAC, GS, RoHS
|
Light grey
|
230 V ac
|
230 V ac
|
1 kg
|
| ||
![]()

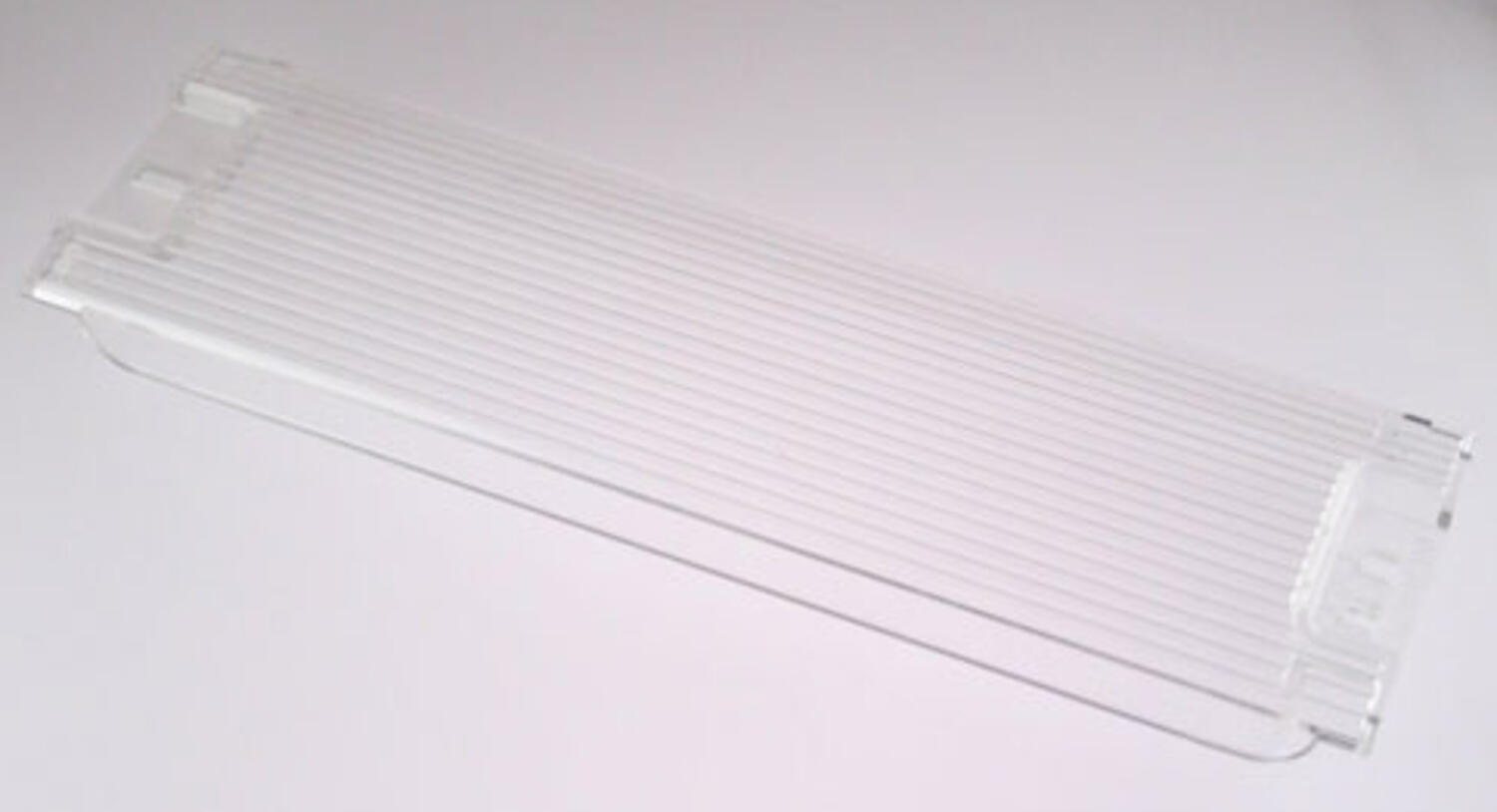

KL 025 Transparent cover for lamp - OBSOLETE
Art:
09520.0-00
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
CE, EAC, GS, RoHS, VDE
|
Transparent
|
|
|
|
|
