STEGO

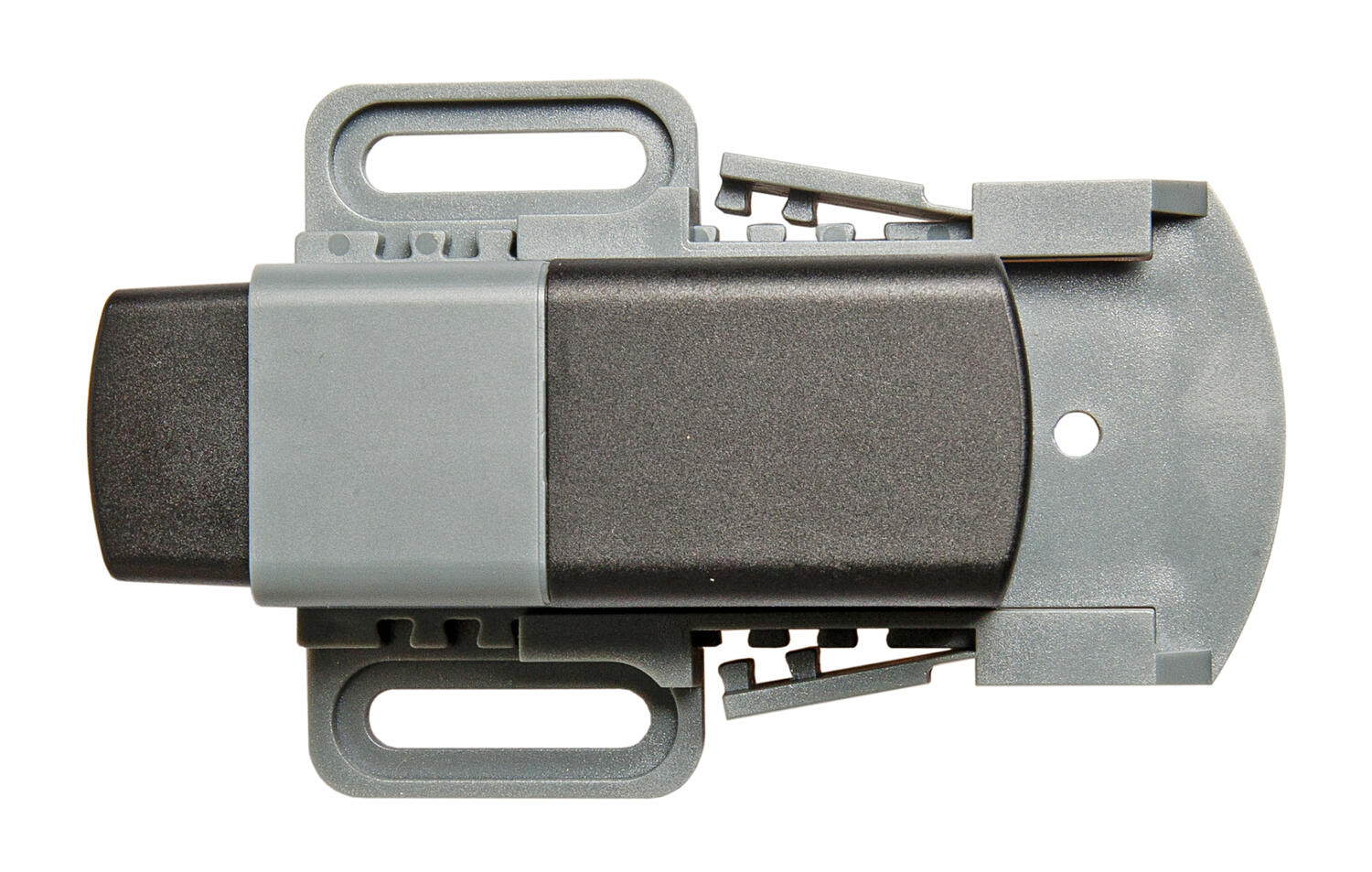

Door switch DS 013
DS 013
Door switch (DS013) monitors the position of cabinet doors, and is available in three versions, NC, NO, NC / NO.
For example, it can be used for switching a light on when a door is open (NC), or to activate a fan when the door is closed (NO).
The wide adjustment range of mechanical door switch DS 013 offers versatile uses. The housing is adjustable within a range of 35 mm, while the screw flange with a slotted hole provides an additional 21 mm.
- Adjustable positioning without tools
- High switching capacity (10A)
- Double strain relief
- Suitable for LED025 lamps
- N/O, N/C and change over options
Selected variant
Technical data
General Data |
|
|---|---|
| Mounting | Screw fixing |
| Connection type | 4-pole clamp |
| Life span | 10,000 cycles |

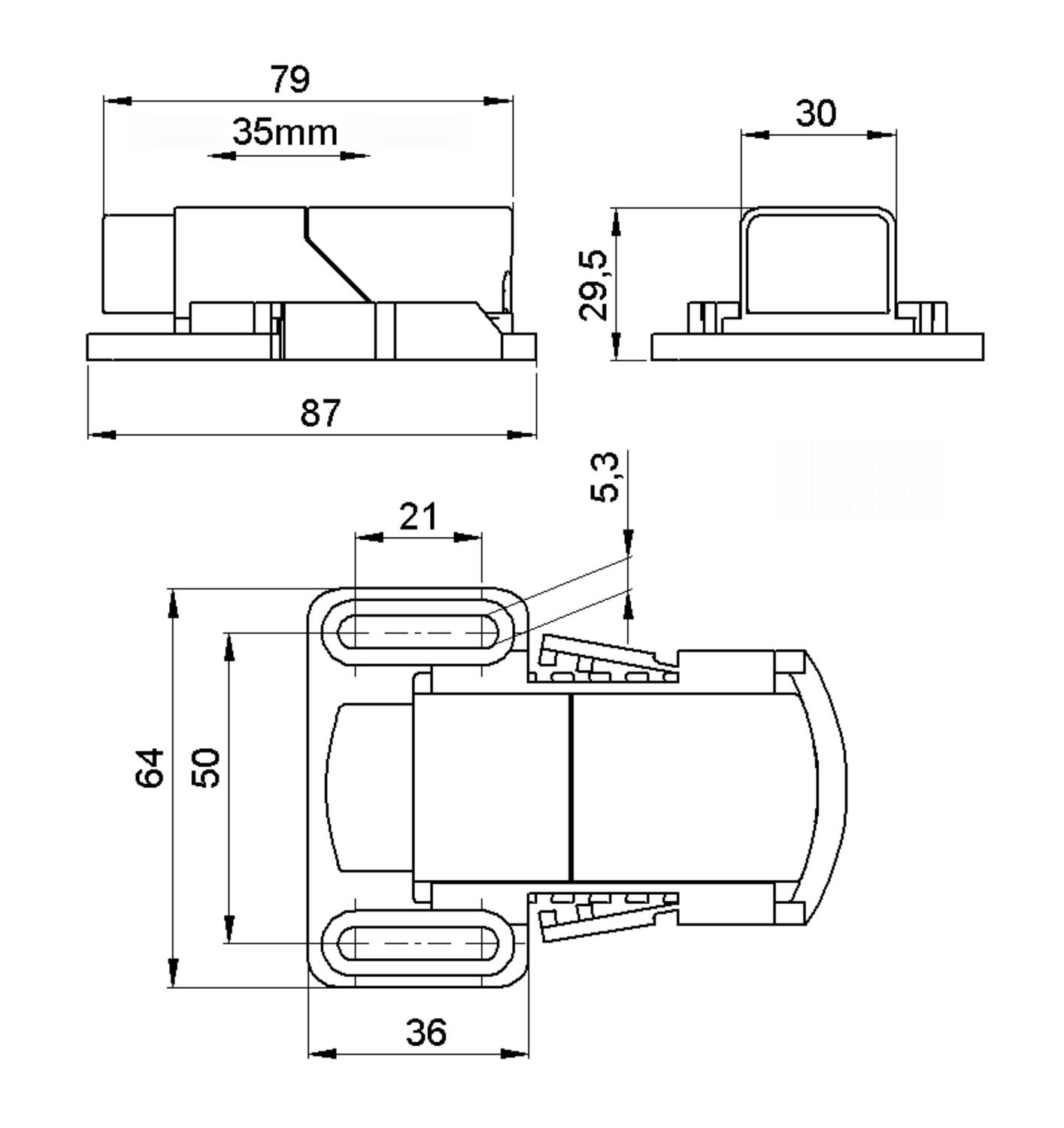

Dimensions |
|
| Length | 87 mm |
| Width | 64 mm |
| Height | 29.5 mm |
Electrical specification |
|

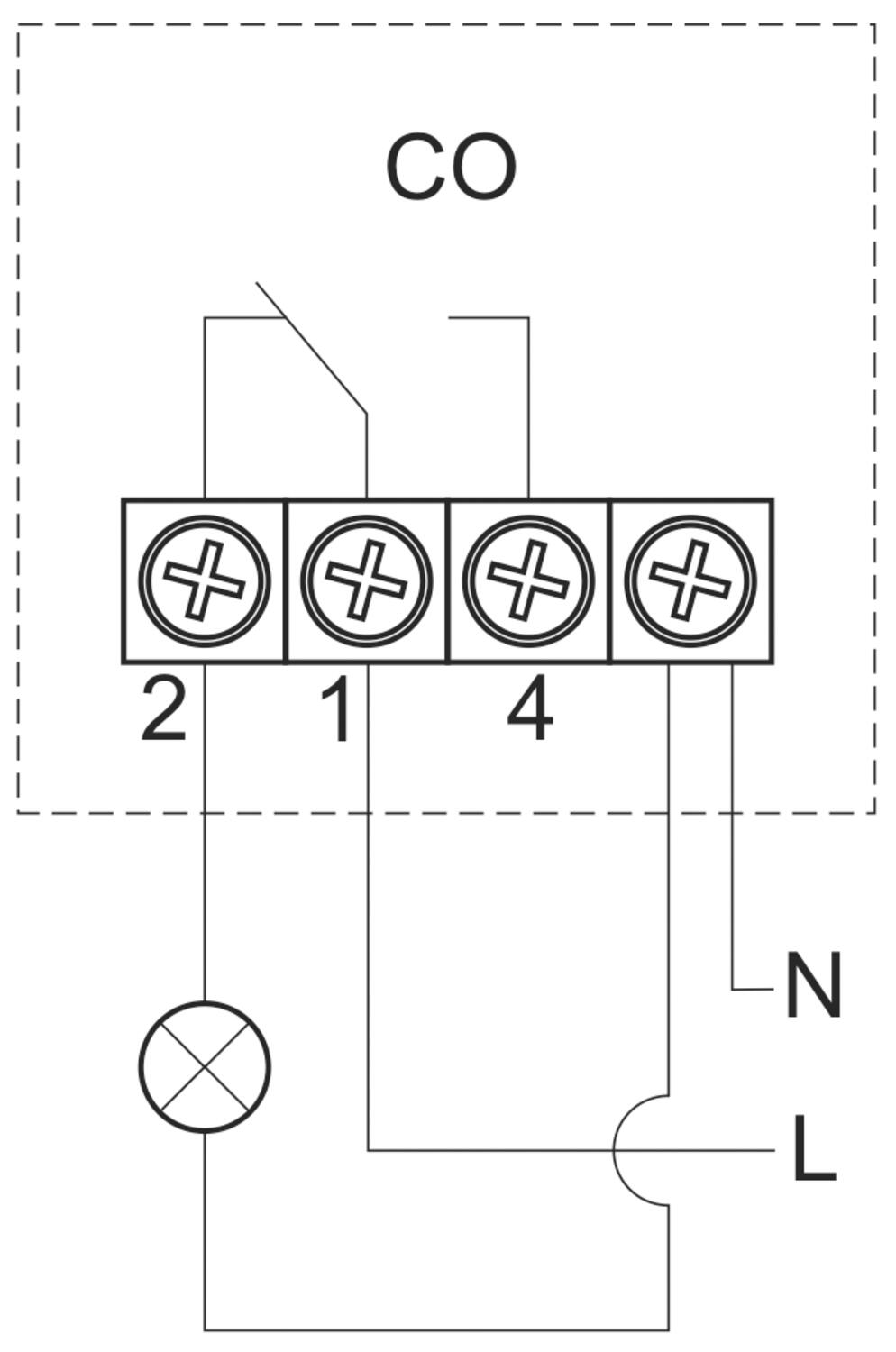

| Contact type | Changeover (SPDT) |
Safety & approvals |
|
| IP class | IP20 |
| Approvals | CE, EAC, RoHS, VDE |
*Invisible Heading* |
|
|---|---|
| Flammability class | UL94-V0 |
Materials - Conditions |
|
| Material plastic housing | Plastic |
| Colour | Grey, Black |
| Operational temperature | -20°C ... +85°C |
| Storage temperature | -20°C ... +85°C |
| Operating humidity | < 90% RH |
| Humidity storage | <90% RH |
| Weight | 0.05 kg |
Product description
Door switch (DS013) monitors the position of cabinet doors, and is available in three versions, NC, NO, NC / NO.
For example, it can be used for switching a light on when a door is open (NC), or to activate a fan when the door is closed (NO).
The wide adjustment range of mechanical door switch DS 013 offers versatile uses. The housing is adjustable within a range of 35 mm, while the screw flange with a slotted hole provides an additional 21 mm.
