KTO111 and KTS111 are a new generation of thermostats from Stego with Push-In connection. The Push-In connection speeds up the installation time by around 30%, while providing a secure connection with constant pressure against the conductor.
KTO111 and KTS111 respond quickly to temperature changes, due to innovative air vents for better air circulation around the temperature sensor.
The large colour coded dial used for setting the temperature, requires a screwdriver to help protect against accidental adjustment.

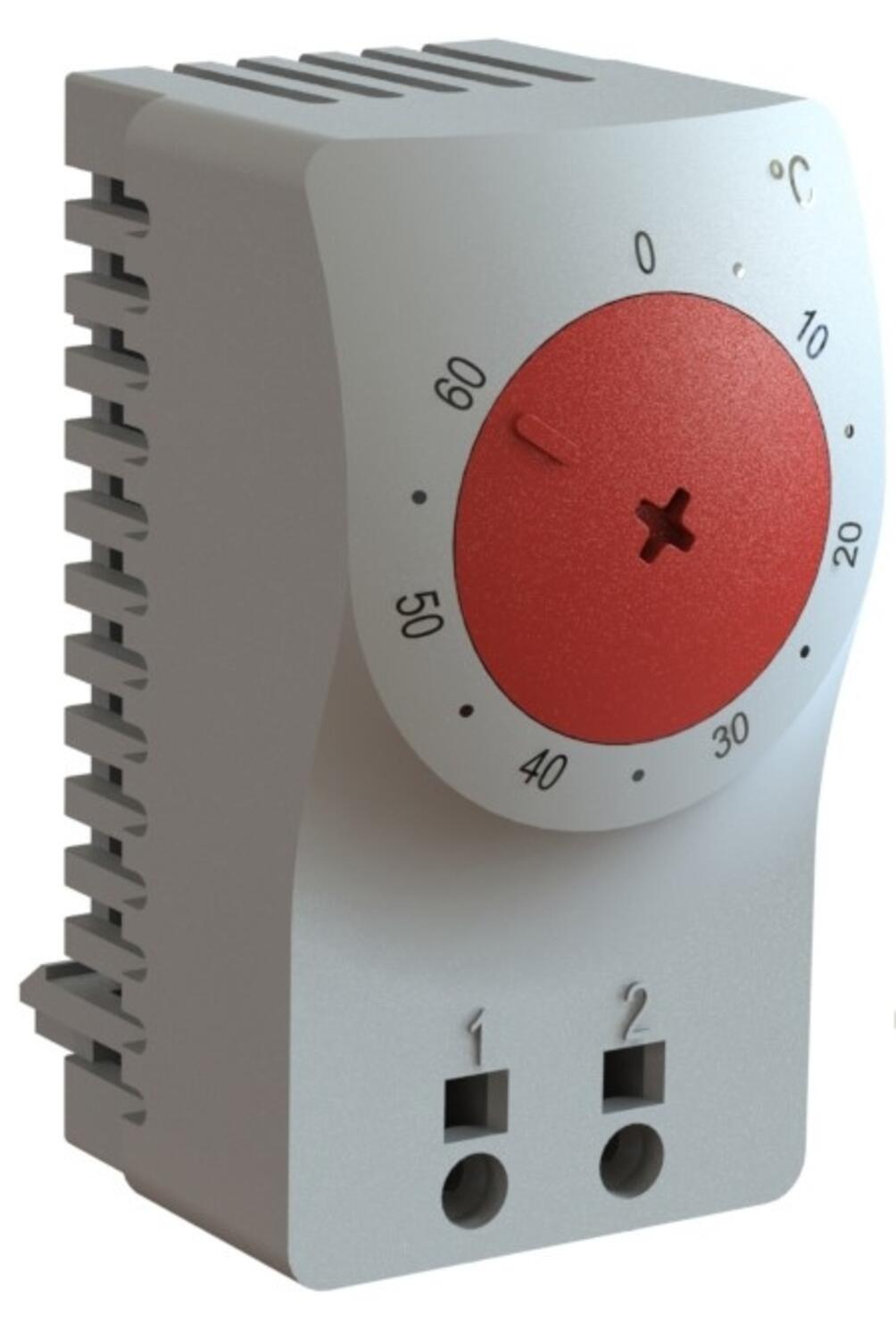

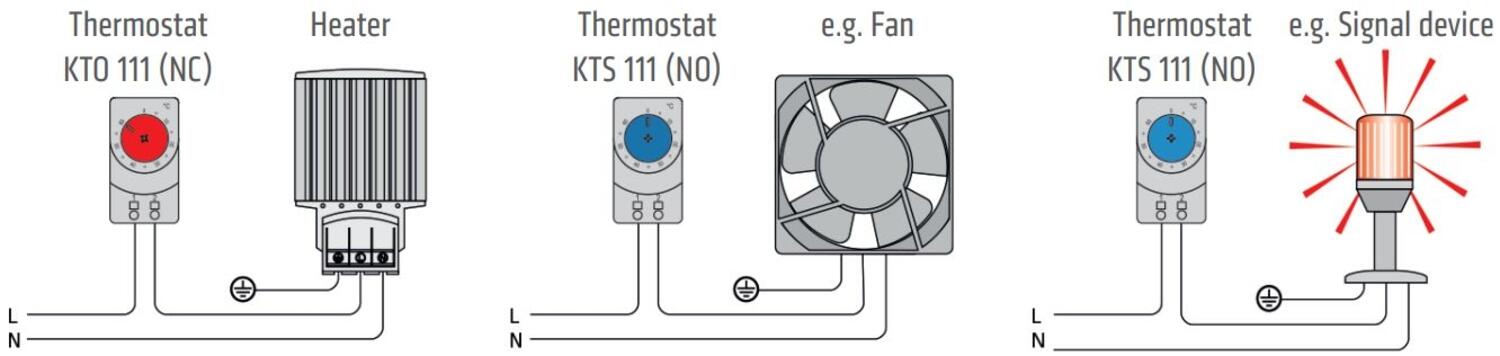

KTO 111 is an electromechanical thermostat with 1 NC contact usually used for switching heaters. The contact opens when the temperature rises to the set temperature on the red dial.

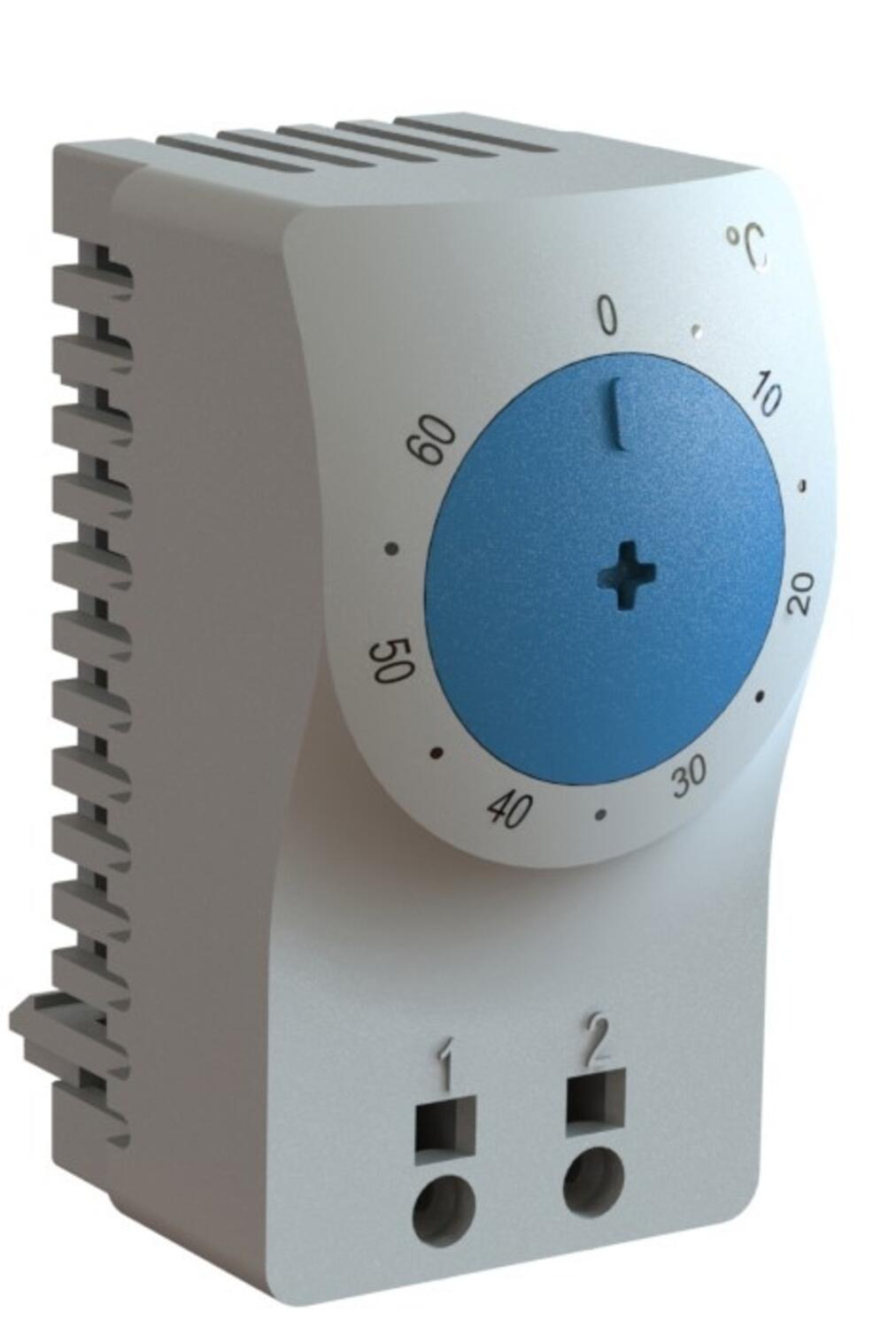

KTS 111 is an electromechanical thermostat with 1 NO contact usually used for switching cooling fans or to give a signal (switch on) when the temperature is too high. The contact closes if the temperature rises above the set value on the blue dial.
General data |
|
---|---|
Control range temperature from | 0 °C |
Control range temperature to | 60 °C |
Tolerance switch off | ±4K |
Tolerance for switch on | ±4K |
Hysteresis temperature | 7K |
Mounting | DIN-rail 35mm, quick mount |
Rated operating conditions |
|
Voltage max | 250 V ac |
Inrush max | 16 A |
Breaking capacity | 250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC |
Contact resistance | <20 mΩ |
Electrical lifetime | > 100 000 operations |
Connection type | 2 push in terminals for 2.5mm solid, 1.5mm stranded |
Humidity | <90 % RH (non-condensing) |
*Invisible Heading* |
|
---|---|
Operational temperature | -45°C ... +80°C |
Storage temperature | -45°C ... +80°C |

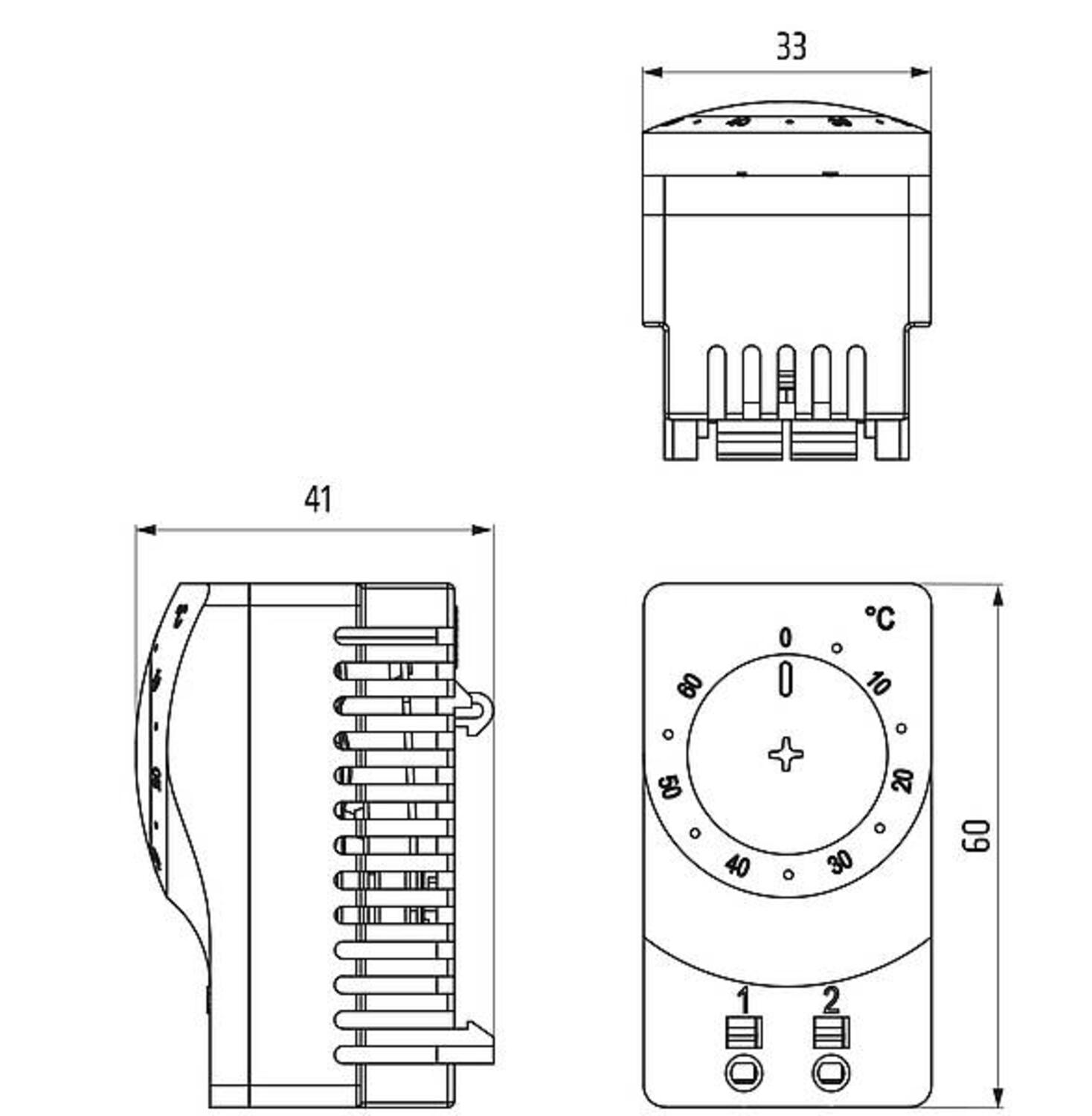

Dimensions |
|
Height | 60 mm |
Width | 33 mm |
Depth | 41 mm |
Weight | 0.04 kg |
Material plastic housing | UL94 V-0 |
Material of body | Plastic |
Safety & approvals |
|
Plastic cover | Light grey plastic, UL94 V-0 |
IP class | IP20 |
Approvals | CE, cULus, EAC, RoHS, UL E164102, VDE |
Country of origin | Germany |
KTO111 and KTS111 are a new generation of thermostats from Stego with Push-In connection. The Push-In connection speeds up the installation time by around 30%, while providing a secure connection with constant pressure against the conductor.
KTO111 and KTS111 respond quickly to temperature changes, due to innovative air vents for better air circulation around the temperature sensor.
The large colour coded dial used for setting the temperature, requires a screwdriver to help protect against accidental adjustment.
KTO 111 is an electromechanical thermostat with 1 NC contact usually used for switching heaters. The contact opens when the temperature rises to the set temperature on the red dial.
KTS 111 is an electromechanical thermostat with 1 NO contact usually used for switching cooling fans or to give a signal (switch on) when the temperature is too high. The contact closes if the temperature rises above the set value on the blue dial.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Control range temperature from | Control range temperature to | Control range temperature from | Control range temperature to | Breaking capacity | Price | ||
---|---|---|---|---|---|---|---|---|
![]()
KTO 111 Thermostat, 0…+60°C, normally closed, heating, Push In terminals
Art:
11100.0-00
Copied
|
0 °C
|
60 °C
|
|
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTS 111 Thermostat, 0…+60°C, normally open, cooling, Push In terminals
Art:
11101.0-00
Copied
|
0 °C
|
60 °C
|
|
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTO 111 Thermostat, -10°…+50°C, normally closed, heating, Push In terminals
Art:
11100.0-01
Copied
|
-10 °C
|
50 °C
|
|
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTS 111 Thermostat, -10°C…+50°C, normally open, cooling, Push In terminals
Art:
11101.0-01
Copied
|
-10 °C
|
50 °C
|
|
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTO 111 Thermostat, +20°C…+80°C, normally closed, heating, Push In terminals
Art:
11100.0-02
Copied
|
20 °C
|
80 °C
|
|
|
250 VAC, 3 (2) A / 120 VAC, 3 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTS 111 Thermostat, +20°C…+80°C, normally open, cooling, Push In terminals
Art:
11101.0-02
Copied
|
20 °C
|
80 °C
|
|
|
250 VAC, 3 (2) A / 120 VAC, 3 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTO 111 Thermostat, +14°F…+122°F, normally closed, heating, Push In terminals
Art:
11100.9-00
Copied
|
|
|
14 °F
|
122 °F
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTS 111 Thermostat, +14°F…+122°F, normally open, cooling, Push In terminals
Art:
11101.9-00
Copied
|
|
|
14 °F
|
122 °F
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTO 111 Thermostat, +32°F…+140°F, normally closed, heating, Push In terminals
Art:
11100.9-01
Copied
|
|
|
32 °F
|
140 °F
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
| ||
![]()
KTS 111 Thermostat, +32°F…140°F, normally open, cooling, Push In terminals
Art:
11101.9-01
Copied
|
|
|
32 °F
|
140 °F
|
250 VAC, 10 (2) A / 120 VAC, 15 (2) A. DC: 30W @ 24 VDC, up to 72 VDC
|
|
Select a variant in the list
