STEGO
Electronic hygrostat - EFL 012
EFL
The electronic hygrostat measures the surrounding relative humidity and can switch a signal current via its internal relay with a potential-free change-over contact. Signal-processing devices can be controlled directly with the EFL 012. In order to control heating and cooling equipment, filter fans and signal devices the switch module SM 010 or a similar device is needed.
The LED integrated in the adjustment knob shows the closed status of the contact 1-2. When relative humidity drops contact 1-2 opens and the LED turns off. In currentless state (no supply voltage) contact 1-2 opens.
- Large setting range
- Small hysteresis
- Optical operating display (LED)
- Change-over contact
- Signal application
Selected variant
Technical data
General data |
|
|---|---|
| Control range humidity from | 40 % RF |
| Control range humidity to | 90 % RF |
| Hysteresis humidity | 5% RH @ +25°C, 50% RH |
| Mounting | Clip on, DIN rail |
| Contact type | Changeover (SPDT) |
| Colour | Light grey |
Rated operating conditions |
|
| Breaking capacity | DC 10mW (at 0.1V, 100mA or 1mA, 10V) |
| Connection type | 5-pole terminal |
| Operational temperature | 0 °C ... +60°C |
| Storage temperature | -20°C ... +70°C |
| Life span | > 100,000 cycles |
*Invisible Heading* |
|
|---|---|
| Operating humidity | < 90% RH |
| Humidity storage | <90% RH |

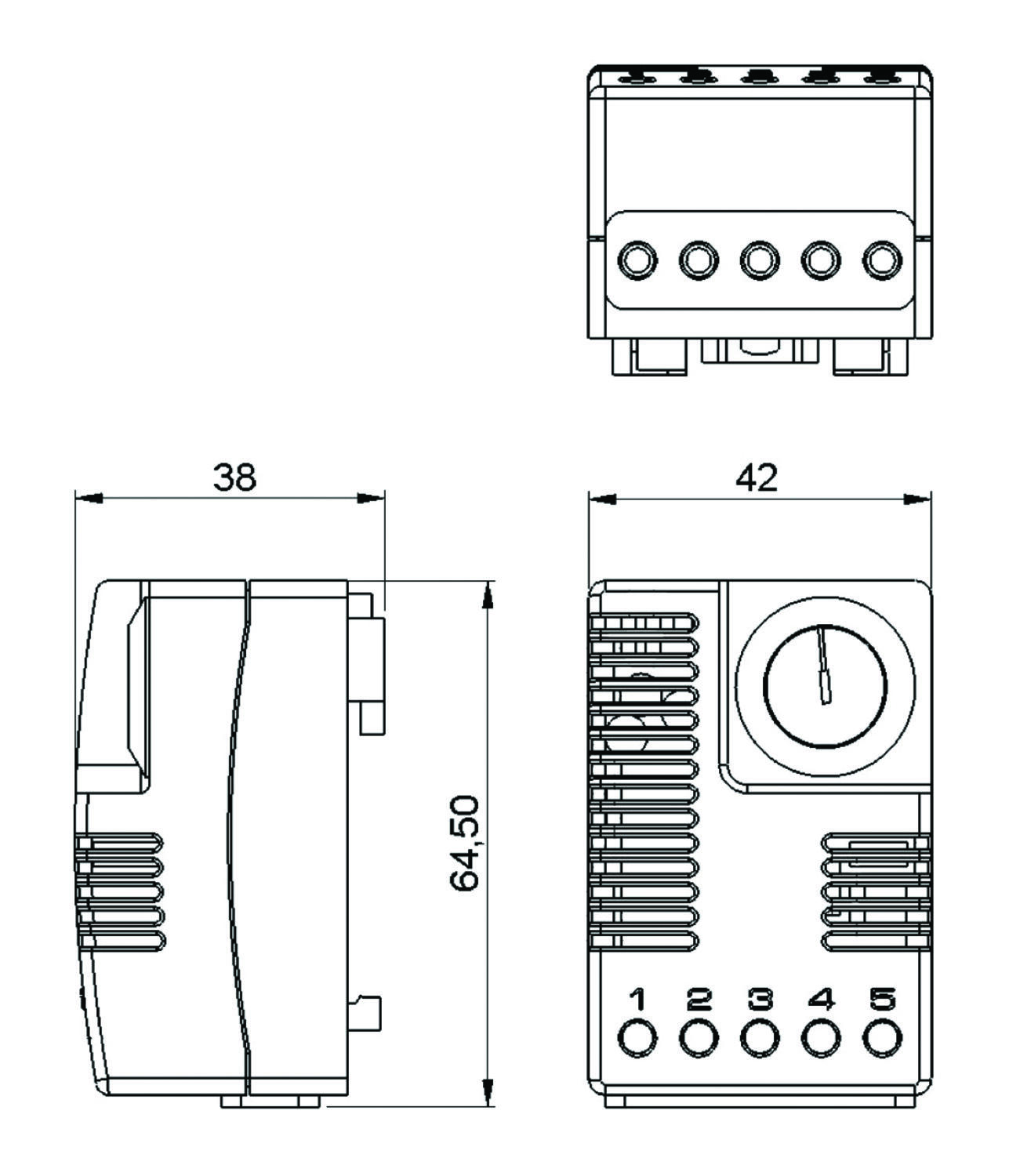

Dimensions |
|
| Height | 64.5 mm |
| Width | 42 mm |
| Depth | 38 mm |
| Weight | 0.07 kg |
| Material of body | Plastic |
Safety & approvals |
|
| IP class | IP20 |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E164102 |
Product description
The electronic hygrostat measures the surrounding relative humidity and can switch a signal current via its internal relay with a potential-free change-over contact. Signal-processing devices can be controlled directly with the EFL 012. In order to control heating and cooling equipment, filter fans and signal devices the switch module SM 010 or a similar device is needed.
The LED integrated in the adjustment knob shows the closed status of the contact 1-2. When relative humidity drops contact 1-2 opens and the LED turns off. In currentless state (no supply voltage) contact 1-2 opens.
