STEGO

Compact semiconductor fan heater CSF028

The compact CS 032 high performance fan heater prevents the formation of condensation and provides an evenly distributed

air temperature within the enclosure.



The plastic housing provides double insulation and acts as protection against contact via double insulation (protection class II).



Two screw connectors at the front of CS 032 allow comfortable wiring of an external thermostat, alternativley the CSF 032 is equipped with a pre-set thermostat.



Both models are available with two different mounting systems - either mounting by screw flange or by clip. The robust screw flange fixing is particularly suitable for applications with high vibration.



Read more
  • Small, compact design
  • Integrated pre-set thermostat
  • Dynamic heating up
  • Touch-safe
  • Quick connection, clip or screw flange fixing

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Heat output 250 W
Nominal voltage 230 V AC
Frequency 50/60 Hz
Heater body Plastic
Material of body Plastic
Mounting Clip on, DIN rail
Colour Black
Number of fans 1
Connection type IEC 320C18 Male socket
Starting current max 9 A
Recommended fuse (slow blow) 10 A
Life span 40 000 h @ +40 °C (+104 °F)
Air capacity 45 m³/h

Dimensions
Height 105 mm
Width 85 mm
Depth 118 mm

*Invisible Heading*
Weight 0.5 kg
Tightening torque for cable 0.8

Safety & Approvals
Protection class II (double insulated)
IP class IP20
Approvals CE, cULus, EAC, RoHS, UL, UL E150057, VDE
Flammability class UL94-V0
Overheating protection PTC temperature limiting

Thermostat
Switch off temperature 15 °C
Switch on temperature 5 °C

Rated Operating Conditions
Operational temperature -40°C ... +70°C
Storage temperature -45°C ... +70°C
Operating humidity < 90% RH
Humidity storage <90% RH
Voltage min 230 V ac
Voltage max 230 V ac

Downloads

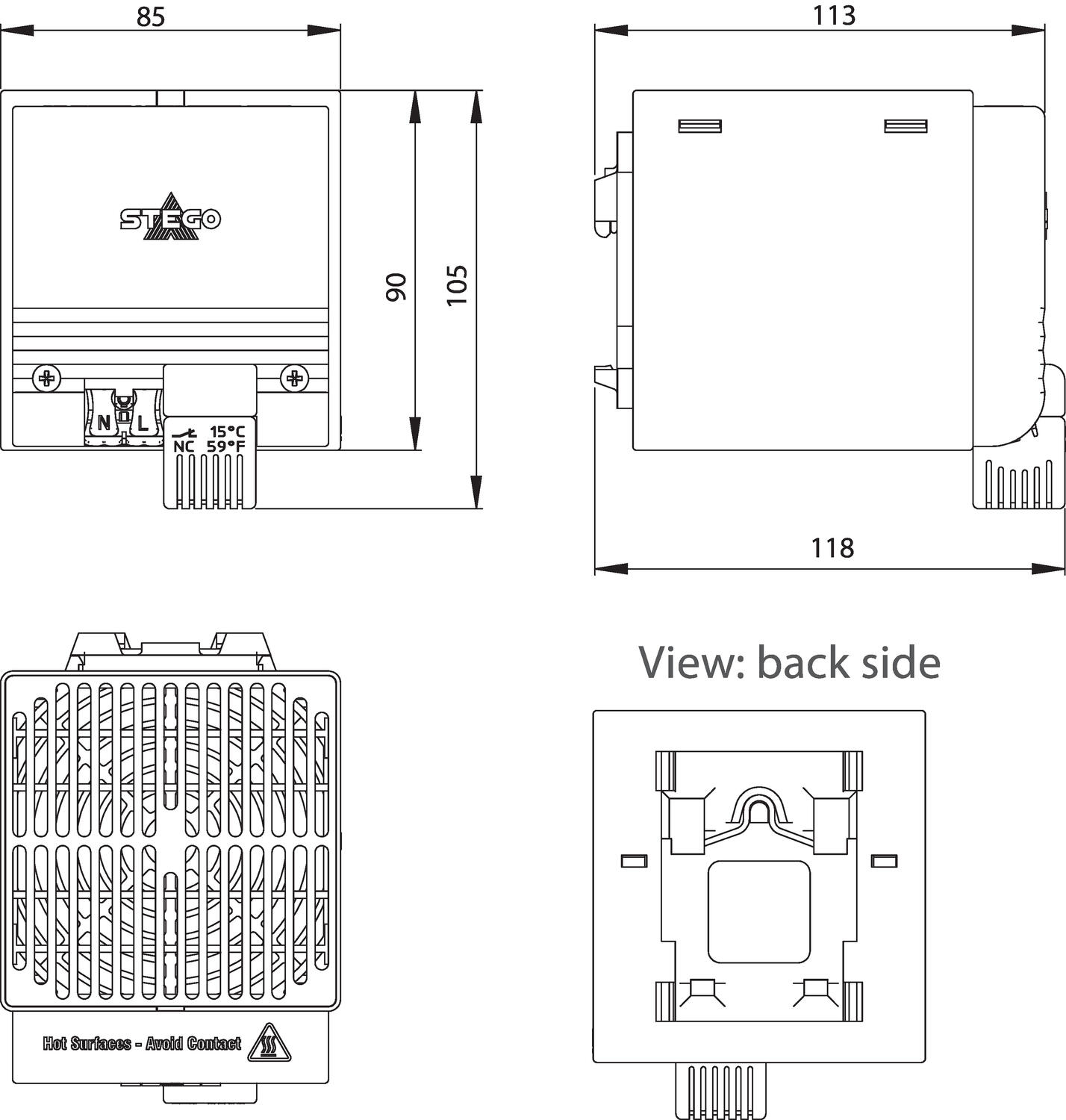

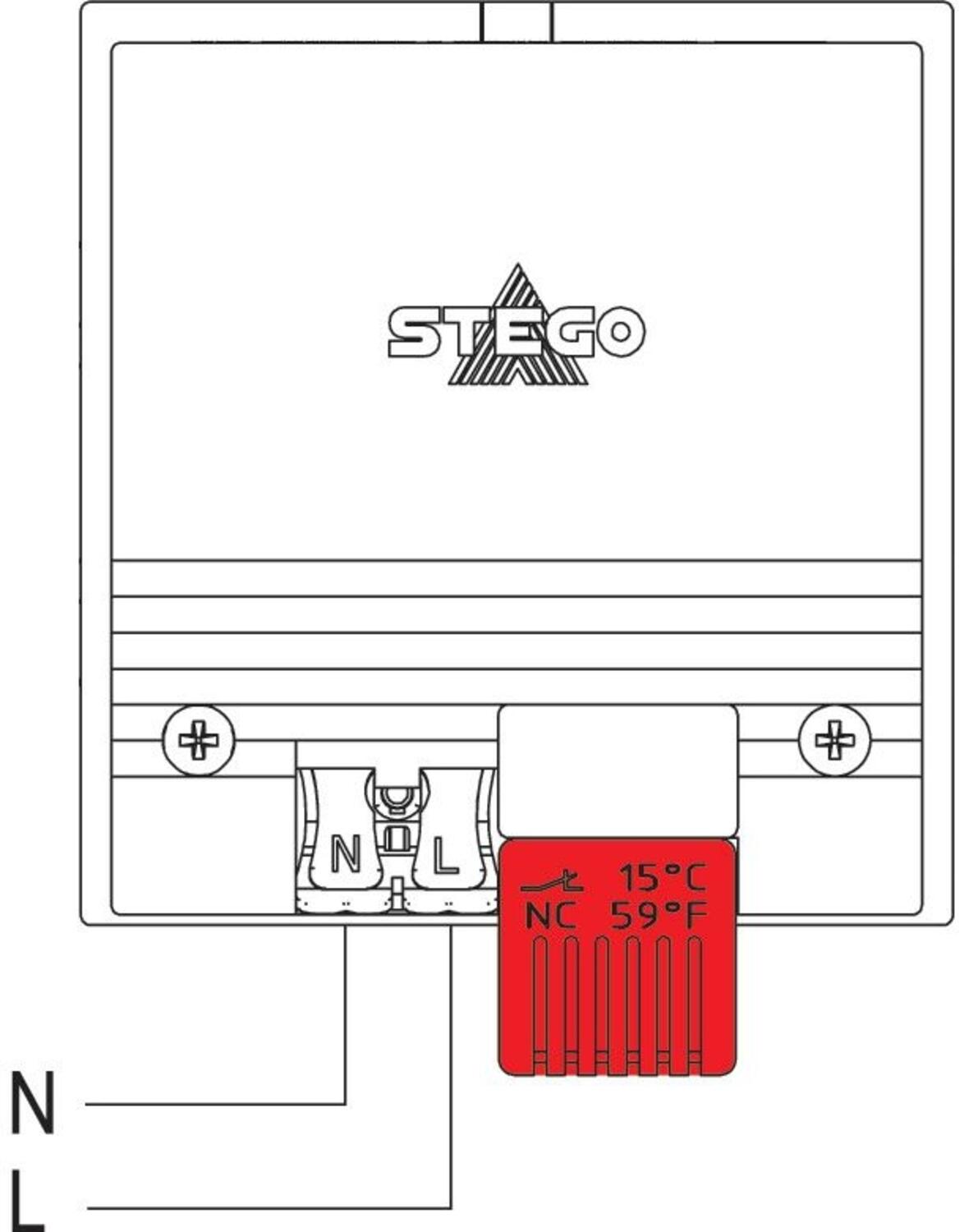

Measurements and connections

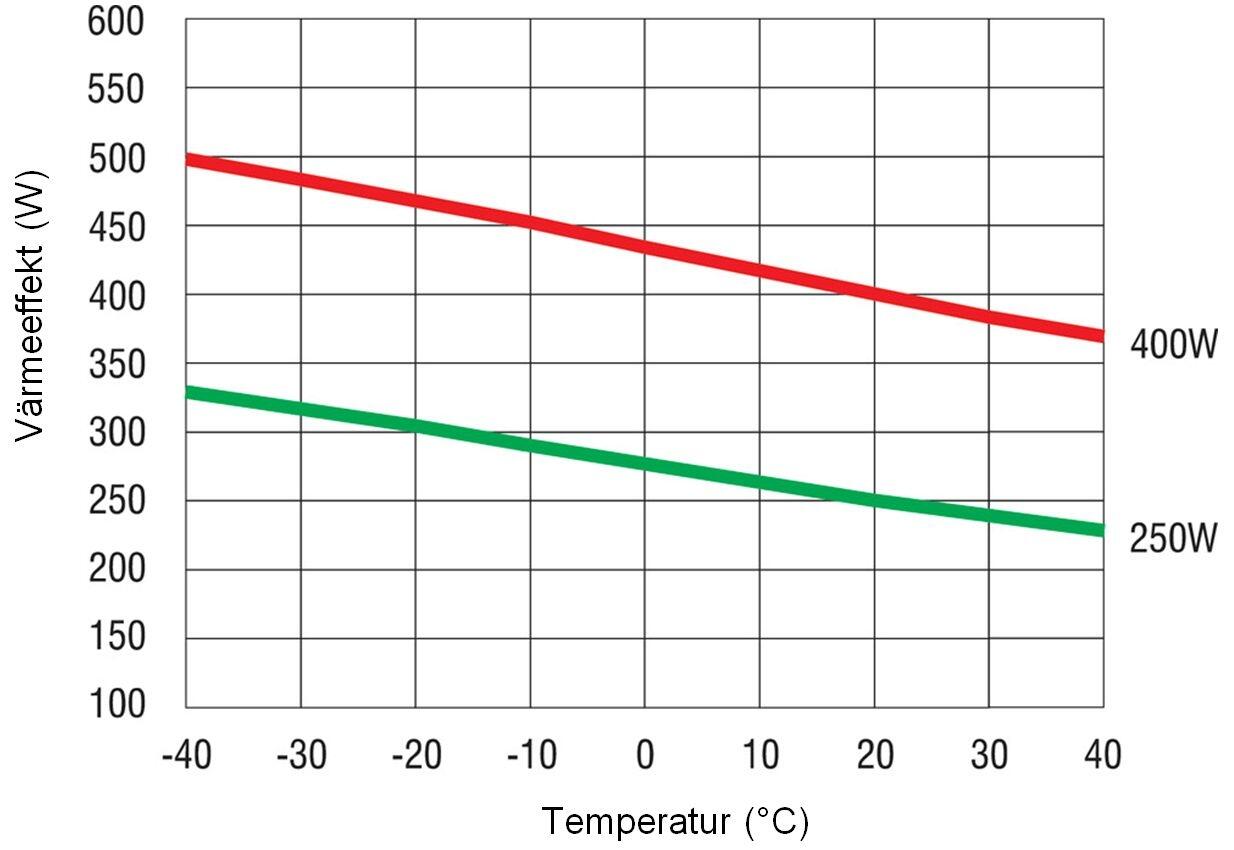

Technical illustrations

Product description

The compact CS 032 high performance fan heater prevents the formation of condensation and provides an evenly distributed

air temperature within the enclosure.



The plastic housing provides double insulation and acts as protection against contact via double insulation (protection class II).



Two screw connectors at the front of CS 032 allow comfortable wiring of an external thermostat, alternativley the CSF 032 is equipped with a pre-set thermostat.



Both models are available with two different mounting systems - either mounting by screw flange or by clip. The robust screw flange fixing is particularly suitable for applications with high vibration.



Accessories

Related

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Parts Heat output Nominal voltage Mounting Starting current max Recommended fuse (slow blow) Air capacity Width Depth Switch off temperature Switch on temperature Voltage min Voltage max Price
CSF028_DIN.tif
CSF 028 250W, 230V ac, 15°C / 5°C (off/on), clip fixing
Art:
02821.0-06 Copied
250 W
230 V AC
Clip on, DIN rail
9 A
10 A
45 m³/h
85 mm
118 mm
15 °C
5 °C
230 V ac
230 V ac
CSF028_Photo_Screw.tif
CSF 028 250W, 230V ac, 15°C / 5°C (off/on), screw fixing
Art:
02821.0-08 Copied
250 W
230 V AC
Screw fixing
9 A
10 A
45 m³/h
115 mm
108 mm
15 °C
5 °C
230 V ac
230 V ac
CSF028_DIN.tif
CSF 028 250W, 230V ac, 25°C / 15°C (off/on), clip fixing
Art:
02821.0-09 Copied
250 W
230 V AC
Clip on, DIN rail
9 A
10 A
45 m³/h
85 mm
118 mm
25 °C
15 °C
230 V ac
230 V ac
CSF028_Photo_Screw.tif
CSF 028 250W, 230V ac, 25°C / 15°C (off/on), screw fixing
Art:
02821.0-11 Copied
250 W
230 V AC
Screw fixing
9 A
10 A
45 m³/h
85 mm
118 mm
25 °C
15 °C
230 V ac
230 V ac
CSF028_DIN.tif
CSF 028 400W, 230V ac, 15°C / 5°C (off/on), clip fixing
Art:
02820.0-06 Copied
400 W
230 V AC
Clip on, DIN rail
15 A
16 A
45 m³/h
85 mm
118 mm
15 °C
5 °C
230 V ac
230 V ac
CSF028_Photo_Screw.tif
CSF 028 400W, 230V ac, 15°C / 5°C (off/on), screw fixing
Art:
02820.0-08 Copied
400 W
230 V AC
Screw fixing
15 A
16 A
45 m³/h
115 mm
108 mm
15 °C
5 °C
230 V ac
230 V ac
CSF028_DIN.tif
CSF 028 400W, 230V ac, 25°C / 15°C (off/on), clip fixing
Art:
02820.0-09 Copied
400 W
230 V AC
Clip on, DIN rail
15 A
16 A
45 m³/h
85 mm
118 mm
25 °C
15 °C
230 V ac
230 V ac
CSF028_Photo_Screw.tif
CSF 028 400W, 230V ac, 25°C / 15°C (off/on), screw fixing
Art:
02820.0-11 Copied
400 W
230 V AC
Screw fixing
15 A
16 A
45 m³/h
115 mm
108 mm
25 °C
15 °C
230 V ac
230 V ac
CSF028_DIN.tif
CSF 028 250W, 120V ac, 15°C / 5°C (off/on), clip fixing
Art:
02821.9-06 Copied
250 W
120 V AC
Clip on, DIN rail
6 A
10 A
54 m³/h
85 mm
118 mm
15 °C
5 °C
120 V ac
120 V ac
CSF028_Photo_Screw.tif
CSF 028 250W, 120V ac, 15°C / 5°C (off/on), screw fixing
Art:
02821.9-08 Copied
250 W
120 V AC
Screw fixing
6 A
10 A
54 m³/h
115 mm
108 mm
15 °C
5 °C
120 V ac
120 V ac
CSF028_DIN.tif
CSF 028 250W, 120V ac, 25°C / 15°C (off/on), clip fixing
Art:
02821.9-09 Copied
250 W
120 V AC
Clip on, DIN rail
6 A
10 A
54 m³/h
85 mm
118 mm
25 °C
15 °C
120 V ac
120 V ac
CSF028_Photo_Screw.tif
CSF 028 250W, 120V ac, 25°C / 15°C (off/on), screw fixing
Art:
02821.9-11 Copied
250 W
120 V AC
Screw fixing
6 A
10 A
54 m³/h
85 mm
118 mm
25 °C
15 °C
120 V ac
120 V ac
CSF028_DIN.tif
CSF 028 400W, 120V ac, 15°C / 5°C (off/on), clip fixing
Art:
02820.9-06 Copied
400 W
120 V AC
Clip on, DIN rail
9 A
10 A
54 m³/h
85 mm
118 mm
15 °C
5 °C
120 V ac
120 V ac
CSF028_Photo_Screw.tif
CSF 028 400W, 120V ac, 15°C / 5°C (off/on), screw fixing
Art:
02820.9-08 Copied
400 W
120 V AC
Screw fixing
9 A
10 A
54 m³/h
115 mm
108 mm
15 °C
5 °C
120 V ac
120 V ac
CSF028_DIN.tif
CSF 028 400W, 120V ac, 25°C / 15°C (off/on), clip fixing
Art:
02820.9-09 Copied
400 W
120 V AC
Clip on, DIN rail
9 A
10 A
54 m³/h
85 mm
118 mm
25 °C
15 °C
120 V ac
120 V ac
CSF028_Photo_Screw.tif
CSF 028 400W, 120V ac, 25°C / 15°C (off/on), screw fixing
Art:
02820.9-11 Copied
400 W
120 V AC
Screw fixing
9 A
10 A
54 m³/h
115 mm
108 mm
25 °C
15 °C
120 V ac
120 V ac
