STEGO
The heat source in this Stego element consists of a PTC element – a semi-conductor that adapts its output to the ambient temperature.
The PTC element has a high starting current and provides full output almost immediately.
The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element.
The heating element is best installed in small enclosures so as avoid condensation or that the temperature falls beneath the minimum. These heaters are designed for permanent operation.
General Data |
|
|---|---|
| Heat output | 5 W |
| Nominal voltage | 24 V AC/DC |
| Heater body | Aluminium |
| Connection type | 2 x AWG 22 cable |
| Heat source | Self-regulating PTC-element |
| Starting current max | 4.5 A |
| Recommended fuse (slow blow) | 2 A |

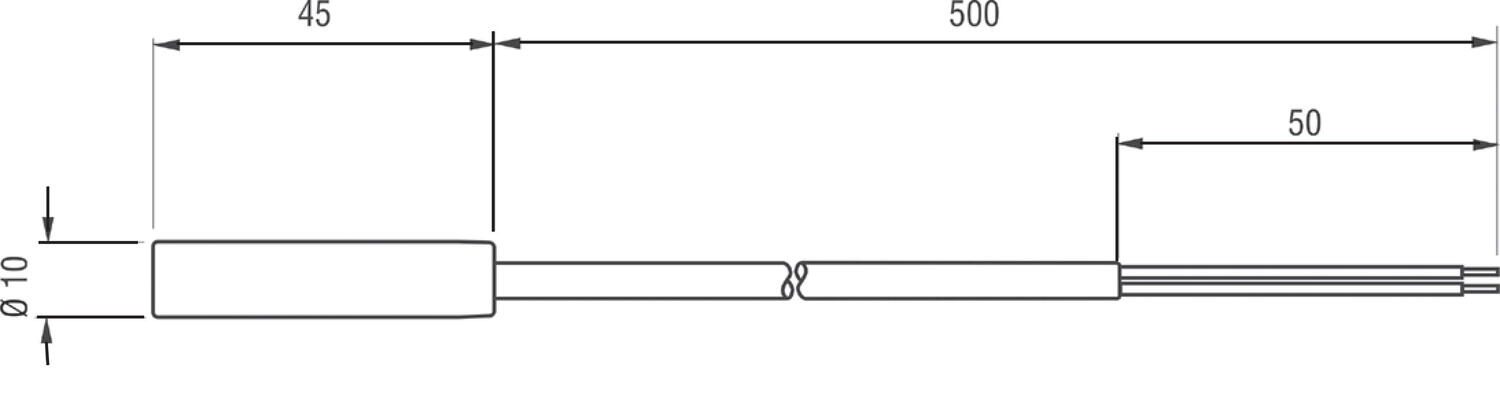

Dimensions |
|
| Height | 45 mm |
| Depth | 10 mm |
| Weight | 0.02 kg |
| Cable length | 500 mm |
Safety & Approvals |
|
|---|---|
| Protection class | II (double insulated) |
| IP class | IP54 |
| Approvals | CE, EAC, Gost R, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Operating humidity | < 90% RH |
| Humidity storage | <90 % RH |
| Voltage min | 12 V ac/dc |
| Voltage max | 36 V ac/dc |
The heat source in this Stego element consists of a PTC element – a semi-conductor that adapts its output to the ambient temperature.
The PTC element has a high starting current and provides full output almost immediately.
The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element.
The heating element is best installed in small enclosures so as avoid condensation or that the temperature falls beneath the minimum. These heaters are designed for permanent operation.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Heat output | Nominal voltage | Heater body | Connection type | Heat source | Starting current max | Recommended fuse (slow blow) | Height | Width | Weight | Cable length | Protection class | IP class | Approvals | Operational temperature | Storage temperature | Voltage min | Voltage max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RCE 016 5W Heater, 165°C, 12-36V ac/dc
Art:
01624.0-00
Copied
|
5 W
|
24 V AC/DC
|
Aluminium
|
2 x AWG 22 cable
|
Self-regulating PTC-element
|
4.5 A
|
2 A
|
45 mm
|
|
0.02 kg
|
500 mm
|
II (double insulated)
|
IP54
|
CE, EAC, Gost R, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
12 V ac/dc
|
36 V ac/dc
|
|
||
|
RCE 016 9W Heater, 175°C, 12-36V ac/dc
Art:
01625.0-00
Copied
|
9 W
|
24 V AC/DC
|
Aluminium
|
2 x AWG 22 cable
|
Self-regulating PTC-element
|
6 A
|
4 A
|
45 mm
|
|
0.02 kg
|
500 mm
|
II (double insulated)
|
IP54
|
CE, EAC, Gost R, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
12 V ac/dc
|
36 V ac/dc
|
|
||
|
RCE 016 5W Heater, 165°C, 110-250V ac/dc
Art:
01622.0-00
Copied
|
5 W
|
120-240 V AC/DC
|
Aluminium
|
2 x AWG 22 cable
|
Self-regulating PTC-element
|
2 A
|
2 A
|
45 mm
|
|
0.02 kg
|
500 mm
|
II (double insulated)
|
IP54
|
CE, EAC, Gost R, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
110 V ac/dc
|
250 V ac/dc
|
|
||
|
RCE 016 9W Heater, 175°C, 110-250V ac/dc
Art:
01623.0-00
Copied
|
9 W
|
120-240 V AC/DC
|
Aluminium
|
2 x AWG 22 cable
|
Self-regulating PTC-element
|
2.5 A
|
4 A
|
45 mm
|
|
0.02 kg
|
500 mm
|
II (double insulated)
|
IP54
|
CE, EAC, Gost R, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
110 V ac/dc
|
250 V ac/dc
|
|
||

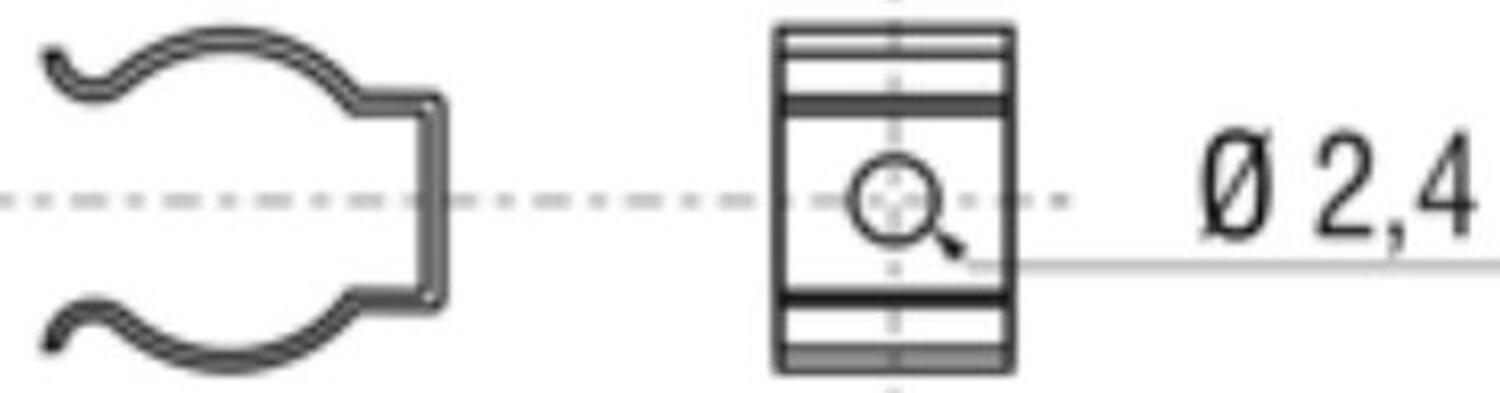

RCE 016 Heater, Screw mounting clip, 2 pieces
Art:
09008.0-01
Copied
|
|
|
|
|
|
|
|
14 mm
|
6.5 mm
|
|
|
|
|
|
|
|
|
|
|
Select a variant in the list
