STEGO

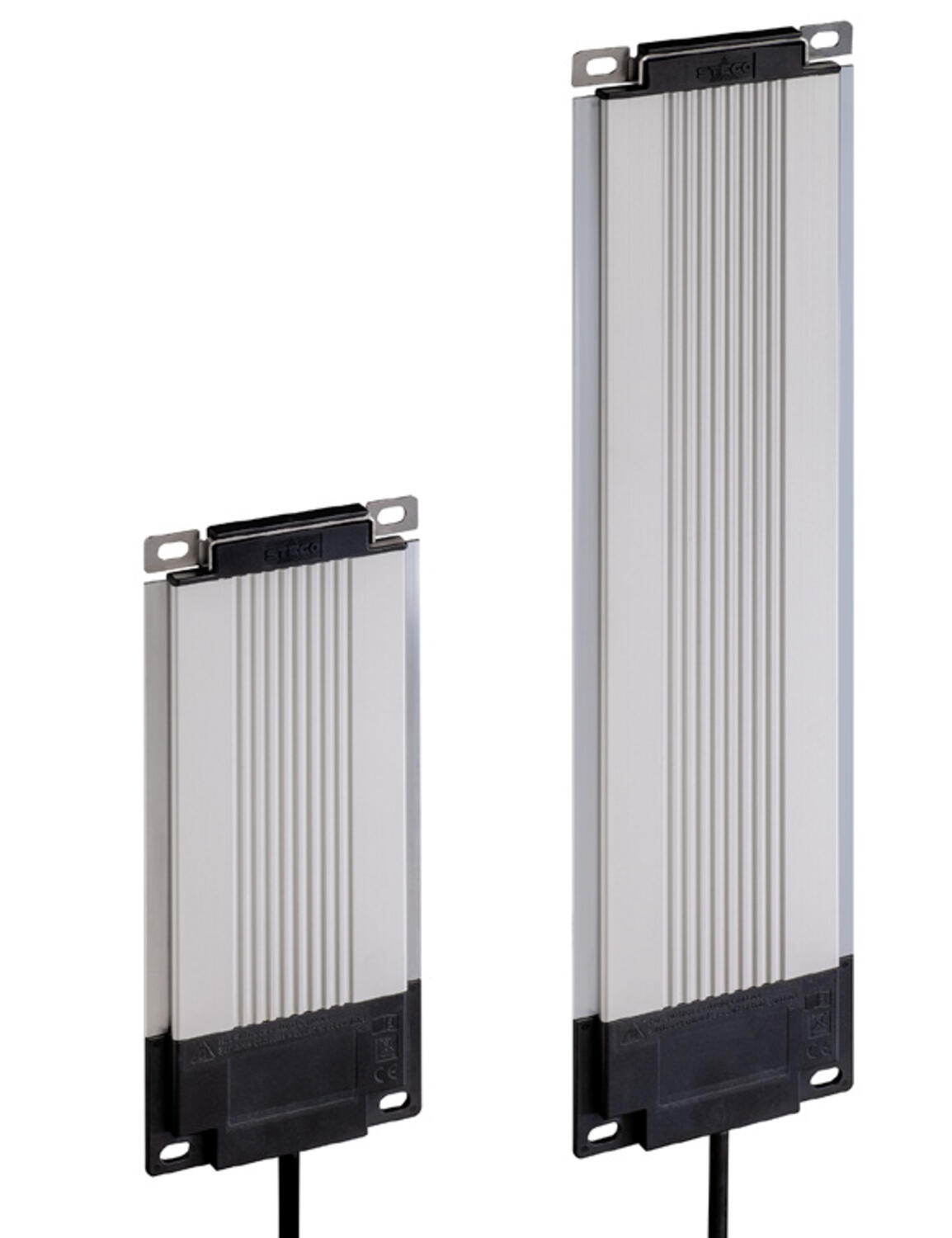

Flat heater 50-100W - CP 061
CP 061

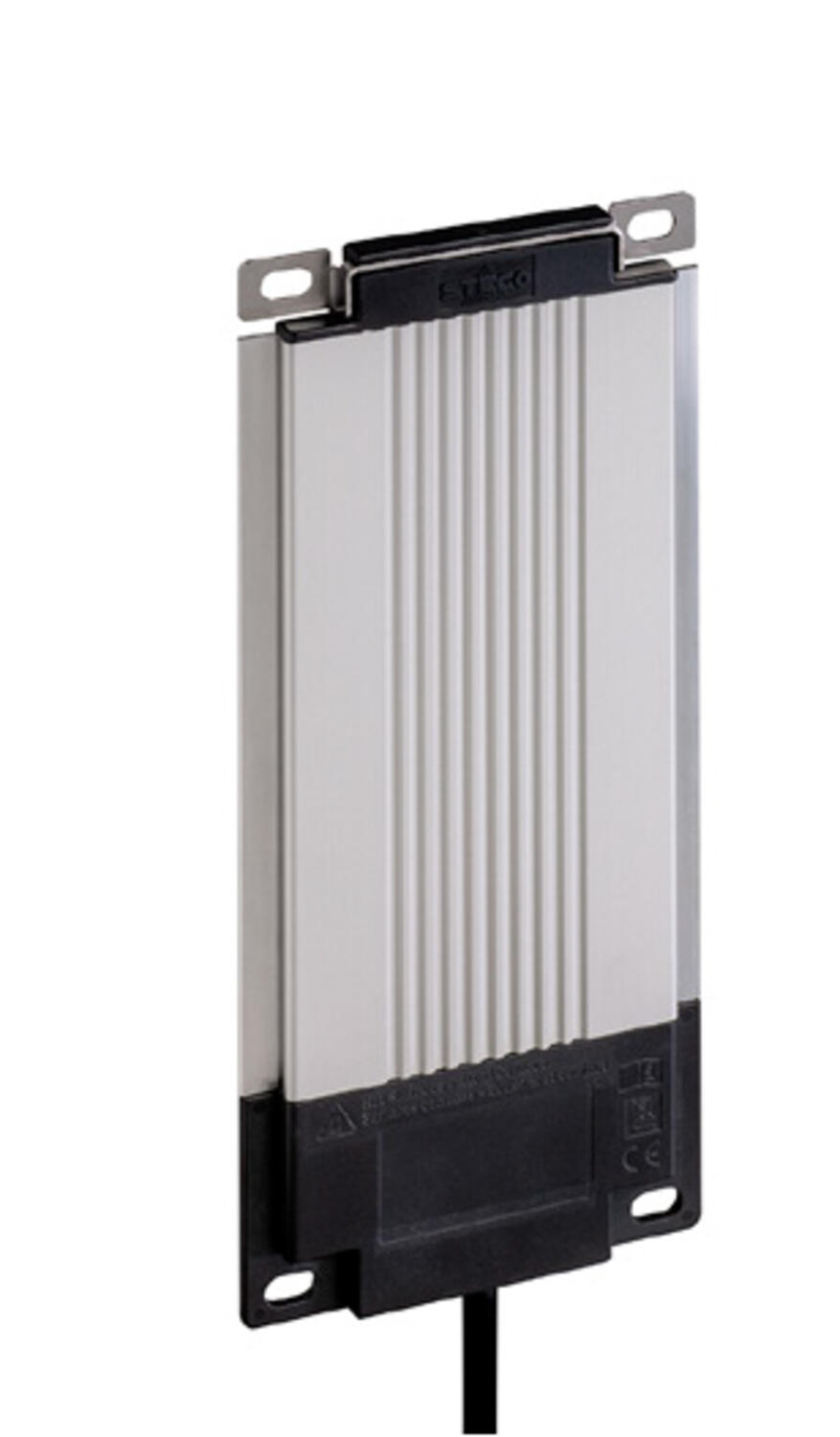

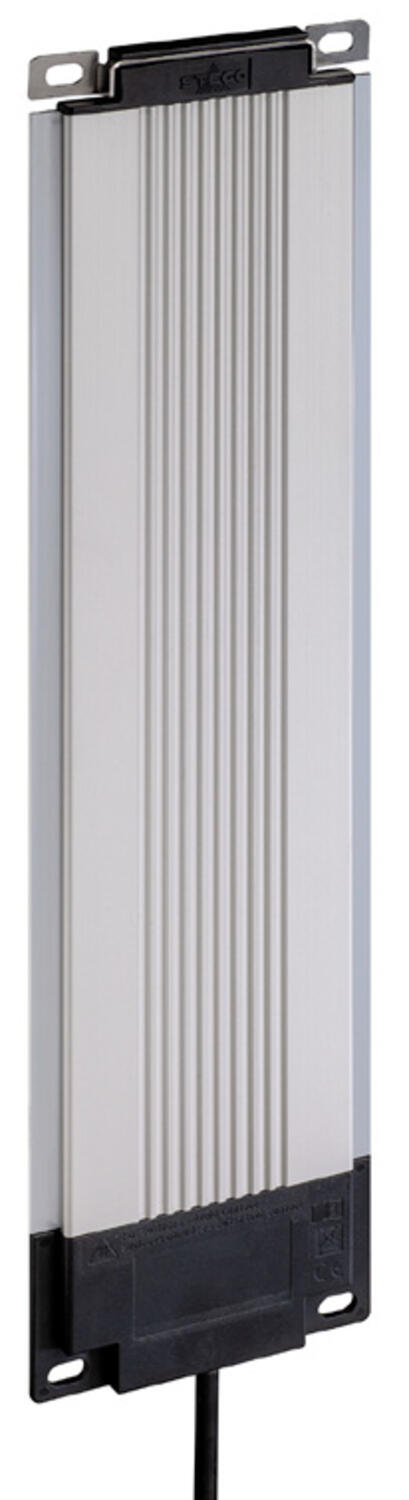

The CP 061 flat heater is designed for use within enclosures with electrical components to evenly distribute temperature. At only 8mm deep, due to its ultra-thin design, this heater is suitable for high density applications where standard enclosure heaters are too big.
For use as a contact heater the CP 061 offers thermo conductive contact to components or enclosure walls that need to be heated.
Alternatively, this flat heater can be used as a convection heater to warm the ambient air within an enclosure.
A specially designed mounting system allows for expansion of the heater body as a result of heating-up during operation. The CP 061 is designed for continuous operation.
- Contact/convection heater
- Ultra-flat, only 8mm deep
- Compact design
- Integrated temperature cut-out
- Screw mounting with linear expansion compensation
Selected variant
Technical data
General Data |
|
|---|---|
| Heat output | 50 W |
| Nominal voltage | 230 V AC |
| Heater body | Aluminium |
| Mounting | Screw fixing |

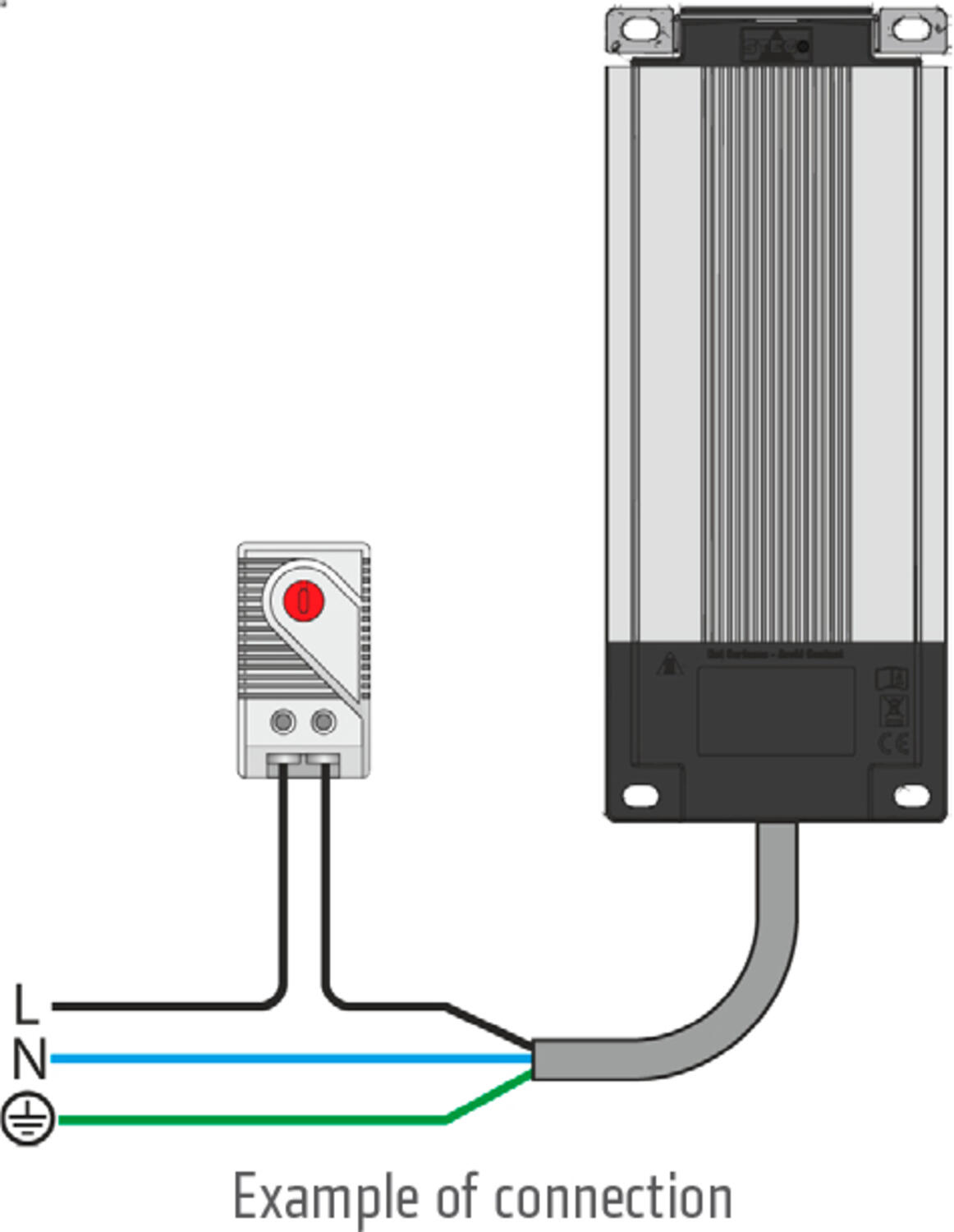

| Connection type | silicone cable, 3 x 0.75mm², length 1m |

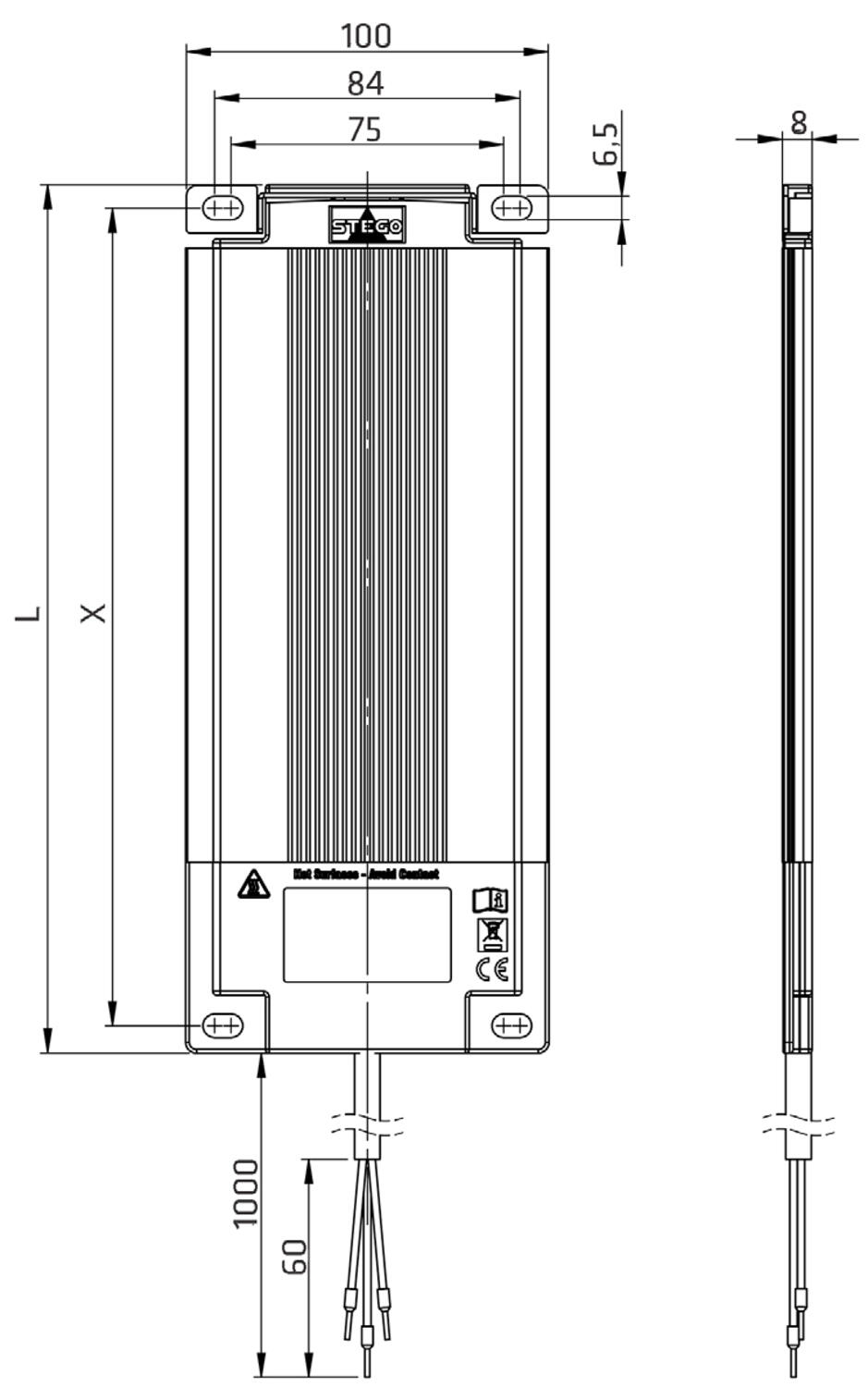

Dimensions |
|
| Height | 239 mm |
| Width | 100 mm |
| Depth | 8 mm |
| Weight | 0.4 kg |
| Cable length | 1000 mm |
Safety & Approvals |
|
|---|---|
| Protection class | I (earthed) |
| IP class | IP20 |
| Approvals | CE, RoHS |
| Approvals pending | VDE |
Rated Operating Conditions |
|
| Operational temperature | -40°C ... +60°C |
| Storage temperature | -40°C ... +85°C |
| Operating humidity | < 90% RH |
| Humidity storage | <90% RH |
Downloads
Product description
The CP 061 flat heater is designed for use within enclosures with electrical components to evenly distribute temperature. At only 8mm deep, due to its ultra-thin design, this heater is suitable for high density applications where standard enclosure heaters are too big.
For use as a contact heater the CP 061 offers thermo conductive contact to components or enclosure walls that need to be heated.
Alternatively, this flat heater can be used as a convection heater to warm the ambient air within an enclosure.
A specially designed mounting system allows for expansion of the heater body as a result of heating-up during operation. The CP 061 is designed for continuous operation.
