STEGO

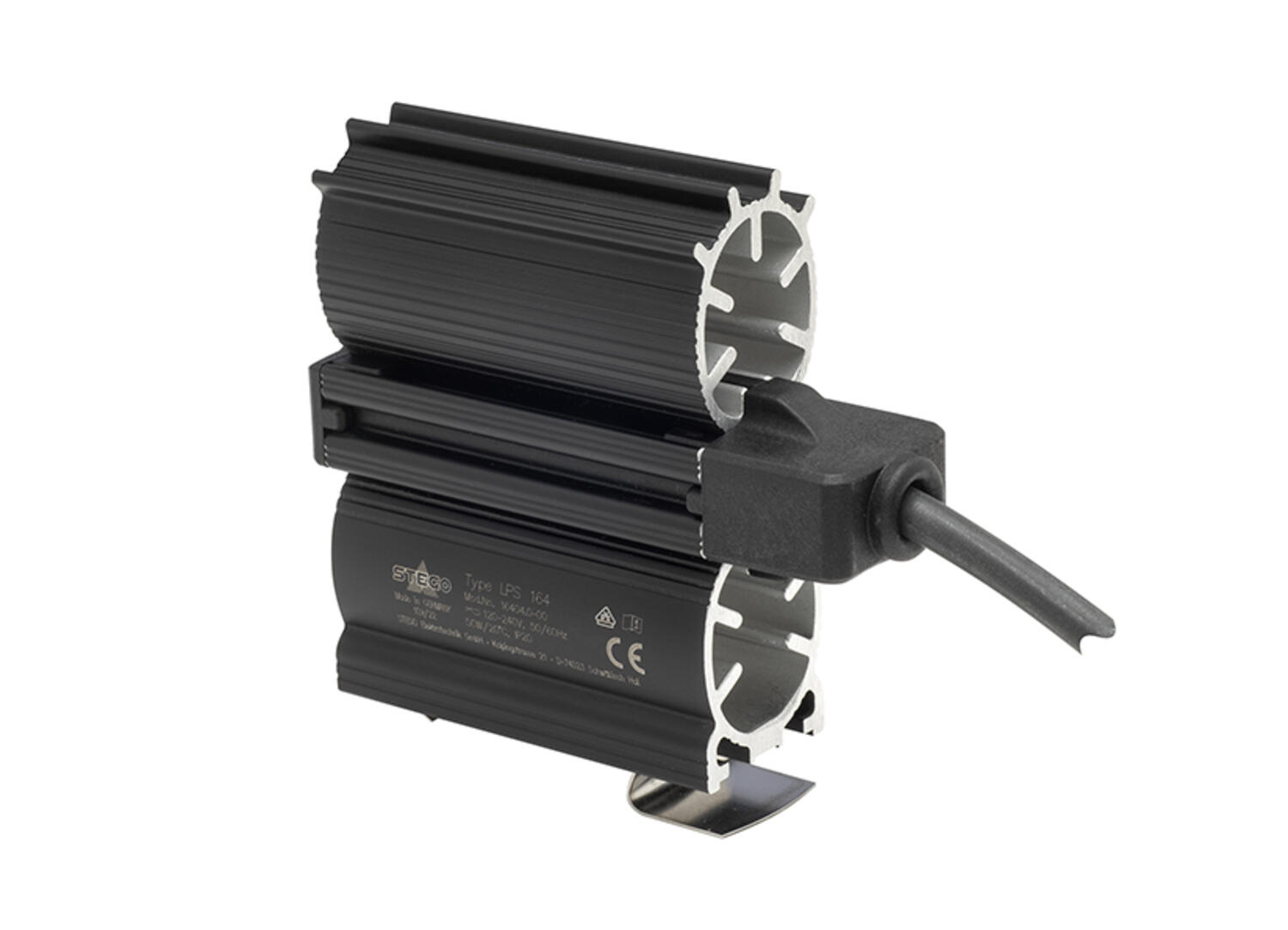

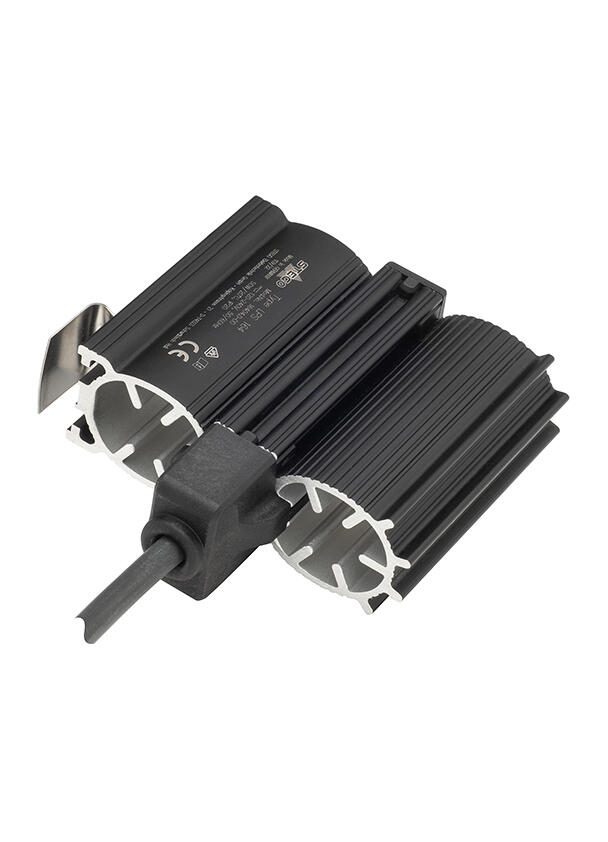

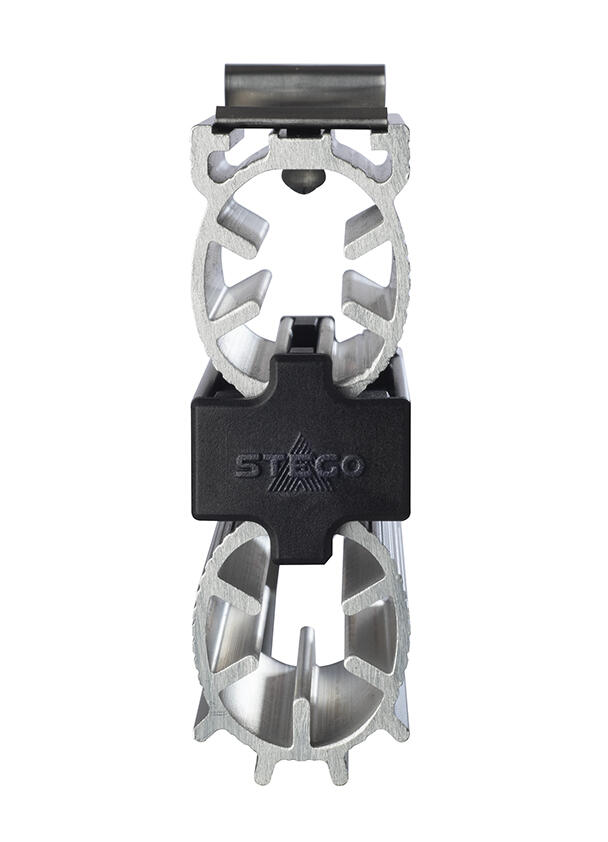

Compact Slim line PTC loop heater designed for continuous operation. Â The new loop design increases the efficiency of the chimney heating effect and has enabled the width to be reduced, saving space in the enclosures
Â
General Data |
|
---|---|
Heat output | 10 W |
Nominal voltage | 120-240 V AC/DC |
Heater body | Anodized aluminum |
Mounting | DIN-rail 35mm |
Connection type | 3 pressure clamps for stranded wire 0.5-1.5mm² and rigid wire 0.5- 2.5mm² |
Heat source | Self-regulating PTC-element |
Starting current max | 2 A |
Recommended fuse (slow blow) | 4 A |
Dimensions |
|
Height | 60 mm |
Width | 25 mm |
Depth | 76 mm |
Weight | 0.2 kg |
Safety & Approvals |
|
---|---|
Protection class | I (earthed) |
IP class | IP20 |
Approvals | RoHS 3, CE, UKCA, cRUus, EAC, VDE |
Rated Operating Conditions |
|
Operational temperature | -45°C ... +70°C |
Storage temperature | -45°C ... +70°C |
Operating humidity | <90% RH |
Humidity storage | <90% RH |
Voltage min | 110V |
Voltage max | 265V |
Housing | Anodized aluminium |
Compact Slim line PTC loop heater designed for continuous operation. Â The new loop design increases the efficiency of the chimney heating effect and has enabled the width to be reduced, saving space in the enclosures
Â
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
Optimise your production line with encoders, inclinometers, displays and slip rings
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Heat output | Starting current max | Recommended fuse (slow blow) | Approvals | Price | ||
---|---|---|---|---|---|---|---|
![]()
LP 164, 10W Slim line loop heater, 110V-265V ac/dc, VDE approved
Art:
16400.0-00
Copied
|
10 W
|
2 A
|
4 A
|
RoHS 3, CE, UKCA, cRUus, EAC, VDE
|
| ||
![]()
LP 164, 20W Slim line loop heater, 110V-265V ac/dc, VDE approved
Art:
16401.0-00
Copied
|
20 W
|
2 A
|
4 A
|
RoHS 3, CE, UKCA, cRUus, EAC, VDE
|
| ||
![]()
LP 164, 30W Slim line loop heater, 110V-265V ac/dc, VDE approved
Art:
16402.0-00
Copied
|
30 W
|
2 A
|
4 A
|
RoHS 3, CE, UKCA, cRUus, EAC, VDE
|
| ||
![]()
LP 164, 40W Slim line loop heater, 110V-265V ac/dc, VDE approved
Art:
16403.0-00
Copied
|
40 W
|
4 A
|
6 A
|
RoHS 3, CE, UKCA, cRUus, EAC, VDE
|
| ||
![]()
LP 164, 50W Slim line loop heater, 110V-265V ac/dc, VDE approved
Art:
16404.0-00
Copied
|
50 W
|
4 A
|
6 A
|
RoHS 3, CE, UKCA, cRUus, EAC, VDE
|
| ||
![]()
LP 164, 10W Slim line loop heater, 110V-265V ac/dc, UL approved
Art:
16400.9-00
Copied
|
10 W
|
2 A
|
4 A
|
RoHS 3, CE, UKCA, cRUus, EAC, UL E234324
|
| ||
![]()
LP 164, 20W Slim line loop heater, 110V-265V ac/dc, UL approved
Art:
16401.9-00
Copied
|
20 W
|
2 A
|
4 A
|
RoHS 3, CE, UKCA, cRUus, EAC, UL E234324
|
| ||
![]()
LP 164, 30W Slim line loop heater, 110V-265V ac/dc, UL approved
Art:
16402.9-00
Copied
|
30 W
|
2 A
|
4 A
|
RoHS 3, CE, UKCA, cRUus, EAC, UL E234324
|
| ||
![]()
LP 164, 40W Slim line loop heater, 110V-265V ac/dc, UL approved
Art:
16403.9-00
Copied
|
40 W
|
4 A
|
6 A
|
RoHS 3, CE, UKCA, cRUus, EAC, UL E234324
|
| ||
![]()
LP 164, 50W Slim line loop heater, 110V-265V ac/dc, UL approved
Art:
16404.9-00
Copied
|
50 W
|
4 A
|
6 A
|
RoHS 3, CE, UKCA, cRUus, EAC, UL E234324
|
|
Select a variant in the list
