STEGO

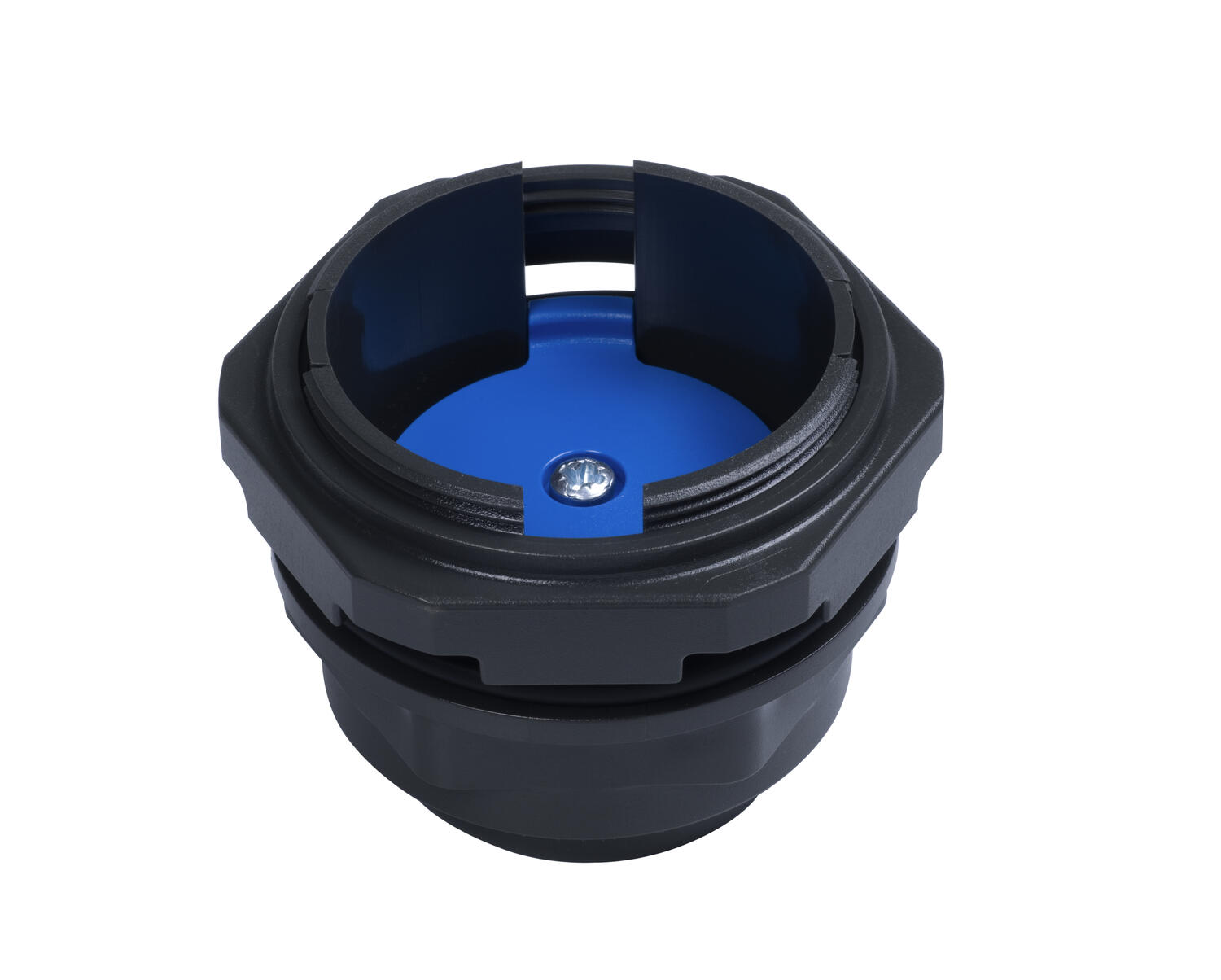

Drain valve
DD 084

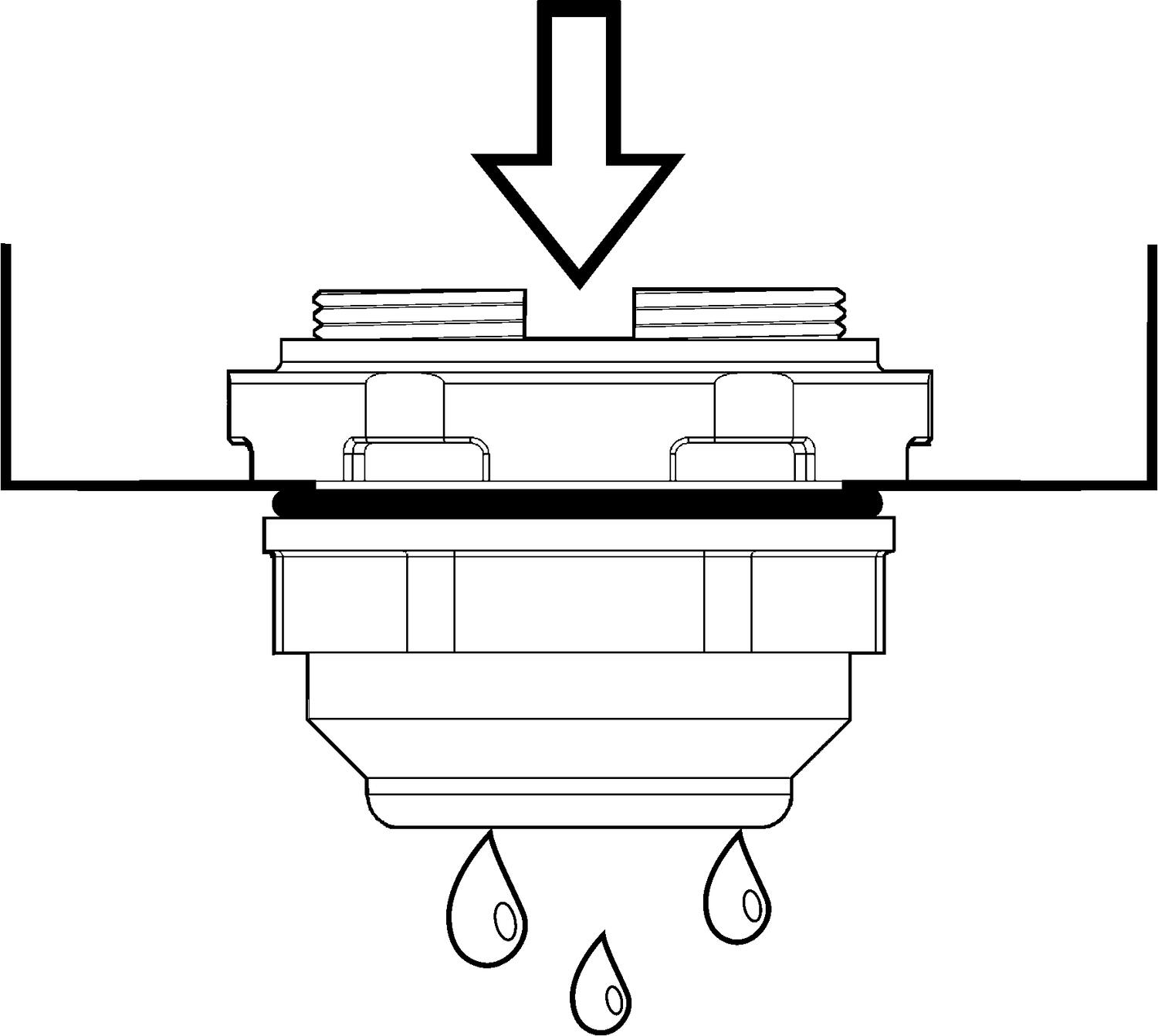

Condensation occurs in enclosures with high enclosure class when changing temperature. The use of a drain valve DD084 enables condensation to be removed without losing the maximum enclosure class.
The membrane structure prevents splashing of water from outside into the enclosure.
- High enclosure class
- Good drainage capacity
- quick Mount
- Robust
- Weather and UV resistant
Selected variant
Technical data
General Data |
|
|---|---|
| Flow of water at 5mm | 200 ml/h |
| Mounting | M50 counternut |

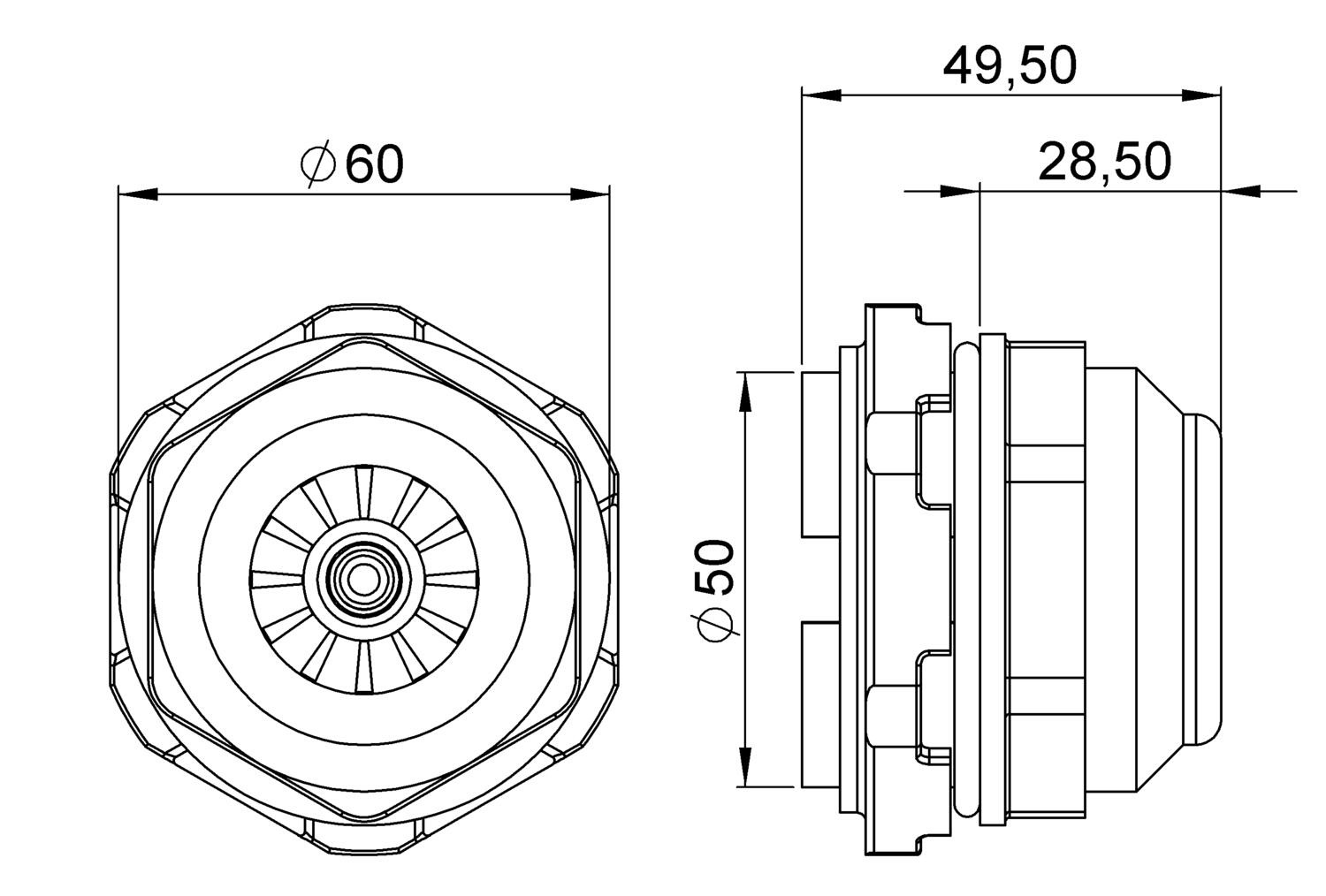

Dimensions |
|
| Height | 49.5 mm |
| Behind panel depth | 17.5 mm |
| Diameter | 60 mm |
| Weight | 0.06 kg |
Material |
|
| Colour | Grey |
| Degree of thickness | 0,5 - 5,5 mm |
| Sealing gasket | NBR |
*Invisible Heading* |
|
|---|---|
| Weatherization | UL746C (f1) |
Rated Operating Conditions |
|
| Tightening torque nut | 6 |
| Tightening torque max | 6 |
| Operational temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
Safety and Approvals |
|
| Approvals | EAC, RoHS, UV - UL746C (f1) |
| IP class | IP66, IP67, IP69K |
Product description
Condensation occurs in enclosures with high enclosure class when changing temperature. The use of a drain valve DD084 enables condensation to be removed without losing the maximum enclosure class.
The membrane structure prevents splashing of water from outside into the enclosure.
