STEGO

DC Switching module

DCM 010

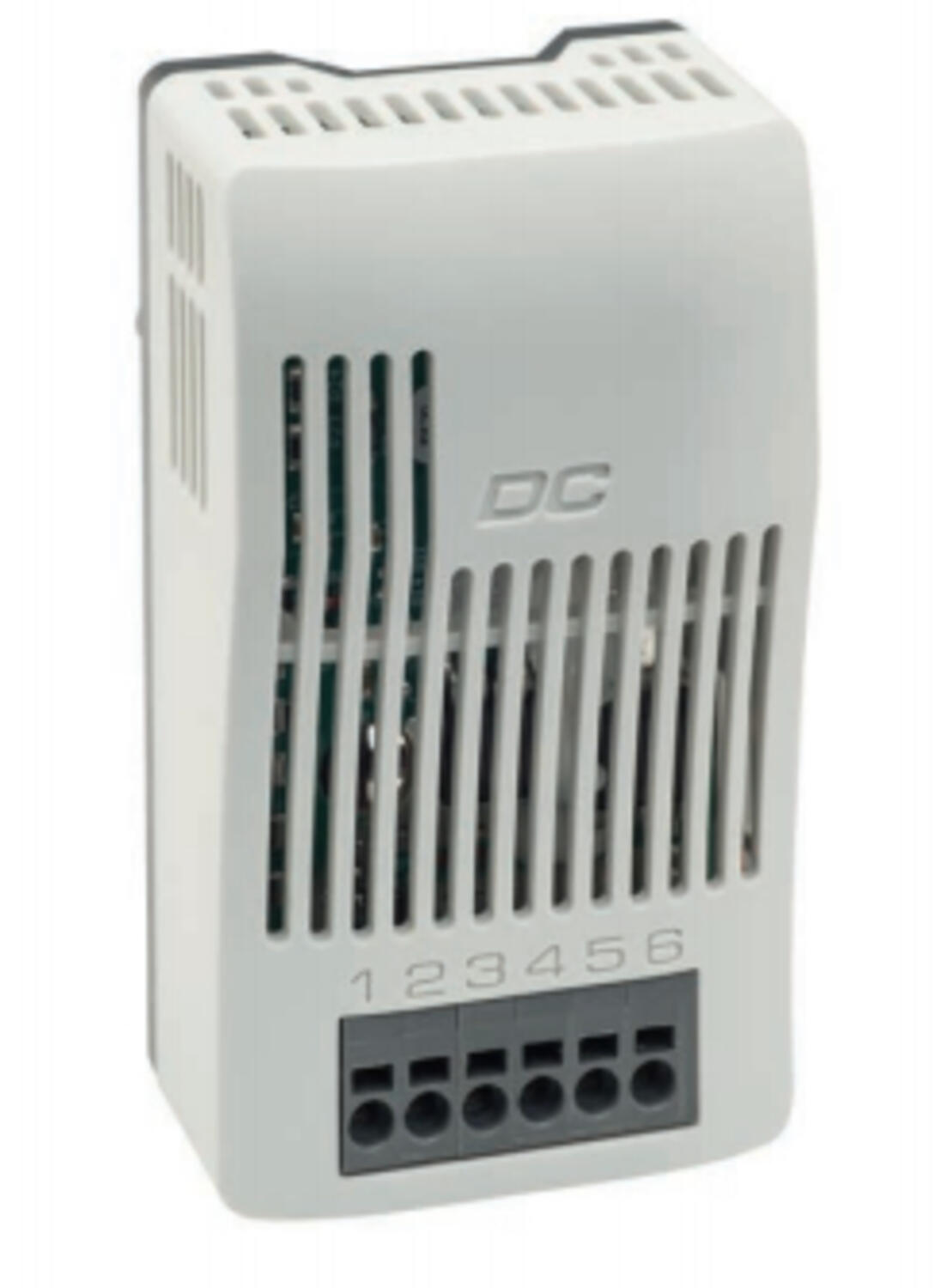

This electronic switching relay is used to switch high DC loads in cabinets with the help of a power MOSFET.   These loads are commonly panel heaters & coolers.

The relay is controlled via an external volt free contact from a thermostat or hygrostat, which is connected to terminals 3 and 4, the load is then connected to terminals 1 and 2, with the power connections are 5 and 6.

NOTE! It must be ensured that the external connector is suitable for changing the signal current (see technical data in the datasheet).



Read more
  • For high DC loads
  • Suitable for many applications
  • Wide DC voltage range
  • Easy connection

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Mounting Clip on, DIN rail
Voltage max 56 V dc
Connection type 6-pole terminal
Voltage min 20 V ac
Breaking capacity DC 15 A

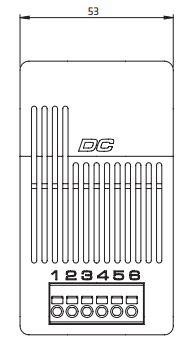

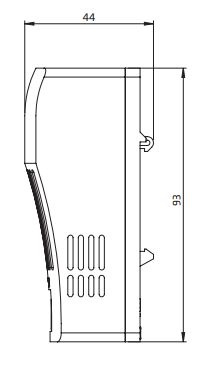

Dimensions

Weight 0,65 kg
Depth 44 mm
Width 53 mm
Height 93 mm

Material

Material of body Plastic

Rated Operating Conditions

Operational temperature -30°C ... +40°C
Storage temperature -40°C ... +80°C
Life span >100,000 cycles
Humidity storage <90% RH
Operating humidity < 90% RH

Safety and Approvals

IP class IP20
Approvals CE, cRUus, EAC, RoHS, UL, VDE

Product description

This electronic switching relay is used to switch high DC loads in cabinets with the help of a power MOSFET.   These loads are commonly panel heaters & coolers.

The relay is controlled via an external volt free contact from a thermostat or hygrostat, which is connected to terminals 3 and 4, the load is then connected to terminals 1 and 2, with the power connections are 5 and 6.

NOTE! It must be ensured that the external connector is suitable for changing the signal current (see technical data in the datasheet).



Accessories

Related

Parts Breaking capacity Operational temperature Price
DC 15 A
-30°C ... +40°C
DC 13 A
-30°C ... +50°C
DC 11 A
-30°C ... +60°C

Selected variant

Select a variant in the list
