STEGO
The STEGOFIX PLUS (SFP 095) is a flexible alternative to a fixed 35mm DIN rail.
Â
It allows for quick and easy installation of small devices or accessories intended for DIN rail mounting. STEGOFIX PLUS is this suitable for devices with a clip width of up to 66mm wide and offers a convenient method of mounting for almost any application.
Â
General Data |
|
---|---|
Mounting | Screw fixing |

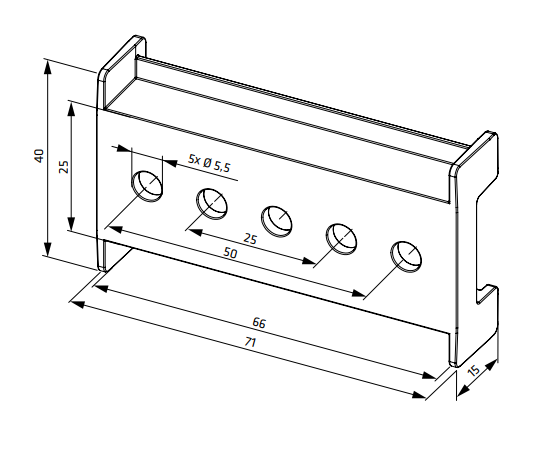

Dimensions |
|
Width | 71 mm |
Height | 40 mm |
Depth | 15 mm |
Weight | 0.013 kg |
Material |
|
Colour | Black |
Material of body | UL94 V-0, Plastic |
Rated Operating Conditions |
|
Operational temperature | -35°C ... +75°C |
Safety and Approvals |
|
Approvals | EAC, RoHS |
The STEGOFIX PLUS (SFP 095) is a flexible alternative to a fixed 35mm DIN rail.
Â
It allows for quick and easy installation of small devices or accessories intended for DIN rail mounting. STEGOFIX PLUS is this suitable for devices with a clip width of up to 66mm wide and offers a convenient method of mounting for almost any application.
Â
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Mounting | Weight | Holding force max. | Price | ||
---|---|---|---|---|---|---|
![]()
SFP 095 Screw mount (pack of 5 pcs)
Art:
09550.0-05
Copied
|
Screw fixing
|
0.013 kg
|
|
| ||
![]()

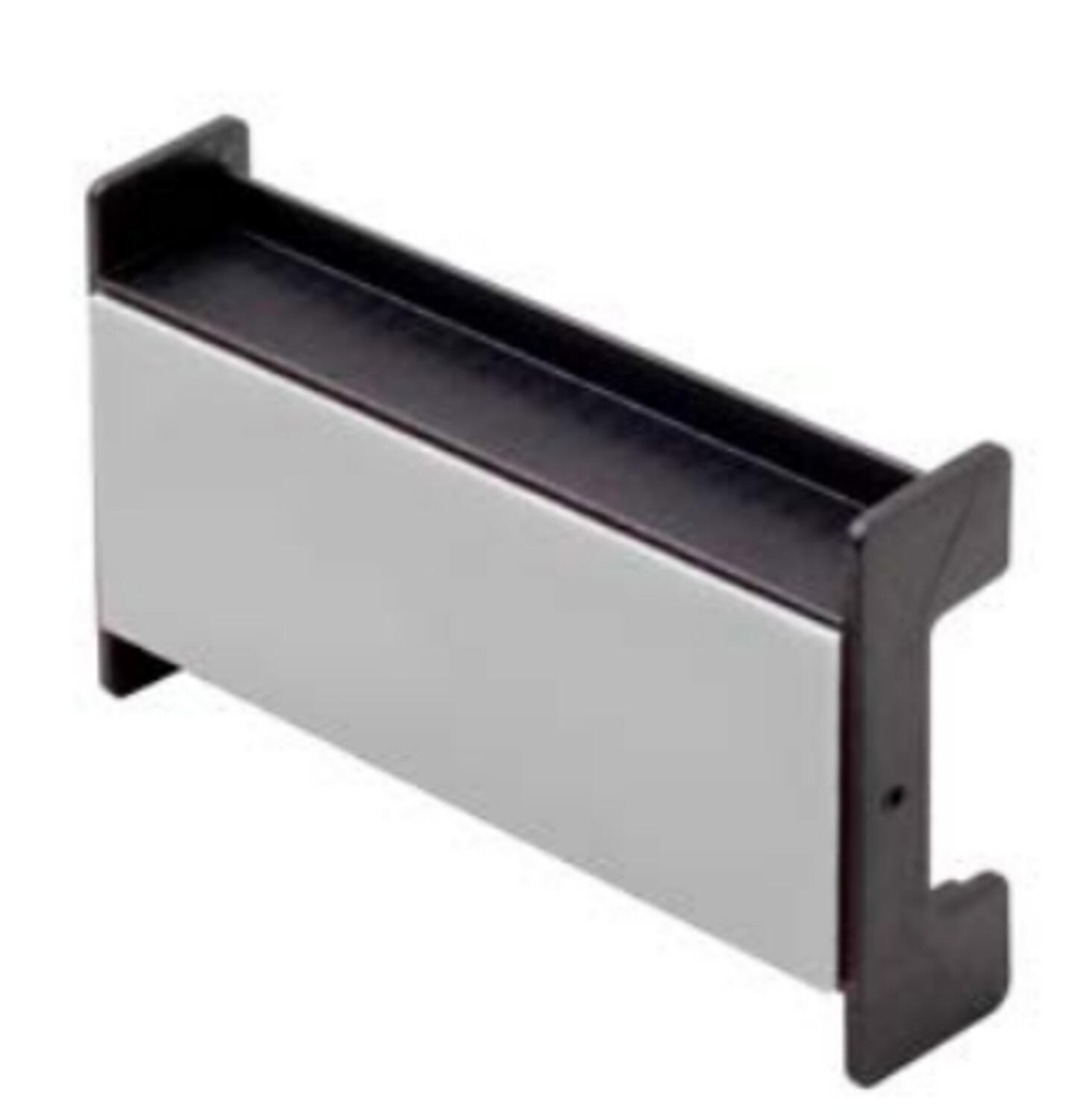

SFP 095 Self-adhesive tape mount (Pack of 5pcs), Adhesive surface 65 x 25mm
Art:
09550.1-05
Copied
|
Stick on
|
0.014 kg
|
70 N
|
| ||
![]()

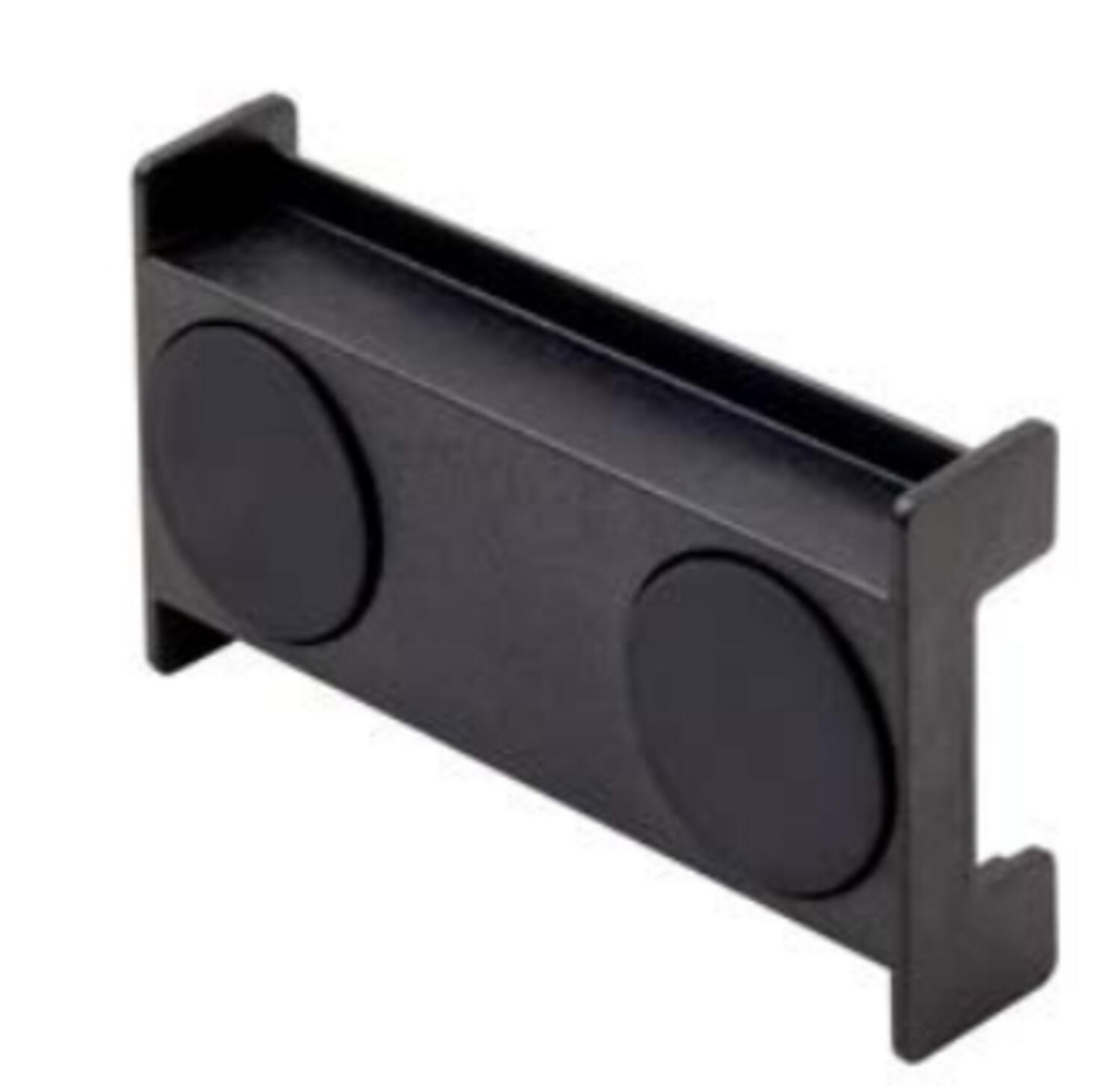

SFP 095 Magnetic mount (Pack of 5pcs), 2 x rubberised magnets
Art:
09550.2-05
Copied
|
Magnetic mount
|
0.029 kg
|
30 N
|
|
Select a variant in the list
