STEGO

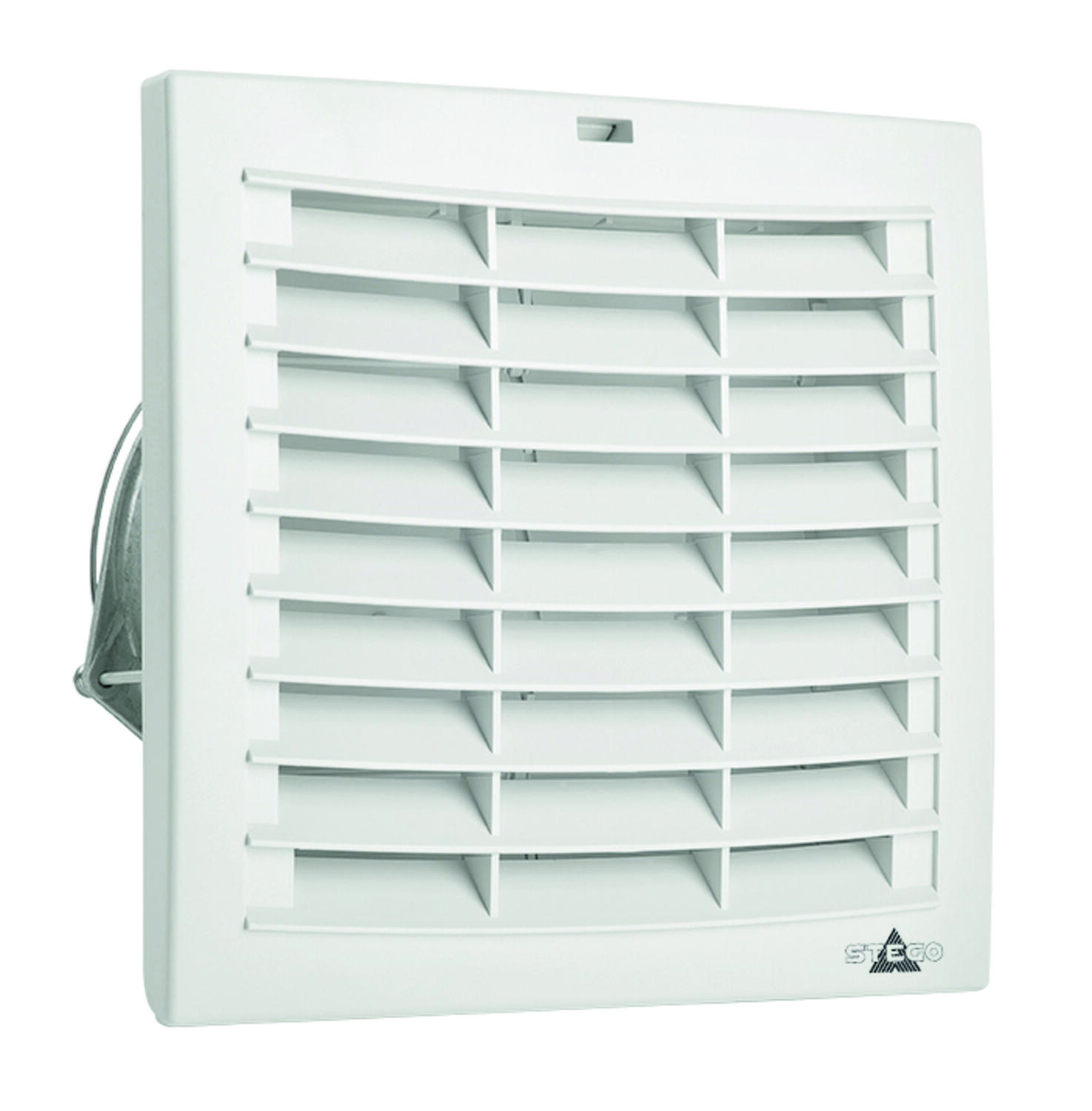

Filter fans are used to provide "cooling" by forced air-circulation in enclosures and cabinets containing electrical/electronic and other components. The interior temperature of an enclosure can be reduced by drawing cooler, filtered outside air into the enclosure and expelling hot inside air. The resulting airflow prevents formation of localised hot pockets and protects electronic components from overheating.
Â
Â
The Filter Fan Plus series uses a new air-flap technology on the air outlet side, thereby reaching an unparalleled high degree of airflow. A unique ratchet mechanism is used for easy installation. It provides safe and secure mounting while guaranteeing a tight seal.
Â
Depending on the requirements there are two optional systems available – the FPI or the FPO system (FPI = "in", FPO = "out").
Â

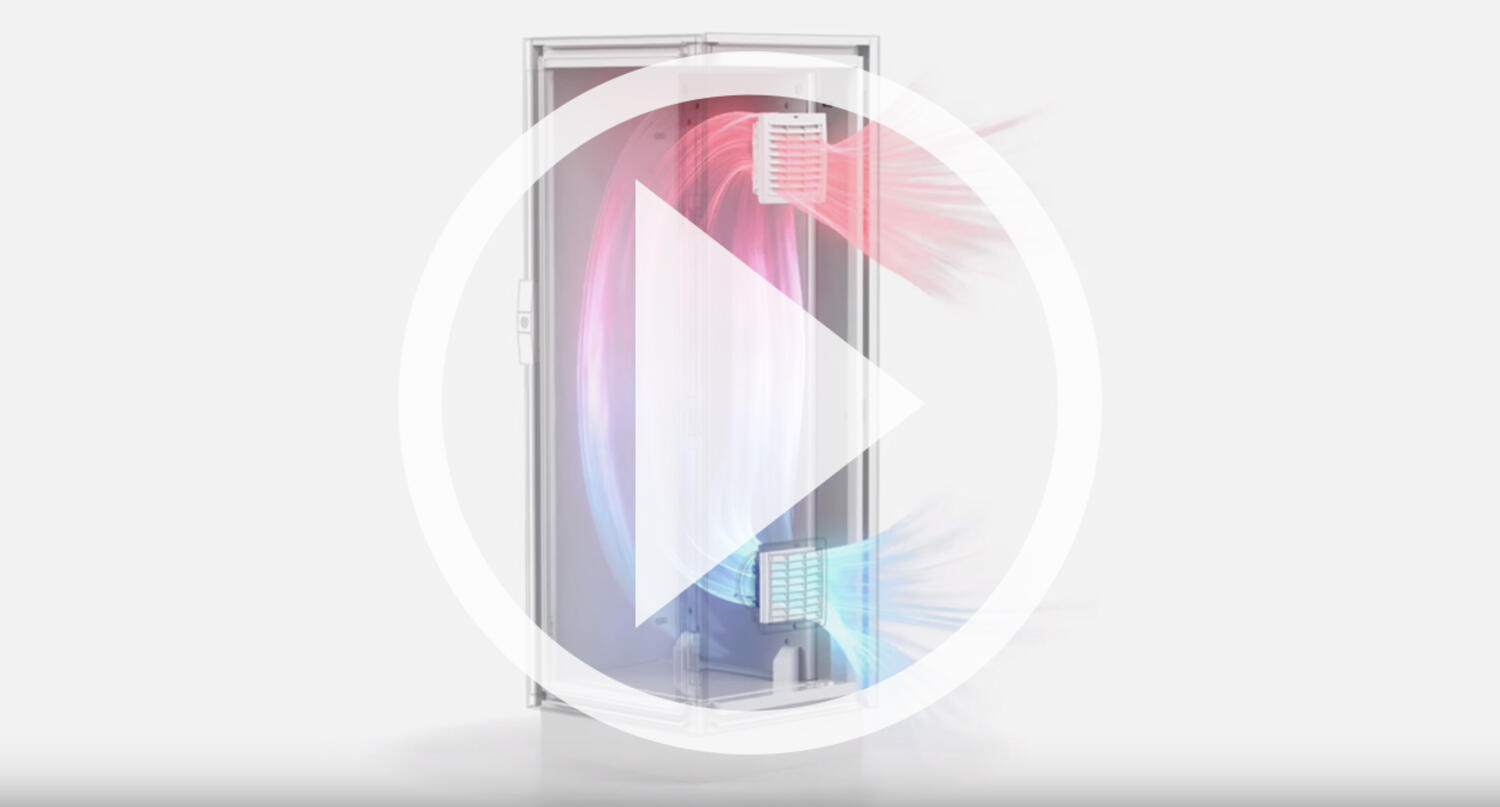

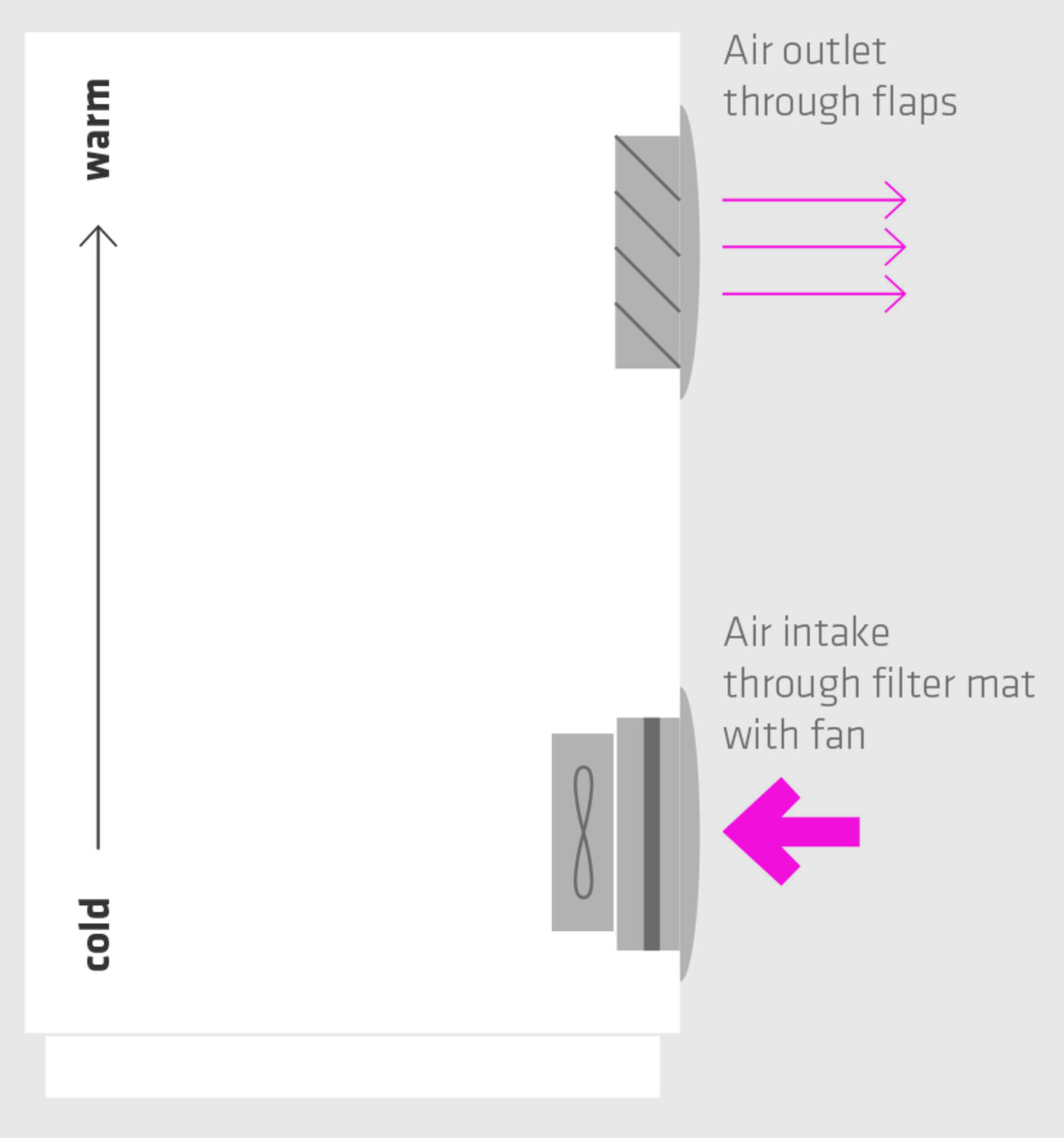

The FPI system is the more commonly known installation system, where a filter fan located in the lower part of the enclosure draws cleaner, cooler air into the enclosure (airflow direction "In"). This system consists of a filter fan and exhaust filter with air flaps.
Â
On opposite, with the newer FPO system, the filter fan will be located in the upper area of the enclosure to draw warmer air out of the enclosure (airflow direction "Out").
The FPO system consists of an intake filter and exhaust filter fan with air flaps.
Â
Â
The Filter Fan Plus series has been designed for indoor use. For added outdoor applications a protective hood is available
Â
Â

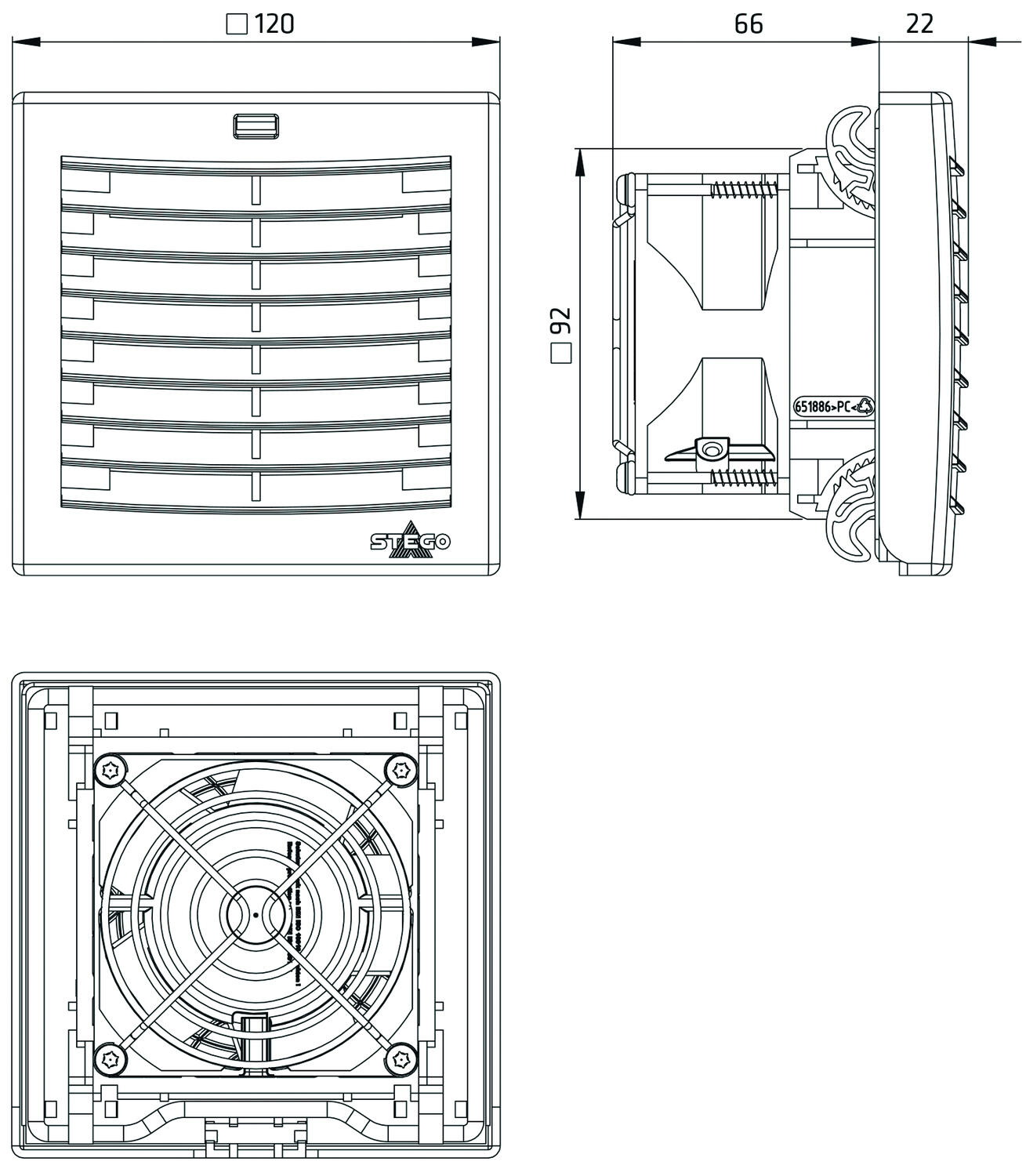

General Data |
|
|---|---|
| Air volume free blowing with G3 filter | 13 m³/h |
| Number of fans | 1 |
| Sound level | 39 dB |
| Air capacity | 19 m³/h |
| Air volume free blowing | 19 m³/h |
Dimensions |
|
| Weight | 0,6 kg |
| Depth | 88 mm |
| Hole size | 92x92 mm |
| Behind panel depth | 66 mm |
| Width | 120 mm |
| Height | 120 mm |
Materials |
|
| Flammability class | UL94-V0 |
| Material of rotor | Steel |
| Material plastic housing | Plastic |
| Colour | Grey RAL 7035 |
*Invisible Heading* |
|
|---|---|
| Materials fan | Aluminium |
| Filter grade | 84 % |
Rated Operating Conditions |
|
| Life span | 50000 h |
| Operational temperature | -40°C ... +70°C |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
| Storage temperature | -40°C ... +70°C |
| Frequency | 50/60 Hz |
| Power consumption | 12 W |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
Safety and Approvals |
|
| IP class | IP54 |
| Approvals | CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE |
Filter fans are used to provide "cooling" by forced air-circulation in enclosures and cabinets containing electrical/electronic and other components. The interior temperature of an enclosure can be reduced by drawing cooler, filtered outside air into the enclosure and expelling hot inside air. The resulting airflow prevents formation of localised hot pockets and protects electronic components from overheating.
Â
Â
The Filter Fan Plus series uses a new air-flap technology on the air outlet side, thereby reaching an unparalleled high degree of airflow. A unique ratchet mechanism is used for easy installation. It provides safe and secure mounting while guaranteeing a tight seal.
Â
Depending on the requirements there are two optional systems available – the FPI or the FPO system (FPI = "in", FPO = "out").
Â
The FPI system is the more commonly known installation system, where a filter fan located in the lower part of the enclosure draws cleaner, cooler air into the enclosure (airflow direction "In"). This system consists of a filter fan and exhaust filter with air flaps.
Â
On opposite, with the newer FPO system, the filter fan will be located in the upper area of the enclosure to draw warmer air out of the enclosure (airflow direction "Out").
The FPO system consists of an intake filter and exhaust filter fan with air flaps.
Â
Â
The Filter Fan Plus series has been designed for indoor use. For added outdoor applications a protective hood is available
Â
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Air volume free blowing with G3 filter | Number of fans | Sound level | Air capacity | Air volume free blowing | Weight | Depth | Hole size | Behind panel depth | Width | Height | Flammability class | Material of rotor | Material plastic housing | Colour | Materials fan | Filter grade | Life span | Operational temperature | Voltage max | Voltage min | Storage temperature | Frequency | Power consumption | Humidity storage | Operating humidity | IP class | Approvals | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FPI 018 Fan, 92 x 92 mm, 19m³/h, 230V ac , G3 Mat
Art:
01870.0-30
Copied
|
13 m³/h
|
1
|
39 dB
|
19 m³/h
|
19 m³/h
|
0,6 kg
|
88 mm
|
92x92 mm
|
66 mm
|
120 mm
|
120 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
50000 h
|
-40°C ... +70°C
|
230 V ac
|
230 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
12 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 92 x 92 mm, 23m³/h, 100-120V ac, G3 Mat
Art:
01870.9-30
Copied
|
16 m³/h
|
1
|
43 dB
|
23 m³/h
|
23 m³/h
|
0,6 kg
|
88 mm
|
92x92 mm
|
66 mm
|
120 mm
|
120 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
50000 h
|
-40°C ... +70°C
|
115 V ac
|
115 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
11 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 92 x 92 mm, 23m³/h, 48V dc, G3 Mat
Art:
01870.1-30
Copied
|
17 m³/h
|
1
|
51 dB
|
23 m³/h
|
23 m³/h
|
0,3 kg
|
81 mm
|
92x92 mm
|
59 mm
|
120 mm
|
120 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
70000 h
|
-20°C ... +70°C
|
48 V dc
|
48 V dc
|
-40°C ... +70°C
|
DC
|
2,7 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 92 x 92 mm, 22m³/h, 24V dc, G3 Mat
Art:
01870.2-30
Copied
|
16 m³/h
|
1
|
49 dB
|
22 m³/h
|
22 m³/h
|
0,3 kg
|
81 mm
|
92x92 mm
|
59 mm
|
120 mm
|
120 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
70000 h
|
-20°C ... +70°C
|
24 V dc
|
24 V dc
|
-40°C ... +70°C
|
DC
|
2,7 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||

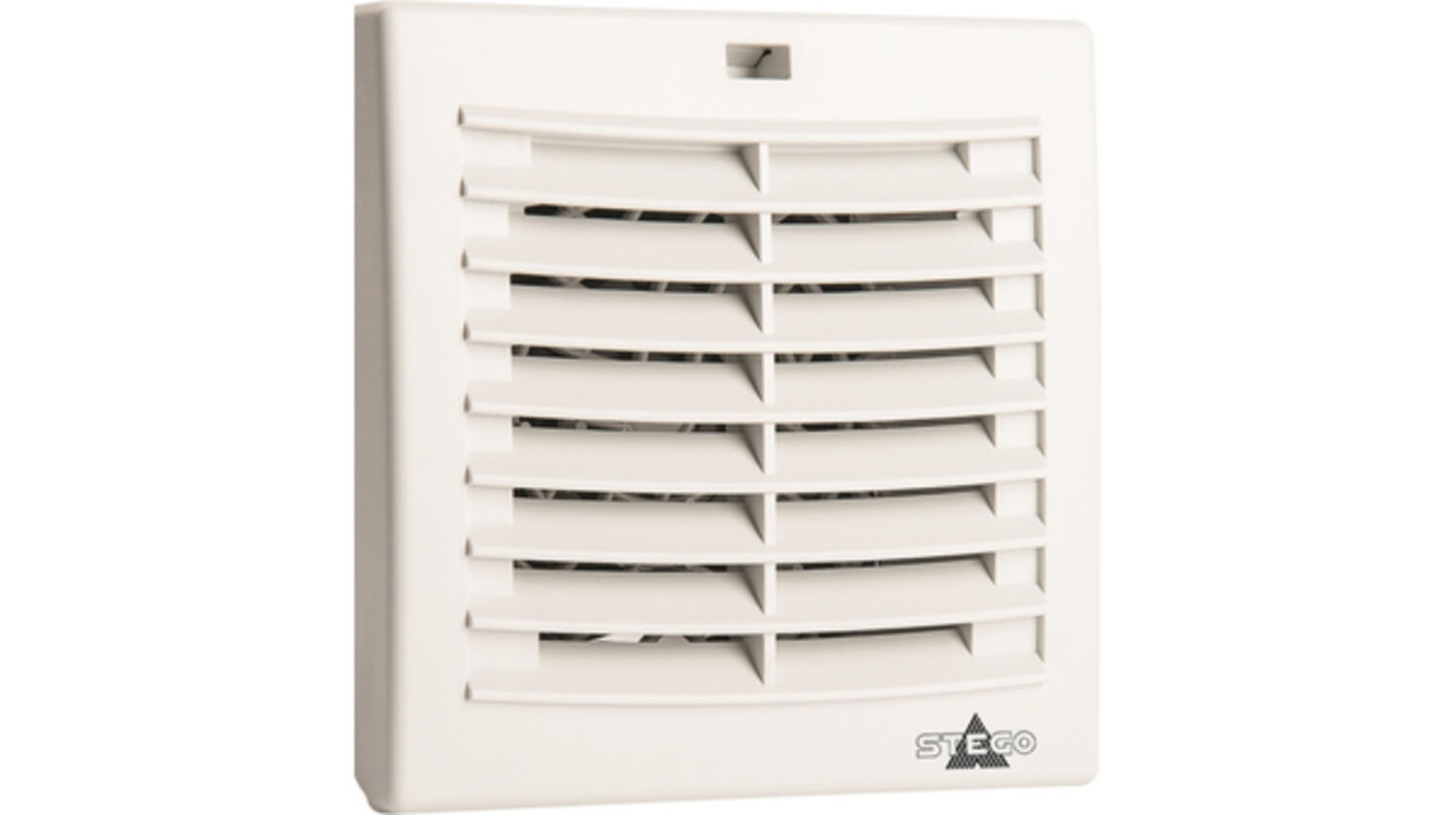

FPI 118 92 x 92 mm, Air-flap exit filter
Art:
11870.0-00
Copied
|
|
|
|
24 m³/h
|
|
0,2 kg
|
51 mm
|
92x92 mm
|
29 mm
|
120 mm
|
120 mm
|
UL94-V0
|
|
Plastic
|
Grey RAL 7035
|
|
|
|
-40°C ... +70°C
|
|
|
-40°C ... +70°C
|
|
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||

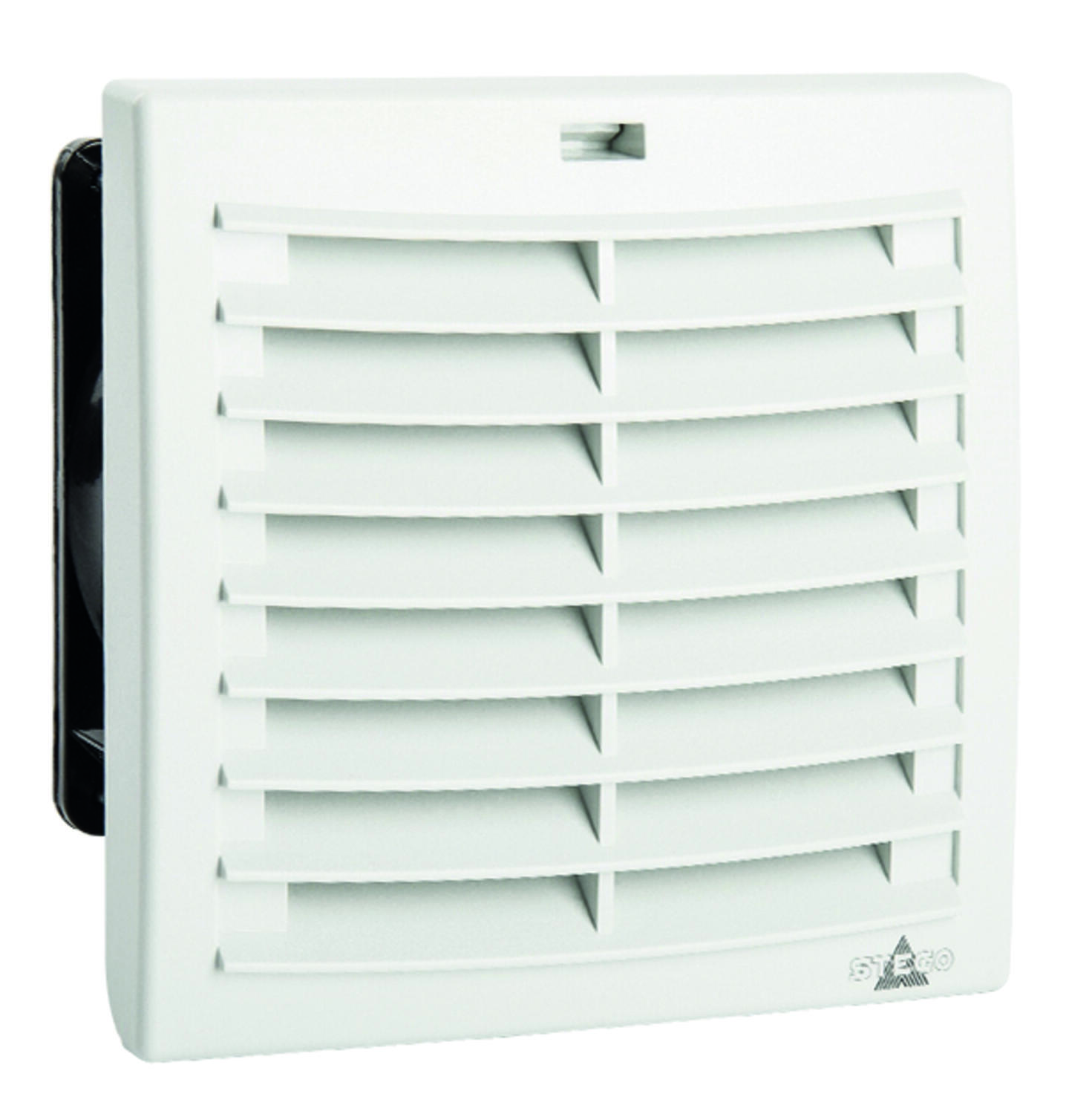

FPI 018 Fan, 124 x 124 mm, 52m³/h, 230V ac, G3 Mat
Art:
01871.0-30
Copied
|
42 m³/h
|
1
|
49 dB
|
52 m³/h
|
52 m³/h
|
0,8 kg
|
91 mm
|
124x124 mm
|
66 mm
|
152 mm
|
152 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
37000 h
|
-40°C ... +70°C
|
230 V ac
|
230 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
19 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 124 x 124 mm, 62m³/h, 110-120V ac, G3 Mat
Art:
01871.9-30
Copied
|
51 m³/h
|
1
|
53 dB
|
62 m³/h
|
62 m³/h
|
0,8 kg
|
91 mm
|
124x124 mm
|
66 mm
|
152 mm
|
152 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
37000 h
|
-40°C ... +70°C
|
115 V ac
|
115 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
18 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 124 x 124 mm, 67m³/h, 48V dc, G3 Mat
Art:
01871.1-30
Copied
|
56 m³/h
|
1
|
52 dB
|
67 m³/h
|
67 m³/h
|
0,5 kg
|
91 mm
|
124x124 mm
|
66 mm
|
152 mm
|
152 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
65000 h
|
-20°C ... +70°C
|
48 V dc
|
48 V dc
|
-40°C ... +70°C
|
DC
|
4,2 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 124 x 124 mm, 66m³/h, 24V dc, G3 Mat
Art:
01871.2-30
Copied
|
56 m³/h
|
1
|
58 dB
|
66 m³/h
|
66 m³/h
|
0,5 kg
|
91 mm
|
124x124 mm
|
66 mm
|
152 mm
|
152 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
65000 h
|
-20°C ... +70°C
|
24 V dc
|
24 V dc
|
-40°C ... +70°C
|
DC
|
4,1 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||

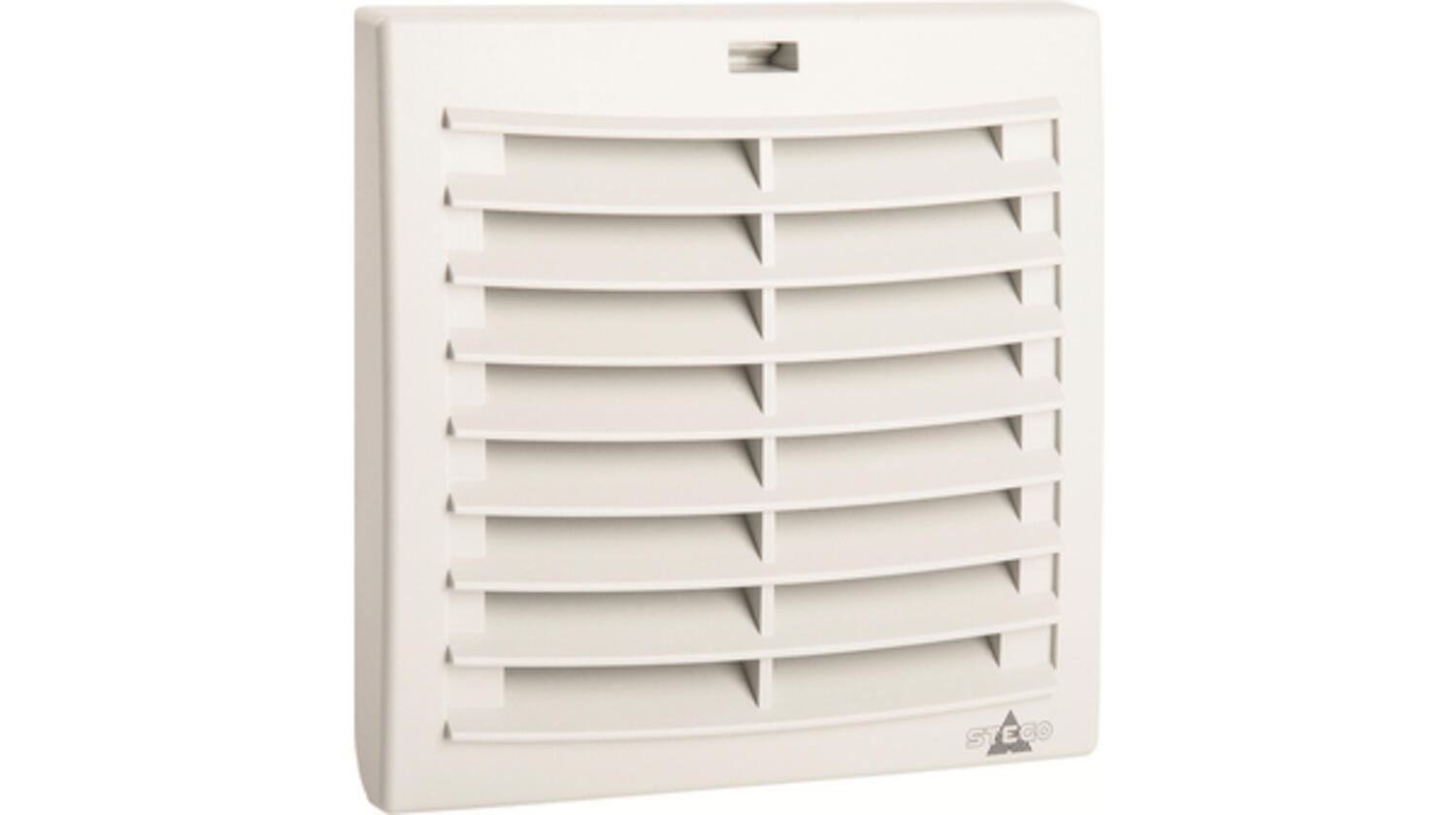

FPI 118 124 x 124 mm, Air-flap exit filter
Art:
11871.0-00
Copied
|
|
|
|
117 m³/h
|
|
0,3 kg
|
60 mm
|
124x124 mm
|
35 mm
|
152 mm
|
152 mm
|
UL94-V0
|
|
Plastic
|
Grey RAL 7035
|
|
|
|
-40°C ... +70°C
|
|
|
-40°C ... +70°C
|
|
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
FPI 018 Fan, 176 x 176 mm, 170m³/h, 230V ac, G3 Mat
Art:
01872.0-30
Copied
|
139 m³/h
|
1
|
55 dB
|
170 m³/h
|
170 m³/h
|
1,6 kg
|
142 mm
|
176x176 mm
|
117 mm
|
215 mm
|
215 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
65000 h
|
-25°C ... +50°C
|
230 V ac
|
230 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
45 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 176 x 176 mm, 204m³/h, 110-120V ac, G3 Mat
Art:
01872.9-30
Copied
|
187 m³/h
|
1
|
58 dB
|
204 m³/h
|
204 m³/h
|
1,6 kg
|
142 mm
|
176x176 mm
|
117 mm
|
215 mm
|
215 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
65000 h
|
-25°C ... +70°C
|
115 V ac
|
115 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
38 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 176 x 176 mm, 170m³/h, 48V dc, G3 Mat
Art:
01872.1-30
Copied
|
147 m³/h
|
1
|
63 dB
|
170 m³/h
|
170 m³/h
|
1,5 kg
|
142 mm
|
176x176 mm
|
117 mm
|
215 mm
|
215 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
80000 h
|
-25°C ... +70°C
|
48 V dc
|
48 V dc
|
-40°C ... +70°C
|
DC
|
12 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 176 x 176 mm, 178m³/h, 24V dc, G3 Mat
Art:
01872.2-30
Copied
|
156 m³/h
|
1
|
63 dB
|
178 m³/h
|
178 m³/h
|
1,5 kg
|
142 mm
|
176x176 mm
|
117 mm
|
215 mm
|
215 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
80000 h
|
-25°C ... +70°C
|
24 V dc
|
24 V dc
|
-40°C ... +70°C
|
DC
|
12 W
|
<90% RH
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||

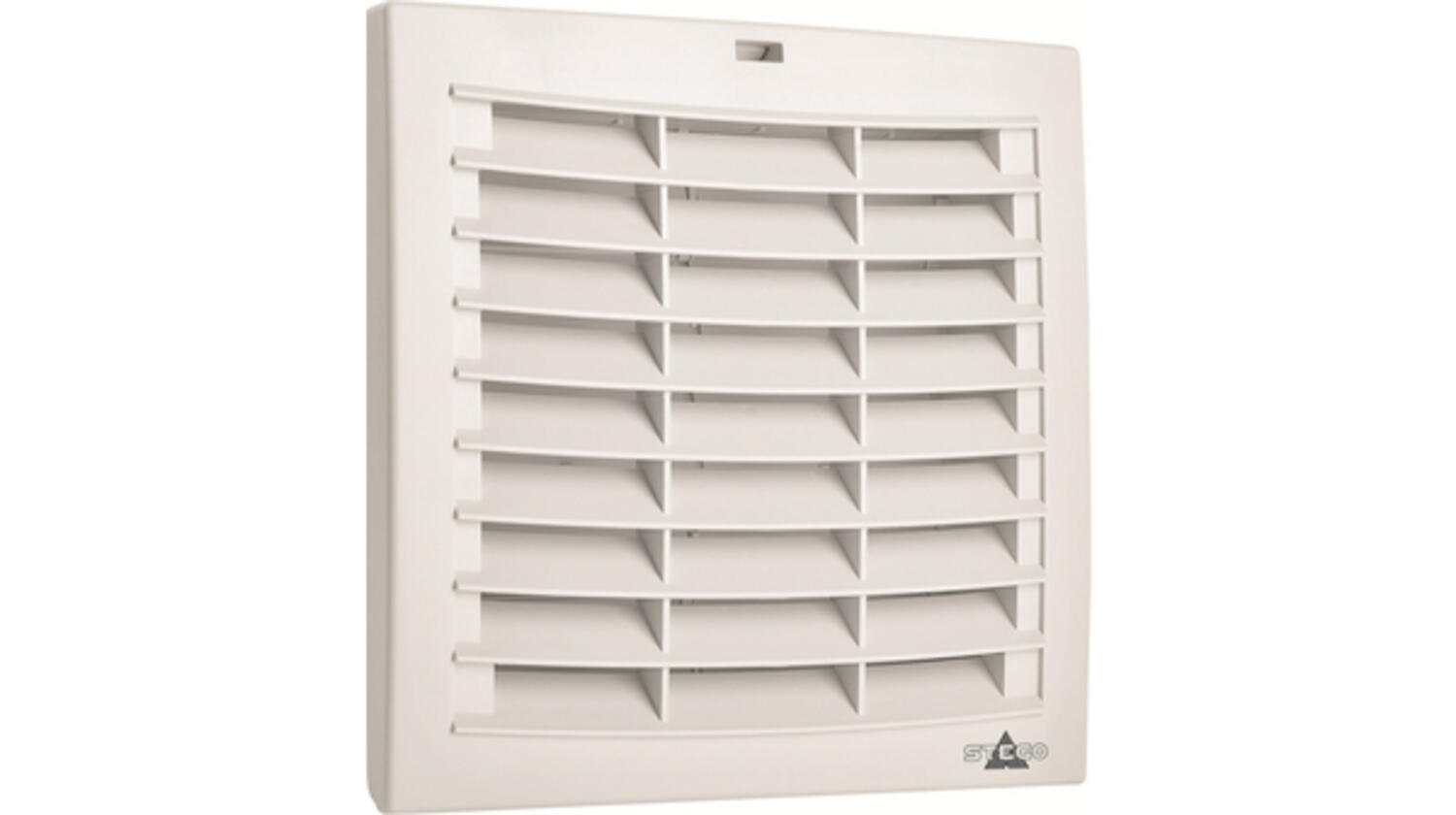

FPI 118 176 x 176 mm, Air-flap exit filter
Art:
11872.0-00
Copied
|
|
|
|
204 m³/h
|
|
0,4 kg
|
68 mm
|
176x176 mm
|
43 mm
|
215 mm
|
215 mm
|
UL94-V0
|
|
Plastic
|
Grey RAL 7035
|
|
|
|
-40°C ... +70°C
|
|
|
-40°C ... +70°C
|
|
|
|
< 90% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||

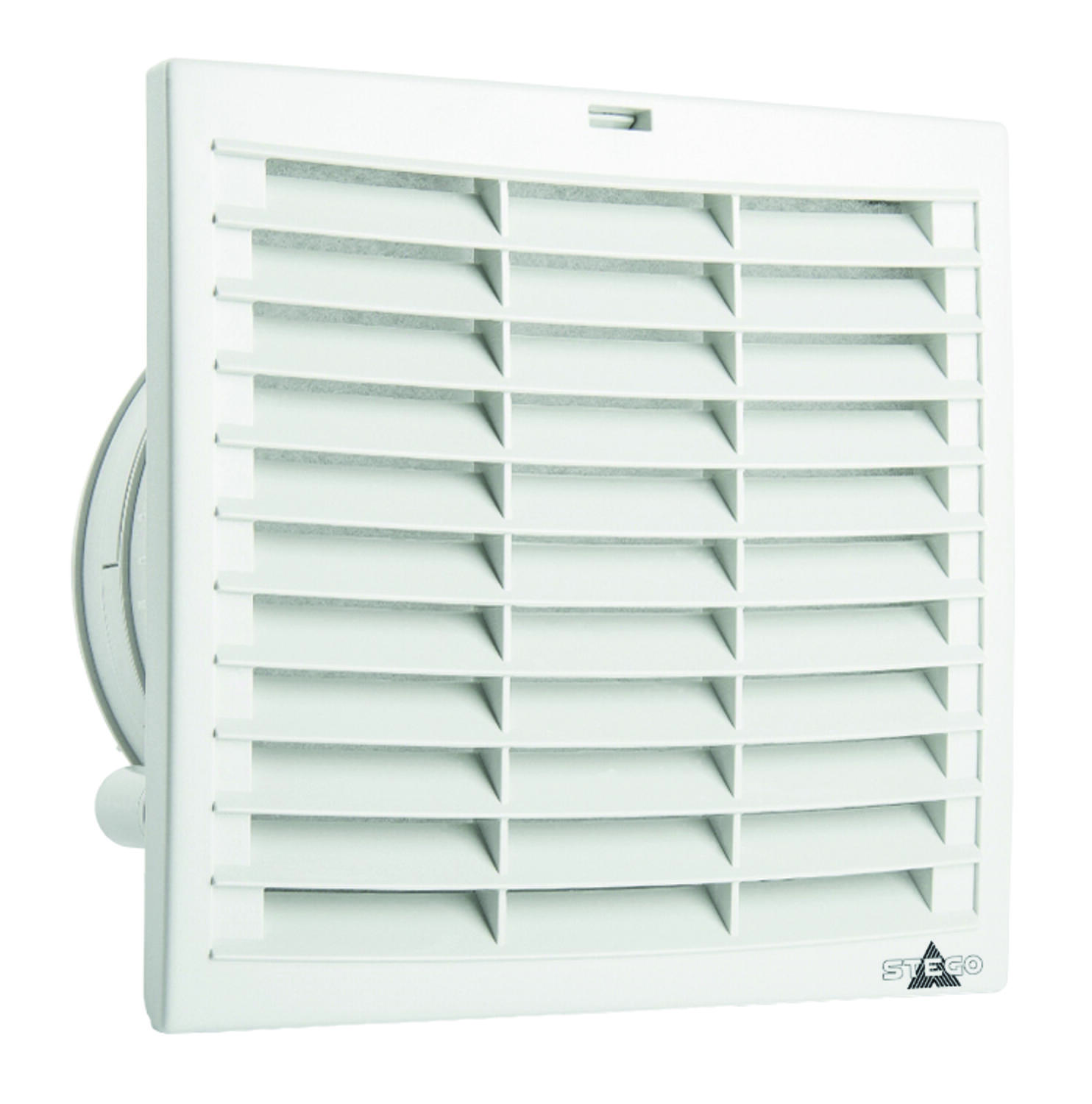

FPI 018 Fan, 223 x 223 mm, 305m³/h, 230V ac, G3 Mat
Art:
01873.0-30
Copied
|
271 m³/h
|
1
|
64 dB
|
305 m³/h
|
305 m³/h
|
2,4 kg
|
173 mm
|
223x223 mm
|
147 mm
|
257 mm
|
257 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
56000 h
|
-25°C ... +65°C
|
230 V ac
|
230 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
64 W
|
<75% RH
|
< 75% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 223 x 223 mm, 332m³/h, 110-120V ac, G3 Mat
Art:
01873.9-30
Copied
|
293 m³/h
|
1
|
67 dB
|
332 m³/h
|
332 m³/h
|
2,4 kg
|
173 mm
|
223x223 mm
|
147 mm
|
257 mm
|
257 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
56000 h
|
-25°C ... +65°C
|
115 V ac
|
115 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
81 W
|
<75% RH
|
< 75% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
FPI 118 223 x 223 mm, Air-flap exit filter
Art:
11873.0-00
Copied
|
|
|
|
332 m³/h
|
|
0,6 kg
|
72 mm
|
223x223 mm
|
46 mm
|
257 mm
|
257 mm
|
UL94-V0
|
|
Plastic
|
Grey RAL 7035
|
|
|
|
-25°C ... +65°C
|
|
|
-40°C ... +70°C
|
|
|
<75% RH
|
< 75% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||

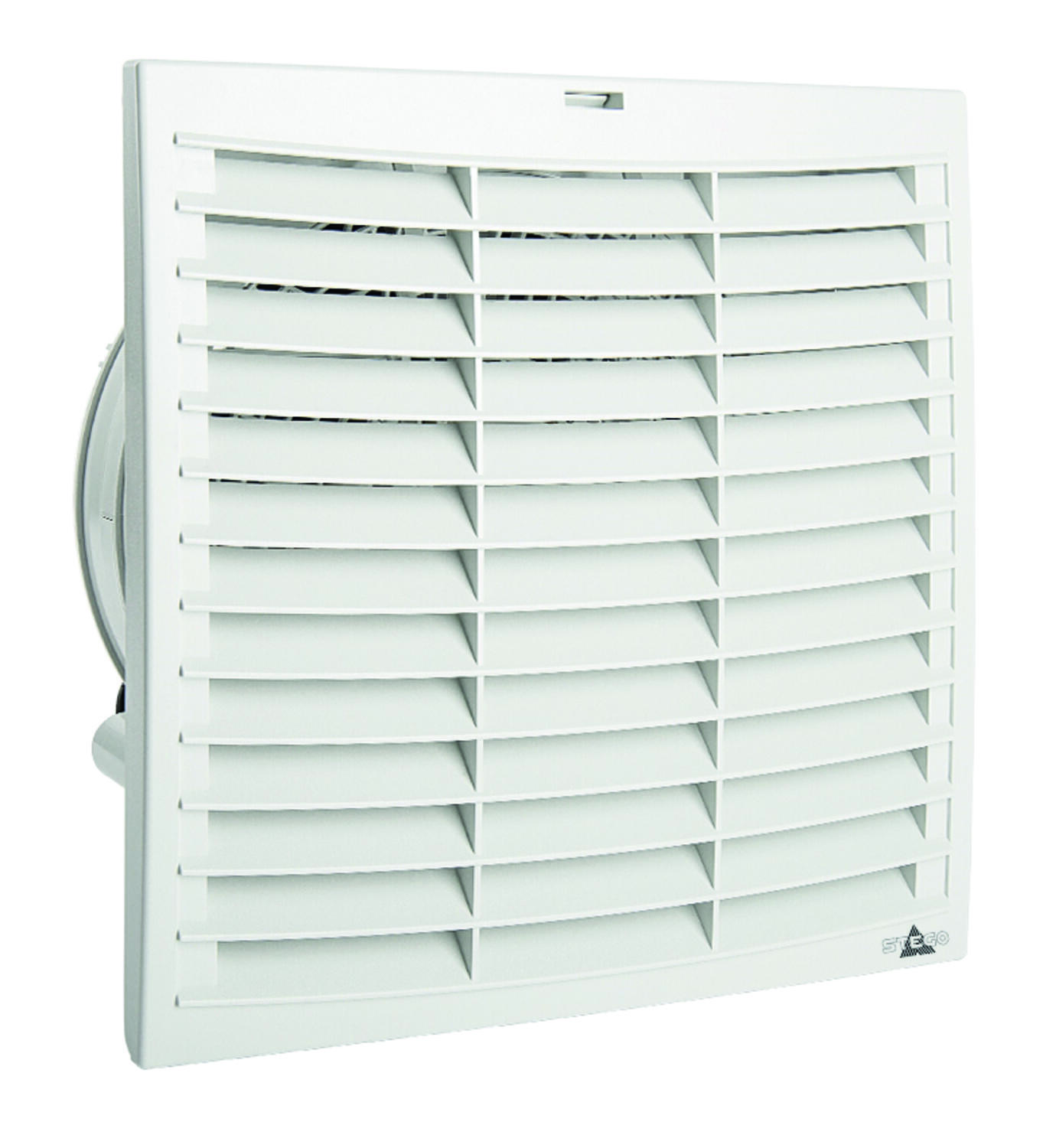

FPI 018 Fan, 291 x 291 mm, 433m³/h, 230V ac, G3 Mat
Art:
01874.0-30
Copied
|
373 m³/h
|
1
|
62 dB
|
433 m³/h
|
433 m³/h
|
3,1 kg
|
189 mm
|
291x291 mm
|
160 mm
|
322 mm
|
322 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
76000 h
|
-25°C ... +55°C
|
230 V ac
|
230 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
95 W
|
<75% RH
|
< 75% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||
|
FPI 018 Fan, 291 x 291 mm, 394m³/h, 110-120V ac, G3 Mat
Art:
01874.9-30
Copied
|
339 m³/h
|
1
|
61 dB
|
394 m³/h
|
394 m³/h
|
3,1 kg
|
189 mm
|
291x291 mm
|
160 mm
|
322 mm
|
322 mm
|
UL94-V0
|
Steel
|
Plastic
|
Grey RAL 7035
|
Aluminium
|
84 %
|
76000 h
|
-25°C ... +35°C
|
115 V ac
|
115 V ac
|
-40°C ... +70°C
|
50/60 Hz
|
90 W
|
<75% RH
|
< 75% RH
|
IP54
|
CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE
|
| ||

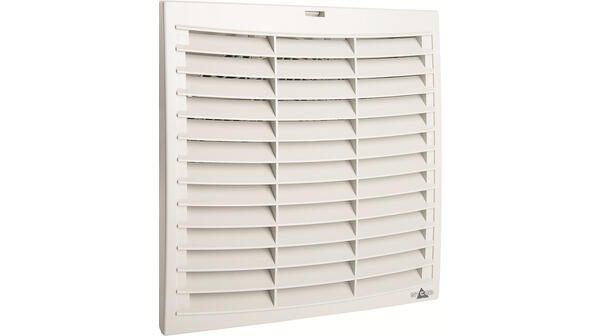

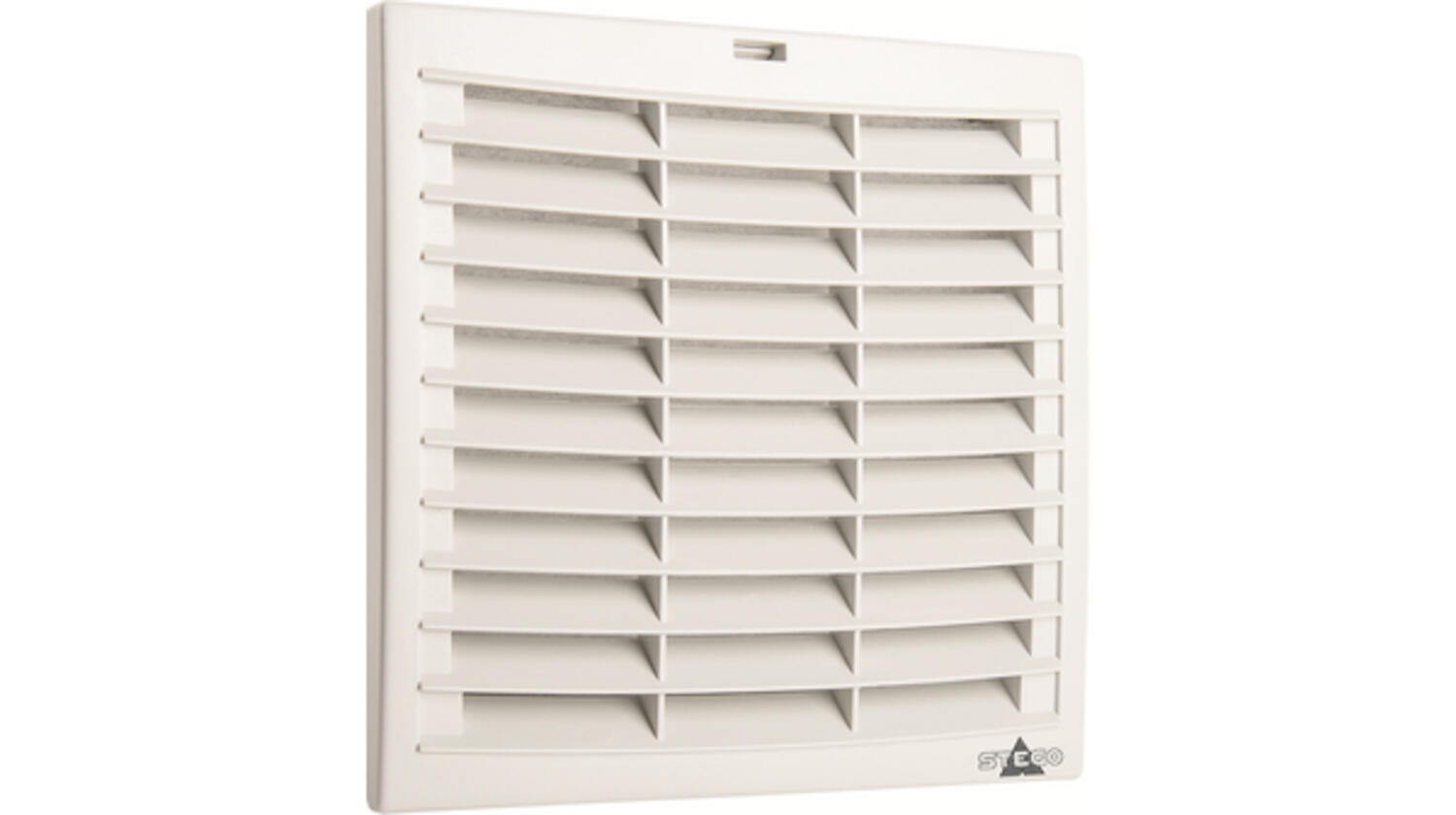

FPI 118 291 x 291 mm, Air-flap exit filter
Art:
11874.0-00
Copied
|
|
|
|
|
|
|
|
|
|
291 mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select a variant in the list
