STEGO
Stego have developed the hose-proof hood to increase the IP rating of the fan range to IP56. The hood protects against water projected by a hoses and extreme climatic changes when used outdoors or in industrial applications with harsh environmental conditions.

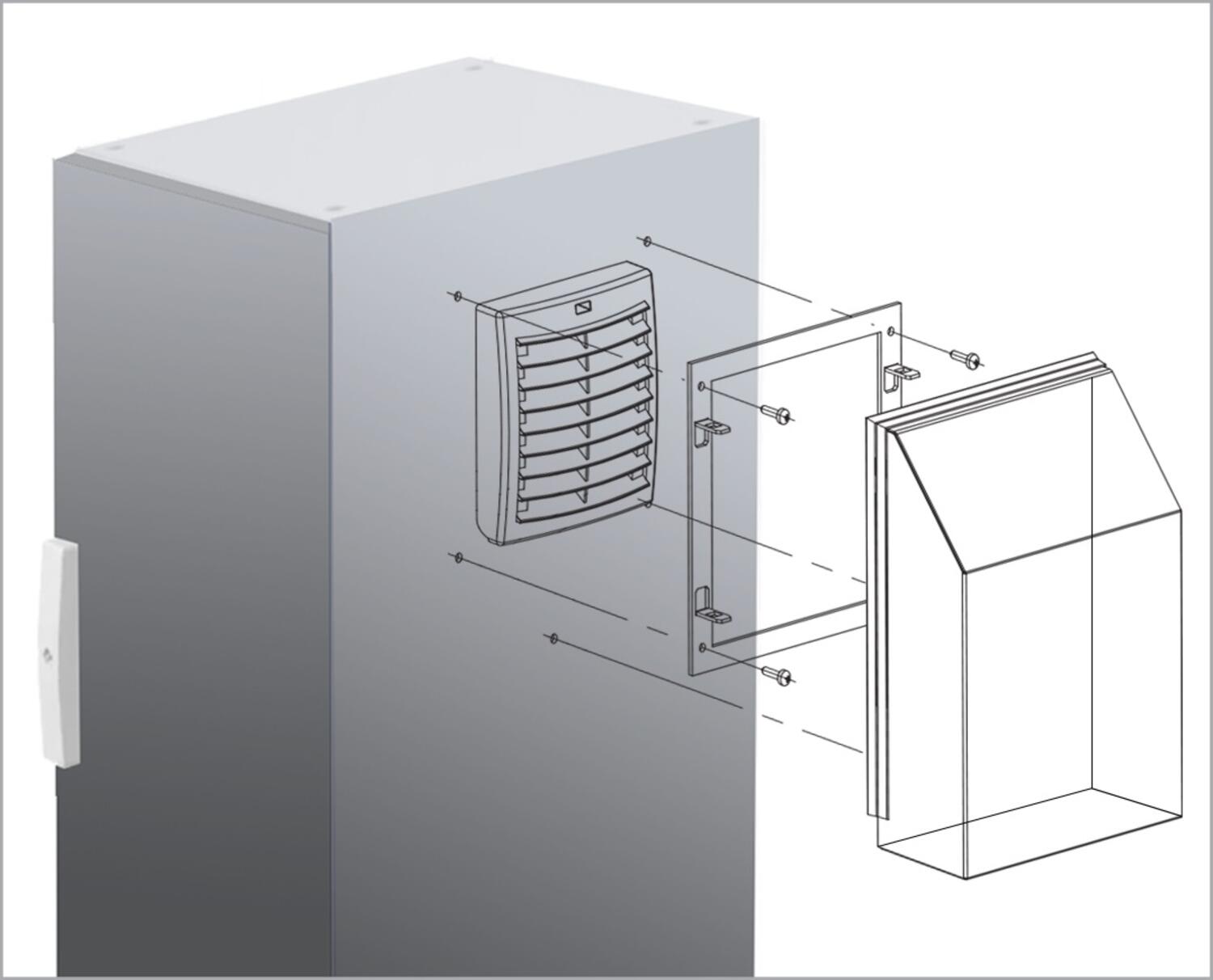

The metal hood is compatible with the FPI 018, FPO 018 and FF 018 series of  filter fans, intake and exit filters. The hood can easily be removed from the outside to clean the filter fans or to change the filter matt, so the cabinet does not need to be opened (safety risk).

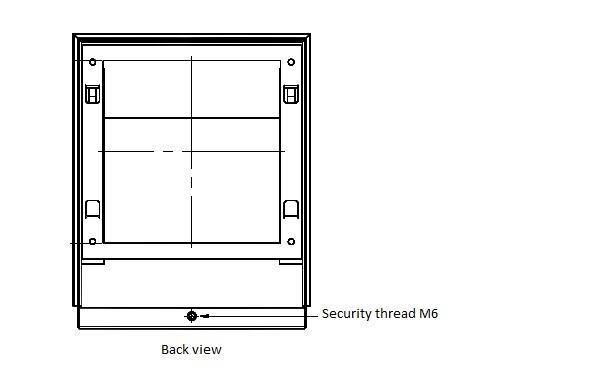

A combined metal grid on the bottom of the hood give extra protection from external objects and the addition of a security screw also prevents unauthorised removal of the cover.
Â
Protective gridand UV resistant
Stego have developed the hose-proof hood to increase the IP rating of the fan range to IP56. The hood protects against water projected by a hoses and extreme climatic changes when used outdoors or in industrial applications with harsh environmental conditions.
The metal hood is compatible with the FPI 018, FPO 018 and FF 018 series of  filter fans, intake and exit filters. The hood can easily be removed from the outside to clean the filter fans or to change the filter matt, so the cabinet does not need to be opened (safety risk).
A combined metal grid on the bottom of the hood give extra protection from external objects and the addition of a security screw also prevents unauthorised removal of the cover.
Â
Protective gridand UV resistant
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Price | ||
---|---|---|---|
![]()
FFH 086 Hose Proof Hood for 97mm² FF series and 92mm² FPI/FPO series fans
Art:
08670.0-00
Copied
|
| ||
![]()
FFH 086 Hose Proof Hood for 125mm² FF series and 124mm² FPI/FPO series fans
Art:
08671.0-00
Copied
|
| ||
![]()
FFH 086 Hose Proof Hood for 176mm² FF/FPI/FPO series fans
Art:
08672.0-00
Copied
|
| ||
![]()
FFH 086 Hose Proof Hood for 250mm² FF series and 233mm² FPI/FPO series fans
Art:
08673.0-00
Copied
|
| ||
![]()
FFH 086 Hose Proof Hood for 291mm² FPI/FPO series fans
Art:
08674.0-00
Copied
|
|
Select a variant in the list
