CONTA-CLIP

Fuse Modules SM

SM

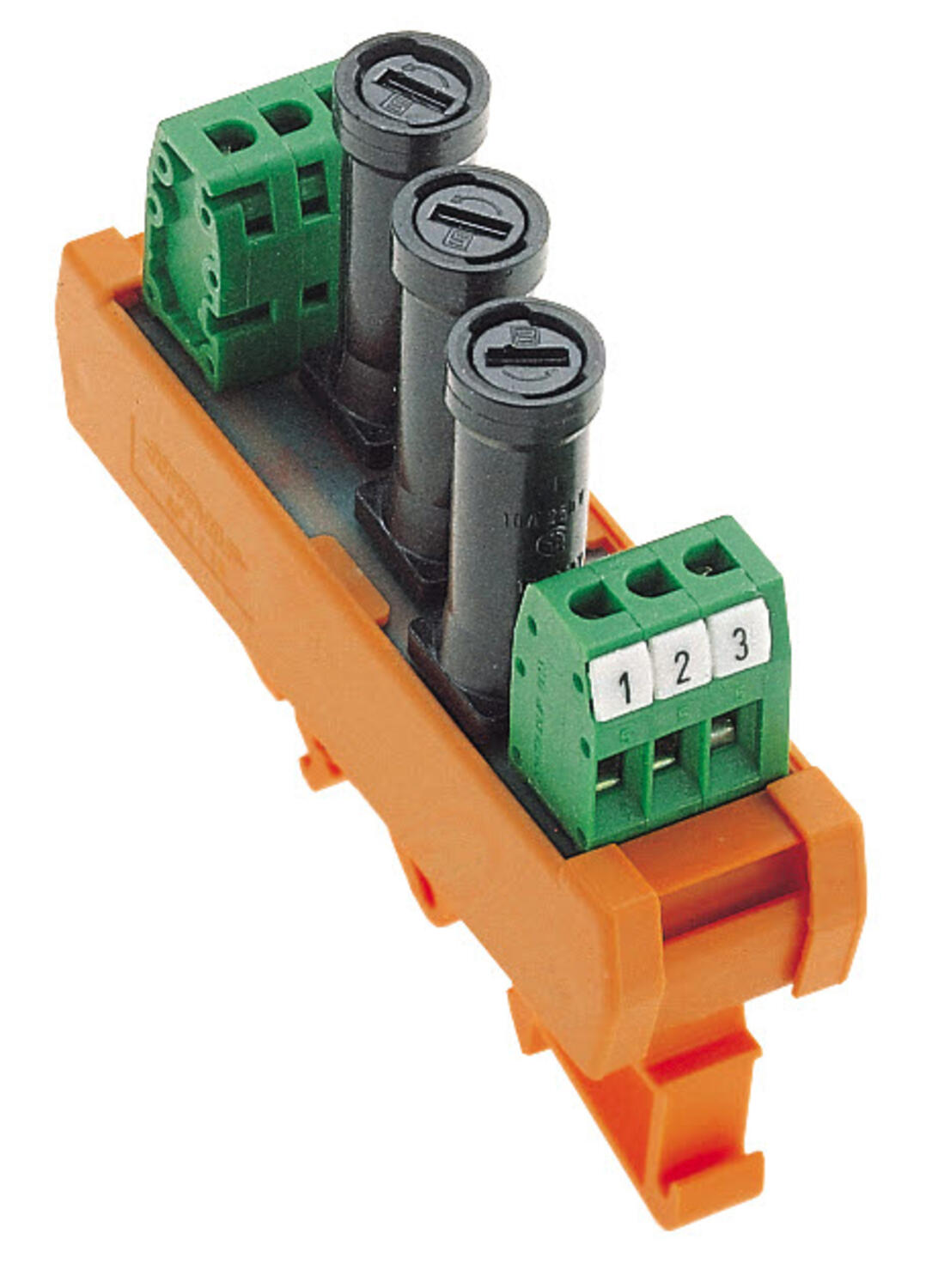

The SM fuse modules are designed with three or six mini screw top fuse holders.



Each fuse has its own separate input and output screw PCB terminals.



The fuse holders are design to hold 5 x 20mm fuses.



In the ...G designs, the entries for the fuse holders are connected

to each other via the PCB. This allows for a shared power supply.



Read more
  • Compact TS35/32 Mount
  • 3 or 6 Fuse versions
  • Screw Connection

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Number of channels 3
Common feed-in No
Fuse size 5x20

Ratings

Current carrying capacity per channel max 4 A
Operating voltage ac/dc max 250 V
Rated current 6,3 A
Contamination degree 2
Overvoltage category III
Operating temperature from -20 °C
Operating temperature to 50 °C
DIN-VDE Spec DIN VDE 0110 / EN 50178

Dimensions

Length 87 mm
Width 24 mm
Height TS 35/7.5 77 mm

Connection Data

Connection type Screw
Torque 0,6
Cross section stranded with ferrule from 0,2 mm²
Cross section stranded with ferrule to 2,5 mm²
Cross section stranded wire from 0,2 mm²
Cross section stranded wire to 2,5 mm²
Cross section single wire from 0,2 mm²
Cross section single wire to 2,5 mm²
Stripping length 7 mm

Additional Data

Tariff code 85363010
Country of origin EEC
Weight 60,6 g
Pack size 1

Product description

The SM fuse modules are designed with three or six mini screw top fuse holders.



Each fuse has its own separate input and output screw PCB terminals.



The fuse holders are design to hold 5 x 20mm fuses.



In the ...G designs, the entries for the fuse holders are connected

to each other via the PCB. This allows for a shared power supply.
