LÜTZE

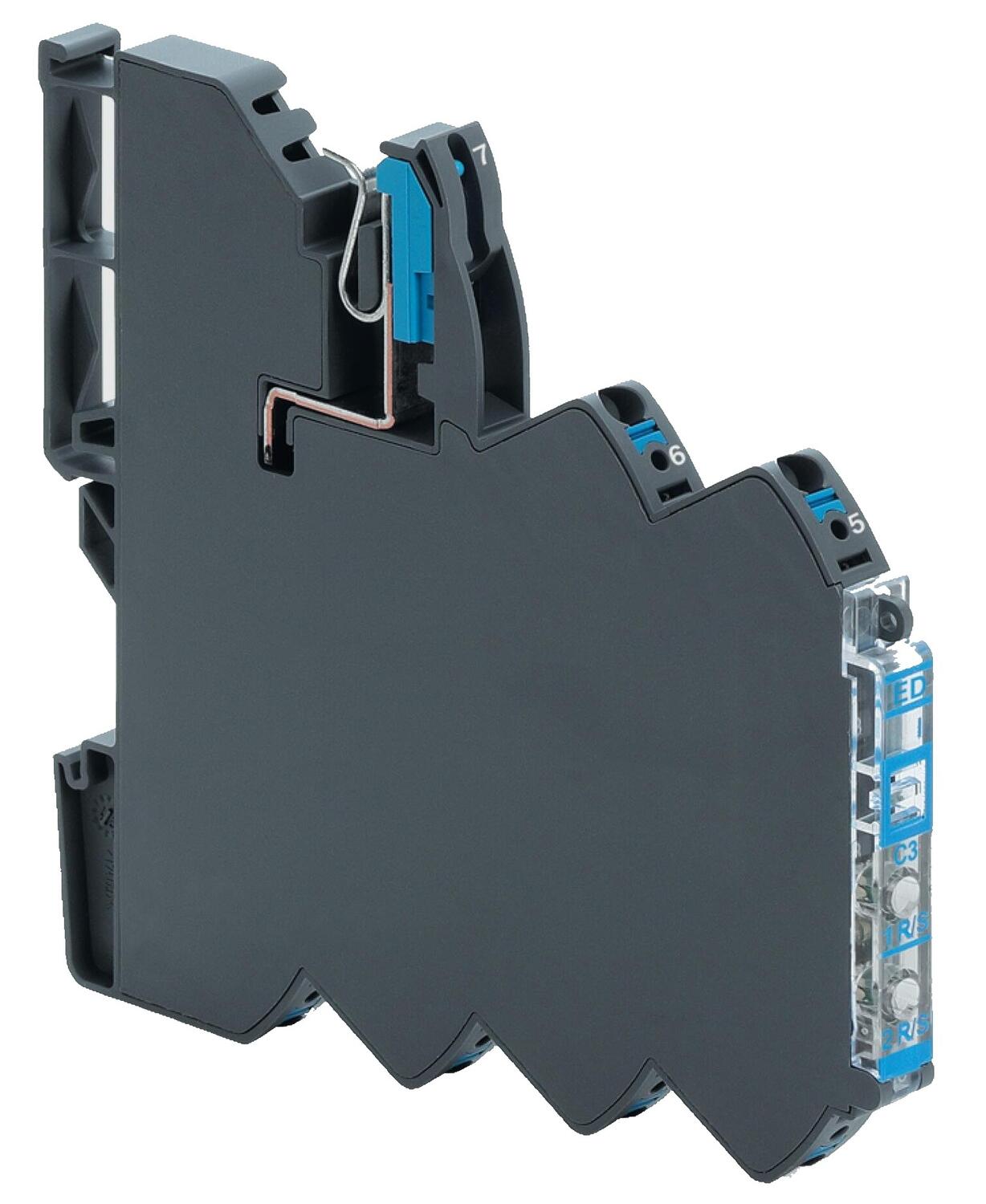

LOCC Box DC Electronic Fuse for 24V dc circuits, Dual Channel

  • For tripping 24 V DC circuits
  • Adjustable between 1-6 A
  • Fixed trip characteristic
  • Two channel version

Selected variant


LOCC-Box-ED Electronic fuse, 12-24V dc, 1-6A Dual Channel

Art:

Selected variant

Technical data

Input Data

Input current max 6 A
Power through distribution beam max 40 A
Operating voltage dc min 10 V
Operating voltage dc max 30 V

Output Data

Adjustable current min 1 A
Output semiconductors Mosfet
Voltage drop over semiconductor 102 mV
Capacitance max 10000 µF
Output current max 6 A
Selectable current ranges 1-6A, adjustable in 1A steps
Reaction time 800 ms
Adjustable steps 1 A
Adjustable current max 6 A
Status indication LED. Steady green - OK, flashing green - load over 90%, flashing red - fuse triggered, steady red - fuse off

Dimensions

Depth 116 mm

*Invisible Heading*

Width 8,1 mm
Height 114,5 mm

Connection Data

IP class IP20
Connection type Spring 0.25-2.5mm²
Cross section max 2,5 mm²
Mounting DIN-rail
Cross section min 0,25 mm²

Approvals

Approvals CE, cULus
EMC EN61000-6-2, EN61000-6-3

Additional data

Temperature operational max 50 °C
Weight 120 g
Memory at power failure Yes, status retained when voltage is back on
Temperature operational min -25 °C

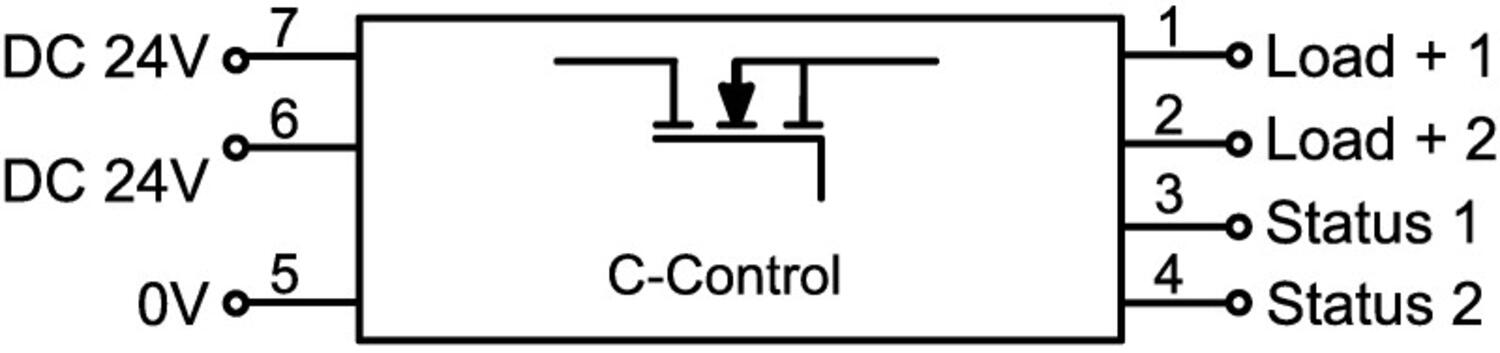

Measurements and connections

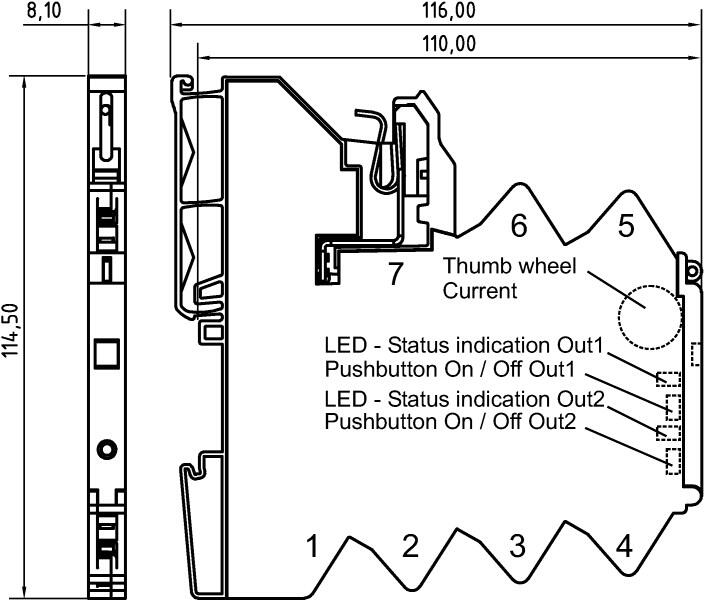

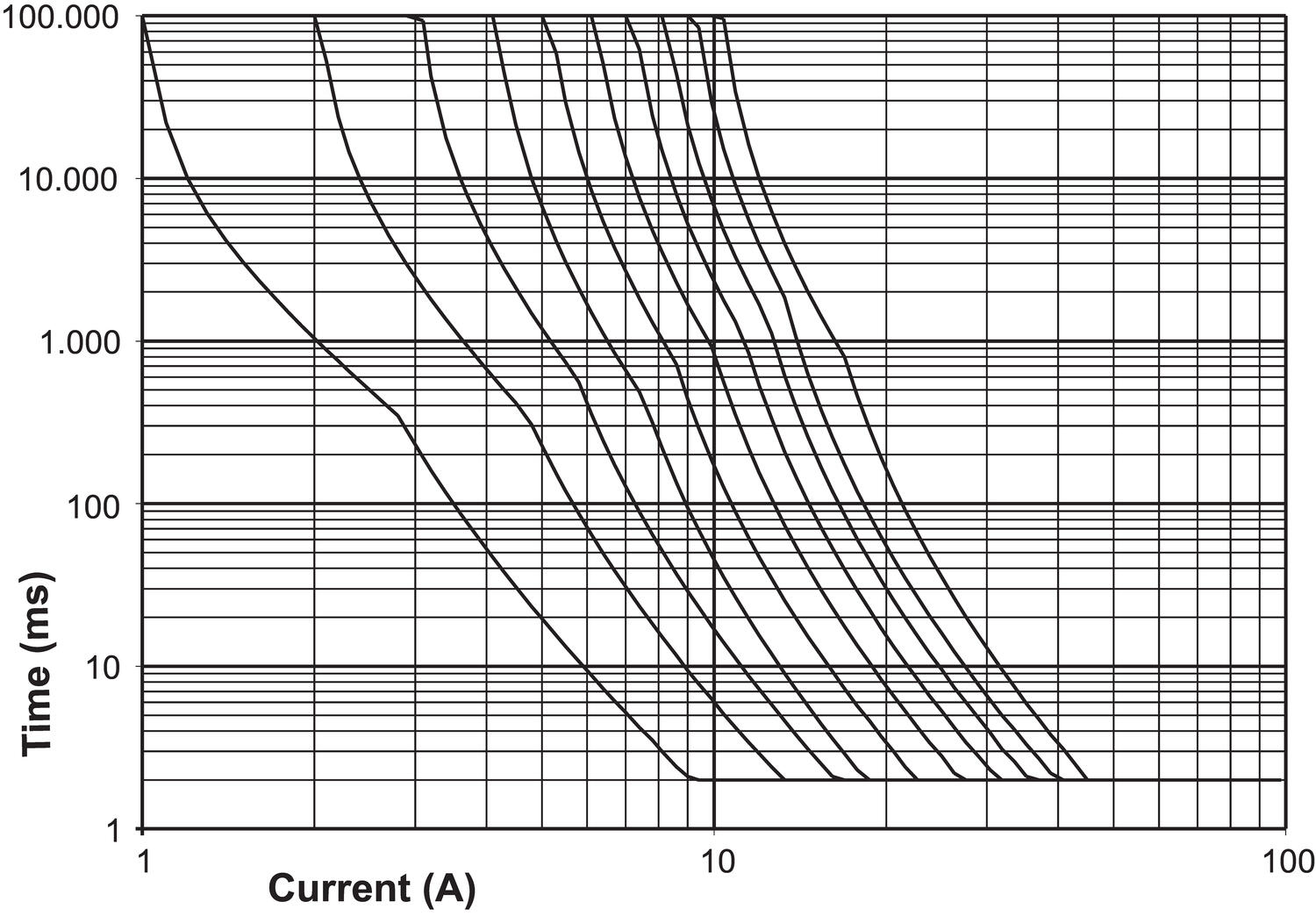

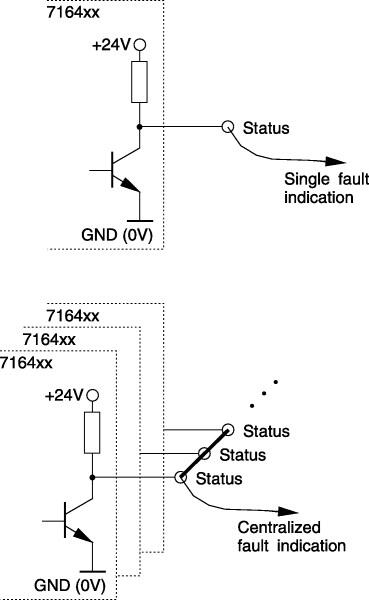

Technical illustrations
