FLEXA

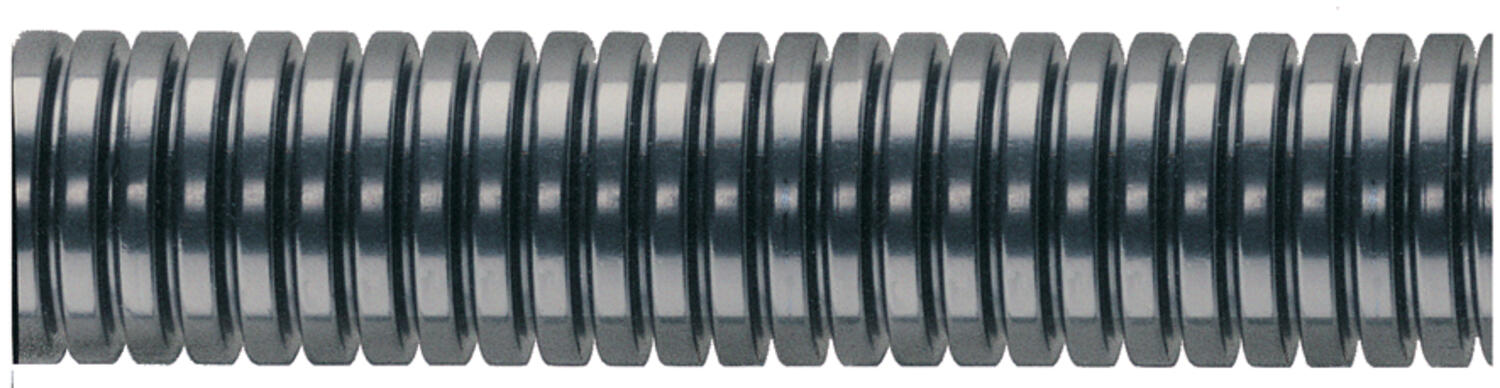

ROHRflex PA 6 is a highly versatile conduit for various industries. Both internally and externally corrugated. Oil resistant up to +80 °C, also resistant against acids and solvents. Applications include machine building, vehicles and electrical installations.
Supplied in full packages.
| Approvals | CE, RU, UL, VDE |
|---|---|
| Bending radius ±10% dynamic | 35 |
| Bending radius -10% static | 13 |
| Colour | Grey |
| Fire rating | UL94-VO |
| Hose dimension AD | 10 |
| Inner dimensions | 6.5 mm |
| Material | Polyamide |
| Outer dimensions | 10 mm |
|---|---|
| Pack size | 50 m |
| Temperature operational max | 115 °C |
| Temperature operational min | -40 °C |
| Type | ROHRFLEX PA6 |
| Weight / m | 0.018 |
ROHRflex PA 6 is a highly versatile conduit for various industries. Both internally and externally corrugated. Oil resistant up to +80 °C, also resistant against acids and solvents. Applications include machine building, vehicles and electrical installations.
Supplied in full packages.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Approvals | Bending radius ±10% dynamic | Bending radius -10% static | Colour | Hose dimension AD | Inner dimensions | Outer dimensions | Pack size | Temperature operational max | Weight / m | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Art:
0233.201.006
Copied
|
CE, RU, UL, VDE
|
35
|
13
|
Grey
|
10
|
6.5 mm
|
10 mm
|
50 m
|
115 °C
|
0.018
|
|
||
Plastic tube-PA6 AD 10,0 Black
Art:
0233.202.006
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
35
|
13
|
Black
|
10
|
6.5 mm
|
10 mm
|
50 m
|
120 °C
|
0.02
|
|
||
|
SKYDDSSLANG-PA6 AD 13,0 GRÅ
Art:
0233.201.010
Copied
|
CE, RU, UL, VDE
|
45
|
20
|
Grey
|
13
|
10 mm
|
13 mm
|
50 m
|
115 °C
|
0.025
|
|
||
|
Plastic tube-PA6 AD 13,0 Black
Art:
0233.202.010
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
45
|
20
|
Black
|
13
|
10 mm
|
13 mm
|
50 m
|
120 °C
|
0.026
|
|
||
|
Plastic tube-PA6 AD 15,8 Grey
Art:
0233.201.012
Copied
|
CE, RU, UL, VDE
|
55
|
35
|
Grey
|
15.8
|
12 mm
|
15.8 mm
|
50 m
|
115 °C
|
0.037
|
|
||
|
Plastic tube-PA6 AD 15,8 Black
Art:
0233.202.012
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
55
|
35
|
Black
|
15.8
|
12 mm
|
15.8 mm
|
50 m
|
120 °C
|
0.035
|
|
||
|
SKYDDSSLANG-PA6 AD 18,5 GRÅ
Art:
0233.201.014
Copied
|
CE, RU, UL, VDE
|
65
|
40
|
Grey
|
18.5
|
14.3 mm
|
18.5 mm
|
50 m
|
115 °C
|
0.05
|
|
||
|
Plastic tube-PA6 AD 18,5 Black
Art:
0233.202.014
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
65
|
40
|
Black
|
18.5
|
14.3 mm
|
18.5 mm
|
50 m
|
120 °C
|
0.05
|
|
||
|
ROHRflex PA 6, grey, AD 21.2, 16,5 x 21
Art:
0233.201.016
Copied
|
CE, RU, UL, VDE
|
75
|
45
|
Grey
|
21.2
|
16.5 mm
|
21.2 mm
|
50 m
|
115 °C
|
0.056
|
|
||
|
ROHRflex PA 6, black, AD21.2, 16,5 x 21
Art:
0233.202.016
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
75
|
45
|
Black
|
21.2
|
16.5 mm
|
21.2 mm
|
50 m
|
120 °C
|
0.067
|
|
||
|
ROHRflex PA6, grey, OD 28.5, 23 x 28,5mm
Art:
0233.201.023
Copied
|
CE, RU, UL, VDE
|
100
|
55
|
Grey
|
28.5
|
23 mm
|
28.5 mm
|
50 m
|
115 °C
|
0.09
|
|
||
|
ROHRflex PA 6, black, AD 28.5, 23 x 28,5
Art:
0233.202.023
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
100
|
55
|
Black
|
28.5
|
23 mm
|
28.5 mm
|
50 m
|
120 °C
|
0.111
|
|
||
|
SKYDDSSLANG-PA6-S AD 34,5 GRÅ
Art:
0233.201.029
Copied
|
CE, RU, UL, VDE
|
120
|
65
|
Grey
|
34.5
|
29 mm
|
34.5 mm
|
25 m
|
115 °C
|
0.126
|
|
||
|
Plastic tube-PA6 AD 34,5 Black
Art:
0233.202.029
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
120
|
65
|
Black
|
34.5
|
29 mm
|
34.5 mm
|
25 m
|
120 °C
|
0.136
|
|
||
|
ROHRflex PA6 Tubing Grey OD 42.5mm
Art:
0233.201.036
Copied
|
CE, RU, UL, VDE
|
150
|
90
|
Grey
|
42.5
|
36 mm
|
42.5 mm
|
25 m
|
115 °C
|
0.187
|
|
||
|
Plastic tube-PA6 AD 42,5 Black
Art:
0233.202.036
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
150
|
90
|
Black
|
42.5
|
36 mm
|
42.5 mm
|
25 m
|
120 °C
|
0.16
|
|
||
|
Art:
0233.201.048
Copied
|
CE, RU, UL, VDE
|
190
|
100
|
Grey
|
54.5
|
48 mm
|
54.5 mm
|
25 m
|
115 °C
|
0.225
|
|
||
|
ROHRflex PA 6, black, OD 54.5, 48 x 54,5
Art:
0233.202.048
Copied
|
CE, CSA US, DNV, Lloyd´s, RU, UL, VDE
|
190
|
100
|
Black
|
54.5
|
48 mm
|
54.5 mm
|
25 m
|
120 °C
|
0.22
|
|
Select a variant in the list
