Approvals | VDE |
---|---|
Bending radius ±10% dynamic | 50 |
Bending radius -10% static | 20 |
Hose dimension AD | 10 |
Inner dimensions | 7,8 mm |
IP class | IP40 |
Material | Stainless steel |
Outer dimensions | 10 mm |
---|---|
Pack size | 50 m |
Temperature operational max | 600 °C |
Temperature operational min | -200 °C |
Weight | 0,08 kg/m |
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Bending radius ±10% dynamic | Bending radius -10% static | Hose dimension AD | Inner dimensions | Outer dimensions | Pack size | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()

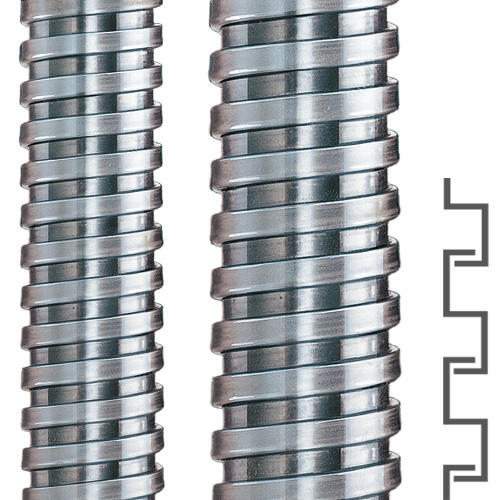

SPR-VA, stainless steel, withtellage AD 8 x 10 mm
Art:
1010.801.008
Copied
|
50
|
20
|
10
|
7,8 mm
|
10 mm
|
50 m
|
0,08 kg/m
|
| ||
![]()
SPR-VA, stainless steel, withtellage AD 11 x 14 mm
Art:
1010.801.011
Copied
|
70
|
28
|
14
|
11 mm
|
14 mm
|
50 m
|
0,12 kg/m
|
| ||
![]()
SPR-VA, stainless steel, withtellage AD 14 x 17 mm
Art:
1010.801.014
Copied
|
75
|
30
|
14
|
14 mm
|
17 mm
|
50 m
|
0,15 kg/m
|
| ||
![]()
SPR-VA, stainless steel, withtellage AD 16 x 19 mm
Art:
1010.801.016
Copied
|
92
|
35
|
19
|
16 mm
|
19 mm
|
50 m
|
0,185 kg/m
|
| ||
![]()
SPR-VA, stainless steel, withtellage AD 18 x 21 mm
Art:
1010.801.018
Copied
|
100
|
40
|
21
|
18 mm
|
21 mm
|
50 m
|
0,2 kg/m
|
| ||
![]()
SPR-VA, stainless steel, withtellage AD 23 x 27 mm
Art:
1010.801.023
Copied
|
120
|
48
|
27
|
23 mm
|
27 mm
|
50 m
|
0,28 kg/m
|
| ||
![]()
SPR-VA, stainless steel, withtellage AD 31 x 36 mm
Art:
1010.801.031
Copied
|
150
|
60
|
36
|
31 mm
|
36 mm
|
25 m
|
0,5 kg/m
|
| ||
![]()
SPR-VA, stainless steel, withtellage AD 40 x 45 mm
Art:
1010.801.040
Copied
|
205
|
82
|
45
|
40 mm
|
45 mm
|
25 m
|
0,62 kg/m
|
| ||
![]()
SPR-VA, stainless steel, withtellage AD 51 x 56 mm
Art:
1010.801.051
Copied
|
250
|
100
|
56
|
51 mm
|
56 mm
|
25 m
|
0,78 kg/m
|
|
Select a variant in the list
