FLEXA

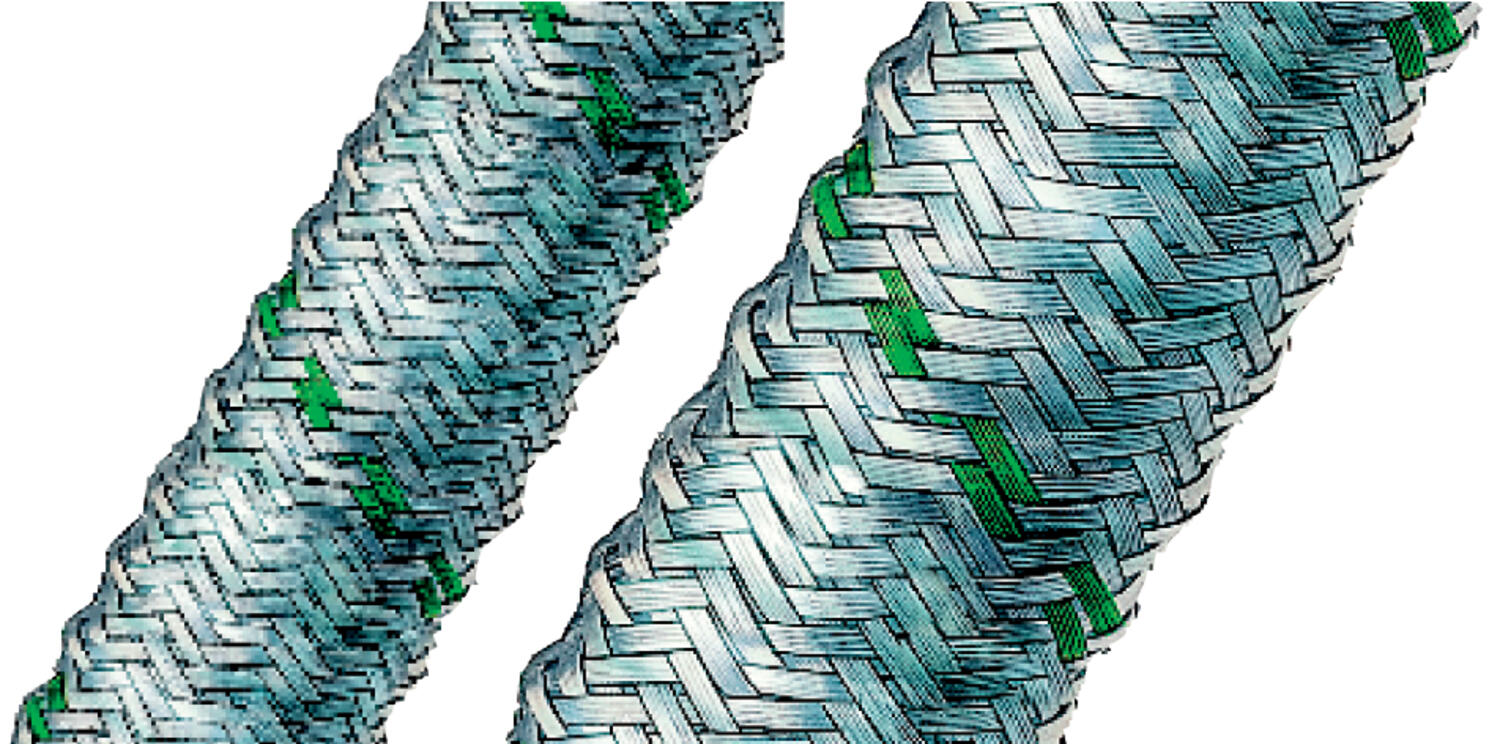

SPR-EDU-AS is a protective metal conduit made from galvanized steel with a steel wire braiding. IP40 rated.
Approvals | BWB, VDE |
---|---|
Bending radius ±10% dynamic | 40 |
Bending radius -10% static | 16 |
Hose dimension AD | 10 |
Inner dimensions | 7 mm |
Outer dimensions | 10 mm |
Pack size | 50 m |
---|---|
Temperature operational max | 250 °C |
Temperature operational min | -50 °C |
Weight / m | 0.107 |
SPR-EDU-AS is a protective metal conduit made from galvanized steel with a steel wire braiding. IP40 rated.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Bending radius ±10% dynamic | Bending radius -10% static | Hose dimension AD | Inner dimensions | Outer dimensions | Pack size | Weight / m | Price | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()
SPR-EDU-AS AD10 7x10 mm metal conduit
Art:
4010.111.007
Copied
|
40
|
16
|
10
|
7 mm
|
10 mm
|
50 m
|
0.107
|
| ||
![]()
SPR-EDU-AS AD14 10x14 mm metal conduit
Art:
4010.111.010
Copied
|
55
|
22
|
14
|
10 mm
|
14 mm
|
50 m
|
0.17
|
| ||
![]()
SPR-EDU-AS AD17 13x17 mm metal conduit
Art:
4010.111.013
Copied
|
75
|
30
|
17
|
13 mm
|
17 mm
|
50 m
|
0.24
|
| ||
![]()
SPR-EDU-AS AD19 15x19 mm metal conduit
Art:
4010.111.015
Copied
|
80
|
32
|
19
|
15 mm
|
19 mm
|
50 m
|
0.27
|
| ||
![]()
SPR-EDU-AS AD21 17x21 mm metal conduit
Art:
4010.111.017
Copied
|
95
|
38
|
21
|
17 mm
|
21 mm
|
50 m
|
0.31
|
| ||
![]()
SPR-EDU-AS AD27 22x27 mm metal conduit
Art:
4010.111.022
Copied
|
115
|
45
|
27
|
22 mm
|
27 mm
|
50 m
|
0.43
|
| ||
![]()
SPR-EDU-AS AD36 29x36 mm metal conduit
Art:
4010.111.029
Copied
|
160
|
65
|
36
|
29 mm
|
36 mm
|
25 m
|
0.68
|
| ||
![]()
SPR-EDU-AS AD45 38x45 mm metal conduit
Art:
4010.111.038
Copied
|
200
|
80
|
45
|
38 mm
|
45 mm
|
25 m
|
0.9
|
| ||
![]()
SPR-EDU-AS AD56 49x56 mm metal conduit
Art:
4010.111.049
Copied
|
250
|
100
|
56
|
49 mm
|
56 mm
|
25 m
|
1.14
|
|
Select a variant in the list
