FLEXA

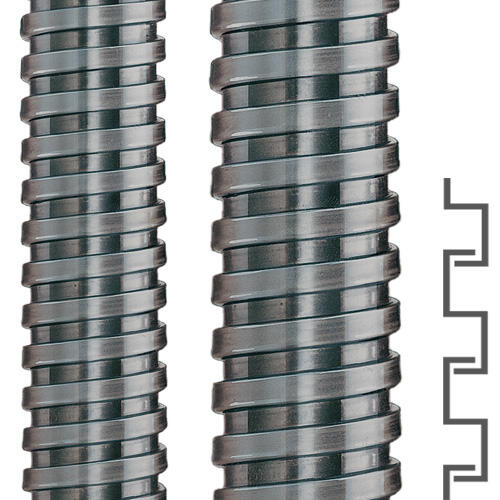

SPR-AS is a protective metal conduit made from galvanized steel. Highly versatile conduit for wide variety of applications.
Â
Â
Â
Approvals | VDE, BWB |
---|---|

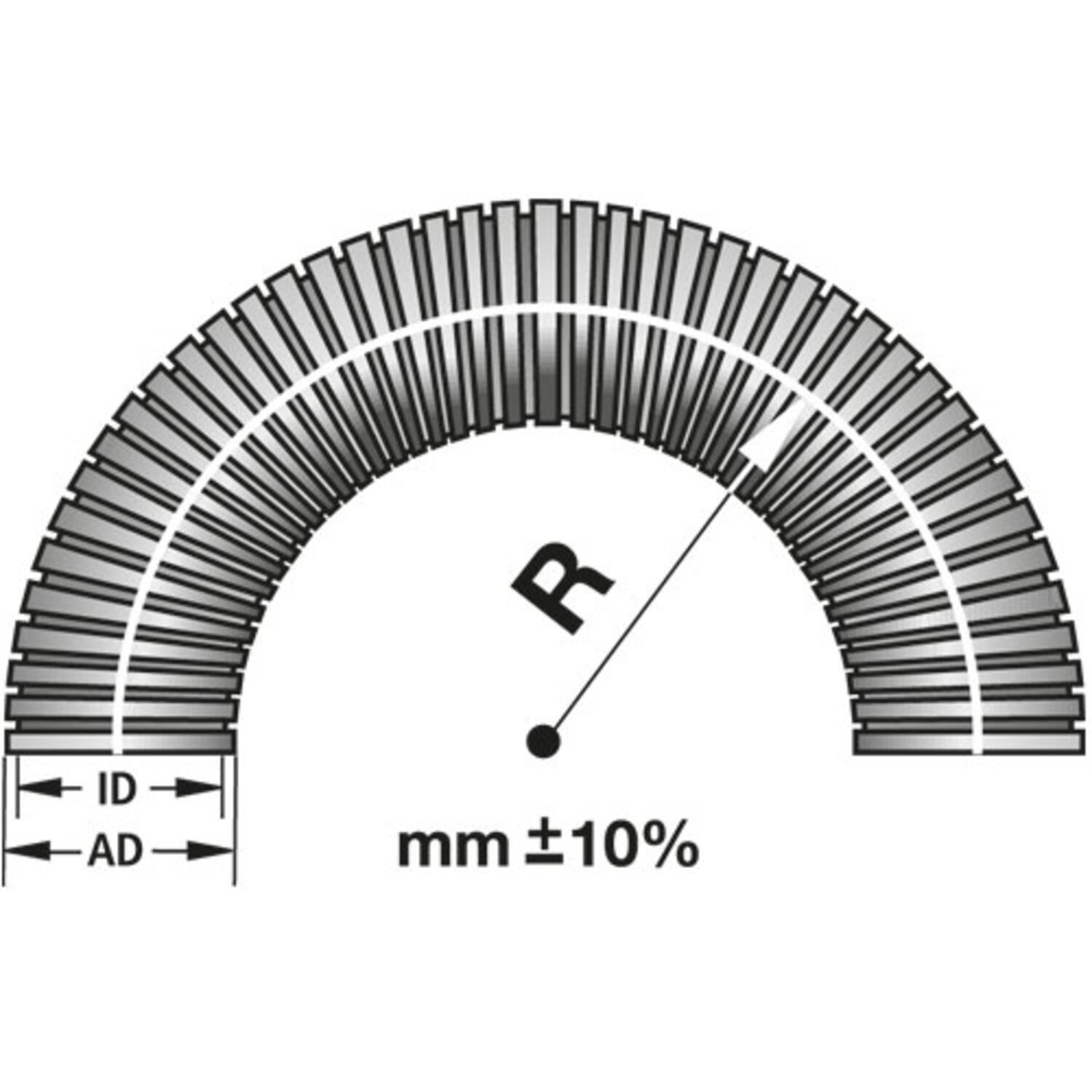

Bending radius ±10% dynamic | 50 |
Bending radius -10% static | 20 |
Halogen-free | Yes |
Hose dimension AD | 10 |
Inner dimensions | 8 mm |
IP class | IP40 |
Material | Galvanized steel |
Outer dimensions | 10 mm |
---|---|
Pack size | 50 m |
Temperature operational max | 250 °C |
Temperature operational min | -50 °C |
Type | SPR-AS |
UV resistant | Yes |
Weight / m | 0.053 |
SPR-AS is a protective metal conduit made from galvanized steel. Highly versatile conduit for wide variety of applications.
Â
Â
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Bending radius ±10% dynamic | Bending radius -10% static | Hose dimension AD | Inner dimensions | IP class | Outer dimensions | Pack size | Weight / m | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|
![]()
SPR-AS AD10 8x10 mm metal conduit
Art:
1010.111.008
Copied
|
50
|
20
|
10
|
8 mm
|
IP40
|
10 mm
|
50 m
|
0.053
|
| ||
![]()
SPR-AS AD14 11x14 mm metal conduit
Art:
1010.111.011
Copied
|
70
|
28
|
14
|
11 mm
|
IP40
|
14 mm
|
50 m
|
0.119
|
| ||
![]()
SPR-AS AD17 14x17 mm metal conduit
Art:
1010.111.014
Copied
|
75
|
30
|
17
|
14 mm
|
IP40
|
17 mm
|
50 m
|
0.14
|
| ||
![]()
SPR-AS AD19 16x19 mm metal conduit
Art:
1010.111.016
Copied
|
90
|
35
|
19
|
16 mm
|
IP40
|
19 mm
|
50 m
|
0.15
|
| ||
![]()
SPR-AS AD21 18x21 mm metal conduit
Art:
1010.111.018
Copied
|
100
|
40
|
21
|
18 mm
|
IP40
|
21 mm
|
50 m
|
0.21
|
| ||
![]()
SPR-AS AD27 23x27 mm metal conduit
Art:
1010.111.023
Copied
|
120
|
48
|
27
|
23 mm
|
IP40
|
27 mm
|
50 m
|
0.26
|
| ||
![]()
SPR-AS AD36 31x36 mm metal conduit
Art:
1010.111.031
Copied
|
150
|
60
|
36
|
31 mm
|
IP40
|
36 mm
|
25 m
|
0.48
|
| ||
![]()
SPR-AS AD45 40x45 mm metal conduit
Art:
1010.111.040
Copied
|
205
|
82
|
45
|
40 mm
|
|
45 mm
|
25 m
|
0.62
|
| ||
![]()
SPR-AS AD56 51x56 mm metal conduit
Art:
1010.111.051
Copied
|
250
|
100
|
56
|
51 mm
|
IP40
|
56 mm
|
25 m
|
0.8
|
|
Select a variant in the list
