FLEXA

US-FOOD metal connector

US-FOOD connector is suitable for use with FLEXA-FOOD -series conduits. Made from stainless steel, the connector has waterproof and dust-tight construct.

Read more
  • For Flexa FOOD -series conduits
  • Stainless steel
  • IP68 rated

Selected variant

Available in several variants
FLEXA.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Diameter 1/2''
IP class IP68
Material Stainless steel
M-thread M20x1,5
Pack size 10
Temperature operational max 125 °C
Temperature operational min -40 °C
Weight kg / 100 ± 10% 7.04

Downloads

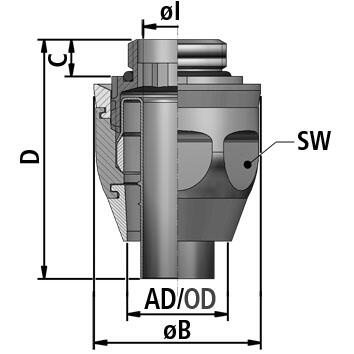

Measurements and connections

Product description

US-FOOD connector is suitable for use with FLEXA-FOOD -series conduits. Made from stainless steel, the connector has waterproof and dust-tight construct.

Accessories

Related products

Parts Diameter M-thread Pack size Weight kg / 100 ± 10% Price
Flexa US-FOOD metal connector
US-FOOD AD1/2¨ M20 connector
Art:
0608.800.020 Copied
1/2''
M20x1,5
10
7.04
Flexa US-FOOD metal connector
US-FOOD AD1/2¨ M25 connector
Art:
0608.800.125 Copied
1/2''
M25x1,5
10
11.51
Flexa US-FOOD metal connector
US-FOOD AD3/4¨ M25 connector
Art:
0608.800.025 Copied
3/4''
M25x1,5
5
13.51
Flexa US-FOOD metal connector
US-FOOD AD1¨ M32 connector
Art:
0608.800.032 Copied
1''
M32x1,5
5
19.33
Flexa US-FOOD metal connector
US-FOOD AD1 1/4¨ M40 connector
Art:
0608.800.040 Copied
1 1/4''
M40x1,5
2
29.3
