FLEXA

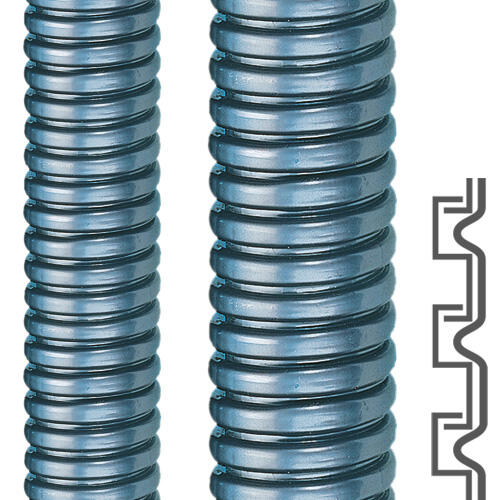

SPR-PU-AS is a metal conduit made from galvanized steel, covered with a PU sheathing. Good resistance against chemicals.
| Approvals | VDE |
|---|---|
| Bending radius ±10% dynamic | 95 |
| Bending radius -10% static | 37 |
| Colour | Blue metallic |
| Fire rating | UL94-V2 |
| Hose dimension AD | 14 |
| Inner dimensions | 10 mm |
| IP class | IP68 |
| Material | Galvanized steel, Polyurethane coating |
|---|---|
| Outer dimensions | 14 mm |
| Pack size | 50 m |
| Temperature operational max | 100 °C |
| Temperature operational min | -50 °C |
| Type | SPR-PU-AS |
| Weight / m | 0.12 |
SPR-PU-AS is a metal conduit made from galvanized steel, covered with a PU sheathing. Good resistance against chemicals.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Bending radius ±10% dynamic | Bending radius -10% static | Hose dimension AD | Inner dimensions | IP class | Outer dimensions | Pack size | Weight / m | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
SPR-PU-AS AD14 10x14mm metal conduit
Art:
2210.711.010
Copied
|
95
|
37
|
14
|
10 mm
|
IP68
|
14 mm
|
50 m
|
0.12
|
|
||
|
SPR-PU-AS AD17 13x17mm metal conduit
Art:
2210.711.013
Copied
|
115
|
45
|
17
|
13 mm
|
IP68
|
17 mm
|
50 m
|
0.15
|
|
||
|
SPR-PU-AS AD21 17x21mm metal conduit
Art:
2210.711.017
Copied
|
140
|
55
|
21
|
17 mm
|
|
21 mm
|
50 m
|
0.23
|
|
||
|
SPR-PU-AS AD27 22x27mm metal conduit
Art:
2210.711.022
Copied
|
150
|
60
|
27
|
22 mm
|
IP68
|
27 mm
|
50 m
|
0.32
|
|
||
|
SPR-PU-AS AD36 29x36mm metal conduit
Art:
2210.711.029
Copied
|
225
|
90
|
36
|
29 mm
|
IP68
|
36 mm
|
25 m
|
0.62
|
|
||
|
SPR-PU-AS AD45 38x45mm metal conduit
Art:
2210.711.038
Copied
|
300
|
120
|
45
|
38 mm
|
IP68
|
45 mm
|
25 m
|
0.72
|
|
||
|
SPR-PU-AS AD56 49x56mm metal conduit
Art:
2210.711.049
Copied
|
325
|
130
|
56
|
49 mm
|
IP68
|
56 mm
|
25 m
|
0.9
|
|
Select a variant in the list
