FLEXA

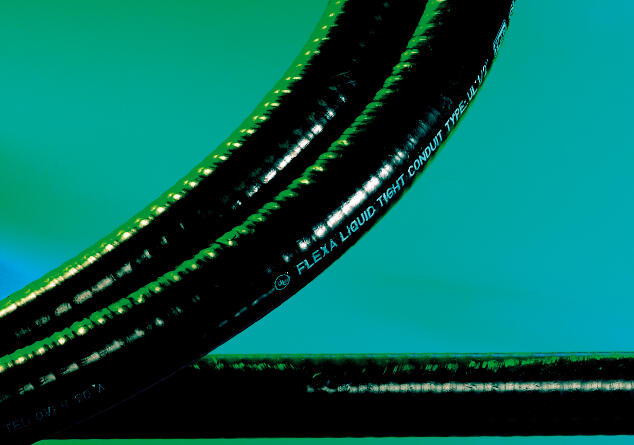

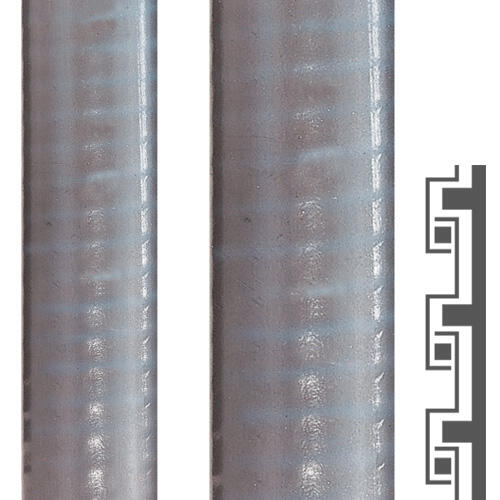

LIQUID-TIGHT-EF is a protective metal conduit made from galvanized steel, covered with a PVC sheathing. Suitable for use in various applications where liquid-tight construct is required. IP68 rated.
Â
Examples of use include electrical installations in automation, machinery and equipment and automotive industry.

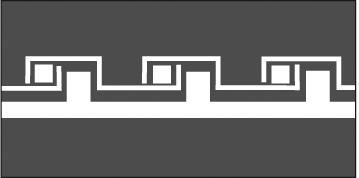

Profile
Â
Â
Â
LIQUID-TIGHT-EF is a protective metal conduit made from galvanized steel, covered with a PVC sheathing. Suitable for use in various applications where liquid-tight construct is required. IP68 rated.
Â
Examples of use include electrical installations in automation, machinery and equipment and automotive industry.
Profile
Â
Â
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Approvals | Bending radius ±10% dynamic | Bending radius -10% static | Colour | Diameter | Inner dimensions | Outer dimensions | Pack size | Temperature operational max | Temperature operational min | Weight / m | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
LIQUID-TIGHT-EF AD3/8" grey
Art:
2080.111.009
Copied
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
LIQUID-TIGHT-EF AD 5/16" grey
Art:
2080.111.010
Copied
|
VDE
|
265
|
105
|
Grey
|
5/16"
|
10 mm
|
14.5 mm
|
50 m
|
90 °C
|
-25 °C
|
0.14
|
| ||
![]()
LIQUID-TIGHT-EF AD3/8" grey
Art:
2080.111.012
Copied
|
VDE
|
360
|
145
|
Grey
|
3/8"
|
12.5 mm
|
18 mm
|
50 m
|
90 °C
|
-25 °C
|
0.26
|
| ||
![]()
LIQUID-TIGHT-EF AD1/2" grey
Art:
2080.111.016
Copied
|
VDE
|
425
|
170
|
Grey
|
1/2"
|
16 mm
|
21 mm
|
50 m
|
90 °C
|
-25 °C
|
0.32
|
| ||
![]()
LIQUID-TIGHT-EF AD3/4" grey
Art:
2080.111.021
Copied
|
VDE
|
475
|
190
|
Grey
|
3/4"
|
21 mm
|
26.5 mm
|
50 m
|
90 °C
|
-25 °C
|
0.44
|
| ||
![]()
LIQUID-TIGHT-EF AD1" grey
Art:
2080.111.026
Copied
|
VDE
|
490
|
195
|
Grey
|
1"
|
26.5 mm
|
33 mm
|
25 m
|
90 °C
|
-25 °C
|
0.7
|
| ||
![]()
LIQUID-TIGHT-EF AD 1 1/4" grey
Art:
2080.111.035
Copied
|
VDE
|
625
|
250
|
Grey
|
1 1/4"
|
35.5 mm
|
42 mm
|
25 m
|
90 °C
|
-25 °C
|
1
|
| ||
![]()
LIQUID-TIGHT-EF AD2" grey
Art:
2080.111.050
Copied
|
VDE
|
780
|
320
|
Grey
|
2"
|
51.5 mm
|
60 mm
|
25 m
|
90 °C
|
-25 °C
|
1.2
|
|
Select a variant in the list
