BACO

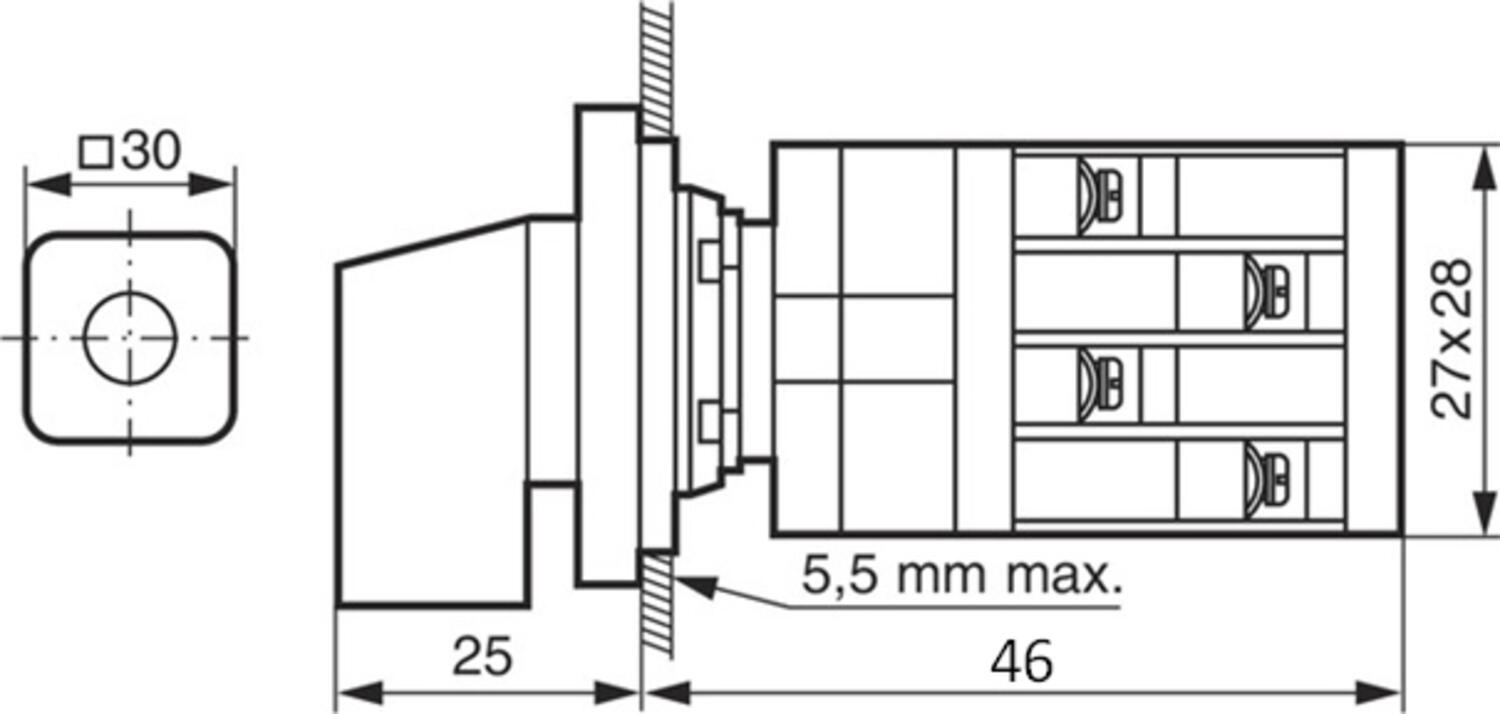

Miniature cam switches rated at 10A in a compact size ideal for applications with limited available space.

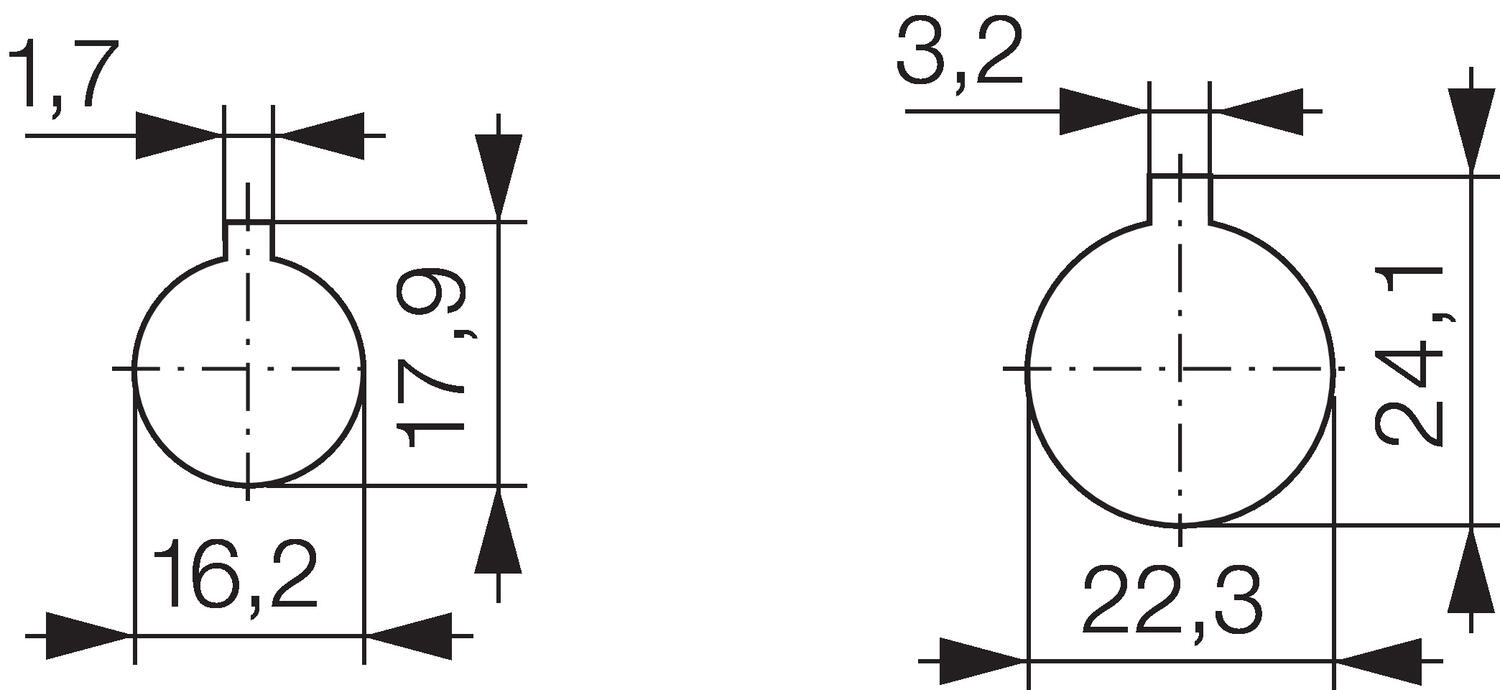

The mounting is simple with only a single hole required in either Ø16 mm or Ø22 mm.
The terminal screws are mounted at a 45º angle making electrical connection easier if the switch has already been mounted.
Each switch is supplied complete with engraved legend plate, frame and handle.
| 1333_Plate (mm) | 30x30 |
|---|---|
| Angle | 90° |
| Cable area max | 2x1,5 mm² |
| Cable area min | 1x0,5 mm² |
| Conventional free air thermal current Ith | 10 A |
| Function | Stable |
| Mounting | Single hole mounting Ø16mm/22.5mm |
| Number of contacts | 1 |
| Number of poles | 1 |
| Positions | 2 |
| Protection rating front of panel | IP65 |
| Protection rating rear of panel | IP20 |
| Rated insulation voltage Ui | 500 V |
| Rated operating current Ie (AC15/230V) | 2.5 A |
|---|---|
| Rated operating current Ie (AC21A/22A) | 10 A |
| Rated operating current Ie (DC-1/24 VDC) | 10 A |
| Rated operating power (AC23A/3x230V) | 1.8 kW |
| Rated operating power (AC23A/3x400V) | 3 kW |
| Rated operating power (AC3/3x230V) | 1.8 kW |
| Rated operating power (AC3/3x400V) | 2.2 kW |
| Standards | CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508 |
| Temperature operational max | 50 °C |
| Temperature operational min | -20 °C |
| Type | On-off switch |
| Weight | 32 g |
Miniature cam switches rated at 10A in a compact size ideal for applications with limited available space.
The mounting is simple with only a single hole required in either Ø16 mm or Ø22 mm.
The terminal screws are mounted at a 45º angle making electrical connection easier if the switch has already been mounted.
Each switch is supplied complete with engraved legend plate, frame and handle.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | 1333_Plate (mm) | Angle | Cable area max | Cable area min | Conventional free air thermal current Ith | Function | Mounting | Number of contacts | Number of poles | Positions | Protection rating front of panel | Protection rating rear of panel | Rated insulation voltage Ui | Rated operating current Ie (AC15/230V) | Rated operating current Ie (AC21A/22A) | Rated operating current Ie (DC-1/24 VDC) | Rated operating power (AC23A/3x230V) | Rated operating power (AC23A/3x400V) | Rated operating power (AC3/3x230V) | Rated operating power (AC3/3x400V) | Standards | Storage temperature max | Storage temperature min | Type | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

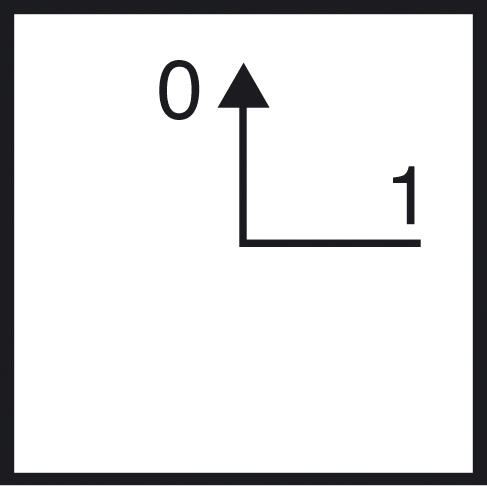

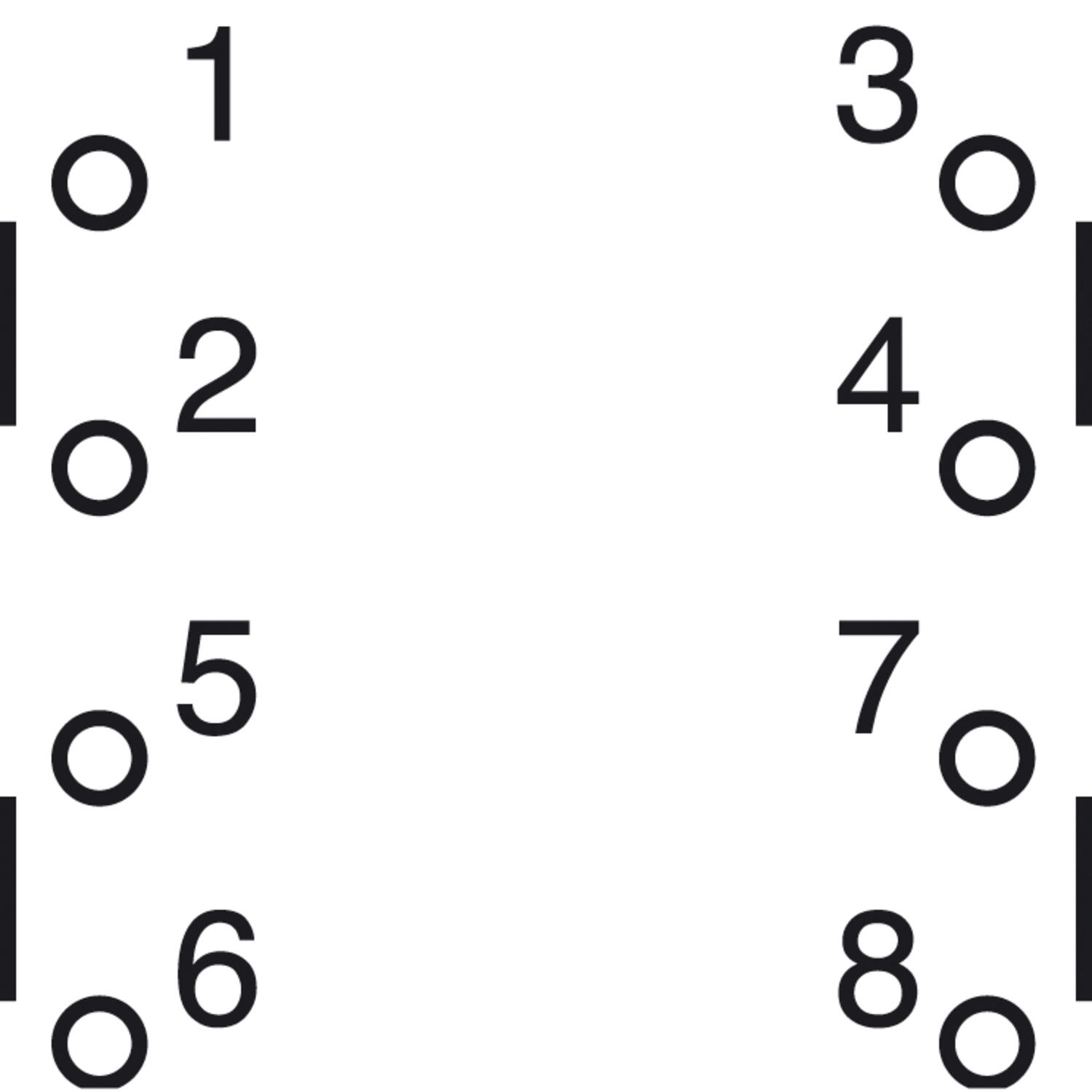

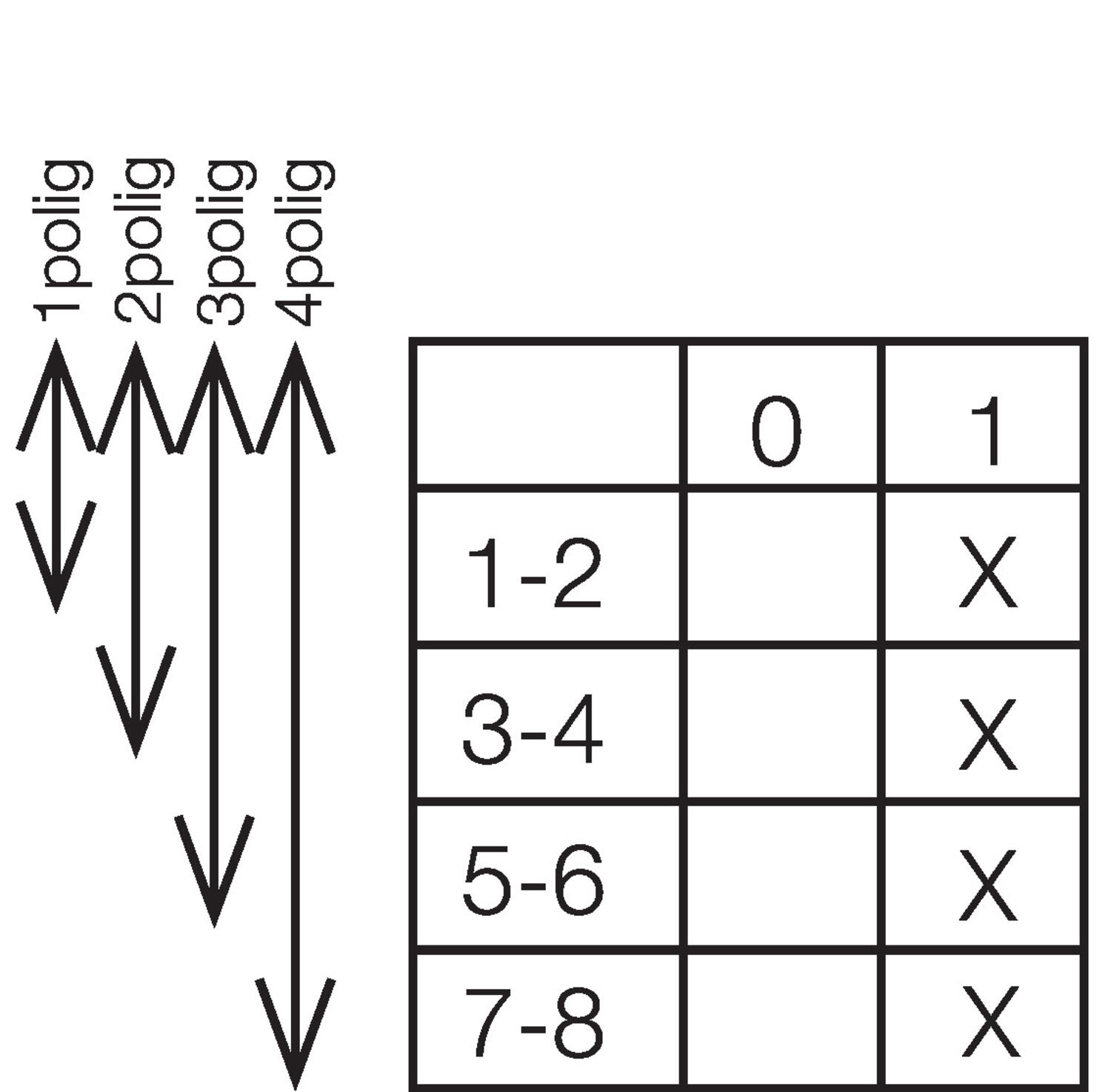

Mini Cam Switch 10A - Off / On - 1 Pole
Art:
223501
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
1
|
1
|
2
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
On-off switch
|
32 g
|
|
||
|
Mini Cam Switch 10A - Off / On - 2 Pole
Art:
223502
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
2
|
2
|
2
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
On-off switch
|
32 g
|
|
||
|
Mini Cam Switch 10A - Off / On - 3 Pole
Art:
223503
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
3
|
3
|
2
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
On-off switch
|
45 g
|
|
||
|

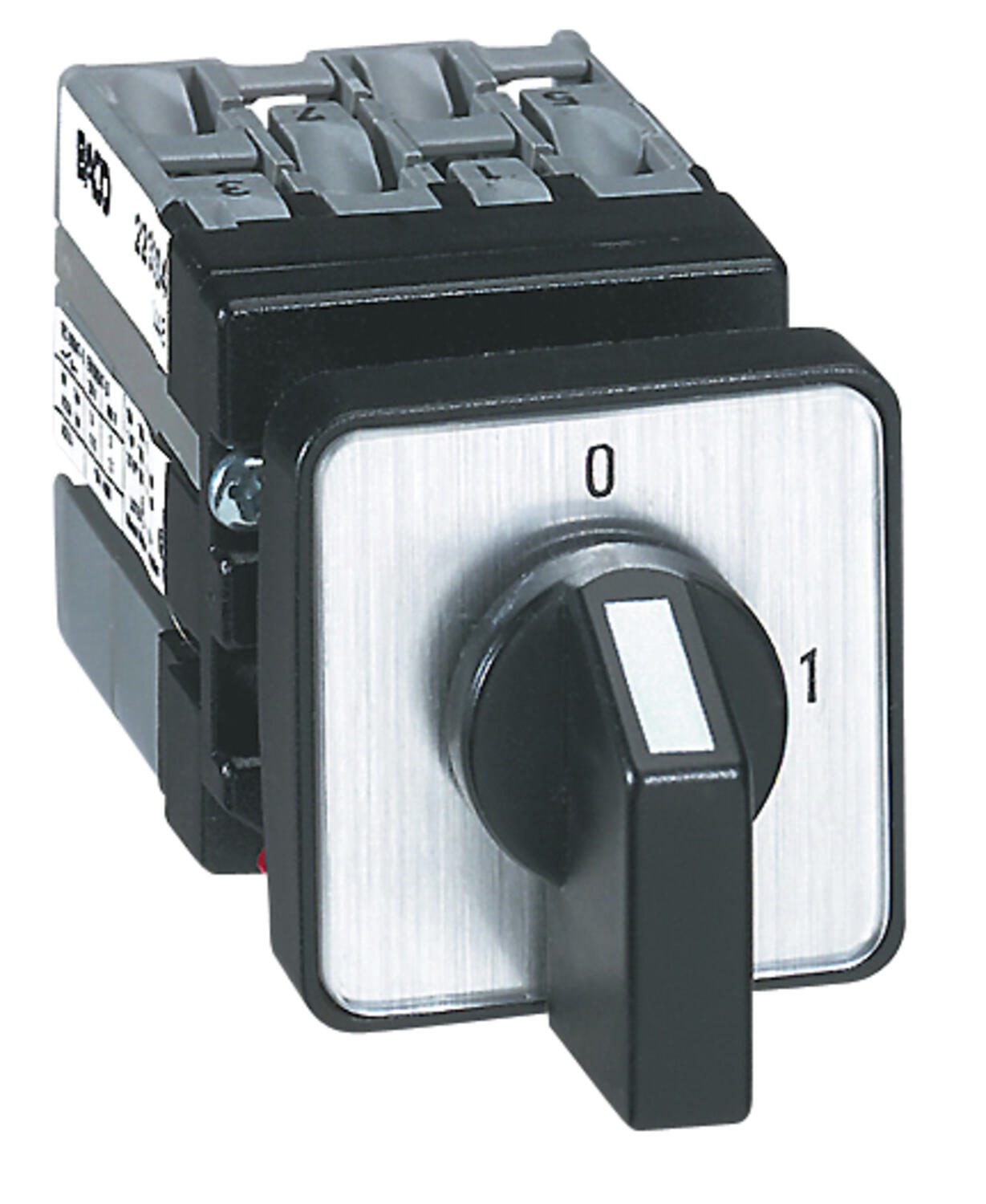

Mini Cam Switch 10A - Off / On - 4 Pole
Art:
223504
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
4
|
4
|
2
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
On-off switch
|
45 g
|
|
||
Mini Cam Switch 10A - Changeover With Off - 1 Pole
Art:
223505
Copied
|
30x30
|
45°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
2
|
1
|
3
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Changeover switch
|
32 g
|
|
||
|
Mini Cam Switch 10A - Changeover With Off - 2 Pole
Art:
223506
Copied
|
30x30
|
45°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
4
|
2
|
3
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Changeover switch
|
45 g
|
|
||
|
Mini Cam Switch 10A - Changeover With Off - 3 Pole
Art:
223507
Copied
|
30x30
|
45°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
6
|
3
|
3
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Changeover switch
|
57 g
|
|
||
|
Mini Cam Switch 10A - Changeover With Off - 4 Pole
Art:
223508
Copied
|
30x30
|
45°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
8
|
4
|
3
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Changeover switch
|
69 g
|
|
||

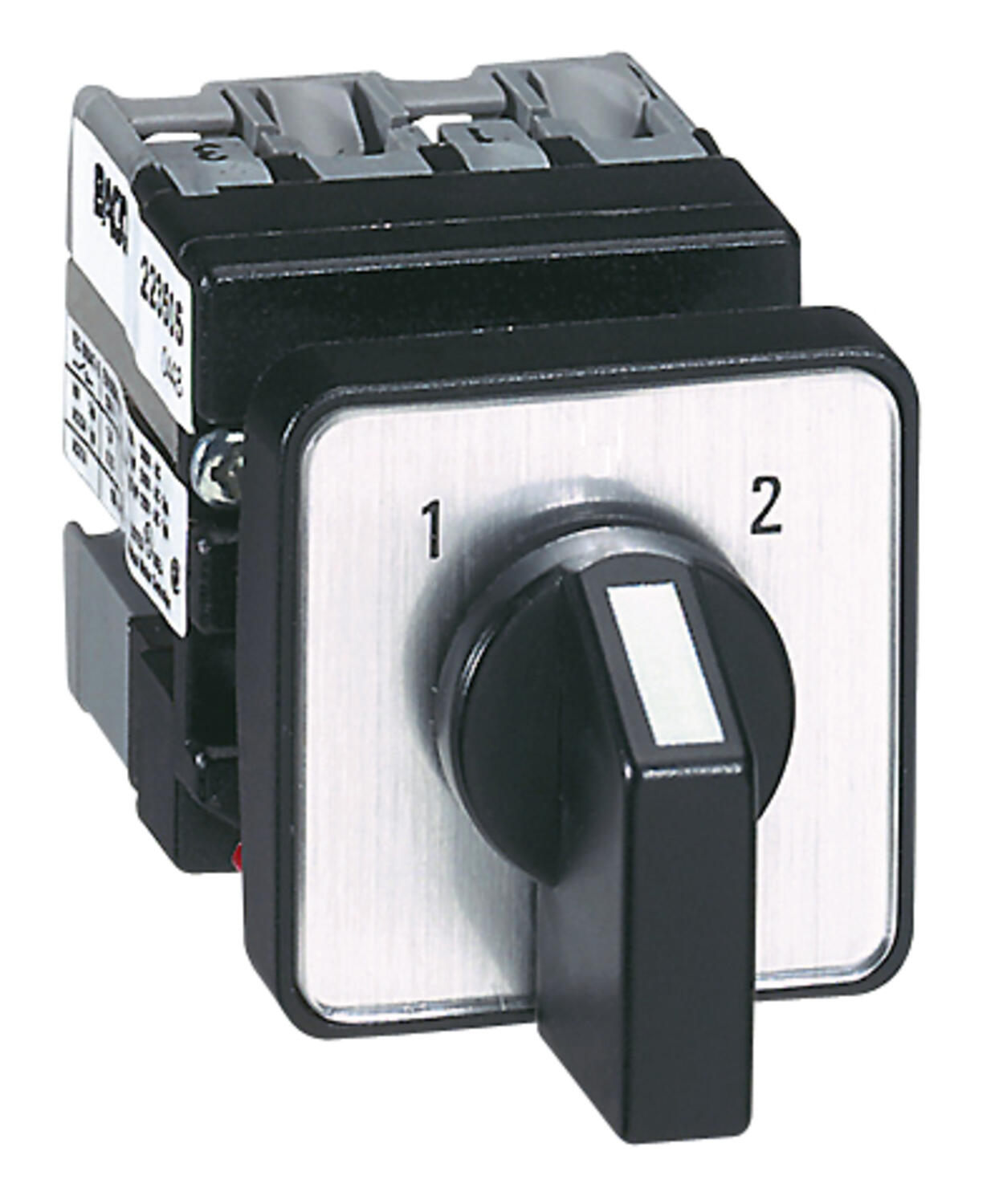

Mini Cam Switch 10A - Changeover - 1 Pole
Art:
223511
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
2
|
1
|
2
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Changeover switch
|
32 g
|
|
||
|
Mini Cam Switch 10A - Changeover - 2 Pole
Art:
223512
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
4
|
2
|
2
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Changeover switch
|
45 g
|
|
||
|
Mini Cam Switch 10A - Changeover - 3 Pole
Art:
223513
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
6
|
3
|
2
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Changeover switch
|
57 g
|
|
||
|
Mini Cam Switch 10A - Changeover - 4 Pole
Art:
223514
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
8
|
4
|
2
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Changeover switch
|
69 g
|
|
||

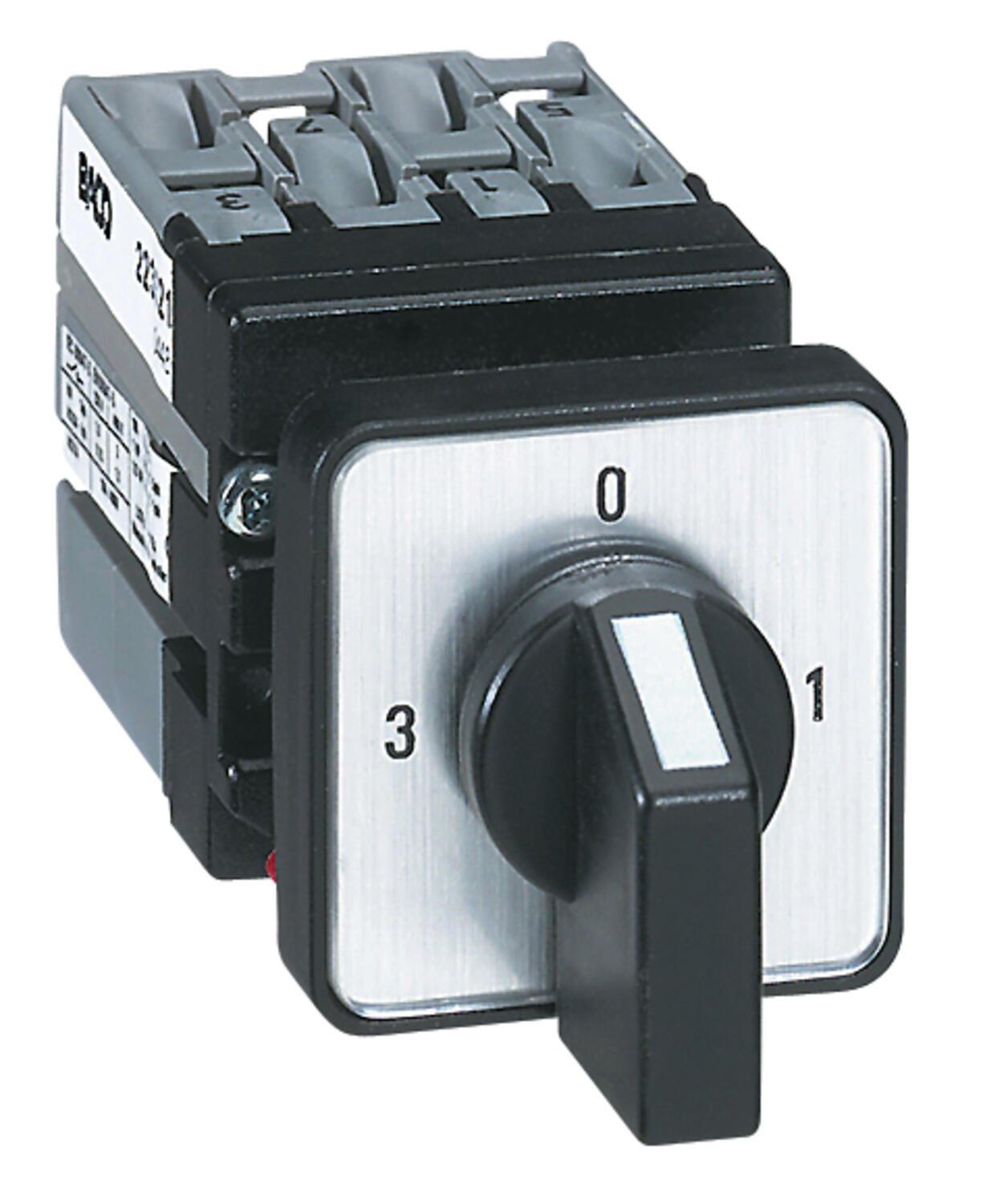

Mini Cam Switch 10A - 3 Way - 1 Pole
Art:
223515
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
3
|
1
|
3
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Selector switch
|
45 g
|
|
||
|
Mini Cam Switch 10A - 3 Way - 2 Pole
Art:
223516
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
6
|
2
|
3
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Selector switch
|
57 g
|
|
||
|
Mini Cam Switch 10A - 3 Way - 3 Pole
Art:
223517
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
9
|
3
|
3
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Selector switch
|
82 g
|
|
||
Mini Cam Switch 10A - 3 Way With Off - 1 Pole
Art:
223521
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
3
|
1
|
4
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Selector switch
|
45 g
|
|
||
|
Mini Cam Switch 10A - 3 Way With Off - 2 Pole
Art:
223522
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
6
|
2
|
4
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Selector switch
|
57 g
|
|
||
|
Mini Cam Switch 10A - 3 Way With Off - 3 Pole
Art:
223523
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
9
|
3
|
4
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Selector switch
|
82 g
|
|
||
Mini Cam Switch 10A - 4 Way - 1 Pole
Art:
223525
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
4
|
1
|
4
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Selector switch
|
45 g
|
|
||
|
Mini Cam Switch 10A - 4 Way - 2 Pole
Art:
223526
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
8
|
2
|
4
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Selector switch
|
69 g
|
|
||

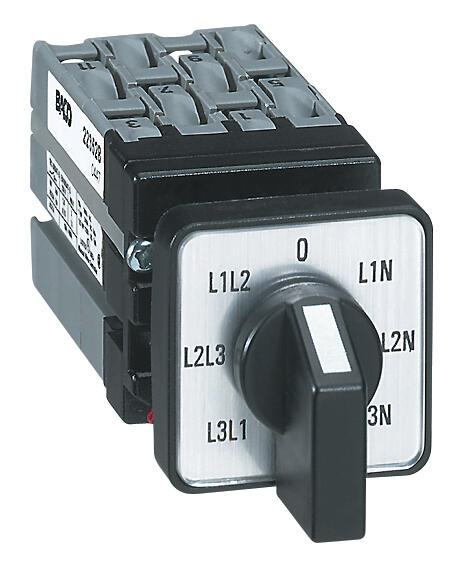

Mini Cam Switch 10A - Voltmeter 3 Phase
Art:
223527
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
4
|
1
|
4
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Voltmeter switch
|
45 g
|
|
||
Mini Cam Switch 10A - Voltmeter 3 Phase + Neutral
Art:
223528
Copied
|
30x30
|
45°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
6
|
1
|
7
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Voltmeter switch
|
57 g
|
|
||

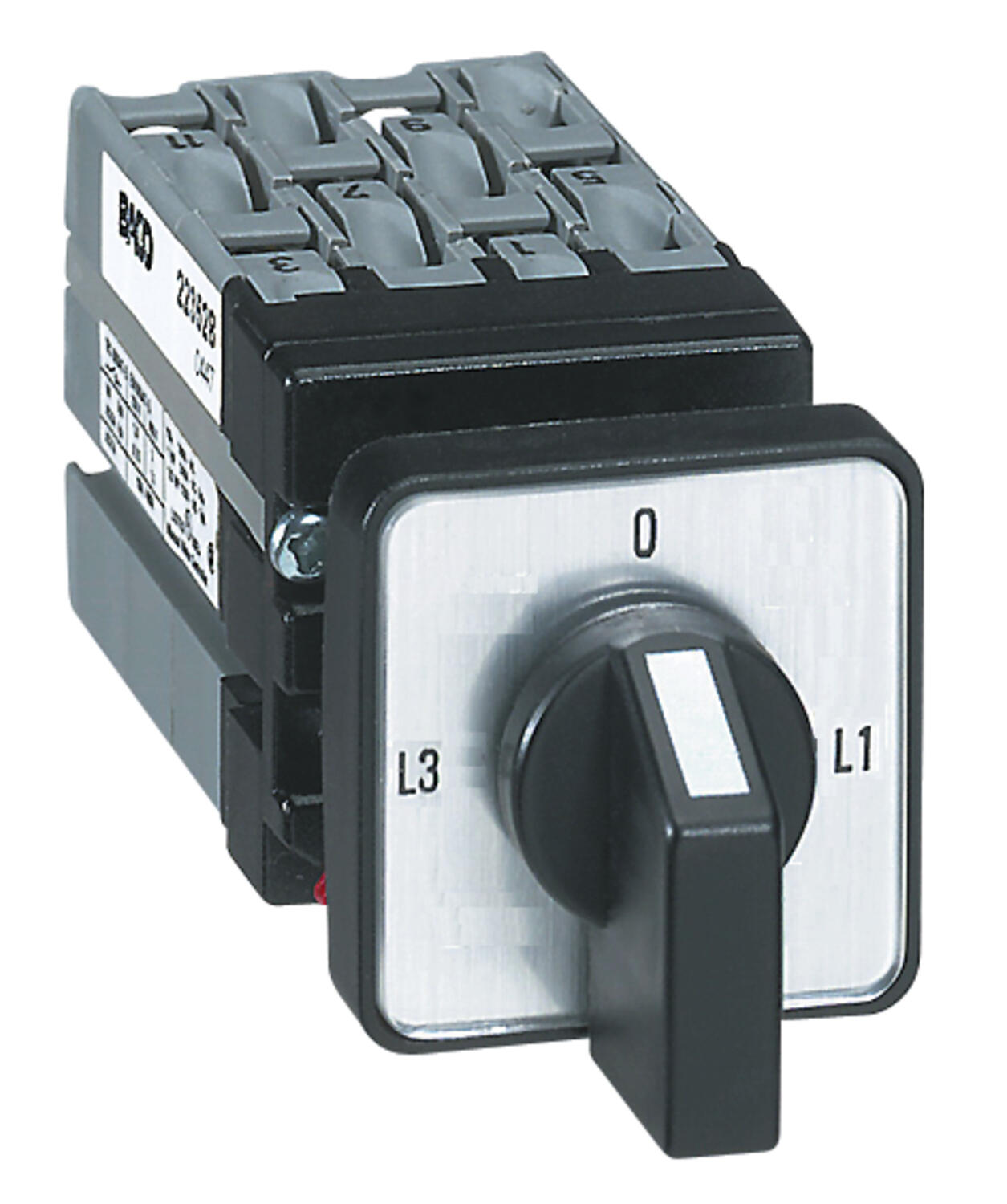

Mini Cam Switch 10A - Ammeter 3 CT's With Common Point
Art:
223529
Copied
|
30x30
|
90°
|
2x1,5 mm²
|
1x0,5 mm²
|
10 A
|
Stable
|
Single hole mounting Ø16mm/22.5mm
|
6
|
1
|
4
|
IP65
|
IP20
|
500 V
|
2.5 A
|
10 A
|
10 A
|
1.8 kW
|
3 kW
|
1.8 kW
|
2.2 kW
|
CE, CSA 22.2, IEC 60947-3 , IEC 60947-1, UL, UL 508
|
|
|
Ammeter switch
|
57 g
|
|
||

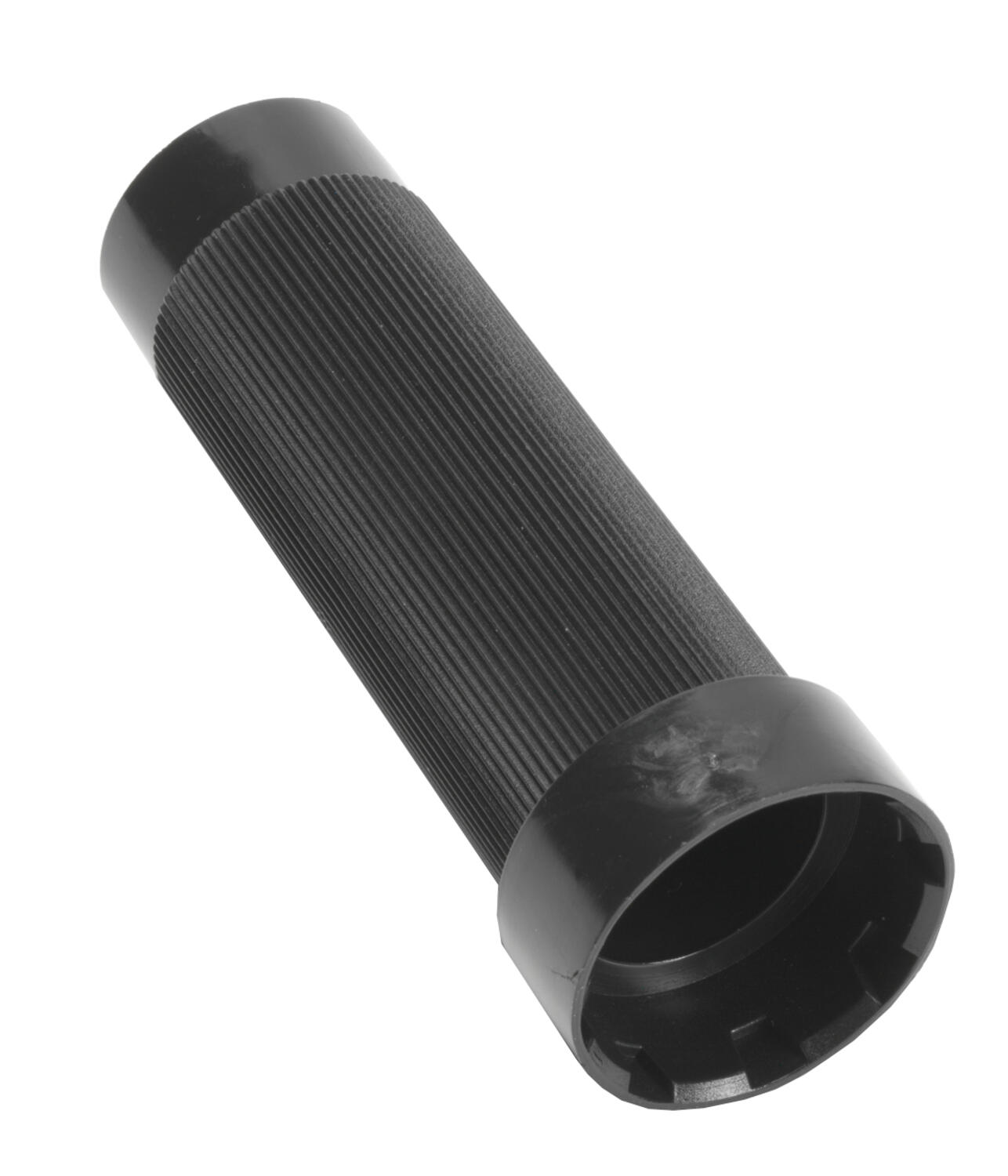

Mini Cam Switch Fixing Tool
Art:
223520
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50 °C
|
-20 °C
|
|
20 g
|
|
