CONTA-CLIP
CONTA-CLIP offers a wide range of cable trunking for a variety of different installation applications. The trunking has excellent dimensional stability and is burr free to prevent damage to cables and the installer. They also feature tight fitting covers which are easy to snap on and off. The pegs have pre-determined breakage points so that the cable trunking can easily be modified for your cabling. They are available in various sizes and in a halogen-free version.
Â
Â
General Data |
|
---|---|
Colour | Grey RAL 7030 |
With lid | Yes |
Dimensions |
|

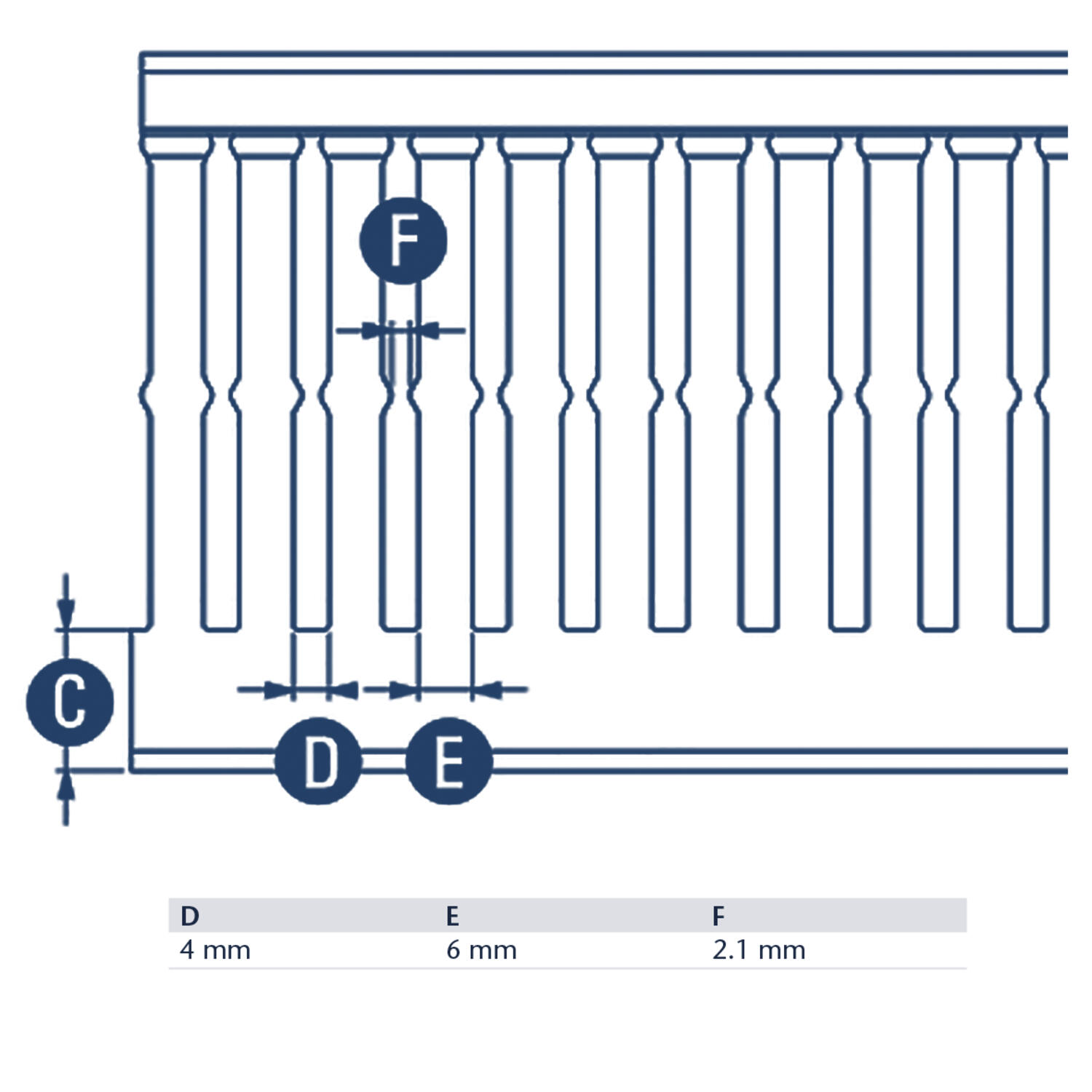

Width of slot | 4 mm |
Length | 200 mm |
Mounting | Rivet / screw |
Materials |
|
Material | PVC-U |
Flammability class | UL94-V0 |
Cadmium free | Yes |
Silicone-free | Yes |
Lead free | Yes |
*Invisible Heading* |
|
---|---|
Operating temperature from | -15 °C |
Operating temperature to | 60 °C |
Approvals |
|
Approvals | CE, UL, VDE |
Additional Data |
|
Tariff code | 39259020 |
Country of origin | TR |
Weight | 763 g |
Pack size | 3 Â |
Additional information | contains 1 x 100x60, 1 x 60x80 & 1 x 25x100 in 200mm lengths |
CONTA-CLIP offers a wide range of cable trunking for a variety of different installation applications. The trunking has excellent dimensional stability and is burr free to prevent damage to cables and the installer. They also feature tight fitting covers which are easy to snap on and off. The pegs have pre-determined breakage points so that the cable trunking can easily be modified for your cabling. They are available in various sizes and in a halogen-free version.
Â
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|

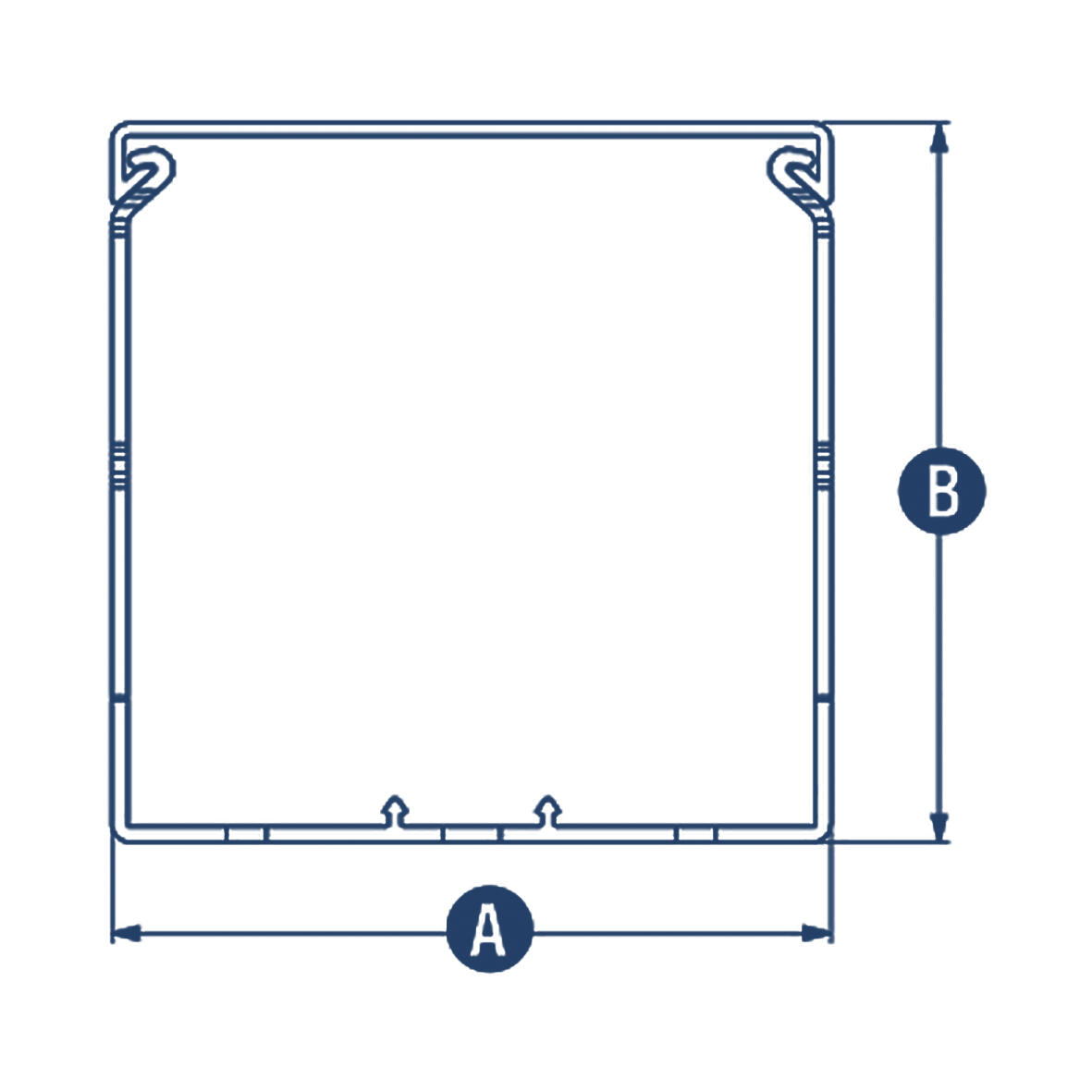

Parts | Width | Height | With lid | Width of slot | Inner width | Inner height | Length | Mounting | Weight | Pack size | Additional information | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Sample Box of VK Trunking, 100x60, 60x80 & 25x100, 200mm long
Art:
98526.0
Copied
|
|
|
Yes
|
4 mm
|
|
|
200 mm
|
Rivet / screw
|
763 g
|
3
|
contains 1 x 100x60, 1 x 60x80 & 1 x 25x100 in 200mm lengths
|
| ||
![]()
VK 25x30, Cable trunking, 100m per pack
Art:
17800.6
Copied
|
25 mm
|
30 mm
|
Yes
|
4 mm
|
22 mm
|
27 mm
|
2000 mm
|
Rivet / screw
|
240.63 g
|
100
|
|
| ||
![]()
VK 25x40, Cable trunking, 100m per pack
Art:
17801.6
Copied
|
25 mm
|
40 mm
|
Yes
|
4 mm
|
22 mm
|
37 mm
|
2000 mm
|
Rivet / screw
|
284.71 g
|
100
|
|
| ||
![]()
VK 40x40, Cable trunking, 52m per pack
Art:
17802.6
Copied
|
40 mm
|
40 mm
|
Yes
|
4 mm
|
37 mm
|
37 mm
|
2000 mm
|
Rivet / screw
|
359.23 g
|
52
|
|
| ||
![]()
VK 60x40, Cable trunking, 36m per pack
Art:
17803.6
Copied
|
60 mm
|
40 mm
|
Yes
|
4 mm
|
56 mm
|
37 mm
|
2000 mm
|
Rivet / screw
|
505 g
|
36
|
|
| ||
![]()
VK 25x60, Cable trunking, 60m per pack
Art:
17804.6
Copied
|
25 mm
|
60 mm
|
Yes
|
4 mm
|
21 mm
|
56 mm
|
2000 mm
|
Rivet / screw
|
389.23 g
|
60
|
|
| ||
![]()
VK 40x60, Cable trunking, 36m per pack
Art:
17805.6
Copied
|
40 mm
|
60 mm
|
Yes
|
4 mm
|
36 mm
|
56 mm
|
2000 mm
|
Rivet / screw
|
470.83 g
|
36
|
|
| ||
![]()
VK 60x60, Cable trunking, 24m per pack
Art:
17806.6
Copied
|
60 mm
|
60 mm
|
Yes
|
4 mm
|
56 mm
|
56 mm
|
2000 mm
|
Rivet / screw
|
652.78 g
|
24
|
|
| ||
![]()
VK 80x60, Cable trunking, 28m per pack
Art:
17807.6
Copied
|
80 mm
|
60 mm
|
Yes
|
4 mm
|
76 mm
|
56 mm
|
2000 mm
|
Rivet / screw
|
768.33 g
|
28
|
|
| ||
![]()
VK 100x60, Cable trunking, 20m per pack
Art:
17808.6
Copied
|
100 mm
|
60 mm
|
Yes
|
4 mm
|
96 mm
|
56 mm
|
2000 mm
|
Rivet / screw
|
995.45 g
|
20
|
|
| ||
![]()
VK 120x60, Cable trunking, 16m per pack
Art:
17809.6
Copied
|
120 mm
|
60 mm
|
Yes
|
4 mm
|
115 mm
|
56 mm
|
2000 mm
|
Rivet / screw
|
1050 g
|
16
|
|
| ||
![]()
VK 25x80, Cable trunking, 56m per pack
Art:
17810.6
Copied
|
25 mm
|
80 mm
|
Yes
|
4 mm
|
21 mm
|
76 mm
|
2000 mm
|
Rivet / screw
|
522.73 g
|
56
|
|
| ||
![]()
VK 40x80, Cable trunking, 40m per pack
Art:
17811.6
Copied
|
40 mm
|
80 mm
|
Yes
|
4 mm
|
36 mm
|
76 mm
|
2000 mm
|
Rivet / screw
|
595 g
|
40
|
|
| ||
![]()
VK 60x80, Cable trunking, 24m per pack
Art:
17812.6
Copied
|
60 mm
|
80 mm
|
Yes
|
4 mm
|
56 mm
|
76 mm
|
2000 mm
|
Rivet / screw
|
763.33 g
|
24
|
|
| ||
![]()
VK 80x80, Cable trunking, 20m per pack
Art:
17813.6
Copied
|
80 mm
|
80 mm
|
Yes
|
4 mm
|
76 mm
|
76 mm
|
2000 mm
|
Rivet / screw
|
866.67 g
|
20
|
|
| ||
![]()
VK 100x80, Cable trunking, 16m per pack
Art:
17814.6
Copied
|
100 mm
|
80 mm
|
Yes
|
4 mm
|
96 mm
|
76 mm
|
2000 mm
|
Rivet / screw
|
1030.45 g
|
16
|
|
| ||
![]()
VK 120x80, Cable trunking, 12m per pack
Art:
17815.6
Copied
|
120 mm
|
80 mm
|
Yes
|
4 mm
|
115 mm
|
76 mm
|
2000 mm
|
Rivet / screw
|
1187.5 g
|
12
|
|
| ||
![]()
VK 25x100, Cable trunking, 44m per pack
Art:
17816.6
Copied
|
25 mm
|
100 mm
|
Yes
|
4 mm
|
22 mm
|
96 mm
|
2000 mm
|
Rivet / screw
|
656.25 g
|
44
|
|
| ||
![]()
VK 40x100, Cable trunking, 28m per pack
Art:
17817.6
Copied
|
40 mm
|
100 mm
|
Yes
|
4 mm
|
36 mm
|
96 mm
|
2000 mm
|
Rivet / screw
|
726.67 g
|
28
|
|
| ||
![]()
VK 60x100, Cable trunking, 36m per pack
Art:
17818.6
Copied
|
60 mm
|
100 mm
|
Yes
|
4 mm
|
56 mm
|
96 mm
|
2000 mm
|
Rivet / screw
|
870.71 g
|
36
|
|
| ||
![]()
VK 80x100, Cable trunking, 24m per pack
Art:
17819.6
Copied
|
80 mm
|
100 mm
|
Yes
|
4 mm
|
76 mm
|
96 mm
|
2000 mm
|
Rivet / screw
|
1131 g
|
24
|
|
| ||
![]()
VK 100x100, Cable trunking, 24m per pack
Art:
17820.6
Copied
|
100 mm
|
100 mm
|
Yes
|
4 mm
|
96 mm
|
96 mm
|
2000 mm
|
Rivet / screw
|
1162.5 g
|
24
|
|
| ||
![]()
VK 150x100, Cable trunking, 16m per pack
Art:
17821.6
Copied
|
150 mm
|
100 mm
|
Yes
|
4 mm
|
145 mm
|
96 mm
|
2000 mm
|
Rivet / screw
|
2400 g
|
16
|
|
| ||
![]()
VK-D 25mm wide trunking cover, 20m per pack
Art:
17830.6
Copied
|
25 mm
|
|
No
|
|
22 mm
|
|
2000 mm
|
|
103 g
|
20
|
|
| ||
![]()
VK-D 40mm wide trunking cover, 20m per pack
Art:
17832.6
Copied
|
40 mm
|
|
No
|
|
36 mm
|
|
2000 mm
|
|
126.25 g
|
20
|
|
| ||
![]()
VK-D 60mm wide trunking cover, 20m per pack
Art:
17833.6
Copied
|
60 mm
|
|
No
|
|
56 mm
|
|
2000 mm
|
|
211 g
|
20
|
|
| ||
![]()
VK-D 80mm wide trunking cover, 20m per pack
Art:
17834.6
Copied
|
80 mm
|
|
No
|
|
76 mm
|
|
2000 mm
|
|
335.67 g
|
20
|
|
| ||
![]()
VK-D 100mm wide trunking cover, 20m per pack
Art:
17835.6
Copied
|
100 mm
|
|
No
|
|
96 mm
|
|
2000 mm
|
|
398.17 g
|
20
|
|
| ||
![]()
VK-D 120mm wide trunking cover, 20m per pack
Art:
17836.6
Copied
|
120 mm
|
|
No
|
|
115 mm
|
|
2000 mm
|
|
412 g
|
20
|
|
| ||
![]()
VK-D 150mm wide trunking cover, 20m per pack
Art:
17837.6
Copied
|
150 mm
|
|
No
|
|
145 mm
|
|
2000 mm
|
|
595 g
|
20
|
|
|
Select a variant in the list
